ICEPURE WFC5300A Under Sink Water Filter System Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your ICEPURE WFC5300A Under Sink Water Filter System. Please read this manual thoroughly before installation and retain it for future reference. This system is designed to provide clean, filtered water directly from your existing faucet.

ICEPURE WFC5300A Under Sink Water Filter system packaging and filter unit.

Figure 1: The product packaging displays the ICEPURE WFC5300A Under Sink Water Filter system, highlighting its model number and key features. The filter unit itself is shown alongside the box.

2. Safety Information

Ensure all water supply lines are turned off before beginning installation.
This filter is designed for cold water lines only. Do not install on hot water lines.
Do not expose the filter to freezing temperatures.
Ensure all connections are tight to prevent leaks, but do not overtighten.
This installation must comply with all applicable state and local regulations.

3. Product Overview

The ICEPURE WFC5300A is an under-sink water filter system designed for high-efficiency filtration. It utilizes a 0.5 micron carbon block to effectively reduce various contaminants while retaining beneficial minerals.

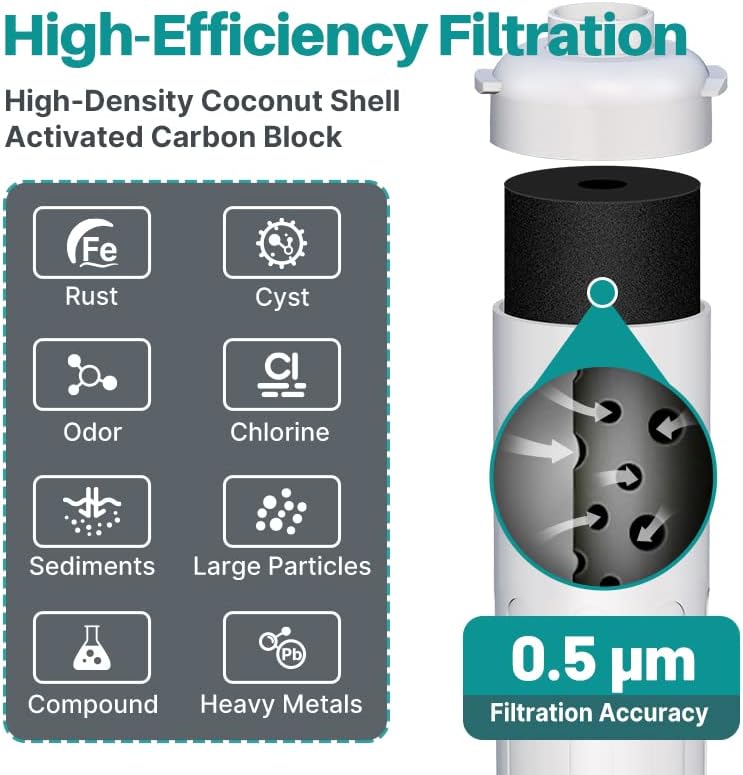

Diagram illustrating high-efficiency filtration of ICEPURE WFC5300A, showing removal of various contaminants down to 0.5 microns.

Figure 2: A visual representation of the filter's high-efficiency filtration process, detailing its 0.5 micron accuracy and ability to remove rust, cysts, odor, chlorine, sediments, large particles, compounds, and heavy metals.

The system is certified by NSF/ANSI 42 for material safety, structural integrity, and aesthetic chlorine reduction, and NSF/ANSI/CAN 372 for lead-free compliance.

Certifications for ICEPURE WFC5300A water filter, including NSF/ANSI 42, 372, Lead-Free, BPA-Free, and Food Grade.

Figure 3: This image displays the authoritative certifications for the ICEPURE WFC5300A filter, ensuring material safety, structural integrity, chlorine reduction, and lead-free compliance.

4. Setup and Installation

The ICEPURE WFC5300A features a super simple plug-and-play installation design, making it convenient for household and commercial use. No professional assistance is typically required.

Diagram illustrating the simple plug-and-play installation of the ICEPURE under sink water filter system.

Figure 4: This diagram demonstrates the straightforward, plug-and-play installation design, requiring no professional assistance and ensuring good sealing performance.

4.1. Installation Steps

Prepare the Area: Clear the space under your sink where the filter will be installed. Ensure you have access to the cold water supply line.
Turn Off Water Supply: Locate the cold water supply valve under your sink and turn it off completely. Open your kitchen faucet to relieve any remaining water pressure.
Mount the Filter Head: Use the provided mounting template to mark the drilling points for the filter head. Secure the filter head to the cabinet wall using the included screws.
Connect Inlet Hose: Connect the system's inlet hose to the cold water supply valve. If your inlet valve is 3/8 inch compression, you can connect directly. If it's a 1/2 inch FIP inlet valve, use the provided 1/2 inch FIP to 3/8 inch compression adapter. Ensure the O-ring is correctly positioned for a secure seal.
Connect Outlet Hose: Connect the system's outlet hose to your faucet's inlet hose. Ensure the O-ring is correctly positioned for a secure seal.
Insert Filter Cartridge: Align the filter cartridge with the positioning holes on the filter head. Push the filter in and turn clockwise to lock it into place. You should hear a click sound to confirm proper installation.
Check for Leaks: Slowly turn on the cold water supply valve. Check all connections for any leaks. If leaks occur, turn off the water supply, re-tighten connections, and re-check.
Flush the System: Open your kitchen faucet and let the water run for at least 5 minutes (or until 2 gallons have passed through) to flush the new filter and remove any carbon fines.

4.2. Installation Videos

How to connect the 3/8 inch inlet valve?

This video provides step-by-step instructions on connecting the 3/8 inch inlet valve to the water filtration system, ensuring a secure and leak-free connection.

How to connect the 1/2 inch inlet valve?

This video provides step-by-step instructions on connecting the 1/2 inch inlet valve to the water filtration system, ensuring a secure and leak-free connection.

ICEPURE WFS5300A Under Sink Water Filter System Installation

A detailed video guide covering the complete installation process for the ICEPURE WFS5300A Under Sink Water Filter System, from preparing the area to final checks.

5. Operating Instructions

Once installed and flushed, your ICEPURE WFC5300A system operates automatically. Simply turn on your cold water faucet to dispense filtered water. The system maintains a high flow rate for convenient daily use.

Image showing a faucet with high water flow, a child drinking clean water, and a clean earth graphic, emphasizing high flow rate and healthy water.

Figure 5: The system provides a high flow rate of over 2.5 gallons per minute at 60 psi, ensuring quick access to great-tasting, clean, and healthy water.

5.1. About TDS (Total Dissolved Solids)

This Under Sink Filtration System is not designed to reduce TDS. It filters out harmful contaminants while retaining essential beneficial minerals in the water. Therefore, TDS readings will remain largely unchanged.

Image of hands holding a glass of water under a faucet with a warning about TDS, explaining that the filter retains beneficial minerals.

Figure 6: This filter system is designed to remove contaminants while retaining beneficial minerals, therefore it is not intended to reduce Total Dissolved Solids (TDS) levels.

6. Maintenance

6.1. Filter Replacement

The ICEPURE WFC5300A filter has a large filtration capacity of 22,000 gallons or 3 years when used with municipal water. For optimal performance, it is recommended to replace the filter every 3 years.

To replace the filter:

Turn off the cold water supply.
Open the faucet to relieve pressure.
Turn the old filter cartridge counter-clockwise to unlock and remove it.
Insert the new filter cartridge into the filter head, aligning the pillars.
Turn the new filter cartridge clockwise to lock it into place. You should hear a click.
Slowly turn on the cold water supply and check for leaks.
Flush the new filter by running water for 5 minutes.

7. Troubleshooting

Problem	Possible Cause	Solution
Water Leakage	Loose connections, missing/damaged O-rings.	Turn off water supply, check and tighten all connections. Ensure O-rings are properly seated. Apply Teflon tape to external threads if necessary.
Low Water Flow	Clogged filter cartridge, low water pressure.	Replace the filter cartridge if it's past its service life. Check household water pressure.
Bad Taste/Odor Returns	Filter cartridge needs replacement.	Replace the filter cartridge.

8. Specifications

Model: WFC5300A
Material: Lead-free and Food-grade Material
Product Dimensions: 3.6"D x 3.6"W x 10.8"H
Item Weight: 1.63 pounds (740 Grams)
Filtration Capacity: 22,000 Gallons or 3 Years
Filtration Accuracy: 0.5 Micron
External Testing Certification: IAPMO, RoHS, NSF/ANSI 42, NSF/ANSI/CAN 372
Product Benefits: Provides large filtration capacity and effective removal of contaminants with authoritative certifications.
Compatible Water Purifier Models: ICEPURE WFS5300A

9. Warranty and Support

ICEPURE offers a 1-Year Return Policy Guaranteed and a Product Life Time Warranty within Each Product's Service Life. For any problems during the installation process or product inquiries, please contact customer service.

Email: support@icepurefilters.com
Website: www.icepurefilter.com
Phone: +1-866-581-8802 (Mon-Fri 9:00 AM to 5:00 PM PST)
