BEETRO 20-inch Pressure Washer Surface Cleaner

1. Introduction

Thank you for choosing the BEETRO 20-inch Pressure Washer Surface Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new surface cleaner. This device is designed to provide professional-level cleaning for large flat surfaces such as driveways, patios, decks, and sidewalks, significantly reducing cleaning time compared to standard nozzles.

Image 1.1: Overview of the BEETRO 20-inch Pressure Washer Surface Cleaner.

2. Safety Information

Always observe basic safety precautions when using this product to reduce the risk of injury or damage. This surface cleaner is intended for use with pressure washers only. Do not connect to a garden hose or water hose directly.

• Read the Pressure Washer Manual: Always refer to your pressure washer's instruction manual for specific safety guidelines and operating procedures.
• Wear Protective Gear: Always wear appropriate personal protective equipment, including safety glasses, gloves, and protective footwear, to prevent injury from high-pressure spray or debris.
• Maintain a Firm Grip: The high-pressure water can cause kickback. Maintain a firm grip on the handle during operation.
• Keep Clear of Nozzles: Never direct the spray at people, pets, or electrical equipment. The rotating jets operate at extremely high pressure.
• Check Connections: Ensure all connections are secure before starting the pressure washer to prevent leaks and accidental disconnections.
• Surface Suitability: Use only on surfaces that can withstand high-pressure cleaning. Test a small, inconspicuous area first.
• Children and Pets: Keep children and pets away from the work area.

3. Package Contents

Verify that all components are present before assembly and operation. If any parts are missing or damaged, contact BEETRO customer support.

• 20-inch Surface Cleaner Unit with 4 Wheels
• Stainless Steel Handle Assembly (Adjustable)
• High-Pressure Spray Gun
• Quick Connect Fittings (3/8'' Quick Plug, M22-14mm, M22-15mm Female fittings)
• Replacement Nozzles (if included)
• Nozzle Cleaning Tool
• Teflon Tape
• User Manual

Image 3.1: Included accessories and connectors.

4. Setup Instructions

Follow these steps to assemble and connect your surface cleaner to a compatible pressure washer.

1. Assemble the Handle: Attach the stainless steel handle assembly to the main surface cleaner unit. Ensure all bolts and fasteners are securely tightened. The handle is angle-adjustable to suit different user heights.


Image 4.1: Adjusting the angle of the handle for comfortable use.

2. Connect the Spray Gun: Connect the high-pressure spray gun to the top of the handle assembly.
3. Connect to Pressure Washer Hose: The surface cleaner is compatible with most gas pressure washers rated 3700-4500 PSI. It connects to the pressure washer hose with a 3/8'' quick plug. Additional M22-14mm and M22-15mm female fittings are provided for broader compatibility. Apply Teflon tape to threaded connections for a watertight seal.


Image 4.2: Connection points and included adapters for the spray gun.

4. Check for Leaks: Before full operation, turn on the water supply to the pressure washer and check all connections for leaks.

5. Operating Instructions

The BEETRO surface cleaner utilizes dual high-pressure rotating jets to clean surfaces efficiently.

1. Start Pressure Washer: Follow your pressure washer's instructions to start it.
2. Engage Trigger: Squeeze the trigger on the spray gun to begin water flow to the surface cleaner. The trigger features a locking design to reduce effort during extended use.
3. Move the Cleaner: Push the surface cleaner slowly and steadily over the area to be cleaned. The 4 universal castors allow for fast and flexible movement, making it ideal for large projects.


Image 5.1: Universal castors provide 360-degree rotation for easy maneuverability.

4. Overlap Passes: For best results and to avoid streaks, overlap each cleaning pass slightly.
5. Splash-Free Design: The dome housing and tough flexible bristles control water splash-out, keeping you dry during cleaning.


Image 5.2: The splash-free skirt helps contain water and debris.

6. Cleaning Effectiveness: The dual high-pressure rotating jets clean an area 20 inches wide, achieving cleaning speeds up to 8 times faster than standard nozzles.

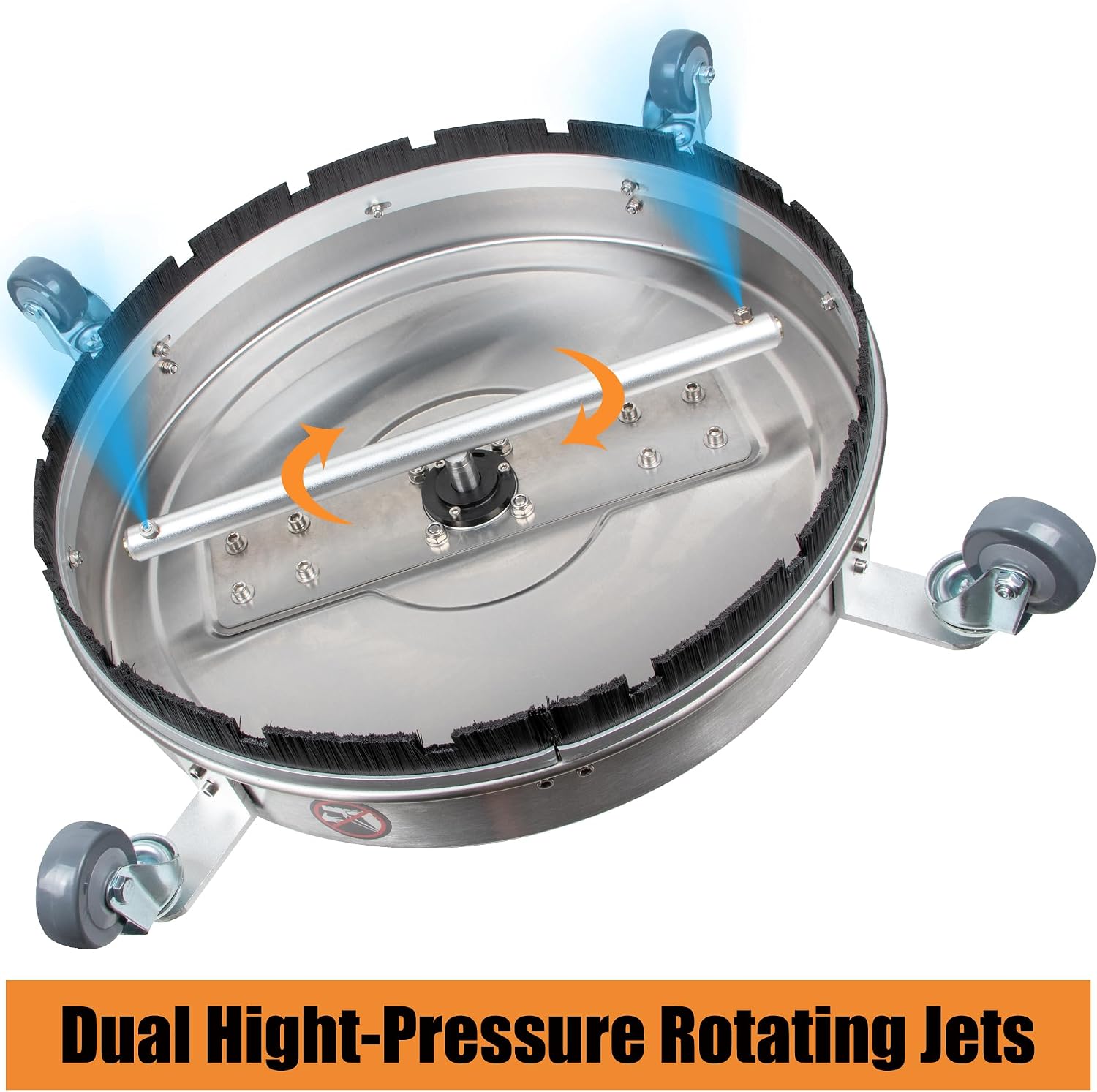

Image 5.3: Dual high-pressure rotating jets for efficient cleaning.

Official Product Video: BEETRO 20'' Stainless Steel Surface Cleaner in Action

Video 5.1: This video demonstrates the BEETRO 20-inch Surface Cleaner in use, showcasing its dual high-pressure rotating jets, splash-free operation, and easy maneuverability on various surfaces like patios and driveways.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your surface cleaner.

• Clean After Each Use: Rinse the surface cleaner thoroughly with clean water after each use to remove dirt, debris, and chemical residues.
• Inspect Nozzles: Periodically check the rotating nozzles for clogs or damage. Use the provided nozzle cleaning tool to clear any blockages.
• Check Connections: Inspect all quick-connect fittings and hoses for wear, leaks, or damage. Replace worn parts as necessary.
• Lubricate Wheels: If the wheels become stiff, apply a small amount of lubricant to the axles.
• Storage: Store the surface cleaner in a clean, dry place, protected from freezing temperatures. Disconnect it from the pressure washer and drain any remaining water.

7. Troubleshooting

Refer to this section for solutions to common issues.

8. Specifications

9. Warranty and Support

BEETRO products are manufactured to high-quality standards. For warranty information, product support, or to purchase replacement parts, please contact BEETRO customer service through the retailer where the product was purchased or visit the official BEETRO website. Please have your model number (TC0457) and purchase date available when contacting support.
