BLACK+DECKER BXWT-H303 Platform Trolley User Manual

Introduction

The BLACK+DECKER BXWT-H303 Platform Trolley is a versatile and robust transport solution designed for moving various items with ease. With a maximum load capacity of 80 kg, this folding hand trolley features a spacious platform and a durable steel construction, making it ideal for both domestic and light industrial use. Its foldable design ensures compact storage when not in use.

Safety Information

Always observe the following safety precautions when operating the platform trolley:

• Do not exceed the maximum load capacity of 80 kg (176.4 lbs). Overloading can cause damage to the trolley and lead to injury.
• Ensure the handle is fully extended and locked into position before use.
• Distribute the load evenly across the platform to maintain stability.
• Always push the trolley, do not pull it, especially when heavily loaded, to maintain better control.
• Be aware of your surroundings and clear the path of any obstacles before moving the trolley.
• Use caution when navigating inclines or declines. Maintain a firm grip on the handle.
• Keep hands and feet clear of moving parts, especially during folding and unfolding.
• Store the trolley in a dry, secure location when not in use.

Components

Familiarize yourself with the main components of your BLACK+DECKER BXWT-H303 Platform Trolley:

This image displays the BLACK+DECKER BXWT-H303 Platform Trolley with its key components labeled, including the Handle Grip, Support Bar, Folding Frame, Loading Platform, Swivel Casters, and Wheels.

• Handle Grip: Ergonomic grip for comfortable handling.
• Support Bar: Provides stability to the handle when extended.
• Folding Frame: Allows the handle to fold flat for compact storage.
• Loading Platform: The main surface for placing items, featuring a non-slip texture.
• Swivel Casters: Rear wheels that rotate 360 degrees for easy maneuverability.
• Wheels: Durable plastic wheels for smooth movement.

Setup and Assembly

The BLACK+DECKER BXWT-H303 Platform Trolley comes largely pre-assembled. Follow these steps to prepare it for use:

1. Unpack: Carefully remove the trolley from its packaging.
2. Unfold the Handle:
   • Place the trolley on a flat, stable surface.
   • Grasp the handle and gently lift it upwards from its folded position.
   • Continue lifting until the handle clicks securely into its upright, locked position. Ensure the locking mechanism is fully engaged.
3. Inspect: Before first use, check all bolts and connections to ensure they are tight and secure.

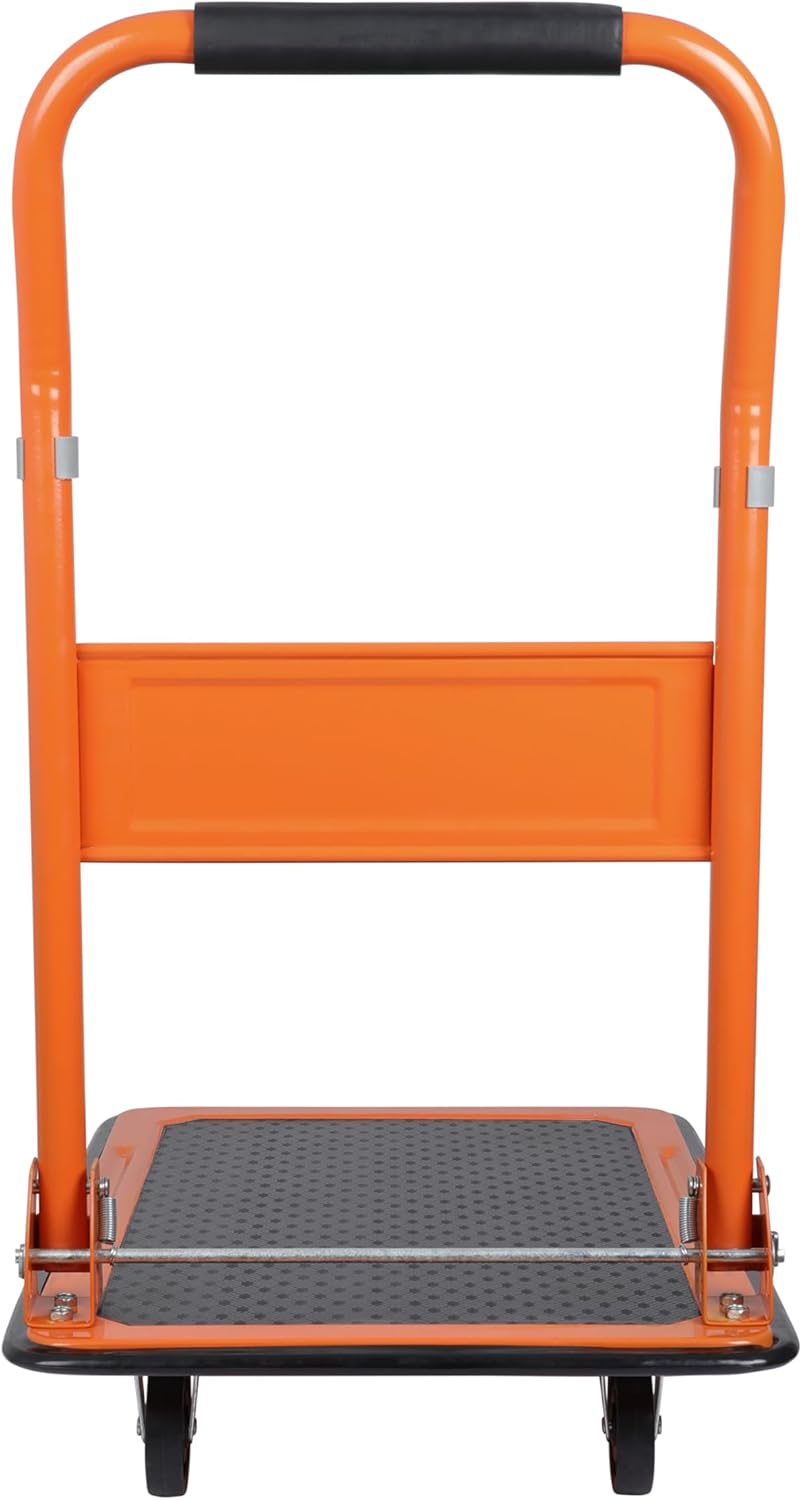

This image shows the BLACK+DECKER BXWT-H303 Platform Trolley with its handle fully extended and ready for operation.

Operating Instructions

Using your platform trolley effectively and safely:

• Loading: Place items centrally on the platform. For multiple items, distribute weight evenly to prevent tipping. Do not stack items higher than the handle, if possible, to maintain visibility.
• Pushing: Always push the trolley from behind the handle. This provides better control and leverage.
• Maneuvering: The swivel casters at the rear allow for easy turning and navigation in tight spaces. Use gentle, controlled movements.
• Stability: When stopping, ensure the trolley is on a flat surface. Avoid leaving a loaded trolley unattended on an incline.

A user demonstrates transporting a toolbox on the BLACK+DECKER BXWT-H303 Platform Trolley, highlighting its utility for various items.

This image shows a person pushing the BLACK+DECKER BXWT-H303 Platform Trolley loaded with two wooden crates, illustrating its capacity for heavier loads.

Maintenance

Regular maintenance will extend the life of your platform trolley:

• Cleaning: Wipe down the platform and frame with a damp cloth after use, especially if exposed to dirt or moisture. Avoid abrasive cleaners.
• Wheels: Periodically check the wheels for debris (e.g., string, hair) that may impede their rotation. Clean as necessary.
• Lubrication: Apply a small amount of silicone spray or light oil to the wheel axles and swivel caster mechanisms annually to ensure smooth operation.
• Fasteners: Regularly inspect all bolts, screws, and rivets to ensure they are tight. Tighten any loose fasteners.

A close-up view of one of the durable plastic wheels, emphasizing the importance of checking them for debris and ensuring smooth rotation.

Storage

To store your BLACK+DECKER BXWT-H303 Platform Trolley compactly:

1. Empty the Platform: Ensure no items are on the platform.
2. Fold the Handle:
   • Locate the locking mechanism at the base of the handle.
   • Disengage the lock (this may involve pulling a lever or pressing a button, refer to the specific design of your trolley).
   • Gently push the handle downwards until it lies flat against the platform.
3. Store: Once folded, the trolley is significantly more compact and can be stored in tight spaces, such as a closet, garage, or under a workbench.

This image shows the BLACK+DECKER BXWT-H303 Platform Trolley in its compact, folded configuration, ready for storage.

A top-down view of the folded BLACK+DECKER BXWT-H303 Platform Trolley, demonstrating its reduced footprint for easy storage.

Troubleshooting

Specifications

This infographic provides key specifications for the platform trolley, including load capacity, weight, material, and dimensions.

An image detailing the overall dimensions of the BLACK+DECKER BXWT-H303 Platform Trolley when unfolded.

Warranty and Support

For warranty information, service, or technical support, please contact BLACK+DECKER customer care:

This image provides contact details for BLACK+DECKER customer support, including phone number, email, and WhatsApp.

• Phone: 1800-203-0644 (Monday-Saturday, 09:00 AM - 06:00 PM IST, except government holidays)
• Email: SBD-CUSTOMERCOMMUNICATIONS@SBDINC.COM
• WhatsApp: +91 96060 55835
• Service Network: Over 500+ authorized service centers.
• For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact customer support directly.
