Introduction
Thank you for choosing the BABY JOY 4-in-1 Pack and Play. This versatile product is designed to adapt to your child's growth, functioning as a bassinet, bedside sleeper, changing table, and activity center. This manual provides essential instructions for safe assembly, operation, maintenance, and troubleshooting to ensure a secure and comfortable environment for your baby. Please read all instructions carefully before assembly and use, and keep this manual for future reference.
Image: The BABY JOY 4-in-1 Pack and Play illustrating its various configurations: a bassinet for infants, a bedside sleeper for co-sleeping, a changing table for diaper changes, and a spacious activity center for toddlers.
Safety Information
Your child's safety is paramount. Always follow these guidelines:
- Always ensure all locking mechanisms are securely engaged before placing a child in the playard.
- Never leave a child unattended in the playard or on the changing table.
- Discontinue use of the bassinet and changing table when the child begins to push up on hands and knees, or reaches the maximum weight limit (22 lbs for bassinet/changing table, 33 lbs for playard).
- Do not modify the product or use accessories not approved by the manufacturer.
- Keep small parts away from children to prevent choking hazards.
- Ensure the playard is placed on a flat, level surface.
- Regularly inspect the product for any signs of wear, damage, or loose parts.
Image: The BABY JOY Pack and Play highlighting its compliance with CPSC and ASTM International safety standards, suitable for children aged 0-36 months.
Product Components
The BABY JOY 4-in-1 Pack and Play includes the following components:
- Main Playard Frame (Iron + Oxford Cloth + Mesh)
- Removable Bassinet Bed
- Detachable U-shaped Diaper Changing Table
- Mattress Pad
- Music Box with Rotatable Toys
- Storage Bag
- Travel Carry Bag
- Safety Strap for Bedside Sleeper Mode
- Wheels with Brakes
Image: A detailed diagram illustrating the product dimensions and various components, such as the main playard, detachable diaper table, storage bag, and the compact folded size for travel.
Setup Instructions
Follow these steps to correctly set up your BABY JOY Pack and Play:
- Keep Playpen Upright: Ensure the playard is standing vertically before unfolding.
- Pull Up and Lock All 4 Bed Rails: Grasp the armrest and lift it upwards until you hear a click, indicating it is locked. Repeat for all four sides.
- Ensure All Playpen Rails are Secured: Verify that all four side rails are firmly locked into place.
- Press Down on Playpen Bottom: Only after all four sides are locked, press down on the center of the playpen bottom until it lies flat and is secure.
IMPORTANT NOTE: If you press the middle part down first, the side rails will not lock correctly. Always lock the four sides first.
Image: Step-by-step visual instructions for assembling the playard, emphasizing the correct sequence of locking the side rails before pressing down the base.
Attaching the Bassinet and Changing Table
- To attach the bassinet, align its clips with the top rails of the playard and secure them firmly.
- For the changing table, position it over the playard rails and ensure it is stable. The U-shaped design includes a safety belt; always use it to prevent the baby from rolling off.
- The music box and hanging toys can be attached to the designated armrest.
Operating Modes
1. Baby Bassinet
The bassinet bed provides a soft and elevated sleeping surface for newborns. It is designed for easy access to your baby.
- Suitable for newborns until they can push up on hands and knees, or reach 22 lbs.
- The included mattress provides comfort.
- Attach the music box with rotatable toys to soothe your baby. The music box is clockwork and requires no batteries.
Image: A baby resting in the bassinet, accompanied by a clockwork music box and hanging toys designed to help soothe the baby to sleep.
2. Baby Bedside Sleeper
The bedside sleeper mode allows you to keep your baby close for co-sleeping, facilitating nighttime feeding and comforting.
- Adjust the armrest on one side to one of the 3 available levels to match your bed height.
- Lock the wheels to prevent movement.
- Use the provided safety strap to securely connect the bedside crib to your adult bed for increased stability.
- NOTE: The height of the mattress itself cannot be adjusted.

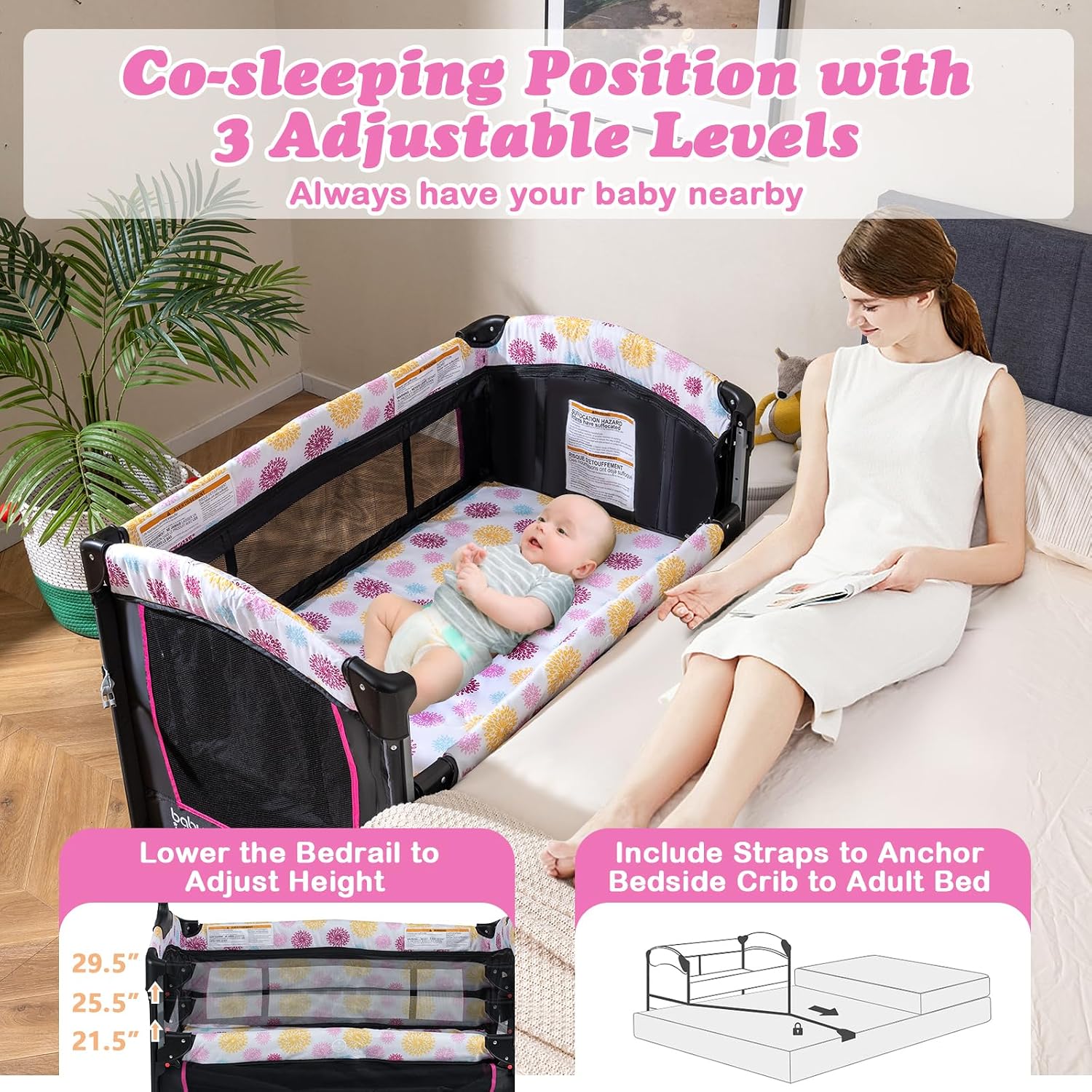

Image: The bedside co-sleeper configuration, demonstrating how the side rail can be lowered to three adjustable levels and secured to an adult bed using a safety strap, keeping the baby close.
Image: The BABY JOY Pack and Play configured as a bedside sleeper, allowing a baby to sleep safely adjacent to an adult bed.
3. Diaper Changing Table
The detachable U-shaped changing table provides a convenient and ergonomic station for diaper changes.
- The changing table comes with a safety belt; always use it to prevent the baby from rolling off.
- Maximum weight capacity for the changing table is 22 lbs.
- The attached storage bag can hold diapers, wipes, and other essentials.
Image: A parent utilizing the detachable U-shaped diaper changing table, which includes a safety belt and a convenient side storage bag for baby necessities.
4. Activity Center (Playard)
Once the bassinet and changing table are removed, the main playpen serves as a secure activity center for older babies and toddlers.
- Allows babies to stand and play safely.
- Mesh sides provide visibility and ventilation.
- Maximum weight capacity for the activity center is 33 lbs.
Folding and Storage
The BABY JOY Pack and Play features a quick-fold design for easy storage and transport.
- Remove the bassinet, changing table, and any accessories.
- Lift the center of the playard bottom.
- Release the locks on the side rails by pressing the buttons (refer to setup instructions in reverse).
- Bring the four sides together to fold the playard compactly.
- Place the folded playard into the included Oxford carry bag for convenient transport or storage.
The integrated wheels with brakes allow for easy movement of the assembled playard within your home.
Video: An official product video demonstrating the assembly and various features of the BABY JOY 4-in-1 Pack and Play, including its use as a bassinet and bedside sleeper.
Maintenance
Regular cleaning and maintenance will prolong the life of your Pack and Play.
- Cleaning: Wipe down fabric and mesh surfaces with a damp cloth and mild soap. Rinse thoroughly and air dry. Do not use harsh abrasives or bleach.
- Mattress: The mattress pad can be spot cleaned. Ensure it is completely dry before re-inserting.
- Frame: Clean the iron frame with a damp cloth.
- Storage: When not in use, store the folded playard in its carry bag in a cool, dry place.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Side rails do not lock. | The center of the playard bottom was pressed down before the side rails were locked. | Lift the center of the playard bottom slightly, then pull up each side rail firmly until it clicks into place. Once all four sides are locked, press the bottom down. |
| Playard feels unstable. | Not all locking mechanisms are fully engaged, or the playard is on an uneven surface. | Ensure all four side rails are locked and the bottom is fully pressed down. Verify the playard is on a flat, level surface. Check that wheels are locked if applicable. |
| Changing table or bassinet not secure. | Improper attachment to the playard rails. | Re-attach the component, ensuring all clips and fasteners are securely engaged with the playard's top rails. |
Specifications
- Brand: BABY JOY
- Model Number: BP-90
- Color: Rose
- Material Type: Iron + Oxford Cloth + Mesh
- Age Range Description: Newborn to Toddlers (0-36 Months)
- Item Dimensions (L x W x H): 43.5 x 27 x 33 inches
- Folded Size: 27.5 x 10 x 10 inches
- Item Weight: 25 pounds
- Maximum Weight Recommendation (Playard): 33 pounds
- Maximum Weight Recommendation (Bassinet/Changing Table): 22 pounds
Warranty and Support
For warranty information or if you encounter any issues not covered in this manual, please contact BABY JOY customer support. Keep your purchase receipt as proof of purchase.
Contact Information: Please refer to the product packaging or the official BABY JOY website for the most current customer service contact details.
