Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your ocioc LED Flush Mount Ceiling Light Fixture. Please read these instructions thoroughly before installation and retain them for future reference.
Image: The ocioc 12-inch LED Flush Mount Ceiling Light Fixture.
Safety Information
- Electrical Safety: Always turn off the power at the circuit breaker before beginning any electrical work. Ensure proper grounding.
- Qualified Electrician: If you are unsure about the installation process, consult a qualified electrician.
- Indoor Use Only: This fixture is designed for indoor use in dry locations. Do not expose to water or excessive moisture.
- Non-Dimmable: This product is not compatible with dimmer switches. Use with a standard ON/OFF wall switch only.
- Secure Mounting: Ensure the fixture is securely mounted to a stable ceiling junction box.
Package Contents
Verify that all components are present before installation:
- ocioc LED Flush Mount Ceiling Light Fixture (1 unit)
- Mounting Accessories (including Flat Head Screws x2, Wire Nuts x2, Tapping Screws x2, Anchorings x2)
Image: Diagram showing product dimensions and a list of included accessories.
Setup and Installation
Follow these steps for proper installation:
- Turn Off Power: Locate the circuit breaker for the room where you are installing the light and turn off the power. Verify that the power is off before proceeding.
- Remove Base Plate: Gently twist the light fixture counter-clockwise to detach the base plate from the main lamp body.
- Secure Base Plate: Align the base plate with your ceiling junction box. Use the provided screws and anchorings to securely fasten the base plate to the ceiling. Ensure it is firmly attached.
- Connect AC Cables: Connect the household electrical wires to the corresponding wires on the light fixture using the provided wire nuts. Typically, black connects to black (live), white connects to white (neutral), and the ground wire connects to the ground wire. Ensure all connections are secure.
- Attach Light Fixture: Carefully push the connected wires and wire nuts into the junction box. Align the main light fixture body with the secured base plate and rotate it clockwise until it locks firmly into place.
- Restore Power: Turn the power back on at the circuit breaker.

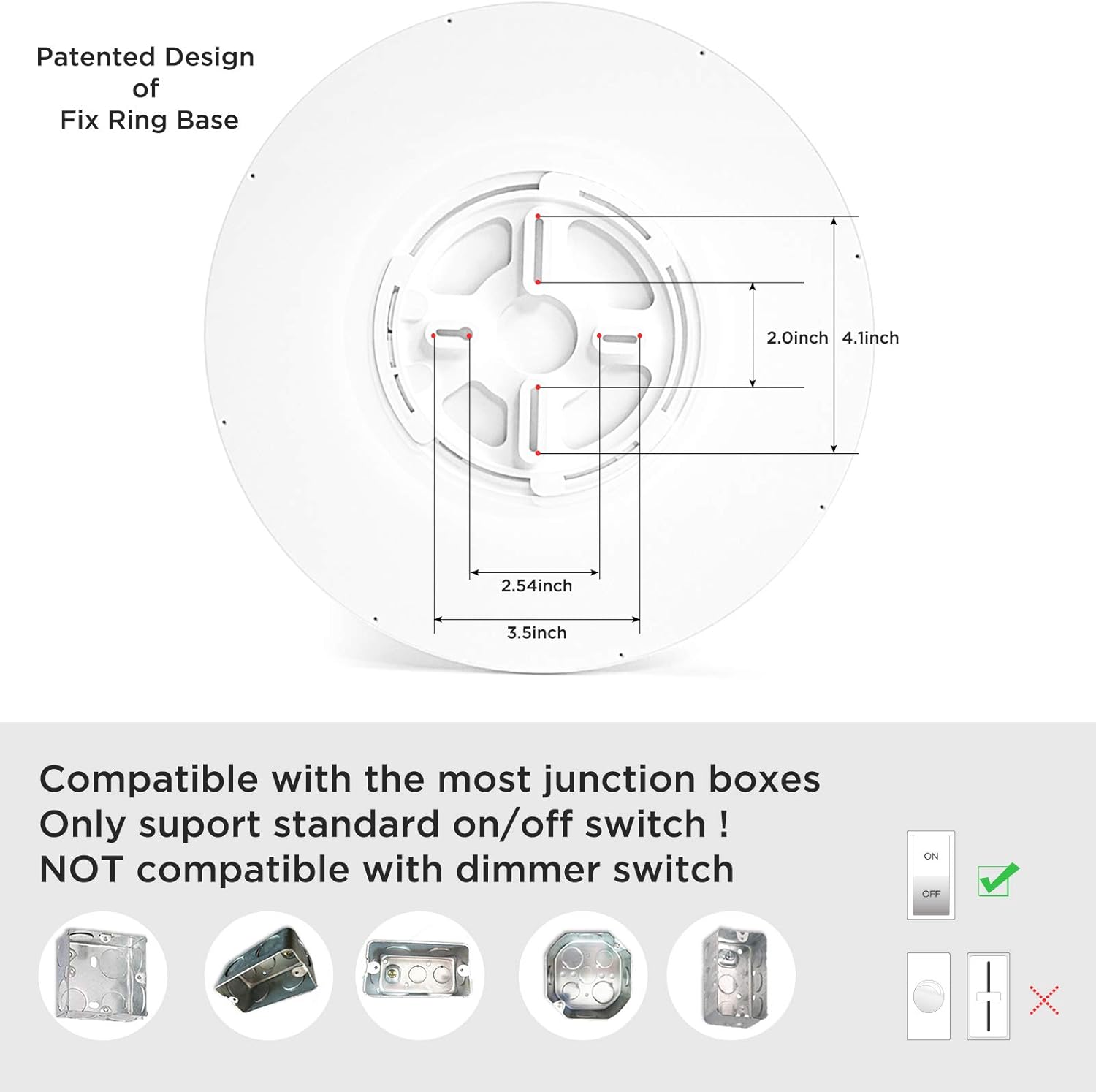

Image: Diagram illustrating the patented design of the fix ring base and its compatibility with various standard junction boxes.
Installation Video Guide
Video: A visual guide demonstrating the installation process for the ocioc Minimalist Ceiling Light. This video covers turning off power, detaching the base plate, securing it, connecting wires, and attaching the light fixture.
Operating Instructions
The ocioc LED Flush Mount Ceiling Light Fixture operates with a standard wall switch.
- Turning On/Off: Flip the wall switch to the 'ON' position to illuminate the light. Flip it to the 'OFF' position to turn it off.
- Brightness: This fixture provides a super bright 3200 lumens at 5000K (Cool White) color temperature.
- Dimmer Compatibility: This product is not compatible with dimmer switches. Attempting to use it with a dimmer switch may cause damage or malfunction.
Image: Examples of the ocioc LED Flush Mount Ceiling Light Fixture installed in a kitchen, laundry room, living room, and dining room, demonstrating its wide application.
Maintenance
To ensure the longevity and optimal performance of your ocioc LED Flush Mount Ceiling Light Fixture, follow these maintenance guidelines:
- Cleaning: Disconnect power before cleaning. Wipe the fixture with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- Bulb Replacement: This fixture uses integrated LED technology and does not require bulb replacement. The LEDs are designed for a long lifespan.
- Inspection: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are found, turn off the power and consult a qualified electrician.
Troubleshooting
If you encounter issues with your light fixture, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture; Loose wiring connection; Faulty wall switch | Check circuit breaker; Verify wire connections are secure; Test or replace wall switch. |
| Light flickers | Incompatible dimmer switch; Loose wiring; Power fluctuations | Ensure a standard ON/OFF switch is used (not a dimmer); Check wire connections; Consult an electrician if power fluctuations are suspected. |
| Insufficient brightness | Room size exceeds recommended coverage | Consider adding additional lighting or using a fixture with higher lumen output for larger spaces. |
Specifications
| Feature | Detail |
|---|---|
| Brand | ocioc |
| Model Name | A5 (OSK300-24W-WEMA5) |
| Product Dimensions | 12"L x 12"W x 0.94"H |
| Item Weight | 1.88 pounds |
| Color | White |
| Material | Plastic |
| Style | Modern |
| Light Fixture Form | Close to Ceiling |
| Power Source | Corded Electric |
| Installation Type | Flush Mount |
| Special Feature | Energy Efficient |
| Light Source Type | LED |
| Voltage | 120 Volts |
| Light Color | Cool White |
| Color Temperature | 5000 Kelvin |
| Wattage | 24 watts |
| Brightness | 3200 Lumen |
| Bulb Features | Not Dimmable |
| Color Rendering Index (CRI) | 80.00 |
| Specification Met | ETL |

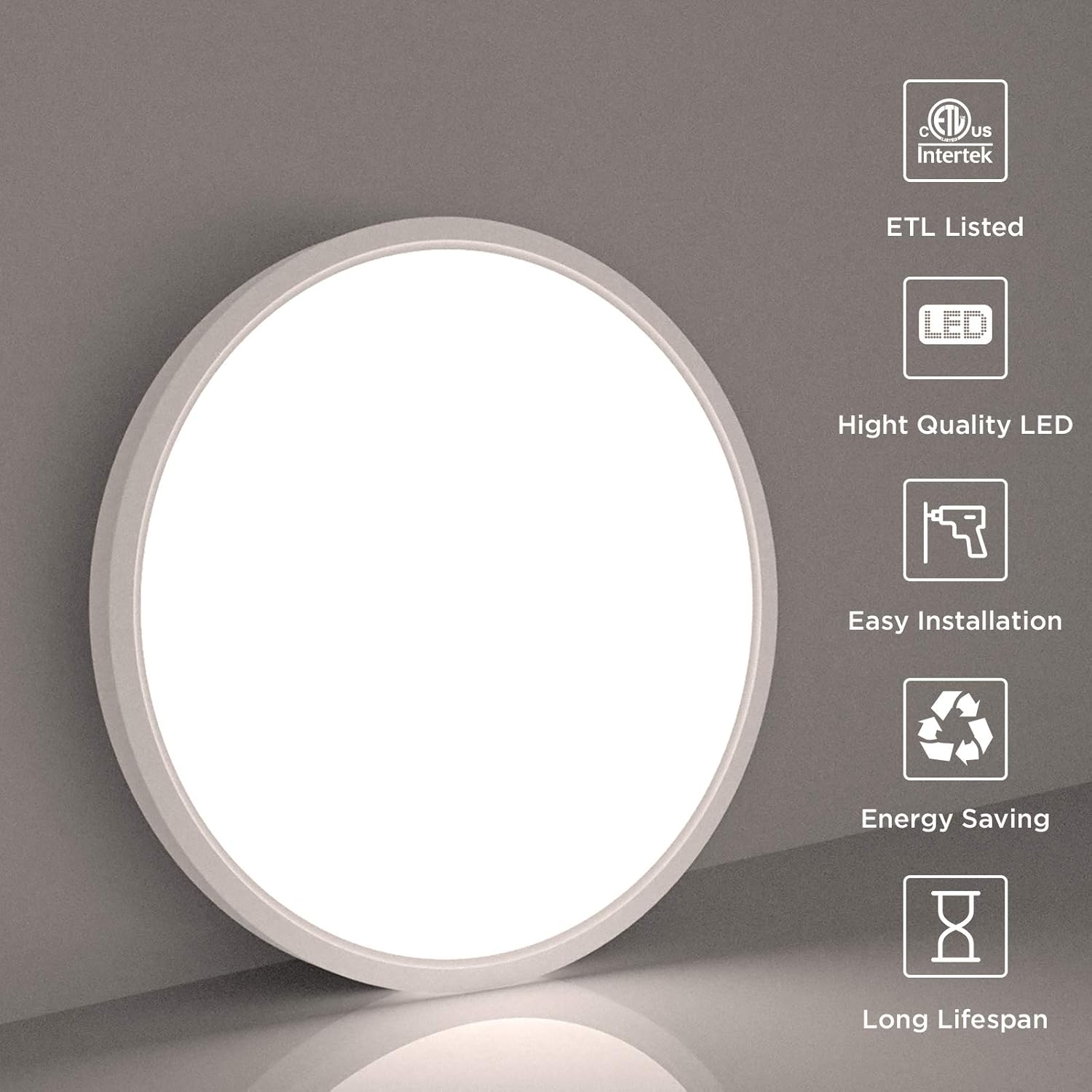

Image: Visual representation of key features including ETL listing, high-quality LED, easy installation, energy saving, and long lifespan.
Image: Comparison chart highlighting the energy efficiency and long lifespan of ocioc LED lights compared to traditional incandescent and fluorescent bulbs.
Warranty
This ocioc LED Flush Mount Ceiling Light Fixture comes with a Limited Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact ocioc customer support.
Support
For further assistance, technical support, or inquiries regarding your ocioc LED Flush Mount Ceiling Light Fixture, please contact ocioc customer service. Refer to the product packaging or the official ocioc website for contact information.
