SOFTSEA Wooden Platform Bed with X-Shaped Headboard, Full Size

Introduction

Thank you for choosing the SOFTSEA Wooden Platform Bed with X-Shaped Headboard. This manual provides detailed instructions for the safe assembly, proper use, and maintenance of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

This platform bed features a durable wood construction with an X-shaped headboard and footboard design, providing a sturdy foundation for your mattress without the need for a box spring. The design incorporates extra support legs for enhanced stability.

Safety Information

• Always assemble the bed frame on a soft, clean surface to prevent damage to the product or your floor.
• Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or broken.
• Tighten all bolts and screws securely, but do not overtighten to avoid stripping threads or cracking wood.
• Regularly check all connections to ensure they remain tight. Retighten as necessary.
• Do not allow children to climb on the bed frame or use it as a play structure.
• Distribute weight evenly across the bed surface. The maximum weight recommendation for this Full size bed is 500 pounds.
• Keep small parts away from children during assembly to prevent choking hazards.

Package Contents

Please verify that all components listed below are present in your package. If any parts are missing or damaged, please contact customer support.

• Headboard Panel with X-shaped design
• Footboard Panel with X-shaped design
• Side Rails (2 pieces)
• Support Legs (for center and side rails)
• Wooden Slats (10 pieces)
• Hardware Pack (bolts, screws, washers, Allen wrench)

Tools required for assembly (not included): Phillips head screwdriver.

Setup and Assembly Instructions

Follow these steps carefully to assemble your SOFTSEA platform bed.

Step 1: Unpack and Identify Parts

Carefully remove all components from the packaging. Lay them out on a soft, clean surface and compare them against the package contents list to ensure everything is present.

Step 2: Assemble the Headboard

Figure 1: Headboard components ready for assembly.

Attach the vertical posts to the main headboard panel using the provided bolts and Allen wrench. Ensure the X-shaped design faces outwards.

Step 3: Assemble the Footboard

Figure 2: Footboard components ready for assembly.

Similar to the headboard, attach the vertical posts to the main footboard panel. Ensure the X-shaped design faces outwards.

Step 4: Attach Side Rails

Connect the assembled headboard and footboard using the two side rails. Secure them with the appropriate bolts and washers. Do not fully tighten yet, allow for slight adjustments.

Step 5: Install Support Legs and Slats

Figure 3: Slats being installed onto the side rails.

Attach any central support legs to the crossbeams or side rails as indicated in the diagram. Then, evenly space and secure the wooden slats across the side rails. Ensure each slat is firmly attached to prevent movement and provide adequate mattress support.

Step 6: Final Tightening and Placement

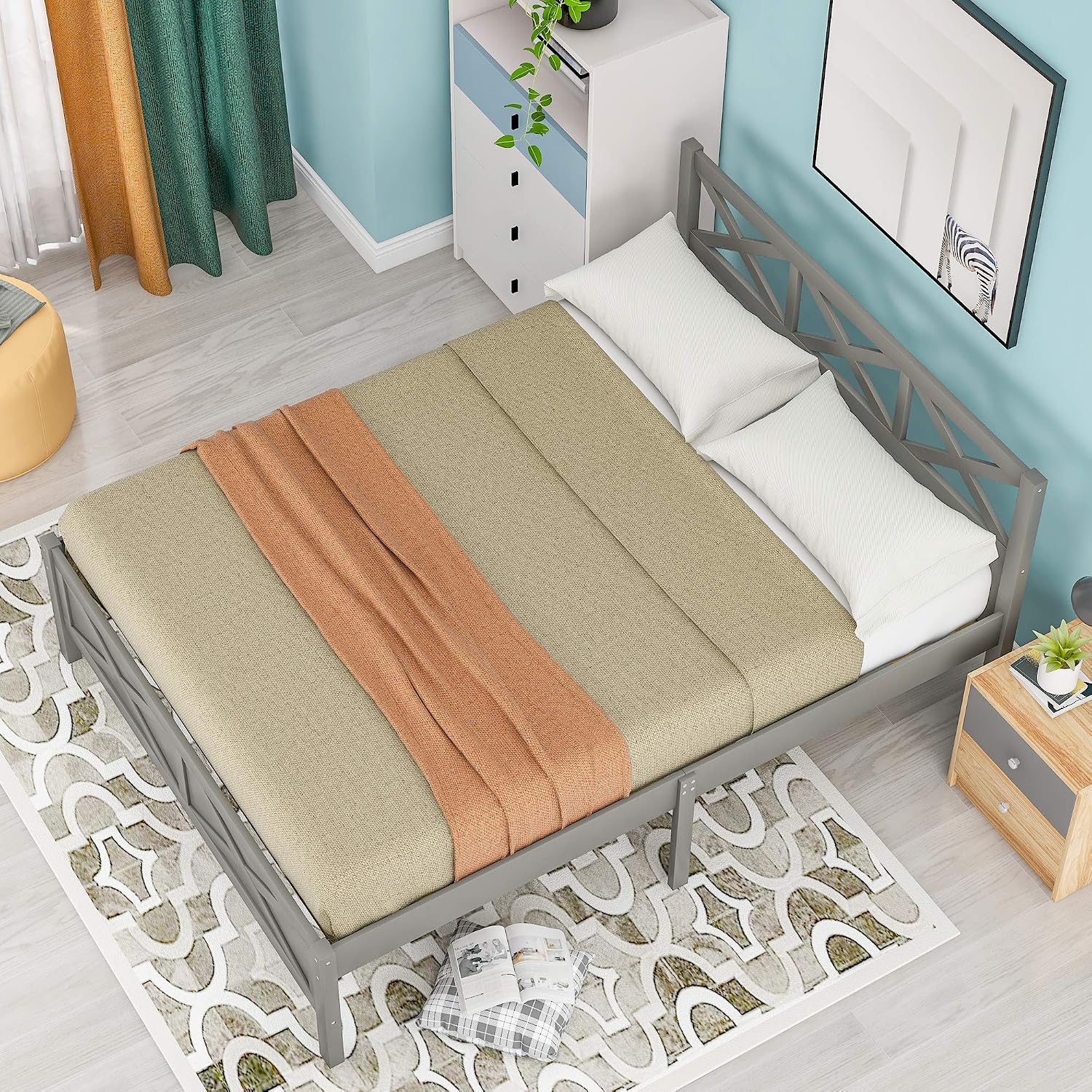

Figure 4: Fully assembled bed frame, ready for mattress placement.

Once all components are in place, go back and fully tighten all bolts and screws. Move the assembled bed frame to its desired location. Place your mattress directly onto the wooden slats.

Operating (Usage)

This platform bed is designed to support a Full size mattress directly on its wooden slats. No box spring is required.

• Mattress Placement: Carefully place your Full size mattress onto the assembled wooden slats. Ensure it is centered and sits securely within the frame.
• Weight Distribution: For optimal longevity and safety, distribute weight evenly across the bed surface. Avoid concentrating heavy loads in one small area.
• Under-Bed Space: The design provides under-bed clearance for storage. Utilize this space for items that fit within the available height.

Maintenance

• Cleaning: Wipe the wood surfaces with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
• Regular Checks: Periodically inspect all bolts and screws to ensure they are tight. Loose connections can lead to instability and noise. Retighten as needed.
• Avoid Moisture: Keep the bed frame away from excessive moisture or direct sunlight to prevent warping or fading of the wood.
• Moving the Bed: When moving the bed, lift it rather than dragging it to prevent damage to the frame and your flooring.

Troubleshooting

• Squeaking Noises: If the bed squeaks, check all bolts and screws and tighten them. Ensure slats are properly seated and not rubbing against the frame. Applying a small amount of furniture wax or lubricant to contact points can sometimes help.
• Instability/Wobbling: Ensure all connections are fully tightened. Verify that the bed is on a level surface. Adjust any leveling feet if present.
• Damaged Parts: If any part is damaged during assembly or use, discontinue use immediately and contact customer support for replacement parts.

Specifications

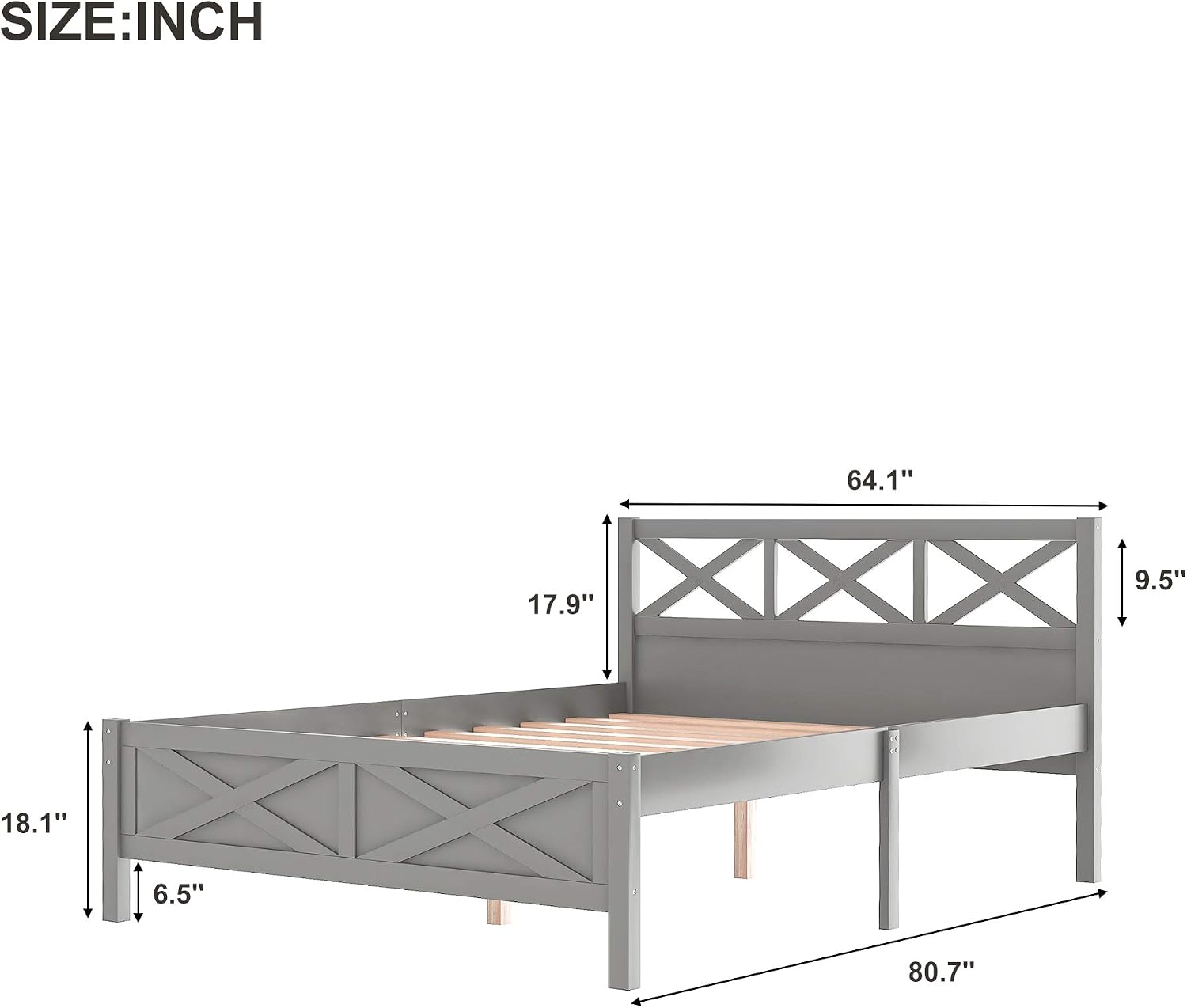

Figure 5: Illustrative dimensions of the platform bed frame. Refer to the table below for specific Full size measurements.

Warranty and Support

For any questions, missing parts, or concerns regarding your SOFTSEA Wooden Platform Bed, please contact our customer service department. Please have your purchase information and product model details ready when you call or email.

Contact information for support can typically be found on your purchase receipt or the retailer's website where the product was purchased.
