1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your new Pro Chaser 536.881501 Carburetor. This carburetor is designed as a replacement part for specific Craftsman snow blower models. Adhering to these instructions will help ensure optimal performance and longevity of the product.
2. Safety Information
Always prioritize safety when working with fuel systems and power equipment. Failure to follow safety precautions can result in serious injury or property damage.
- Ensure the engine is off and cooled down before beginning any work.
- Disconnect the spark plug wire to prevent accidental starting.
- Work in a well-ventilated area to avoid inhaling fuel fumes.
- Wear appropriate personal protective equipment, including gloves and eye protection.
- Handle gasoline with extreme care. It is highly flammable.
- Keep a fire extinguisher nearby.
- Refer to your snow blower's original owner's manual for specific safety guidelines and procedures.
3. Package Contents
Verify that all components are present in your package:
- 1 x Carburetor
- 1 x Gasket
- 1 x Primer Hose
- 1 x Fuel Hose
- 1 x Fuel Filter
- 2 x Small Clamps (for primer hose)
- 2 x Large Clamps (for fuel hose)
- 1 x Shut-off Valve
- 1 x Primer Bulb
Image 3.1: The complete Pro Chaser 536.881501 Carburetor kit, showing the carburetor unit along with the gasket, primer hose, fuel hose, fuel filter, various clamps, shut-off valve, and primer bulb.
4. Compatibility
This Pro Chaser carburetor is a direct replacement for the following Craftsman snow blower models:
- Craftsman 536.886120
- Craftsman 536.886122
- Craftsman 536.881501
- Craftsman 536.885473
- Craftsman 536.909400
- Craftsman 536.886440
- Craftsman 536.884822
- Craftsman 536.886540
- Craftsman 536.885400
- Craftsman 536.884800
- Craftsman 536.88612
- Craftsman 536.886141
- Craftsman 536.88547
Always verify your snow blower's model number before installation to ensure proper fitment.
5. Setup and Installation
Carburetor replacement requires careful attention to detail. If you are unsure about any step, consult a qualified technician or your snow blower's service manual.
5.1 Preparation
- Park the snow blower on a level surface.
- Ensure the engine is off and cool. Disconnect the spark plug wire.
- Turn off the fuel supply valve (if equipped) or clamp the fuel line.
- Place a suitable container under the carburetor to catch any spilled fuel.
5.2 Removing the Old Carburetor
- Carefully remove any air filter housing or shrouds that obstruct access to the carburetor.
- Disconnect the fuel line from the old carburetor.
- Disconnect any linkage rods or springs attached to the carburetor. Note their positions for reassembly.
- Unbolt the carburetor from the engine intake manifold.
- Remove the old carburetor and discard the old gasket.
5.3 Installing the New Carburetor
- Ensure the mounting surfaces on the engine and air filter housing are clean and free of debris.
- Place the new gasket (included) between the carburetor and the engine intake manifold.
- Mount the new Pro Chaser carburetor to the engine, ensuring proper alignment.
- Secure the carburetor with the mounting bolts, tightening them evenly to prevent leaks.
- Reconnect all linkage rods and springs to their correct positions.
- Install the new fuel filter and fuel line, securing with the provided clamps. Connect the fuel line to the carburetor.
- Install the new primer bulb and primer hose.
- Reinstall any removed air filter housing or shrouds.
5.4 Visual Reference

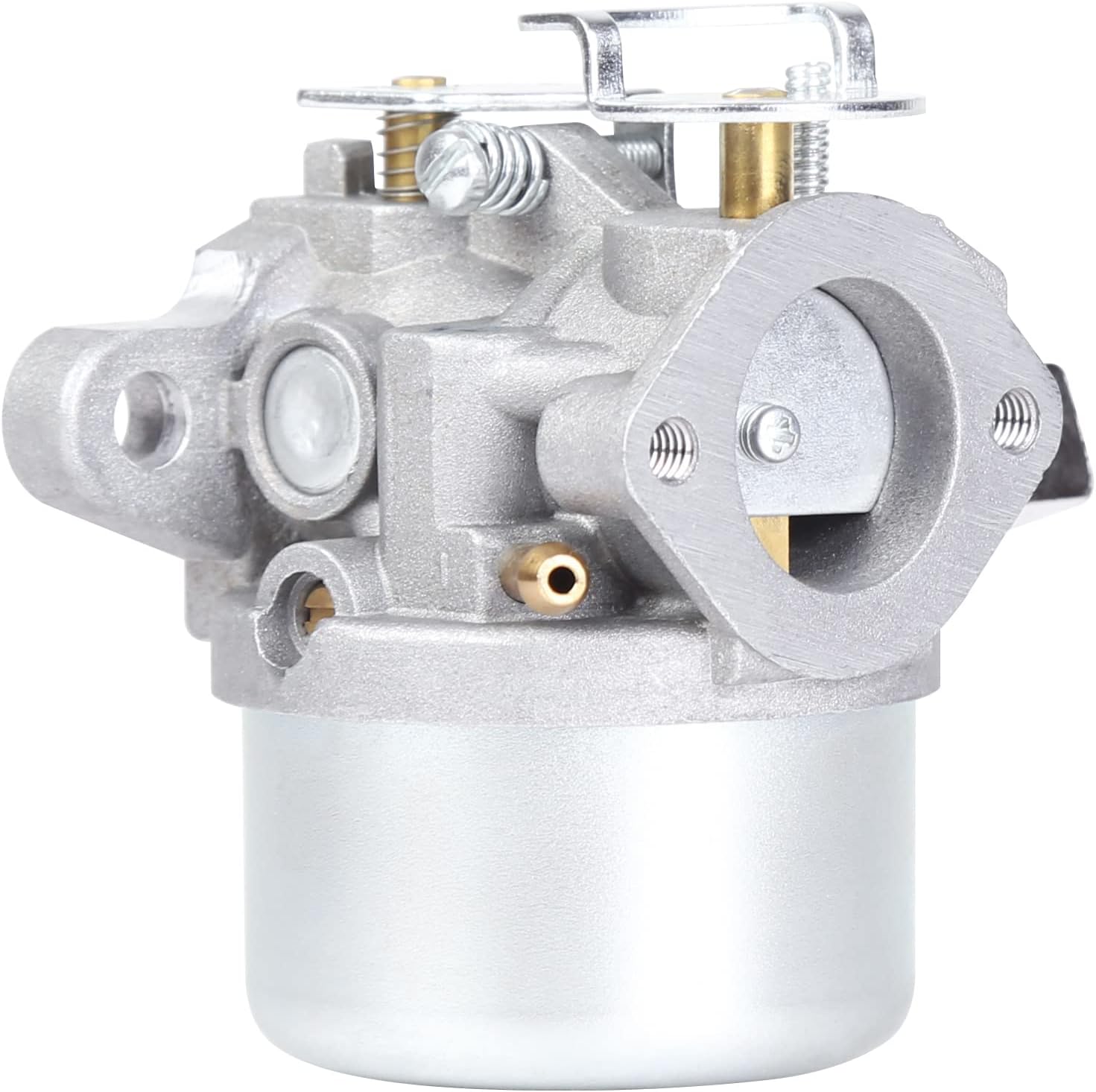

Image 5.1: A detailed front view of the Pro Chaser 536.881501 Carburetor, highlighting the intake port and mounting holes.
Image 5.2: A side view of the carburetor, showing the throttle and choke linkage mechanisms, crucial for proper engine operation.
Image 5.3: Frontal dimension measurements of the carburetor, indicating key distances for fitment verification.
Image 5.4: Side dimension measurements of the carburetor, providing additional reference for installation.
5.5 Product Overview Video
Video 5.1: An overview of the Pro Chaser carburetor, showcasing its various angles and components. This video provides a visual guide to the product's physical characteristics.
6. Operating Instructions
After installing the new carburetor, follow these general steps to start your snow blower:
- Reconnect the spark plug wire.
- Open the fuel supply valve.
- Prime the carburetor by pressing the primer bulb several times until fuel is visible in the bulb or fuel line.
- Set the choke to the 'FULL CHOKE' position.
- Set the throttle to the 'FAST' or 'RUN' position.
- Pull the starter rope or engage the electric starter.
- Once the engine starts, gradually move the choke to the 'OFF' or 'RUN' position as the engine warms up.
- Allow the engine to run for a few minutes to reach operating temperature.
Refer to your snow blower's original operating manual for specific starting procedures.
7. Maintenance
Regular maintenance helps ensure reliable performance of your carburetor and snow blower.
- Fuel Quality: Always use fresh, clean gasoline. Stale fuel can cause deposits and clog carburetor passages. Consider using a fuel stabilizer, especially during storage.
- Fuel Filter: Inspect and replace the fuel filter annually or more frequently if operating in dusty conditions. A clogged fuel filter restricts fuel flow to the carburetor.
- Storage: Before long-term storage (e.g., off-season), drain the fuel tank and run the engine until it runs out of fuel, or use a fuel stabilizer as directed. This prevents fuel from gumming up the carburetor.
- Cleaning: If performance issues arise due to fuel contamination, the carburetor may need to be cleaned. This typically involves disassembling the carburetor and cleaning its components with carburetor cleaner. This task is best performed by experienced individuals or a professional.
8. Troubleshooting
If your snow blower experiences issues after carburetor replacement, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, clogged fuel filter, incorrect choke setting, spark plug issue | Check fuel level, replace fuel filter, adjust choke, check/replace spark plug |
| Engine runs rough or stalls | Dirty carburetor, air leak, old fuel, incorrect idle adjustment | Clean carburetor, check for air leaks around gaskets, use fresh fuel, adjust idle screw |
| Fuel leaks | Loose connections, damaged gasket, float needle issue | Tighten fuel lines/clamps, replace gasket, inspect float and needle valve |
| Engine lacks power | Clogged fuel filter, dirty carburetor, air filter restriction | Replace fuel filter, clean carburetor, clean/replace air filter |
If troubleshooting steps do not resolve the issue, it is recommended to consult a professional small engine mechanic.
9. Specifications
- Brand: Pro Chaser
- Model Number: 536.881501
- Item Weight: 10.5 ounces
- Package Dimensions: 4.41 x 3.7 x 3.15 inches
- Recommended Use: Snowblower
- UPC: 669591334675
10. Warranty and Support
For specific warranty information or technical support regarding your Pro Chaser 536.881501 Carburetor, please contact Pro Chaser directly through their official customer service channels. Keep your purchase receipt as proof of purchase.
