Cutex Double Needle Center Guide Presser Foot Instruction Manual

1. Product Overview

The Cutex Double Needle Center Guide Presser Foot is an attachment designed for industrial double needle sewing machines. Its primary function is to assist in maintaining straight and consistent stitching along a center seam, ensuring equal distance stitching on both sides of the seam. This foot is also commonly referred to as an open seam guiding foot.

This specific model is sized for a 3/8" distance between the two needles, providing precision for various sewing applications.

Image 1.1: Front view of the Cutex Double Needle Center Guide Presser Foot. This image displays the foot's overall structure, including the spring-loaded center guide and the needle openings.

2. Compatible Sewing Machines

This presser foot is compatible with a range of industrial double needle sewing machines. Verify your machine's model number for compatibility before installation.

Known compatible models include:

• Brother models: LT2-B831, B832, B835, B842, B845, B8450, B847, B848, B8480, B872, B875, T-8420B, T8422A, T-8720B, T-8722A
• Consew models: 332, 333
• Juki models: LH-515, LH-1152, LH-1162, LH-1178, LH-1182, LH-3126, LH-3127, LH-3128, LH-3168, LH-3178, LH-3188
• Singer models: 112G, 112W, 112W101, 112W110, 112W115, 112W140, 212G, 212U, 212W140

This list is not exhaustive. If your machine is not listed, consult your machine's manual or contact Cutex support for compatibility verification.

3. Setup and Installation

Follow these general steps to install the double needle center guide presser foot on your industrial sewing machine:

1. Power Off: Ensure your sewing machine is turned off and unplugged from the power source for safety.
2. Raise Needle and Presser Foot: Use the handwheel to raise the needles to their highest position. Lift the presser foot lever to raise the existing presser foot.
3. Remove Old Presser Foot: Locate the screw that secures the presser foot to the presser bar. Loosen this screw and carefully remove the current presser foot.
4. Attach New Presser Foot: Position the Cutex Double Needle Center Guide Presser Foot under the presser bar, aligning the foot's slot with the screw hole on the presser bar.
5. Secure Presser Foot: Insert the screw and tighten it firmly to secure the new presser foot in place. Ensure the foot is stable and does not wobble.
6. Verify Alignment: Lower the presser foot and manually turn the handwheel to ensure the needles pass cleanly through the needle holes of the presser foot without striking any part of the foot. Adjust if necessary.

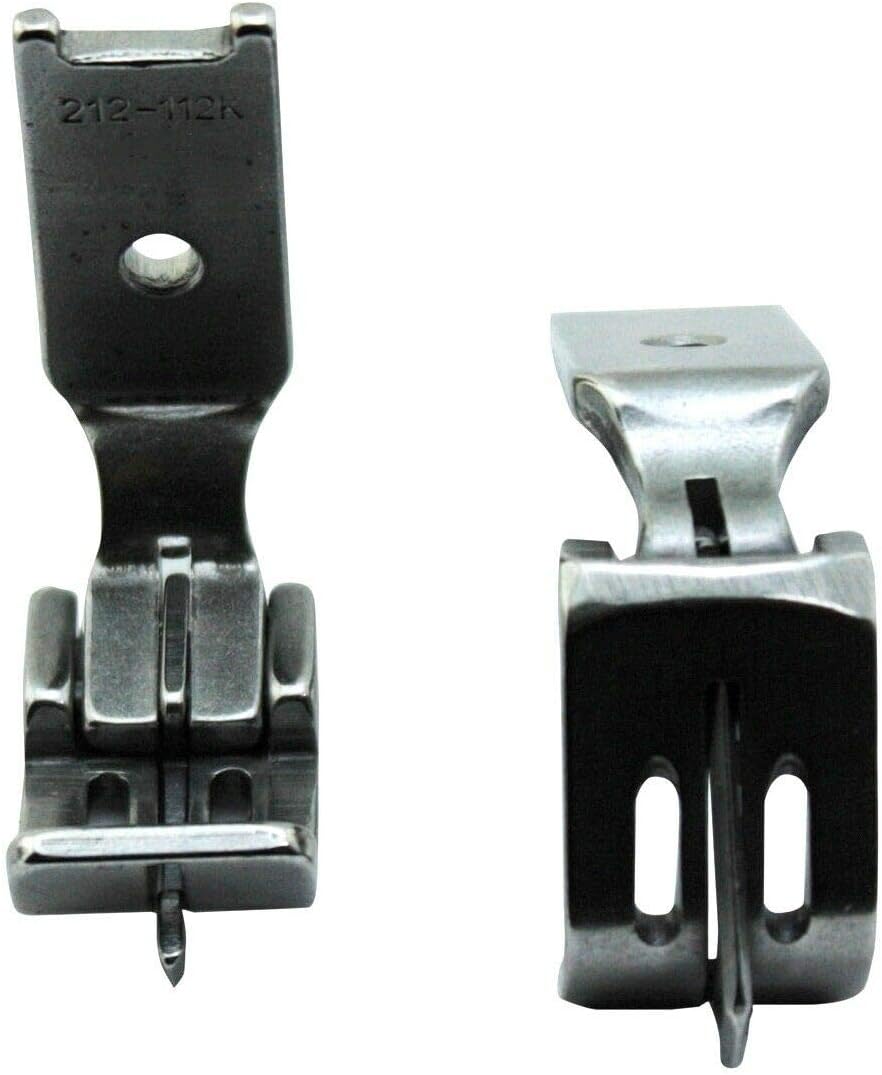

Image 3.1: Angled view of the presser foot, showing the attachment point and the guide mechanism. This view helps in understanding how the foot connects to the machine's presser bar.

4. Operating Instructions

The center guide foot is designed to simplify sewing straight seams with double needles, particularly when a central reference point is available on the fabric or a previous seam.

1. Prepare Fabric: Mark your desired center seam line on the fabric, or use an existing seam as your guide.
2. Position Fabric: Place the fabric under the presser foot, aligning the marked center line or existing seam directly under the spring-loaded center guide of the foot.
3. Lower Presser Foot: Lower the presser foot onto the fabric. The center guide will sit within the seam or along the marked line, helping to keep the fabric aligned.
4. Begin Sewing: Start sewing slowly, guiding the fabric so that the center guide consistently follows your reference line. The guide will help prevent the fabric from shifting, ensuring both needles stitch at an equal distance from the center.
5. Monitor Stitching: Observe the stitching to ensure it remains straight and even. Adjust fabric feeding as needed to maintain alignment with the center guide.

This foot is particularly useful for topstitching, creating parallel decorative stitches, or reinforcing seams where a consistent distance from a central line is critical.

Image 4.1: Bottom view of the presser foot, highlighting the spring-loaded center guide and the needle openings. This perspective illustrates how the guide interacts with the fabric during sewing.

5. Maintenance

Proper maintenance ensures the longevity and optimal performance of your presser foot.

• Cleaning: Periodically clean the presser foot to remove lint, dust, and fabric fibers that may accumulate. Use a soft brush or a lint-free cloth.
• Inspection: Regularly inspect the foot for any signs of wear, damage, or bending. Ensure the center guide moves freely and is not obstructed.
• Storage: When not in use, store the presser foot in a clean, dry place to prevent corrosion or damage.

Avoid using harsh chemicals or abrasive materials for cleaning, as these can damage the finish or integrity of the metal.

6. Troubleshooting

If you encounter issues while using the Cutex Double Needle Center Guide Presser Foot, consider the following:

• Uneven Stitching:
  • Ensure the fabric is consistently guided along the center guide.
  • Check that both needles are correctly installed and are of the appropriate type and size for your fabric.
  • Verify that the presser foot is securely attached and not loose.
• Needle Breakage:
  • Confirm that the needles are passing cleanly through the foot's openings without striking the metal. Re-install the foot or adjust if necessary.
  • Ensure the correct needle size and type are used for the fabric.
• Fabric Not Feeding Smoothly:
  • Check for lint or debris under the presser foot or around the feed dogs.
  • Ensure the presser foot pressure is correctly adjusted for your fabric type (refer to your sewing machine's manual).

For persistent issues, consult your sewing machine's instruction manual or contact a qualified sewing machine technician.

7. Specifications

8. Warranty and Support

For specific warranty information regarding your Cutex Double Needle Center Guide Presser Foot, please refer to the documentation provided at the time of purchase or contact Cutex Sewing Supplies directly. Warranty terms typically cover manufacturing defects.

For product support, inquiries, or to verify compatibility with your specific sewing machine model, you may visit the official Cutex store or contact their customer service department.
