1. Introduction
Thank you for purchasing the Aanyhoh HXD-06224 LED Arc Floor Lamp. This modern and versatile lamp is designed to provide adjustable lighting for various spaces, including living rooms, bedrooms, and offices. Featuring dimmable LED lighting, adjustable color temperature, and convenient control options, this manual will guide you through the setup, operation, and maintenance of your new lamp.
Image 1.1: The Aanyhoh HXD-06224 LED Arc Floor Lamp in a modern living room, showcasing its elegant design and the included remote control.
2. Safety Instructions
Please read these safety instructions carefully before installation and use. Keep this manual for future reference.
- Ensure the power supply is disconnected before installation, cleaning, or maintenance.
- This lamp is for indoor use only. Do not expose it to water or high humidity.
- Do not attempt to modify or repair the lamp yourself. Contact qualified personnel for service.
- Keep the lamp away from flammable materials.
- Ensure the lamp is placed on a stable, level surface to prevent tipping. The heavy base is designed for stability.
- Do not look directly into the LED light source for extended periods, as it may cause eye strain.
- Dispose of packaging materials responsibly.
3. Package Contents
Verify that all components are present and undamaged upon opening the package. If any parts are missing or damaged, contact customer support.
- Arc Lamp Body with integrated LED
- Lamp Base
- Remote Control
- Assembly Hardware (screws)
- User Manual
4. Assembly Instructions
Follow these steps to assemble your Aanyhoh HXD-06224 LED Arc Floor Lamp:
- Attach the Lamp Body to the Base: Carefully align the bottom end of the arc lamp body with the designated slot on the heavy lamp base.
- Secure the Connection: Use the provided screws to firmly attach the lamp body to the base. Ensure the connection is tight and stable.
- Position the Lamp: Place the assembled lamp in your desired location, ensuring the power cord can reach an electrical outlet without being strained or creating a tripping hazard.
- Connect to Power: Plug the power cord into a standard 220V electrical outlet.
Image 4.1: Detail of the lamp base, showing the attachment points for the arc body.
5. Operating Instructions
Your Aanyhoh HXD-06224 lamp offers multiple ways to control its lighting features.
5.1. Foot Switch Operation
The lamp is equipped with a convenient foot switch located on the power cord. Press the foot switch once to turn the lamp ON, and press it again to turn it OFF.
Image 5.1: The foot switch for basic ON/OFF control.
5.2. Remote Control Operation
The included remote control provides full access to all lighting features.
Image 5.2: The lamp and its remote control, illustrating the range of light settings.
Image 5.3: Detailed view of the remote control buttons.
- ON/OFF: Press the 'ON' button to turn the lamp on, and 'OFF' to turn it off.
- Brightness Adjustment (Dimming): Use the brightness buttons (sun icon with '+' or '-') to increase or decrease the light intensity from 5% to 100%.
- Color Temperature Adjustment: Use the color temperature buttons (sun icon with 'K' or 'C') to cycle through or adjust the color temperature from warm white (3000K) to cool white (6000K).
- Preset Modes: The remote may include preset buttons for common lighting scenarios (e.g., reading mode, night light mode). Refer to the remote's specific icons for these functions.
- Memory Function: The lamp features a memory function that remembers the last used brightness and color temperature settings when turned off and on again.

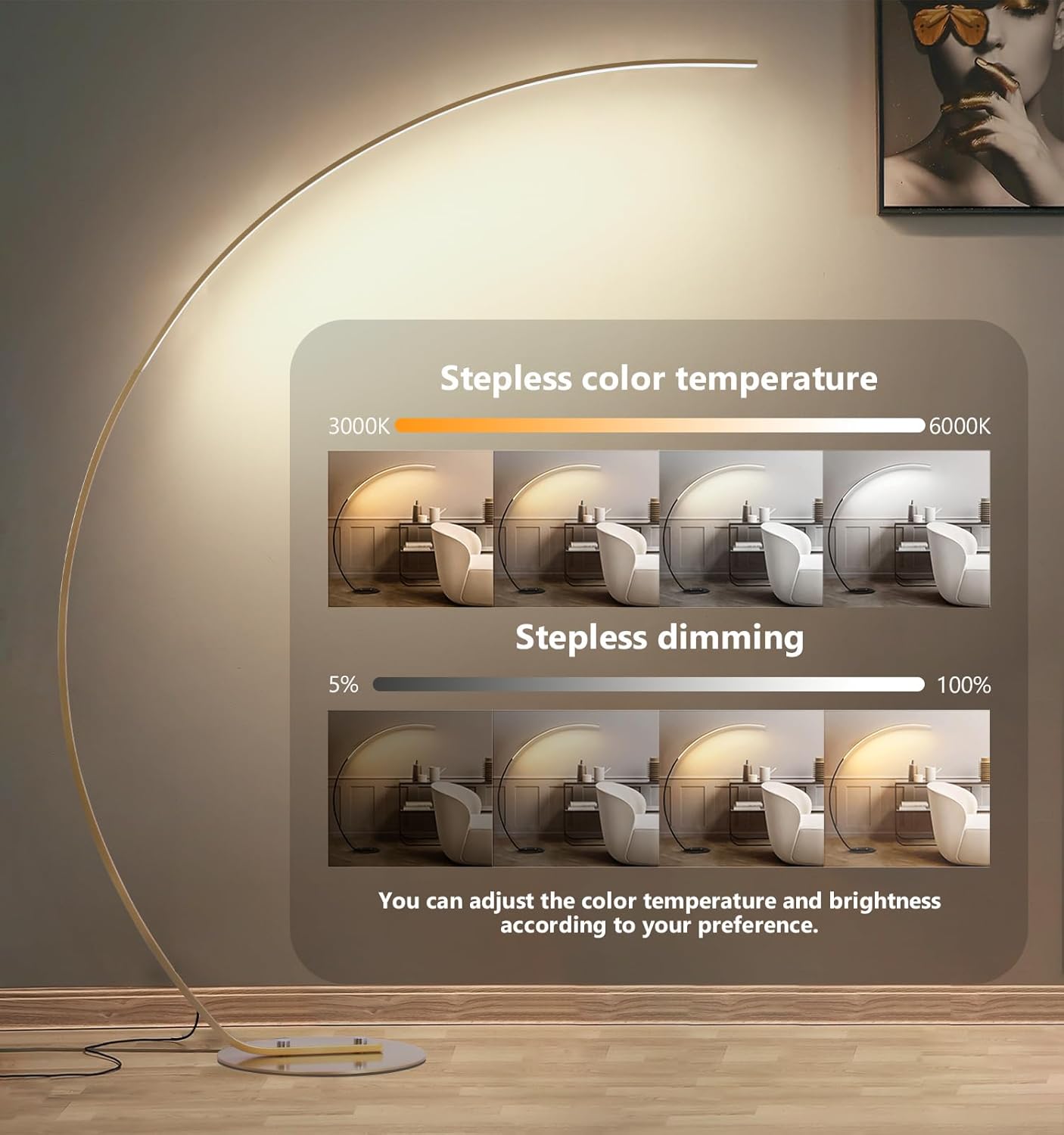

Image 5.4: Visual representation of the stepless color temperature (3000K-6000K) and dimming (5%-100%) capabilities.
6. Maintenance
To ensure the longevity and optimal performance of your lamp, follow these maintenance guidelines:
- Cleaning: Disconnect the power before cleaning. Use a soft, dry cloth to wipe the lamp body and base. Do not use abrasive cleaners, solvents, or polishes, as they may damage the finish.
- LED Care: The integrated LED light source is designed for long-term use and does not require replacement. Avoid touching the LED strip directly.
- Cord Inspection: Periodically check the power cord for any signs of damage or fraying. If damage is found, discontinue use and contact customer support.
7. Troubleshooting
If you encounter any issues with your lamp, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | No power supply. | Check if the power cord is securely plugged into a working outlet. Test the outlet with another device. |
| Remote control not working. | Remote batteries are dead or incorrectly inserted. | Replace the remote control batteries (if applicable) or ensure they are inserted with correct polarity. Ensure there are no obstructions between the remote and the lamp. |
| Light flickers or is unstable. | Loose connection or power fluctuation. | Ensure all connections are secure. Try plugging the lamp into a different outlet. If the problem persists, contact customer support. |
| Cannot change brightness or color temperature. | Remote control issue or lamp malfunction. | Verify remote control functionality (see above). If the issue persists, the lamp may require service. |
If the problem persists after attempting these solutions, please contact Aanyhoh customer support for further assistance.
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | HXD-06224 |
| Brand | Aanyhoh |
| Product Dimensions | 120 x 32 x 170 cm (Length x Width x Height) |
| Item Weight | 5.84 kg |
| Material | Metal (Body), Polyester (Shade) |
| Color | Gold |
| Light Source Type | Integrated LED |
| Wattage | 25 Watts |
| Luminous Flux | 1800 Lumens |
| Color Temperature | 3000K - 6000K (Dimmable) |
| Dimmability | 5% - 100% |
| Color Rendering Index (CRI) | ≥85 |
| Voltage | 220 Volts |
| Control Method | Remote Control, Foot Switch |
| Special Features | Dimmable, Color Temperature Adjustable, Memory Function, Eye Protection (No Strobe) |
| Energy Efficiency Class | E |
For detailed energy information, please refer to the official EU EPREL database using the QR code on the energy label or by visiting https://eprel.ec.europa.eu/qr/2412791.
Image 8.1: EU Energy Label for the lamp.
9. Warranty and Support
Aanyhoh is committed to providing high-quality products. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. The specific warranty period may vary by region and retailer.
For warranty claims, technical support, or any questions regarding your Aanyhoh HXD-06224 LED Arc Floor Lamp, please contact the retailer where you purchased the product or visit the official Aanyhoh website for customer service contact information.
Please retain your proof of purchase for warranty purposes.
