PAXCESS Powerful Electric Pressure Washer User Manual
Model: HX13S
Introduction
Thank you for choosing the PAXCESS Powerful Electric Pressure Washer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pressure washer. Please read this manual thoroughly before first use and keep it for future reference.
Safety Information
Always follow basic safety precautions when using this product to reduce the risk of injury or damage. This includes, but is not limited to:
- Read all instructions before operating the pressure washer.
- Wear appropriate eye protection (safety goggles) and protective clothing.
- Ensure the power cord and plug are in good condition and connected to a GFCI protected outlet.
- Never point the spray gun at people, pets, or electrical devices.
- Keep the operating area clear of obstacles and ensure stable footing.
- Do not operate the pressure washer in the rain or near standing water.
- Always disconnect the power supply and water supply before performing any maintenance or cleaning.
Product Overview
The PAXCESS Electric Pressure Washer is designed for efficient cleaning of various outdoor surfaces. It features a powerful motor, an all-in-one adjustable nozzle, and a Total Stop System for enhanced safety and motor longevity.
The PAXCESS Electric Pressure Washer, showcasing its compact design and integrated hose reel.
An overview of the PAXCESS Pressure Washer highlighting its maximum pressure, flow rate, motor power, and hose length.
Illustration of the adjustable nozzle, showing how to switch between high pressure, low pressure, and foam modes for various cleaning needs.
Detailed view of the convenient onboard hose reel for easy storage and the integrated detergent tank for soap application.
A comprehensive diagram labeling key parts of the pressure washer, including the spray gun, hose, power cable hook, and water inlet.
The pressure washer being effortlessly transported across a lawn, showcasing its integrated wheels for portability.
Setup
- Connect Water Supply: Attach a standard garden hose (not included) to the water inlet on the pressure washer. Ensure the connection is secure to prevent leaks.
- Connect High-Pressure Hose: Connect one end of the high-pressure hose to the outlet on the pressure washer and the other end to the spray gun. Tighten all connections firmly.
- Connect Spray Gun: Attach the adjustable nozzle or foam cannon to the end of the spray gun.
- Plug In: Plug the pressure washer's power cord into a grounded 120V outlet with GFCI protection.
- Prime the Pump: Turn on the water supply completely. Squeeze the trigger on the spray gun to release air from the system until a steady stream of water flows out. This primes the pump and prevents damage.
Operating Instructions
Once set up, your PAXCESS pressure washer is ready for use. Always ensure the water supply is fully open before turning on the unit.
- Turning On/Off: Use the main power switch on the unit to turn the pressure washer on or off. The Total Stop System (TSS) automatically shuts off the pump when the trigger is released, prolonging pump life.
- Using the Adjustable Nozzle: The all-in-one adjustable nozzle allows you to easily change the spray pattern by twisting the nozzle head. Adjust from a narrow, high-pressure stream for tough spots to a wide fan spray for general cleaning, or a foam mode for detergent application.
- Using the Foam Cannon: Fill the integrated detergent tank with appropriate pressure washer detergent. Attach the foam cannon to the spray gun. The nozzle can be adjusted to control the foam output.
- Cleaning Techniques: Always start with a wider spray pattern and lower pressure on an inconspicuous area to test the surface. Work from top to bottom, keeping the nozzle a consistent distance from the surface.
Watch this video to see the PAXCESS Electric Pressure Washer in action, effectively cleaning various surfaces like fire pits, wooden ramps, and roofs.
This video highlights the versatility of the PAXCESS Pressure Washer for general home cleaning, including patios and outdoor walls.
Observe the powerful cleaning capability of the PAXCESS Pressure Washer as it removes stubborn grime from a stone patio.

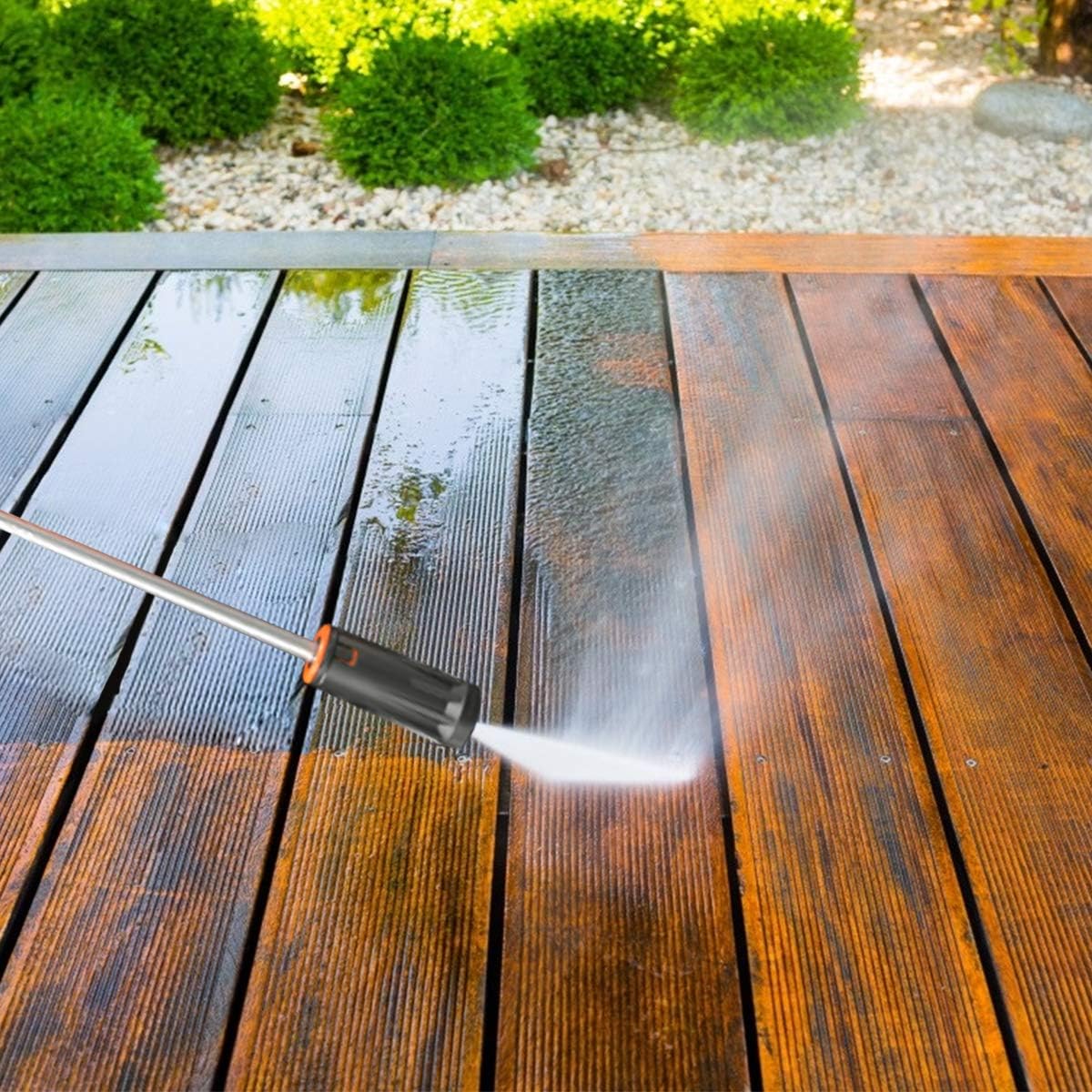

The pressure washer in action, effectively cleaning dirt and grime from a wooden deck surface.
Demonstration of the pressure washer's ability to remove moss and dirt from a wooden garden bench.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your pressure washer.
- Nozzle Cleaning: Regularly check and clean the nozzle for any blockages to maintain consistent spray patterns.
- Draining Water: After each use, turn off the water supply and squeeze the spray gun trigger to release any remaining pressure and drain water from the system.
- Storage: Store the pressure washer in a dry, frost-free environment. Ensure all hoses are properly coiled and stored on the integrated reel.
Troubleshooting
If you encounter issues with your pressure washer, refer to the common problems and solutions below:
| Problem | Possible Cause | Solution |
|---|---|---|
| No pressure or low pressure | Insufficient water supply, clogged nozzle, air in pump. | Ensure water tap is fully open; clean nozzle; prime pump by squeezing trigger until steady water flow. |
| Motor not starting | Power cord not plugged in, GFCI tripped, power switch off. | Check power connection; reset GFCI; ensure power switch is in 'ON' position. |
| Water leaks | Loose connections, damaged O-rings. | Tighten all hose connections; inspect and replace damaged O-rings if necessary. |
Specifications
| Feature | Detail |
|---|---|
| Brand | PAXCESS |
| Power Source | Corded Electric |
| Color | Orange |
| Maximum Pressure | 1750 Pound per Square Inch |
| Item Weight | 20.94 Pounds |
| Hose Length | 26 Feet |
| Maximum Flow Rate | 1.85 Gallons Per Minute |
| Product Dimensions | 18.2 x 12.9 x 11.4 inches |
| Item Model Number | HX13S |
Warranty and Support
PAXCESS products are manufactured to high-quality standards and are backed by a limited warranty. For detailed warranty information, product support, or to purchase replacement parts, please visit the official PAXCESS website or contact customer service through your retailer. Please have your model number (HX13S) and purchase date available when contacting support.
