1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Dixon Valve 3TM3 T-Series 3/8"-18 Male NPTF Ball Coupler. Please read this manual thoroughly before using the product to ensure proper function and to prevent injury or damage.
The Dixon Valve 3TM3 coupler is designed for high-pressure hydraulic applications, including hydraulic rams and pumps, where low flow and pressures up to 10,000 PSI are encountered. This product is supplied as a pack of 10 units.
2. Product Overview
The Dixon Valve 3TM3 is a T-Series male NPTF ball coupler. It features machined components manufactured from solid bar stock and a chrome steel ball valve mechanically seated for improved low-pressure sealing. The steel components are plated with ROHS Compliant Trivalent Chrome, and the coupler utilizes polyurethane seals.

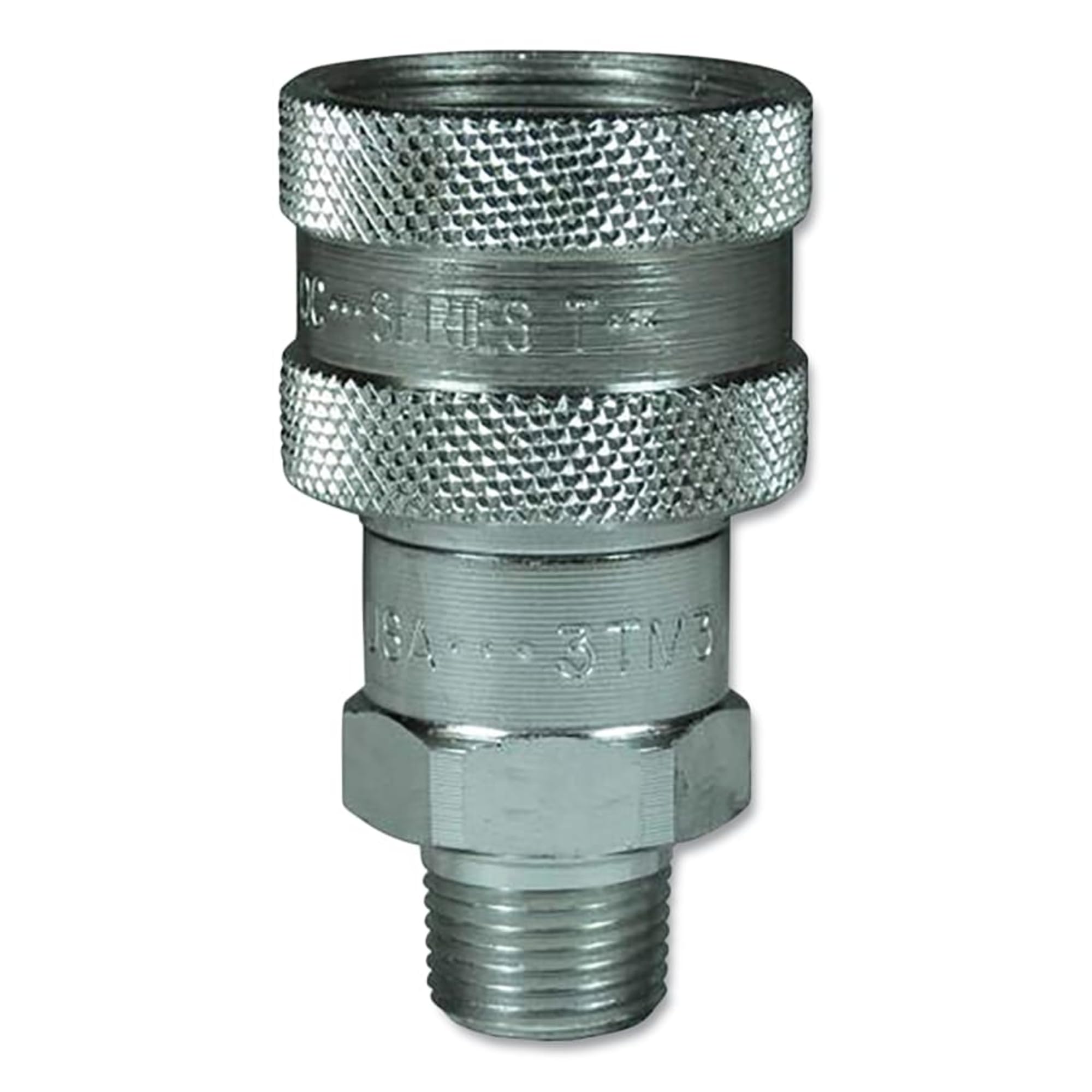

Figure 1: Dixon Valve 3TM3 T-Series 3/8"-18 Male NPTF Ball Coupler. This image shows the overall design of the male NPTF ball coupler, highlighting its robust construction suitable for high-pressure applications.
This coupler is compatible with High Pressure Screw-Together Interchange and is interchangeable with Parker 3000-Series and ISO 14540 standards.
3. Safety Information
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling hydraulic components.
- Ensure that all hydraulic systems are depressurized before attempting to connect or disconnect couplers. High-pressure fluid can cause severe injury.
- Never exceed the maximum rated working pressure of 10,000 PSI for this coupler.
- Inspect couplers for damage, wear, or corrosion before each use. Do not use damaged couplers.
- Ensure proper thread engagement and sealing to prevent leaks and system failure.
- Keep hands and clothing clear of moving parts and fluid streams.
4. Setup and Installation
Follow these steps for proper installation of the 3TM3 Male NPTF Ball Coupler:
- Prepare Connection Points: Ensure that the female port on the hydraulic system or hose is clean and free of debris. Verify that the thread type and size (3/8"-18 NPTF) match the coupler.
- Apply Thread Sealant: Apply a suitable thread sealant (e.g., PTFE tape or pipe thread compound) to the NPTF threads of the 3TM3 male coupler. Ensure the sealant is compatible with your hydraulic fluid and system pressure.
- Thread Coupler: Carefully thread the male coupler into the female port by hand until snug.
- Tighten Connection: Using an appropriate wrench, tighten the coupler to the recommended torque specifications for 3/8" NPTF connections. Avoid overtightening, which can damage threads, or undertightening, which can lead to leaks. Consult your system's specifications for exact torque values.
- Inspect: Visually inspect the connection for proper alignment and thread engagement.
5. Operating Instructions
The 3TM3 coupler is designed for quick connection and disconnection in high-pressure hydraulic systems.
- Connecting: To connect, ensure both the male and female coupler halves are clean. Align the male coupler (3TM3) with the corresponding female coupler. Push the male coupler firmly into the female coupler until it clicks or locks into place. A slight rotation may be necessary to align the ball locking mechanism. Verify a secure connection by gently pulling on the hose or component.
- Disconnecting: To disconnect, ensure the hydraulic system is depressurized. Pull back the sleeve on the female coupler half (if applicable to the mating female coupler) and simultaneously pull the male coupler out. If the system cannot be fully depressurized, specialized tools or procedures may be required to relieve residual pressure before disconnection.
- Pressure Application: Once connected, the system can be pressurized up to 10,000 PSI. Monitor for any leaks at the connection points.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your couplers.
- Inspection: Periodically inspect couplers for signs of wear, corrosion, cracks, or deformation. Pay close attention to the threads, sealing surfaces, and ball locking mechanism.
- Cleaning: Keep couplers clean and free of dirt, dust, and hydraulic fluid residue. Use a clean cloth and a suitable cleaning agent if necessary. Avoid abrasive materials that could damage surfaces.
- Seal Replacement: If leaks occur or if seals appear worn or damaged, replace them with genuine Dixon Valve replacement seals. Refer to Dixon Valve's official documentation for specific part numbers and replacement procedures.
- Storage: Store couplers in a clean, dry environment to prevent contamination and corrosion when not in use.
7. Troubleshooting
This section addresses common issues you might encounter with the 3TM3 coupler.
| Problem | Possible Cause | Solution |
|---|---|---|
| Leakage at connection | Improperly tightened threads, damaged seals, incorrect thread sealant, damaged threads. | Depressurize system. Re-tighten connection. Inspect and replace seals if necessary. Reapply thread sealant. Replace coupler if threads are damaged. |
| Difficulty connecting/disconnecting | Residual pressure in the system, dirt/debris in coupler, damaged locking mechanism, incompatible mating coupler. | Ensure system is fully depressurized. Clean coupler halves. Inspect for damage. Verify compatibility with mating coupler. |
| Reduced flow | Internal blockage, damaged ball valve. | Inspect coupler for internal obstructions. Replace coupler if ball valve is damaged. |
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | 3TM3 |
| Brand | Dixon Valve |
| Connector Type | Ball Coupler |
| Thread Size | 3/8 inch |
| Thread Type | NPTF (Male) |
| Material | Alloy Steel |
| Exterior Finish | Chrome (ROHS Compliant Trivalent Chrome) |
| Seals | Polyurethane |
| Maximum Pressure | 10,000 PSI |
| Interchangeability | Parker 3000-Series, ISO 14540 |
| Item Package Quantity | 10 pieces |
| Certification | ROHS |
9. Warranty and Support
For specific warranty information regarding the Dixon Valve 3TM3 T-Series 3/8"-18 Male NPTF Ball Coupler, please refer to the documentation provided at the time of purchase or contact Dixon Valve directly. Warranty terms typically cover manufacturing defects under normal use conditions.
For technical support, replacement parts, or further assistance, please contact your authorized Dixon Valve distributor or visit the official Dixon Valve website. When contacting support, please have your product model number (3TM3) and purchase details readily available.
Dixon Valve & Coupling Company
Official Website: www.dixonvalve.com
