1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Yale YEL-200SN Electric Rim Lock. Please read these instructions carefully before proceeding with installation or use to ensure optimal performance and security.
The Yale YEL-200SN is a robust electric rim lock designed for enhanced security on various door types. It features a roller latch with a reversible bolt, making it suitable for both left and right-hand opening doors, as well as inward and outward opening configurations. The lock also includes additional functionalities such as Night Mode and Free Mode for flexible access control.
2. Product Features
- Electric Rim Lock: Designed for integration with video door phones for remote access control.
- Roller Latch and Reversible Bolt: Accommodates various door opening directions (left/right, in/out).
- Durability: Tested for over 500,000 operations, ensuring long-term reliability.
- High Tensile Strength: Resists up to 1000 kgs of tensile force, providing strong security.
- Night Mode (Locked Function): Provides enhanced security by keeping the door locked from both sides.
- Free Mode (Passage Function): Allows the door to be opened freely without a key or electronic release.
- Mechanical Override Cylinder: Includes a traditional key override for manual access.
- Low Noise & Low Power Consumption: Efficient and quiet operation.
- Easy Installation: Designed for straightforward setup on doors between 30mm and 85mm thick.
Image: Overview of key features and certifications of the Yale YEL-200SN Electric Rim Lock.
Image: The Yale YEL-200SN lock demonstrating its high tensile strength.
3. Setup and Installation
The Yale YEL-200SN Electric Rim Lock is designed for easy installation on doors with a thickness ranging from 30mm to 85mm. For optimal security and functionality, professional installation is recommended. Ensure the lock is correctly aligned and secured to the door frame.
3.1 Pre-Installation Check
- Verify door thickness is within the specified range (30mm - 85mm).
- Confirm door opening direction (left/right, in/out) to properly orient the reversible bolt.
- Ensure all components listed in the package contents are present.
3.2 Installation Steps (General Guidance)
- Prepare the Door: Mark the drilling points on the door and door frame according to the provided template (if included).
- Install the Main Lock Body: Secure the main lock unit to the interior side of the door using the provided screws.
- Install the Strike Plate: Attach the strike plate to the door frame, ensuring proper alignment with the lock's bolt.
- Connect Wiring: If integrating with a video door phone or access control system, connect the electrical wiring as per the system's instructions.
- Test Functionality: After installation, test the lock's operation with both the keys and any connected electronic release mechanisms.
Image: Front view of the Yale YEL-200SN Electric Rim Lock.
4. Operating Instructions
4.1 Locking the Door
- Automatic Locking: When the door closes, the roller latch automatically engages, securing the door.
- Manual Locking (Night Mode): To engage Night Mode, turn the key from the outside or use the internal knob/lever to fully extend the deadbolt. This prevents the door from being opened from the outside without a key, even if the electronic release is activated.
4.2 Unlocking the Door
- From Outside: Insert the key and turn to retract the bolt.
- From Inside: Use the internal push button or knob/lever to retract the bolt.
- Electronic Release: If connected to a video door phone or access control system, activate the electronic release to retract the bolt.
4.3 Night Mode (Locked Function)
When Night Mode is engaged, the lock provides additional security. The door cannot be opened from the outside without a key, even if the internal push button or electronic release is activated. This mode is ideal for enhanced security during nighttime hours or when the premises are unattended.
4.4 Free Mode (Passage Function)
In Free Mode, the lock remains disengaged, allowing the door to be opened and closed without requiring a key or electronic release. This mode is useful for periods of high traffic or when temporary unrestricted access is desired.

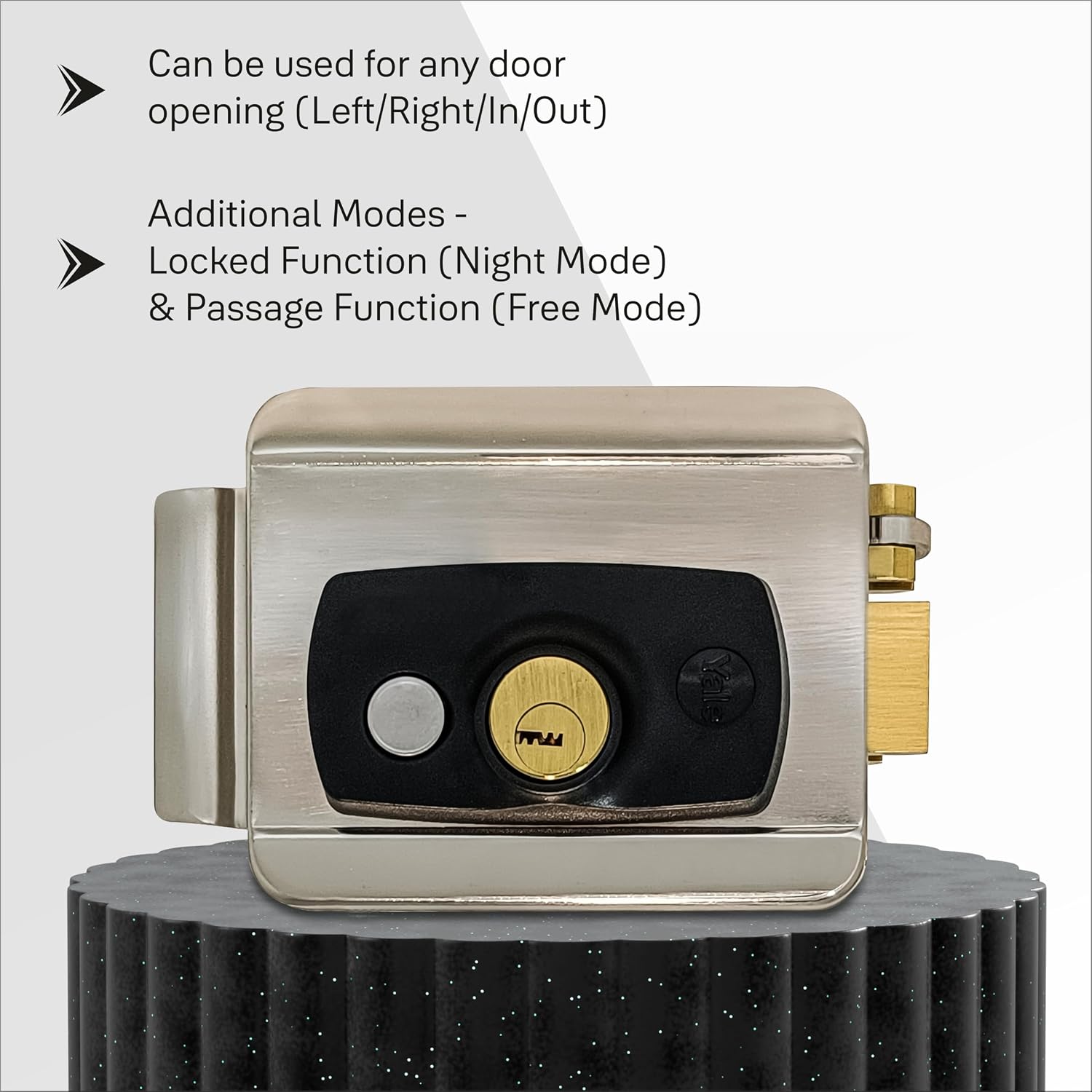

Image: Illustration of door opening compatibility and operational modes.
5. Maintenance
Regular maintenance ensures the longevity and smooth operation of your Yale YEL-200SN Electric Rim Lock.
- Cleaning: Wipe the lock body with a soft, dry cloth. Avoid abrasive cleaners or solvents that may damage the finish.
- Lubrication: Periodically apply a small amount of graphite-based lubricant to the keyway and moving parts of the bolt mechanism. Do not use oil-based lubricants as they can attract dust and grime.
- Check Fasteners: Periodically check all mounting screws and fasteners to ensure they are tight. Loose screws can affect the lock's performance and security.
- Key Care: Keep keys clean and avoid using them for purposes other than operating the lock. Do not force a key if it feels stiff.
6. Troubleshooting
If you encounter issues with your Yale YEL-200SN Electric Rim Lock, refer to the following common troubleshooting steps:
- Lock Not Engaging/Disengaging Smoothly:
- Check for obstructions in the door frame or strike plate.
- Ensure the lock and strike plate are properly aligned.
- Apply lubricant to the bolt mechanism as described in the Maintenance section.
- Key Sticking or Difficult to Turn:
- Ensure the key is fully inserted.
- Lubricate the keyway with graphite.
- Check if the key is bent or damaged. Use a spare key if available.
- Electronic Release Not Working:
- Verify all electrical connections are secure and correctly wired.
- Check the power supply to the lock and the connected access control system.
- Ensure Night Mode is not engaged, as it overrides electronic release from the outside.
- Door Not Closing Properly:
- Inspect door hinges and frame for misalignment.
- Adjust the strike plate position if necessary to ensure proper engagement of the roller latch.
If the issue persists after attempting these steps, please contact customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | YEL-200SN |
| Lock Type | Electric Rim Lock |
| Material | Alloy Steel |
| Finish Type | Nickel (Satin Nickel) |
| Color | Silver |
| Item Dimensions (L x W x H) | 13 x 10.5 x 3.9 Centimeters |
| Item Weight | 1600 Grams |
| Door Thickness Compatibility | 30mm - 85mm |
| Tensile Strength Resistance | Up to 1000 kgs |
| Operation Cycles Tested | More than 500,000 |
| Included Components | 3 Keys |
| Connectivity Protocol | Wired |
8. Warranty Information
The Yale YEL-200SN Electric Rim Lock comes with a 1-year warranty provided by the manufacturer from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.
Note: If installation is done by yourself or an unauthorized technician, the warranty will be void.
9. Customer Support
For any queries, service requests, or technical assistance regarding your Yale YEL-200SN Electric Rim Lock, please contact Yale customer support:
- Toll-Free Number: 1800-103-5606 (Available 24x7x365 Days)
- Service Requests Email: customercare1.india@assaabloy.com
- WhatsApp Support: 8929-788-788 (Available 9:30 AM – 06:00 PM, All days)
Image: Yale Customer Support contact details.
