Introduction
This instruction manual provides comprehensive guidance for the safe and correct installation, operation, and maintenance of your Barkan BM320 Swivel & Tilt TV Wall Mount. Please read all instructions carefully before beginning installation and retain this manual for future reference. This mount is designed for 13-65 inch flat or curved screens, supporting a maximum weight of 88 lbs (40 kg).

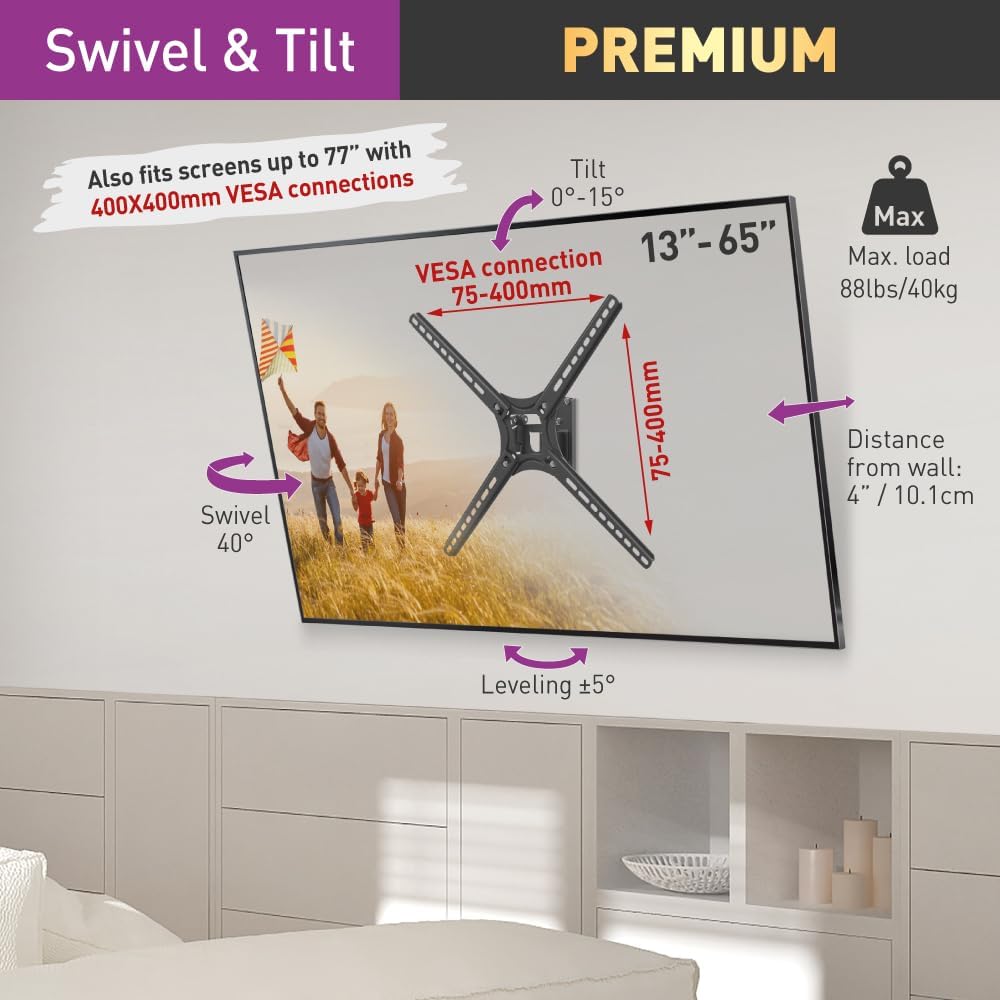

Image: The Barkan BM320 Swivel & Tilt TV Wall Mount, illustrating its swivel (40°), tilt (0-15°), leveling (±5°), VESA compatibility (75-400mm), screen size range (13-65 inches, up to 77 inches with 400x400mm VESA), maximum load (88 lbs/40 kg), and distance from wall (4 inches/10.1 cm).
Image: Key features of the Barkan BM320 mount, highlighting a lifetime warranty, fall-proof design, maximum load capacity of 88 lbs (40 kg), and testing at 353 lbs (160 kg) for extra safety. Also shows patented design information.
Setup and Installation
Package Contents
Before beginning, ensure all parts are present and undamaged. The package includes:
- TV Wall Mount Assembly
- Hardware Kit (various screws, anchors, washers, spacers)
- Assembly Instructions (this manual)
Required Tools
The following tools are required for installation:
- Drill (1/4" - 6mm for wood studs, 3/8" - 10mm for concrete)
- Level
- Safety Glasses
- Stud Finder (for drywall with wood studs)
Image: Diagram showing wall compatibility (drywall with wood studs, concrete blocks/concrete wall are compatible; drywall/gypsum/plaster alone is not) and a list of required tools including drill, level, safety glasses, and stud finder.
Wall Compatibility
This mount is compatible with:
- Drywall with wood studs
- Concrete blocks / Concrete wall
Important: Do not install on drywall, gypsum, or plaster walls without locating and securing to wood studs or concrete.
Hardware Kit Overview
Image: Detailed view of Barkan's Hardware Kit, including various wall mounting screws, Barkan's wall anchors, TV mounting screws (M8, M6, M4), metal washers, and plastic spacers. It also shows different types of screws and anchors with their features.
The hardware kit includes components for both wall mounting and TV mounting. Wall screws are designed for concrete, block, and wood walls. Anchors feature fins and grip points for maximum friction and expanding action to prevent disengagement. TV mounting screws (M8, M6, M4) are compatible with 90% of popular TVs. If your TV requires different screen-connection screws, please obtain them from a local hardware store or contact Barkan support.
Installation Steps
Follow these three simple steps for assembly:
- Attach the adapters to the rear side of the TV: Secure the TV plate to the back of your television using the appropriate screws and spacers from the hardware kit. Ensure a snug fit.
- Install the bracket on the wall: Mark the desired location on your wall. Use a stud finder for wood studs or appropriate drilling techniques for concrete. Drill pilot holes and securely fasten the wall bracket using the provided wall screws and anchors. Use a level to ensure the bracket is perfectly horizontal.
- Snap the TV onto the bracket: Carefully lift the TV with the attached adapters and hook it onto the wall bracket. Ensure the TV is securely seated and the locking mechanism engages.
Image: A visual guide to the easy 3-step assembly: 1. Connect the TV plate to the back of the TV. 2. Install the bracket on the wall. 3. Snap the TV onto the bracket. Also illustrates the optimal 'line of sight' for viewing.
TV Backscreen Connection Positioning
Image: Diagrams illustrating eight different backscreen connection positioning options for the TV mount, showing various VESA patterns (e.g., 75x75, 100x100, 200x200, 400x400 mm). It notes that all TV backscreen connections are in millimeters (Width x Height) and that adapters are used for certain positions.
The mount supports various VESA patterns. Refer to the diagram above to identify the correct backscreen connection positioning for your TV. The adapters included in the kit are used for specific positions to ensure compatibility with different TV plate sizes.
Screen Type Compatibility
Image: Illustrations demonstrating the Barkan TV mount's compatibility with both flat and curved screen televisions, showing how the mounting mechanism adapts to each type.
The Barkan BM320 mount is designed to accommodate both flat and curved screen televisions, ensuring a secure and stable installation for various display types.
Operating Instructions
The Barkan BM320 mount offers flexible viewing angles through its swivel and tilt functions.
- Swivel: The mount allows for a 40° swivel movement near the screen connection plate. Gently push or pull the TV to the desired horizontal angle.
- Tilt: Adjust the vertical viewing angle with a tool-free tilt range from -5° (downward) to 15° (upward). Simply push or pull the top or bottom of the TV to achieve the optimal tilt.
- Leveling: The mount provides ±5° leveling adjustment to ensure your TV is perfectly horizontal after installation.
Image: Diagrams illustrating the tilt adjustment from 0° to 15° and the ±5° screen leveling capability of the Barkan TV mount, allowing for optimal viewing angles.
Maintenance
To ensure the longevity and safe operation of your Barkan BM320 TV Wall Mount, follow these maintenance guidelines:
- Regular Inspection: Periodically check all screws and connections to ensure they remain tight and secure. Loose connections can compromise stability.
- Cleaning: Clean the mount with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish.
- Lubrication: The swivel and tilt mechanisms are designed for smooth operation. If any stiffness occurs, a small amount of silicone-based lubricant can be applied to moving parts, avoiding contact with electrical components.
- Weight Limit: Never exceed the maximum weight capacity of 88 lbs (40 kg). Overloading can lead to mount failure and potential injury.
Troubleshooting
If you encounter any issues with your Barkan BM320 TV Wall Mount, refer to the following common troubleshooting tips:
- TV is not level: Use the ±5° leveling adjustment feature to correct the horizontal alignment. Ensure the wall bracket was installed level initially.
- Mount feels loose or unstable: Immediately remove the TV from the mount. Re-check all wall mounting screws and TV attachment screws for tightness. Ensure the wall material is appropriate and the anchors are properly engaged. If the issue persists, consult a professional installer.
- Difficulty swiveling or tilting: Check for any obstructions behind the TV or around the mount. Ensure no cables are snagged. If the movement is stiff, apply a small amount of silicone lubricant to the moving joints.
- TV does not fit the mount: Verify your TV's VESA pattern against the mount's specifications (75x75mm to 400x400mm). Ensure the TV weight does not exceed 88 lbs (40 kg).
If these steps do not resolve your issue, please contact Barkan customer support for further assistance.
Specifications
| Feature | Specification |
|---|---|
| Model Number | BM320 |
| Mounting Type | Wall Mount |
| Movement Type | Swivel, Tilt |
| Compatible TV Sizes | 13 - 65 inches (up to 77 inches with 400x400mm VESA) |
| Maximum Load Capacity | 88 lbs (40 kg) |
| VESA Compatibility | 75x75, 100x100, 100x200, 200x100, 200x200, 300x300, 300x400, 400x200, 400x300, 400x400 mm (and non-VESA up to 400x400 mm) |
| Swivel Range | 40° |
| Tilt Range | -5° to 15° |
| Leveling Adjustment | ±5° |
| Distance from Wall | 4 inches (10.1 cm) |
| Material | Metal Alloy |
| Color | Black |
| Item Weight | 3.56 pounds |
| Package Dimensions | 10 x 6.81 x 2.44 inches |
| UPC | 818212002312 |
Image: Technical drawing showing maximum dimensions (Max. 400mm), tilt range (0-15°), swivel range (40°), leveling (±5°), and distance from wall (4"/10.1cm) for the Barkan BM320 mount.
Warranty Information
The Barkan BM320 TV Wall Mount comes with a Lifetime Limited Warranty. Barkan products undergo strict quality tests and are designed for durability. This mount has been tested with four times its declared weight capacity to ensure safety and reliability.
For detailed warranty terms and conditions, please refer to the official Barkan website or contact customer support.
Customer Support
For any questions, technical assistance, or if you require different screen-connection screws, please contact Barkan support:
- Email: sales.usa@barkanmounts.com
- Website: Visit the official Barkan Mounts website for FAQs, video demonstrations, and additional helpful tools.
Our service team is available to assist you with any needs that may arise during the installation or use of your product.
