Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Eurofase Penchant 3-Light Pendant, Model 38503-016. This indoor lighting fixture features a semi-opaque pleated drum shade with clear glass teardrop accents and is designed for ceiling mount installation.
Safety Information
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these safety precautions:
- Read all instructions carefully before beginning installation.
- Turn off electrical power at the main fuse or circuit breaker box before installation or servicing.
- Consult a qualified electrician if you are unsure about the installation process.
- Use only the specified bulb type and wattage (E26 Medium base, max 60 watts incandescent per bulb).
- Do not exceed the maximum wattage.
- Ensure all electrical connections are secure and comply with local codes and ordinances.
- Do not install this fixture in wet or damp locations. It is designed for indoor use only.
Package Contents
Verify that all components are present before beginning installation:
- Pendant Light Fixture (1)
- Mounting Hardware Kit (1)
- Instruction Manual (1)

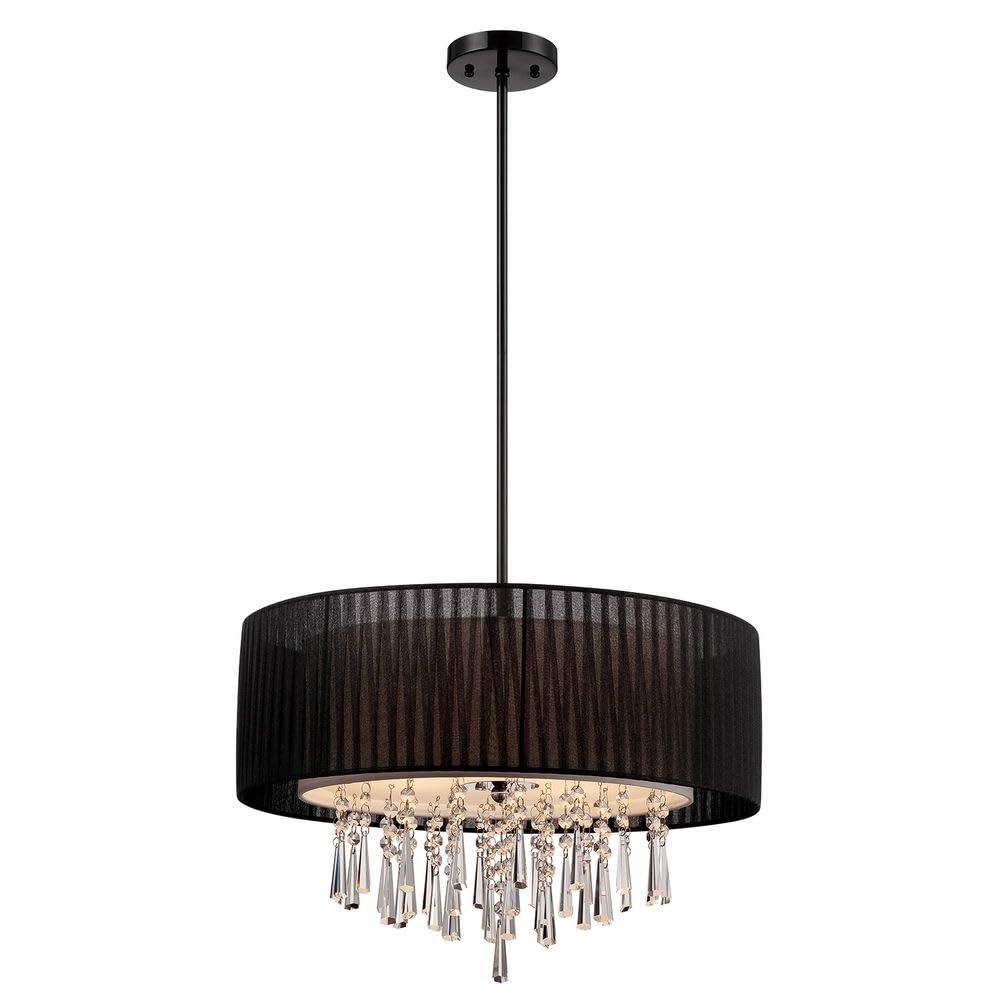

Figure 1: Complete Eurofase Penchant 3-Light Pendant fixture.
Setup and Installation
Tools Required (not included): Screwdriver, wire strippers, electrical tape, ladder, safety glasses.
- Prepare for Installation: Turn off power at the circuit breaker. Ensure the mounting surface is structurally sound to support the fixture's weight (6.19 kg).
- Install Mounting Bracket: Attach the mounting bracket from the hardware kit to the junction box in the ceiling using the provided screws.
- Adjust Height (if applicable): The pendant features adjustable height. Determine the desired hanging length and adjust the rod accordingly before wiring.
- Wire Connections: Connect the fixture's wires to the corresponding household wires (black to black, white to white, ground to ground) using wire nuts. Secure connections with electrical tape.
- Secure Canopy: Carefully push the wired fixture up to the ceiling, aligning the mounting screws on the bracket with the holes in the canopy. Secure the canopy with the decorative nuts.
- Install Bulbs: Screw three E26 Medium base incandescent bulbs (max 60 watts each) into the sockets.
- Attach Shade and Crystals: Carefully attach the semi-opaque pleated drum shade to the fixture. Then, individually hang the clear glass teardrop accents onto the designated hooks or loops on the fixture. Refer to Figure 2 for crystal placement.
Figure 2: Detail of the pleated drum shade and crystal accents.
Operating Instructions
Once installation is complete and verified, restore power at the circuit breaker.
- Turning On/Off: Operate the pendant light using a standard wall switch connected to the fixture's circuit.
- Dimming Function: This fixture is dimmable. If connected to a compatible dimmer switch (sold separately), you can adjust the light intensity. Ensure you use dimmable incandescent bulbs for optimal performance.
Maintenance
Regular maintenance ensures the longevity and appearance of your pendant light.
- Cleaning: Disconnect power before cleaning. Use a soft, dry cloth to wipe the metal finish. For the pleated drum shade, a soft brush or vacuum with a brush attachment can be used to remove dust. The glass teardrop crystals can be gently wiped with a damp cloth and then dried. Do not use abrasive cleaners or solvents.
- Bulb Replacement: Ensure power is off. Allow bulbs to cool completely before replacing. Unscrew old bulbs and screw in new E26 Medium base incandescent bulbs (max 60 watts).
- Inspection: Periodically check all connections and mounting hardware for tightness.
Troubleshooting
If your pendant light is not functioning correctly, try the following steps:
- Light does not turn on:
- Check if the power is on at the circuit breaker.
- Ensure the wall switch is in the 'ON' position.
- Verify that bulbs are screwed in tightly and are not burnt out. Replace if necessary.
- Check wire connections for proper contact (ensure power is off before inspecting).
- Light flickers:
- Ensure bulbs are fully tightened.
- Verify that the bulbs are compatible with your dimmer switch (if installed).
- Check for loose wire connections (ensure power is off before inspecting).
If issues persist after performing these checks, contact customer support.
Specifications
| Feature | Specification |
|---|---|
| Model Number | 38503-016 |
| Brand | Eurofase |
| Dimensions (L x W x H) | 53.3L x 53.3W x 34.3H cm (21 x 21 x 13.5 inches) |
| Item Weight | 6.19 kg |
| Material | Metal, Crystal (Shade) |
| Color | Black |
| Light Source | Incandescent |
| Number of Lights | 3 |
| Bulb Base | E26 Medium |
| Max Wattage per Bulb | 60 watts |
| Voltage | 120 volts |
| Installation Type | Semi Flush Mount, Ceiling Mount |
| Special Features | Adjustable Height, Dimmable |
| Certifications | ETL Listed |
| Indoor/Outdoor Usage | Indoor |
Warranty Information
This Eurofase Penchant 3-Light Pendant is covered by a limited manufacturer's warranty. Additionally, a 3-year extended warranty is provided for peace of mind. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation included with your product or contact Eurofase customer support.
Customer Support
For technical assistance, replacement parts, or warranty inquiries, please contact Eurofase customer service. Contact information can typically be found on the Eurofase website or on the product packaging.
