1. Product Overview
The TTY Store 5-Tier Wire Shelving Unit is a versatile and robust storage solution designed for various environments such as kitchens, garages, offices, and more. Constructed from durable alloy steel with a black powder coating, this unit offers five adjustable shelves to accommodate items of different sizes. It is NSF certified, ensuring quality and safety for commercial and home use. The unit can be assembled with either adjustable feet levelers or casters for mobility.
Image 1.1: Fully assembled 5-tier wire shelving unit in a kitchen.
2. Safety Information
Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or product damage.
- Weight Capacity: Do not exceed the maximum weight capacity. Each shelf supports up to 150 lbs (evenly distributed) when using feet levelers. The entire unit supports up to 220 lbs (evenly distributed) when using casters.
- Even Distribution: Always distribute weight evenly across shelves to prevent tipping or collapse.
- Stable Surface: Assemble and use the shelving unit on a flat, stable, and level surface.
- Children and Pets: Keep children and pets away from the unit during assembly. Do not allow children to climb on or play with the shelving unit.
- Assembly: Ensure all parts are securely fastened before use. Do not use power tools for assembly as this may overtighten and damage components.
- Moving the Unit: If using casters, ensure they are locked when the unit is stationary. When moving, unlock casters and push slowly to avoid sudden movements or tipping.
3. Parts List
Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.
- Wire Shelves (5)
- Upper Poles (4)
- Lower Poles (4)
- Plastic Sleeves/Clips (20 pairs + spares)
- Feet Levelers (4)
- Casters (4, 2 with locking brakes)
4. Setup and Assembly
Assembly of this shelving unit is designed to be straightforward and typically takes about 15 minutes with no tools required. You have the option to install either feet levelers for stationary use or casters for mobility.
4.1. Choose Your Base: Feet Levelers or Casters
Decide whether you want a stationary unit or a mobile unit. The unit comes with both feet levelers and casters.
Image 4.1: V-shaped mesh design and base options (feet levelers or casters).
4.2. Attaching the Base
- Screw the chosen base (either 4 feet levelers or 4 casters) into the bottom of the lower poles. If using casters, ensure the two locking casters are on the same side for easier access.
4.3. Assembling the Poles
- Connect the upper poles to the lower poles by screwing them together. Ensure they are tightly secured.
4.4. Installing Shelves
- Locate the grooves on the poles. These grooves are spaced at 1-inch increments, allowing for adjustable shelf height.
- Snap two plastic sleeves onto each pole at the desired height for the bottom shelf. Ensure the arrows on the sleeves point upwards and that all sleeves for a single shelf are at the same height.
- Slide a wire shelf down over the poles until it rests firmly on the plastic sleeves. Apply even pressure to all four corners of the shelf to ensure it locks into place.
- Repeat steps 4 and 5 for the remaining four shelves, adjusting their heights as needed.

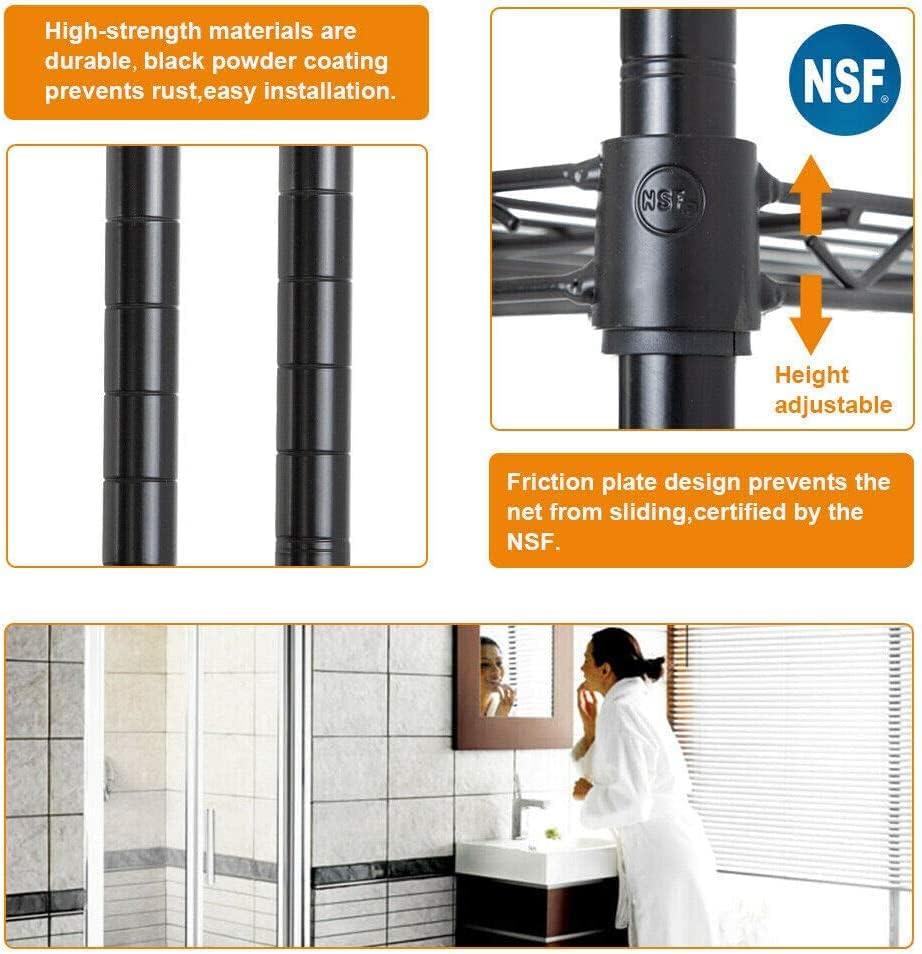

Image 4.2: Details of pole construction, NSF certification, and height adjustment.
4.5. Final Check
Once all shelves are installed, gently push down on each shelf to ensure it is securely seated on the plastic sleeves. Verify the unit is stable before placing items on it.
Image 4.3: Assembled unit dimensions.
5. Operating Instructions
The TTY Store 5-Tier Wire Shelving Unit is designed for versatile storage in various settings.
- Loading Shelves: Place items on the shelves, ensuring weight is distributed evenly. Avoid concentrating heavy items in one small area.
- Adjusting Shelf Height: To adjust a shelf's height, remove all items from the shelf. Lift the shelf off the plastic sleeves. Remove the plastic sleeves, reposition them at the desired height (ensuring they are level), and then re-seat the shelf firmly.
- Mobility (with Casters): To move the unit, unlock the casters. Carefully push the unit to its new location. Once in place, lock the casters to prevent unintended movement.
- Stationary Use (with Feet Levelers): The feet levelers can be adjusted to compensate for uneven floors, ensuring the unit remains stable. Turn the levelers clockwise or counter-clockwise until the unit is level and stable.
Image 5.1: Examples of unit usage in different home and office environments.
6. Maintenance
Proper maintenance will ensure the longevity and continued performance of your shelving unit.
- Cleaning: Wipe the unit with a dry cloth to remove dust and debris. For stubborn dirt, use a damp cloth with mild soap and water, then dry immediately to prevent rust. Avoid abrasive cleaners or scouring pads.
- Inspection: Periodically check all connections and fasteners to ensure they remain tight and secure.
- Rust Prevention: While the unit has a black powder coating for rust resistance, avoid prolonged exposure to excessive moisture or harsh chemicals.
7. Troubleshooting
If you encounter any issues with your shelving unit, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit is wobbly or unstable | Uneven floor; shelves not fully seated; feet levelers/casters not properly adjusted. | Ensure unit is on a flat surface. Press down firmly on each shelf to ensure it's locked onto the plastic sleeves. Adjust feet levelers or casters to stabilize. |
| Difficulty adjusting shelf height | Shelf is loaded; plastic sleeves are stuck or misaligned. | Remove all items from the shelf. Ensure plastic sleeves are correctly oriented with arrows pointing up and are aligned with the pole grooves. |
| Casters not rolling smoothly | Casters are locked; debris in wheels. | Unlock the casters. Check wheels for any trapped debris and remove if present. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | XF-WS14605-Black |
| Material | Alloy Steel, Metal |
| Dimensions (D x W x H) | 14" x 30" x 60" (35.56 cm x 76.2 cm x 152.4 cm) |
| Number of Shelves | 5 |
| Weight Capacity per Shelf | 150 lbs (68 kg) - evenly distributed on feet levelers |
| Total Unit Weight Capacity | 220 lbs (100 kg) - evenly distributed on casters |
| Special Feature | Adjustable Shelf Height (1" increments), NSF Certified |
| Mounting Type | Floor Mount |
| Product Care Instructions | Wipe with Dry Cloth |
| UPC | 840137931187 |
9. Warranty and Support
TTY Store is committed to providing high-quality products. This product includes a 100% Satisfaction Guarantee. If you are not satisfied with your metal shelf or have any questions, please contact our customer support team for assistance.
For support, please refer to the contact information provided at the point of purchase or visit the official TTY Store website.
