Complete Tractor Radiator 3106-6300 User Manual

1. Product Overview

This manual provides essential information for the installation, operation, and maintenance of the Complete Tractor Radiator, model 3106-6300. This radiator is designed as a replacement component for specific JCB machinery, ensuring efficient engine cooling and optimal performance. Proper installation and regular maintenance are crucial for the longevity and effective functioning of the radiator.

The radiator features an aluminum core and is engineered to meet OEM quality standards for agricultural and construction equipment.

2. Specifications

3. Compatibility

This Complete Tractor Radiator (Model 3106-6300) is compatible with the following JCB equipment models:

• JCB 214e Backhoe Loader
• JCB 506C Loadall
• JCB 520 Loadall
• JCB 526 Loadall
• JCB 526S Loadall
• JCB 528-70 Loadall
• JCB 528S Loadall
• JCB 530 Loadall
• JCB TM270 Loader

Note: Always verify the OEM part number (30/915200) and specifications against your equipment's requirements before installation.

4. Setup and Installation

Installation of a radiator requires mechanical expertise and specialized tools. It is highly recommended that installation be performed by a qualified professional to ensure proper fitment and function, and to prevent damage to the equipment or injury.

General Guidelines (Professional Installation Recommended):

1. Safety First: Ensure the equipment is turned off, cooled down, and secured before beginning any work. Disconnect the battery.
2. Drain Coolant: Completely drain the existing coolant from the system into an appropriate container for disposal.
3. Remove Old Radiator: Disconnect hoses, fan shroud, and mounting bolts. Carefully remove the old radiator.
4. Inspect System: Check all hoses, clamps, and other cooling system components for wear or damage. Replace as necessary.
5. Install New Radiator: Carefully position the new Complete Tractor Radiator 3106-6300. Secure it with mounting bolts and reattach the fan shroud.
6. Connect Hoses: Reconnect all coolant hoses, ensuring clamps are tight and secure.
7. Fill with Coolant: Fill the system with the manufacturer-recommended coolant. Follow the equipment manufacturer's bleeding procedures to remove air pockets.
8. Leak Check: Start the engine and allow it to reach operating temperature. Monitor for any leaks and check the coolant level.
9. Test Drive: Perform a test run to ensure proper cooling system function.

Refer to your JCB equipment's specific service manual for detailed, model-specific installation instructions.

5. Operating Considerations

Once installed, the radiator operates as an integral part of your equipment's cooling system. No specific user operation is required beyond monitoring the engine temperature gauge during equipment use. Ensure the temperature remains within the normal operating range specified by the equipment manufacturer.

If the engine temperature rises above normal, immediately shut down the equipment and investigate the cause to prevent engine damage.

6. Maintenance

Regular maintenance of the cooling system, including the radiator, is essential for optimal performance and to extend the lifespan of your equipment.

• Coolant Level Check: Regularly check the coolant level in the reservoir and radiator (when cold). Top up with the correct type of coolant as needed.
• Coolant Quality: Periodically inspect the coolant for discoloration or debris. Flush and replace coolant according to your equipment manufacturer's recommendations.
• External Cleaning: Keep the radiator fins clean from dirt, debris, and insects. Use a soft brush or low-pressure air/water to clean the fins, being careful not to bend them.
• Hose and Clamp Inspection: Inspect all radiator hoses for cracks, bulges, or leaks. Ensure all clamps are tight.
• Fan and Shroud Inspection: Check the cooling fan for damage and ensure the fan shroud is intact and properly positioned.

7. Troubleshooting

If you experience issues with your cooling system, consider the following common problems and general troubleshooting steps:

• Engine Overheating:
  • Check coolant level.
  • Inspect for external blockages on radiator fins.
  • Verify fan operation.
  • Check for coolant leaks.
  • Consider thermostat or water pump issues (requires professional diagnosis).
• Coolant Leaks:
  • Visually inspect the radiator, hoses, and connections for drips or wet spots.
  • Tighten hose clamps.
  • If a leak is detected in the radiator core, professional repair or replacement may be necessary.
• Low Coolant Level:
  • Top up coolant.
  • Investigate for leaks if frequent topping up is required.

For persistent or complex issues, consult a qualified service technician.

8. Warranty Information

The Complete Tractor Radiator (Model 3106-6300) comes with a 1-year warranty. This warranty covers manufacturing defects and ensures the product meets OEM quality standards. For specific terms, conditions, and to initiate a warranty claim, please refer to the warranty documentation provided with your purchase or contact Complete Tractor customer support.

The warranty period is designed to cover the product throughout typical planting and harvesting seasons, ensuring reliability when you need it most.

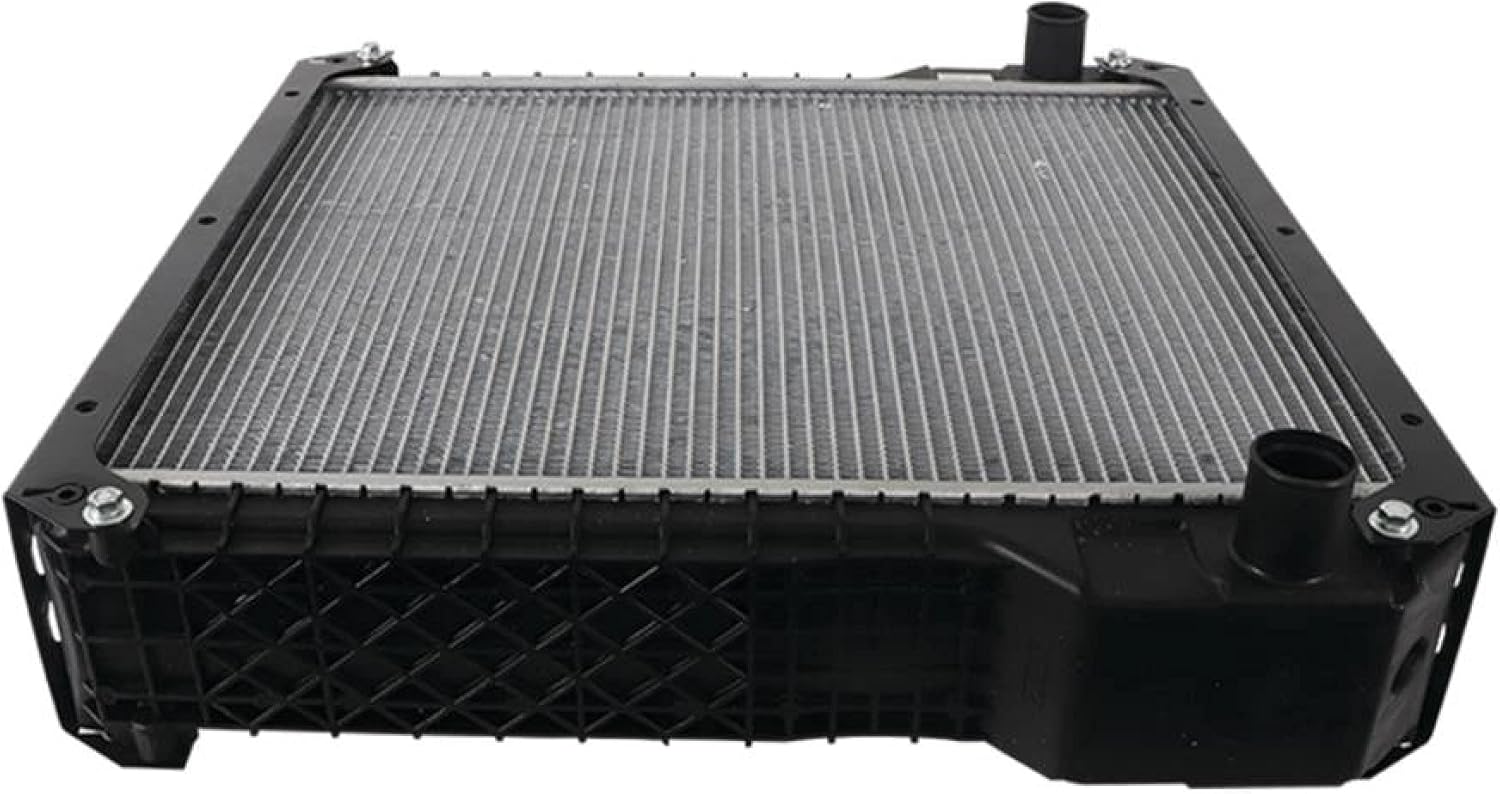

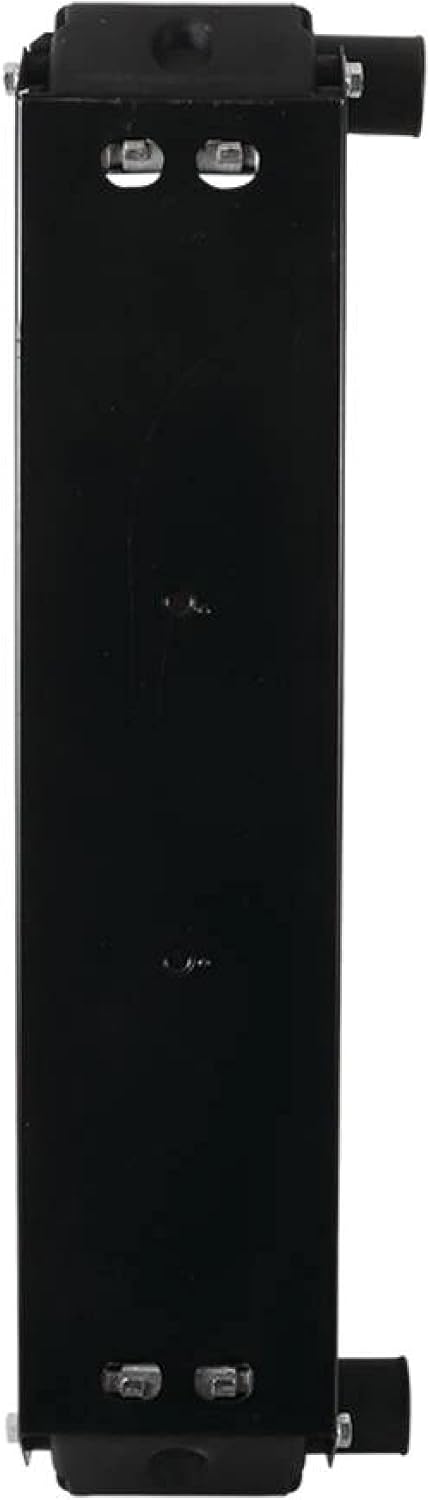

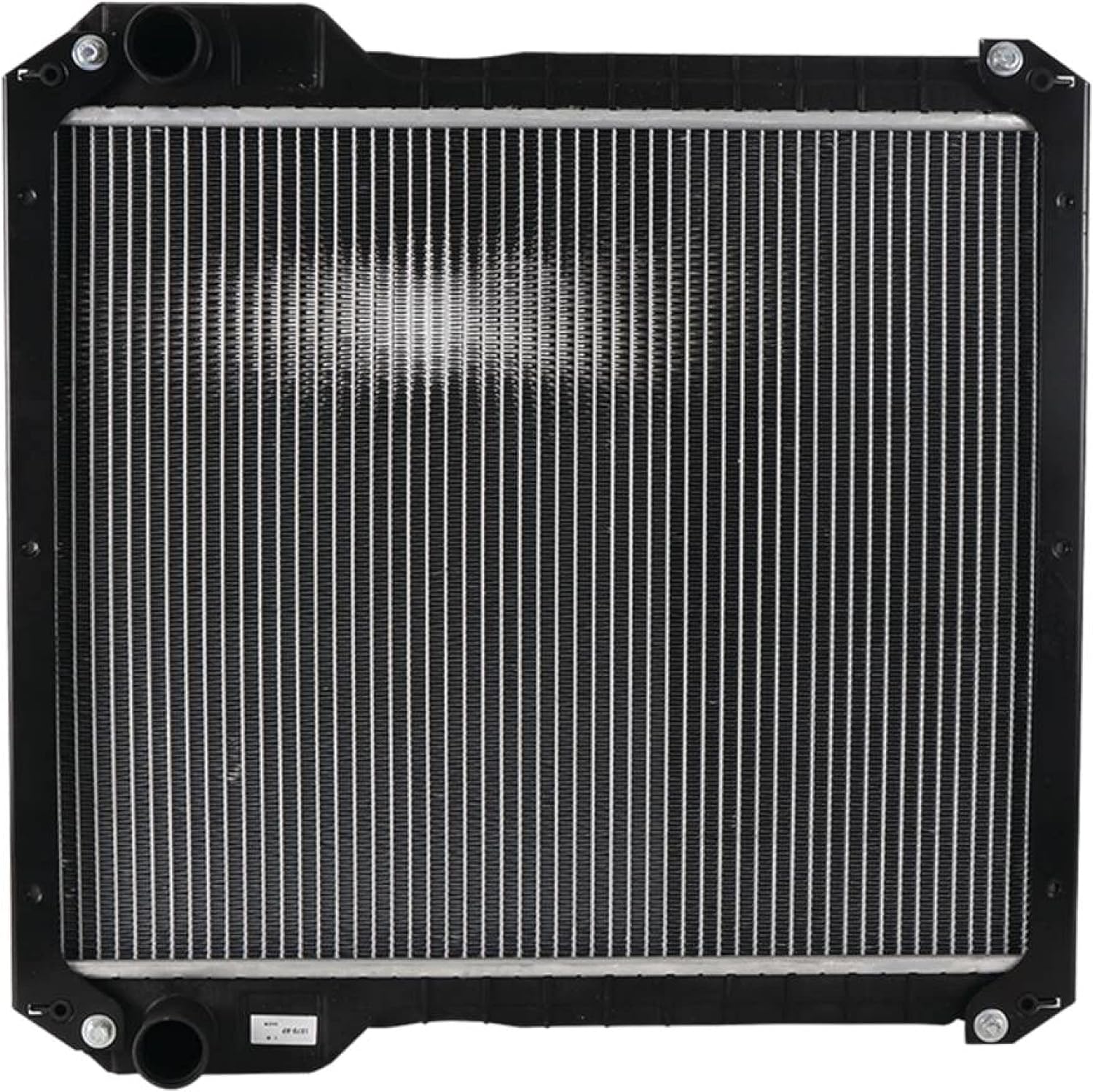

9. Product Images

10. Customer Support

For further assistance, technical support, or inquiries regarding your Complete Tractor Radiator 3106-6300, please contact Complete Tractor customer service. Refer to your purchase documentation for contact details or visit the official Complete Tractor website.

When contacting support, please have your product model number (3106-6300) and purchase information readily available.
