Paktonvo 70W LED Barn Light User Manual
Model: Led barn light
1. Introduction
Thank you for choosing the Paktonvo 70W LED Barn Light. This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your new LED barn light. Designed for outdoor use, this light offers powerful illumination and energy efficiency, making it ideal for various applications such as backyards, barns, farms, parking lots, garages, and alleyways.
Key features include 9800 lumens output, 5000K daylight white color temperature, AC100-277V input, and a built-in dusk-to-dawn photocell sensor for automatic operation. It is ETL Listed and boasts a long lifespan of 50,000 hours.
2. Safety Information
Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Always disconnect power at the circuit breaker before installation or servicing.
- Installation should be performed by a qualified electrician in accordance with all local and national electrical codes.
- Ensure the mounting surface is structurally sound and can support the weight of the fixture.
- Do not operate the fixture with a damaged cord or plug.
- Do not look directly into the LED light source when it is illuminated, as this may cause eye damage.
- This fixture is designed for outdoor use only and is IP65 waterproof, but proper sealing of electrical connections is crucial.
3. Package Contents
Verify that all components are present before beginning installation:
- 1 x Paktonvo 70W LED Barn Light Fixture
- Mounting accessories (screws, wall anchors, wire nuts)
Figure 3.1: LED Barn Light and Mounting Accessories
4. Specifications
| Feature | Detail |
|---|---|
| Brand | Paktonvo |
| Model Number | Led barn light |
| Wattage | 70 Watts |
| Brightness | 9800 Lumens |
| Color Temperature | 5000 Kelvin (Daylight White) |
| Input Voltage | AC100-277V |
| Light Source Type | LED |
| Material | Aluminum + PC |
| Finish Type | Aluminum |
| Special Features | Dusk to Dawn Photocell Sensor |
| Waterproof Rating | IP65 |
| Lifespan | 50,000 Hours |
| Certifications | ETL Listed |
| Product Dimensions | 14"L x 9"W x 5"H |
| Item Weight | 4.5 Pounds |
5. Installation
5.1 Preparation
- Ensure power is OFF at the circuit breaker.
- Gather necessary tools: screwdriver, wire strippers, drill, measuring tape, pencil.
5.2 Mounting Options
The Paktonvo LED Barn Light supports both wall mounting and arm mounting for versatile placement.
Figure 5.1: Wall Mounting Example
Figure 5.2: Arm Mounting Example
5.3 Wiring Instructions
- Connect the black wire from the fixture to the live (hot) wire from the power supply.
- Connect the white wire from the fixture to the neutral wire from the power supply.
- Connect the green (or bare copper) wire from the fixture to the ground wire from the power supply.
- Secure all connections with wire nuts and ensure they are properly insulated.
After wiring, securely attach the fixture to the chosen mounting surface using the provided screws and anchors. Ensure all connections are tight and the fixture is stable.

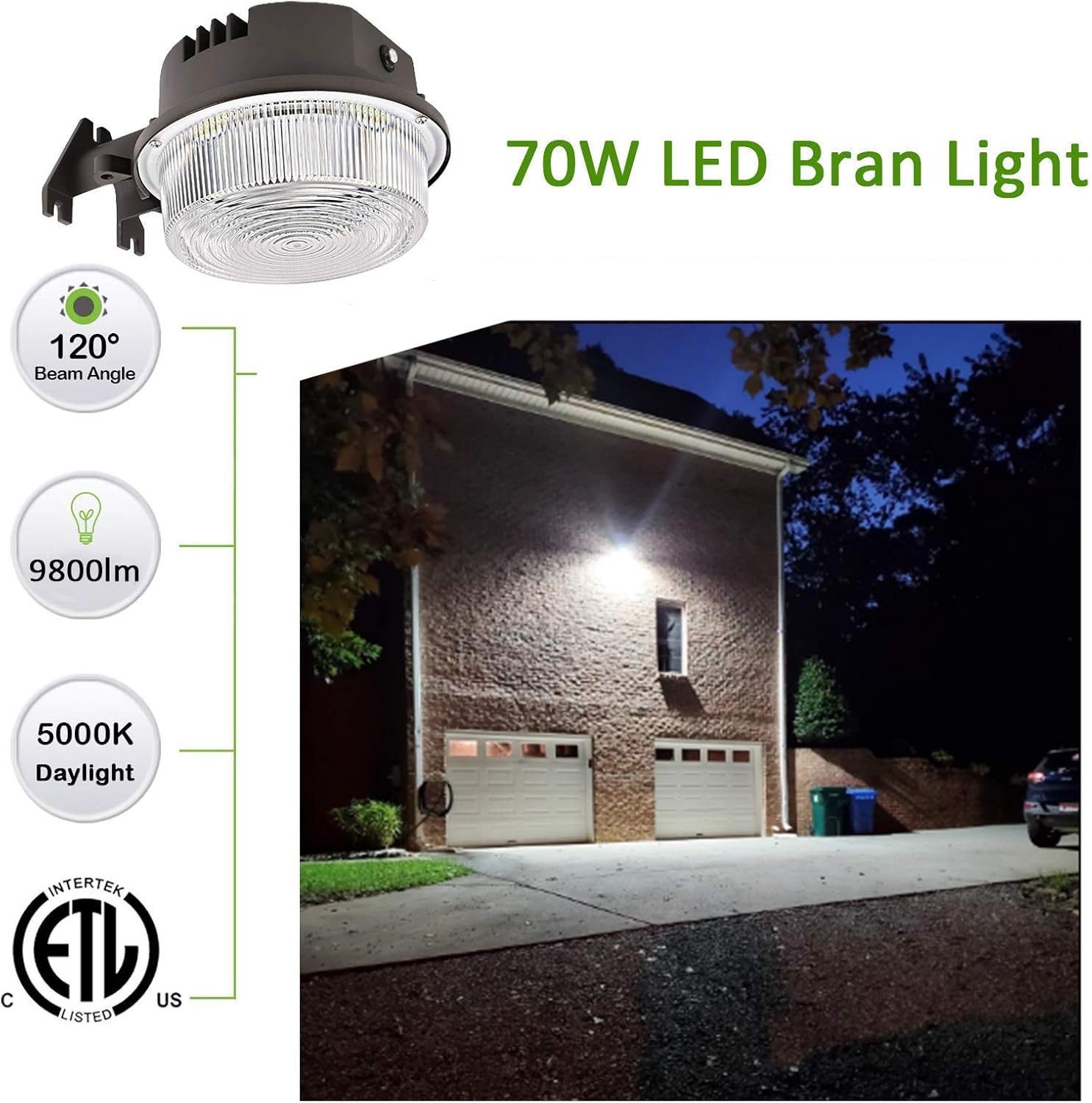

Figure 5.3: Installed LED Barn Light providing wide illumination.
6. Operating Instructions
The Paktonvo LED Barn Light features a built-in dusk-to-dawn photocell sensor for automatic operation. This sensor detects ambient light levels and controls the light accordingly.
- Automatic Mode: The light will automatically turn ON at sundown or when ambient light levels drop below a certain threshold. It will automatically turn OFF at sunrise or when sufficient daylight is detected.
- Manual Override: If you wish to manually control the light, it must be connected to a switch. Turning the switch OFF will turn off the light regardless of ambient light. Turning the switch ON will allow the photocell to resume automatic operation.
Figure 6.1: Dusk-to-Dawn Photocell Sensor Operation
The light provides a wide beam angle and high lumen output, ensuring excellent coverage for large areas.
Figure 6.2: Lighting Coverage Area
Observe the light in action, illuminating various outdoor spaces:
Figure 6.3: Real-world applications of the LED Barn Light.
6.1 Official Product Videos
For a visual guide on the product's features and performance, please refer to the official videos below:
Video 6.1: "Paktonvo LED Barn Light Provides Light to Barn at Night" - This video demonstrates the light's effectiveness in illuminating a barn area at night, showcasing its brightness and coverage.
7. Maintenance
The Paktonvo LED Barn Light is designed for minimal maintenance. However, regular inspection and cleaning can help ensure optimal performance and longevity.
- Cleaning: Periodically clean the lens and housing with a soft, damp cloth to remove dirt, dust, or debris that may accumulate and obstruct light output or the photocell sensor. Do not use abrasive cleaners or solvents.
- Inspection: Annually inspect the fixture for any signs of damage, loose wiring, or corrosion. Ensure all mounting hardware remains secure.
- Weather Resistance: The fixture is IP65 waterproof, designed to withstand various weather conditions including rain and snow.
Figure 7.1: Weather Resistance of the LED Barn Light
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at night. | 1. Power is off. 2. Photocell obstructed or faulty. 3. Wiring issue. | 1. Check circuit breaker and wall switch. 2. Ensure photocell is clean and not blocked by debris or other light sources. Test in complete darkness. 3. Verify all wiring connections are secure. |
| Light stays on during the day. | 1. Photocell obstructed or faulty. 2. Insufficient ambient light. | 1. Clean photocell. Ensure no artificial light source is shining directly on the photocell. 2. Relocate the fixture to an area with more natural daylight. |
| Light flickers or dims. | 1. Loose wiring connection. 2. Voltage fluctuations. 3. End of product life. | 1. Check and secure all wiring connections. 2. Consult an electrician to check power supply. 3. If within warranty, contact customer support. |
9. Warranty and Support
The Paktonvo 70W LED Barn Light is built with high-quality materials and is designed for a long operational life of 50,000 hours. This product is ETL Listed, assuring its quality and safe operation.
For any questions, concerns, or support needs, please contact us via Email through Amazon’s Buyer-Seller messaging service. We are committed to providing excellent customer service and will reply within 24 hours.
