Laresar Cordless Vacuum Cleaner Elite 1 Instruction Manual

1. Introduction

Thank you for choosing the Laresar Cordless Vacuum Cleaner Elite 1. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new vacuum cleaner. Please read it thoroughly before first use and retain it for future reference.

2. Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance. This includes:

• Read all instructions before using the appliance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up toxic material, such as chlorine bleach, ammonia, or drain cleaner.
• Do not use without dust cup and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not charge the unit outdoors.
• Use only the charger specified by the manufacturer.
• Do not incinerate the appliance even if it is severely damaged. Batteries can explode in a fire.

3. Product Overview

The Laresar Elite 1 is a versatile cordless stick vacuum cleaner designed for efficient cleaning of various surfaces. It features a powerful motor, detachable battery, and multiple attachments for comprehensive cleaning.

3.1 Main Components

Image: The Laresar Elite 1 Cordless Vacuum Cleaner shown with its main body, extension tube, floor brush, and various accessories including a crevice tool, dusting brush, and spare filter.

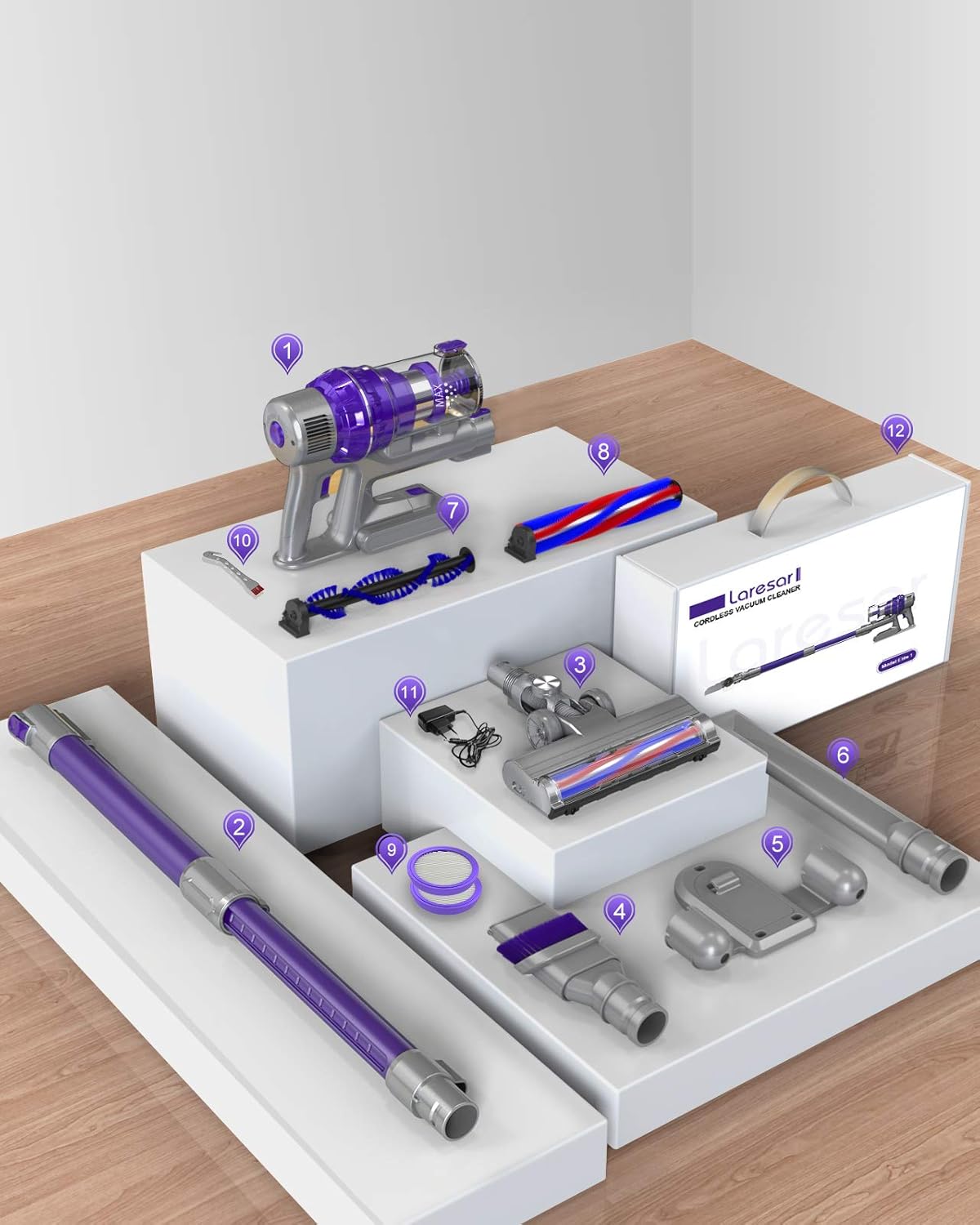

Image: A detailed diagram illustrating the numbered components of the Laresar Elite 1 vacuum cleaner, including the main motor unit, extension tube, floor brush, wall mount, charger, and various cleaning tools.

3.2 Key Features

• Powerful Suction: Up to 26KPA suction power for effective cleaning.
• 380W Brushless Motor: Provides strong and consistent cleaning performance.
• Detachable Battery: 2600mAh Lithium-Ion battery offering up to 30 minutes runtime, with a 4-hour full charge time.
• Efficient HEPA System: Filters 99% of dust and particles, improving air quality.
• LED Illumination: Headlights on the floor brush illuminate dark areas for thorough cleaning.
• Versatile Cleaning: Converts to a handheld vacuum and includes multiple attachments for various surfaces and hard-to-reach areas.
• Two Brush Rolls: Specialized brush rolls for hard floors and carpets.
• One-Touch Debris Emptying: Hygienic dust cup emptying with a single button press.
• Washable Filters: Reusable filters for easy maintenance.
• Low Noise Operation: Designed for quieter cleaning.

4. Setup and Assembly

4.1 Unpacking

Carefully remove all components from the packaging. Check the contents against the packing list to ensure all parts are present and undamaged. Dispose of packaging materials responsibly.

4.2 Assembly

1. Attach the Extension Tube: Insert the extension tube into the main motor unit until it clicks securely into place.
2. Attach the Floor Brush: Connect the floor brush to the other end of the extension tube, ensuring it locks firmly.
3. Install the Battery: Slide the detachable battery into the main motor unit until it clicks.
4. Select Brush Roll: Choose the appropriate brush roll (hard floor or carpet) and install it into the floor brush head.

4.3 Initial Charging

Before first use, fully charge the battery. Connect the charger to the battery (either attached to the vacuum or detached) and plug it into a power outlet. The charging indicator lights will show the charging status. A full charge typically takes 4 hours.

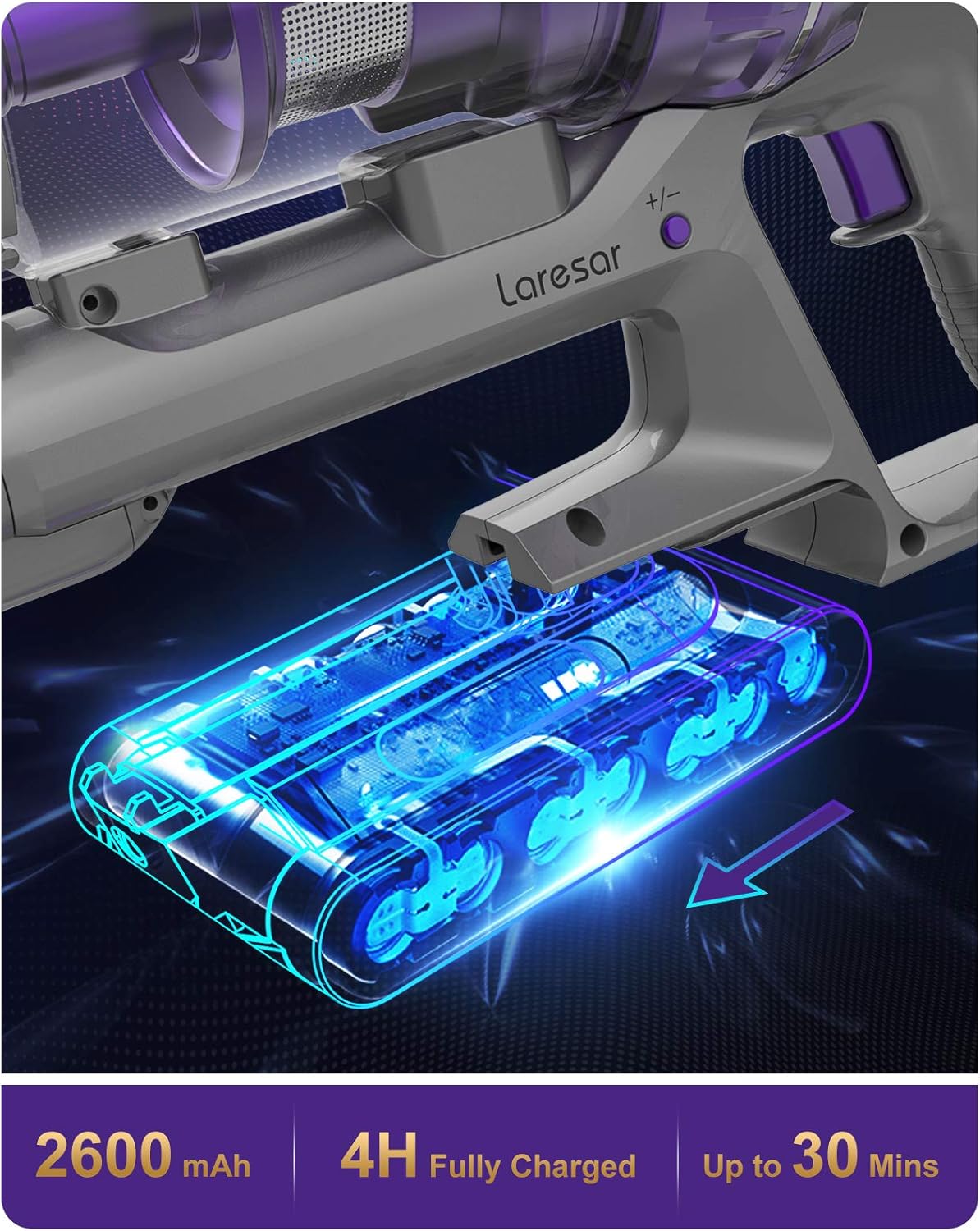

Image: Close-up of the detachable battery, highlighting its 2600mAh capacity, 4-hour charging time, and up to 30 minutes runtime.

5. Operating Instructions

5.1 Power On/Off and Suction Adjustment

• Press the Power On/Off button located on the handle to start or stop the vacuum.
• Use the Suction Adjustment button to switch between different suction modes (e.g., standard and max power) as needed for various cleaning tasks.

5.2 Using the Vacuum

The Laresar Elite 1 can be used in stick mode for floors or as a handheld unit for versatile cleaning.

Image: The vacuum cleaner head shown on a hard floor picking up debris and on a carpet, illustrating the use of two different brush types for optimal cleaning.

Image: The Laresar Elite 1 vacuum cleaner in action on a hard floor, demonstrating its 26KPA powerful suction picking up various debris.

Image: A collage showing the Laresar Elite 1 vacuum cleaner being used in various scenarios: reaching high areas with the extension tube, cleaning floors, and as a handheld unit for detailed cleaning on a laptop keyboard.

5.2.1 Floor Cleaning

• Ensure the correct brush roll is installed for your floor type (hard floor or carpet).
• Push the vacuum forward and pull it back over the area to be cleaned. The LED headlights will assist in illuminating dust in dark corners.
• The 270° rotatable floor brush allows for easy maneuvering around furniture and obstacles.

5.2.2 Handheld Cleaning

• Detach the extension tube and floor brush from the main motor unit.
• Attach the crevice tool for narrow gaps and edges, or the dusting brush for upholstery, keyboards, and delicate surfaces.

5.3 Video Demonstration

Video: An official product video demonstrating the features and usage of the Laresar 26KPA Powerful Suction Cordless Stick Vacuum Cleaner, including its various attachments and cleaning capabilities.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

6.1 Emptying the Dust Cup

• When the dust cup is full, or after each use, press the one-touch release button to empty the debris directly into a trash bin.
• Ensure the vacuum is turned off before emptying.

6.2 Cleaning Filters

Image: A visual representation of the washable HEPA filter being rinsed under water, demonstrating its easy cleaning process.

• The HEPA filter and other internal filters are washable.
• Remove the filters from the dust cup.
• Rinse them under running water until clean.
• Allow filters to air dry completely for at least 24 hours before reassembling. Do not use the vacuum with wet filters.

6.3 Cleaning Brush Rolls

• Periodically check the brush rolls for tangled hair or debris.
• To remove the brush roll, follow the instructions in the product diagram or refer to the quick start guide.
• Use scissors to cut away any tangled hair and remove debris.
• Reinstall the brush roll securely.

6.4 Battery Care

• Always use the original charger provided with the vacuum.
• Do not expose the battery to extreme temperatures.
• If the vacuum will not be used for an extended period, store the battery partially charged in a cool, dry place.

7. Troubleshooting

If you encounter issues with your Laresar Elite 1, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Laresar customer support for further assistance.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Laresar website. Keep your purchase receipt as proof of purchase.
