Product Overview
The Auxbeam 7-inch 240W Round LED Offroad Driving Lights are designed to provide powerful and reliable illumination for various off-road vehicles. Featuring a unique appearance with a low-energy consumption LED DRL in the center, these lights offer extended lighting range and enhanced visibility for safer driving.
Key Features
- Unique Appearance Patent Design: Integrated DRL for auxiliary illumination.
- Long Distance Spot Lighting: Illumination distance up to 1.1 kilometers (3,300 feet) with strong penetrating power.
- High Efficiency: 23 high-intensity LEDs, 120W*2 power, up to 24000LM.
- Perfect Performance: Multiple cooling fins and 2.56-inch thick aluminum alloy housing for excellent heat dissipation and extended lifespan (over 50,000 hours).
- Excellent Quality: IP68 waterproof rating, tempered glass, and stainless steel mounting brackets for durability in harsh conditions.
- Plug & Play: Includes 2-lead DT wiring harness kit with fuse, relay, and switch for easy installation.
Package Contents
- 2 x 7-inch Round LED Driving Lights
- 2 x Mounting Brackets Kit
- 1 x 10FT DT Wiring Harness
- 1 x User Manual
- 1 x Auxbeam Sticker
Specifications
| Attribute | Value |
|---|---|
| Model Number | ZD000617 |
| Color Temperature | 6500K White |
| Shape | Round |
| Material | Aluminum |
| Light Source Type | LED |
| Voltage | 12 Volts |
| Brightness | 24000 Lumen (Pair) |
| Wattage | 240W (120W per light) |
| Waterproof Rating | IP68 |
| Beam Angle | 30 Degrees |
| Lifespan | Over 50,000 hours |
Installation Guide
Safety Precautions
- Ensure the vehicle's power is off before starting installation.
- Wear appropriate safety gear, including gloves and eye protection.
- Verify all connections are secure and properly insulated to prevent short circuits.
- Consult a professional if you are unsure about any steps.

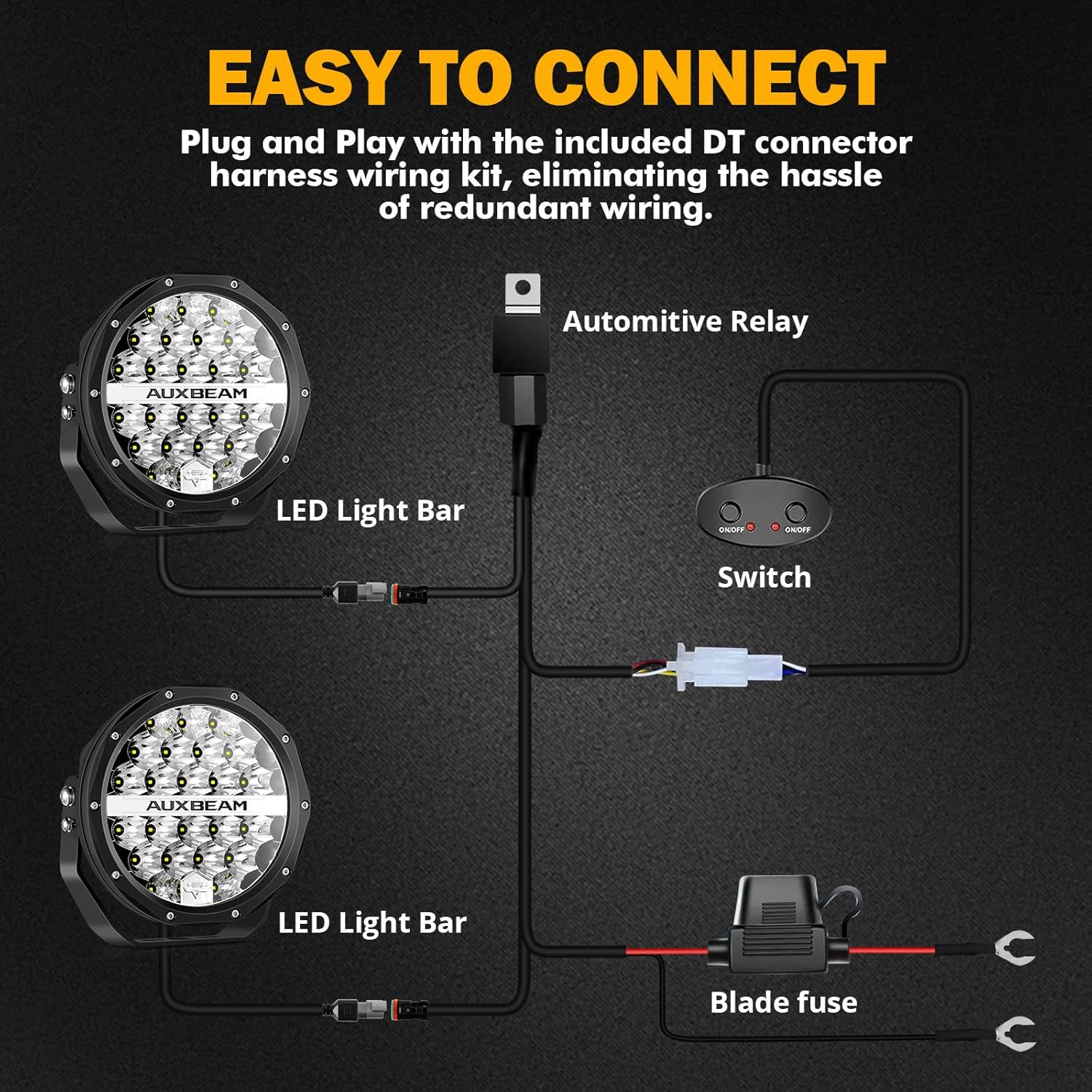

Wiring Diagram
The Auxbeam LED lights come with a convenient plug-and-play DT wiring harness kit, simplifying the installation process. This kit includes a fuse, relay, and switch, eliminating the need for complex custom wiring.
Mounting Instructions
The lights are equipped with 90-degree adjustable stainless steel mounting brackets, allowing for flexible positioning to achieve the desired lighting angle. Secure the brackets to a stable surface on your vehicle using appropriate hardware.
Operating Instructions
Light Modes
These Auxbeam lights feature multiple lighting modes, including a powerful main driving light and a distinctive DRL (Daytime Running Light) function. The DRL can be switched between white and amber colors, providing versatility for different driving conditions and aesthetic preferences.
Performance
The advanced spot reflector cup design ensures a focused beam that extends far ahead, providing critical visibility for high-speed driving in dark conditions. The combination of high-intensity LEDs and efficient optics delivers a powerful and clear light output.
Maintenance and Care
Cleaning and Inspection
- Regularly clean the lens with a soft cloth and mild soap to maintain optimal light output.
- Inspect wiring and connections periodically for any signs of wear or damage.
- Ensure mounting hardware remains tight to prevent vibration and potential damage.
Durability Features
The lights are constructed with a robust die-cast aluminum housing and feature an IP68 waterproof rating, making them resistant to dust, water, and harsh weather conditions. The efficient cooling system prevents overheating, contributing to the long lifespan of the LEDs.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on | No power, loose connection, blown fuse, faulty switch. | Check power source, inspect all wiring connections, replace fuse if blown, test switch functionality. |
| Lights flicker or dim | Insufficient power, loose connection, voltage fluctuations. | Ensure stable power supply, tighten connections, check vehicle's electrical system. |
| DRL not functioning | Incorrect wiring for DRL, DRL circuit issue. | Review wiring diagram for DRL connections, test DRL circuit. |
Warranty and Support
Auxbeam products are manufactured to high-quality standards and are backed by a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact Auxbeam customer service through their official website or the retailer where the product was purchased.
Note: Unauthorized modifications or improper installation may void the product warranty.
