BODEGA 55L Compressor Car Refrigerator User Manual

Introduction

Welcome to the BODEGA 55L Compressor Car Refrigerator. This portable dual-zone cooler is designed for versatile use in vehicles (12V/24V) and at home (100-240V), offering efficient cooling and freezing capabilities for your outdoor adventures, road trips, and daily needs. Please read this manual carefully before use to ensure proper operation and maintenance.

Key Features

Dual Zone Capacity: Features a 38L left zone and a 17L right zone, totaling 55L. Both zones can be controlled independently for temperature, allowing for simultaneous refrigeration and freezing.
Energy Efficiency & Battery Protection: Equipped with a multi-level battery protection system (H/M/L) to prevent vehicle battery drain.
Smart Control: Supports WIFI and App control (Android and iOS) for convenient temperature adjustment and monitoring via your mobile phone, in addition to manual controls.
User-Friendly Design: Includes wheels, a retractable handle, an internal LED light, and comes with essential accessories like a car cigarette lighter plug, wall plug, wall plug adapter, cutting board, and a two-zone basket.
Durable Compressor: Features a high-performance compressor designed for a longer service life, faster cooling, and lower noise operation, backed by a 5-year lifespan guarantee.

Illustration of the BODEGA compressor with a '5 YEARS LIFE SPAN COMPRESSOR' label, highlighting its durability and efficiency compared to others. — The BODEGA refrigerator is equipped with a powerful compressor, ensuring rapid cooling, quiet operation, and extended product life. This advanced compressor technology is designed for reliability and efficiency.

Product Overview and Dimensions

Understand the physical characteristics and capacity of your BODEGA refrigerator.

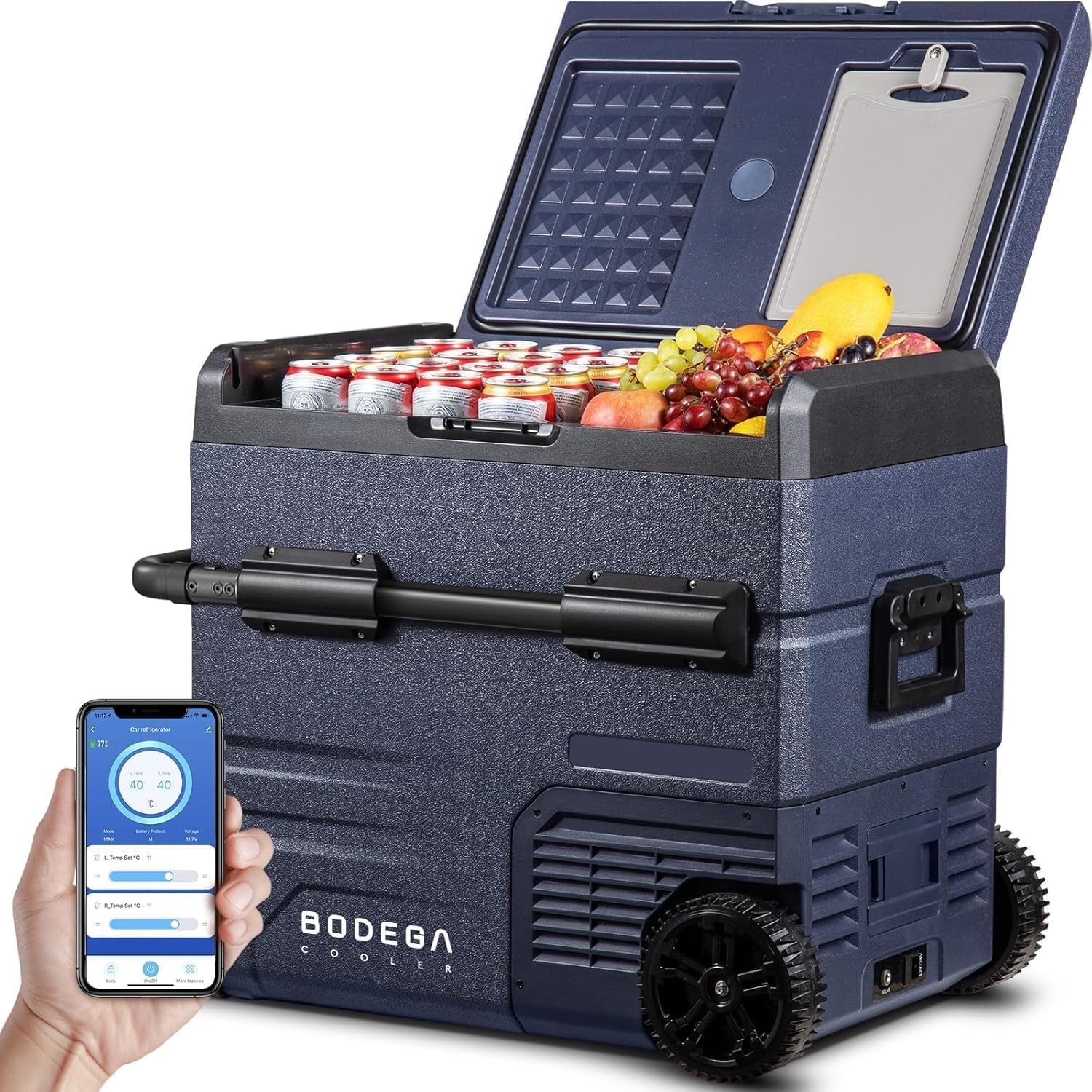

BODEGA 55L compressor car refrigerator with its lid open, filled with drinks and fruit, and a smartphone displaying the control app next to it. — This image shows the BODEGA 55L portable refrigerator, demonstrating its spacious interior capable of holding various items. The accompanying smartphone illustrates the convenient app control feature.

Diagram showing the dual-zone capacity and external dimensions of the BODEGA 55L refrigerator, along with examples of items it can store like seafood, vegetables, meats, beverages, fruits, and skincare products. — This diagram provides a visual representation of the refrigerator's dual-zone layout and its overall dimensions, including the handle and wheels. It also highlights the diverse range of items that can be stored, from food and drinks to personal care products.

Comparison chart showing the internal capacity of 35L, 45L, and 55L BODEGA refrigerators in terms of 750ml bottles, 550ml bottles, and 330ml cans. — This image illustrates the internal volume of different BODEGA refrigerator models, specifically detailing how many bottles (750ml, 550ml) or cans (330ml) each capacity (35L, 45L, 55L) can hold.

Setup and Initial Use

Unpacking

Carefully remove the refrigerator from its packaging. Inspect for any damage during transit.

It is recommended to let the refrigerator stand upright for at least 6 hours before plugging it in, especially if it was transported horizontally. This allows the compressor lubricant to settle.

Placement

Ensure adequate ventilation around the refrigerator. Do not block the ventilation openings. Maintain at least 10 cm (4 inches) of space around all sides for proper airflow.

Image showing the BODEGA refrigerator placed in the trunk of an SUV, with dimensions indicating the required space for proper fit and ventilation. — This image demonstrates the recommended placement of the refrigerator in a vehicle's trunk, emphasizing the importance of ensuring sufficient space for the unit and maintaining adequate ventilation around it for optimal performance.

Power Connection

Your BODEGA refrigerator can be powered by various sources:

12V/24V DC (Car Cigarette Lighter): Connect the provided DC power cable to your vehicle's cigarette lighter socket.
100-240V AC (Home Outlet): Use the provided AC adapter and power cord to connect the refrigerator to a standard wall outlet.
Solar Panel / Power Station: The unit is compatible with external power stations and can be charged via solar panels (power station and solar panel sold separately).

Diagram illustrating the various power sources compatible with the BODEGA refrigerator, including solar panels, power stations, home outlets (110-240V), and car cigarette lighters (12V/24V). — This visual guide shows the flexibility of the BODEGA refrigerator's power options, from standard household outlets to vehicle power and even renewable energy sources like solar panels when connected to a power station.

Operating Instructions

Control Panel

The control panel is located on the front of the refrigerator and features a digital display and control buttons.

Power On/Off

Press the Power Button to turn the unit on or off.

Temperature Setting

Use the + and - buttons to adjust the desired temperature for each zone. The dual zones can be set independently from -20°C to 20°C (-4°F to 68°F).

Cooling Mode (MAX/ECO)

Press the Settings Button (gear icon) to cycle through cooling modes:

MAX: Provides maximum cooling performance for rapid temperature reduction.
ECO: Energy-saving mode for efficient operation, ideal for maintaining temperature over longer periods.

The current mode will be displayed on the control panel.

Battery Protection Setting

To protect your vehicle's battery, the refrigerator has three battery protection levels (H - High, M - Medium, L - Low). Press and hold the Settings Button (gear icon) for 3 seconds to enter the battery protection setting. Press the button again to cycle through H, M, L.

H (High): Highest cut-off voltage, suitable for starting batteries.
M (Medium): Medium cut-off voltage, suitable for most applications.
L (Low): Lowest cut-off voltage, suitable for deep cycle batteries or when connected to a power station.

Select the appropriate level based on your power source to prevent excessive battery discharge.

App Control (WIFI)

Download the "BODEGA COOLER" app from your mobile app store (available for Android and iOS).

Follow the in-app instructions to connect your refrigerator via WIFI. This allows you to monitor temperatures, adjust settings, and switch modes remotely.

Reversible Door Design

The refrigerator features a removable 2-way door, allowing you to change the direction of the lid opening for greater convenience and accessibility in different environments.

Series of images demonstrating how the BODEGA refrigerator's lid can be reversed to open from either side, showing its flexibility in different vehicle setups. — This visual guide illustrates the innovative reversible door design of the BODEGA refrigerator, allowing users to easily change the lid's opening direction to suit their specific needs and vehicle configuration.

Maintenance

Cleaning

Interior: Clean the interior regularly with a damp cloth and a mild detergent. Do not use abrasive cleaners or harsh chemicals. Ensure the interior is dry before closing the lid.

Exterior: Wipe the exterior with a soft, damp cloth. Keep the ventilation grilles clean and free of dust.

Defrosting

The refrigerator features manual defrost. If a significant layer of ice builds up, turn off the unit and allow the ice to melt naturally. Remove melted water with a cloth. Do not use sharp objects to remove ice.

Storage

When storing the refrigerator for an extended period, ensure it is clean and dry. Leave the lid slightly ajar to prevent odors and mold growth. Store in a dry, well-ventilated area.

Troubleshooting

If you encounter issues with your BODEGA refrigerator, please refer to the following common problems and solutions:

Problem	Possible Cause	Solution
Refrigerator not turning on	No power supply; Loose connection; Blown fuse	Check power cable connection; Ensure power source is active; Check vehicle's fuse box.
Not cooling sufficiently	Insufficient ventilation; Door not closed properly; Overloaded; Ambient temperature too high; ECO mode selected	Ensure proper ventilation around the unit; Close lid securely; Do not overload; Consider moving to a cooler environment; Switch to MAX mode for faster cooling.
Displaying an error code	Internal fault	Note the error code and refer to the full manual or contact customer support.
App connection issues	Bluetooth/WIFI off; App not updated; Refrigerator not in pairing mode	Ensure Bluetooth/WIFI is enabled on your device; Update the app; Restart the refrigerator and try pairing again.
Excessive noise	Unit not level; Fan obstruction	Place the refrigerator on a flat, stable surface; Check for any obstructions around the fan.

For further assistance, please contact BODEGA customer support.

Product Specifications

Feature	Detail
Model	TWW55
Brand	BODEGA
Capacity	55 Liters (38L Left Zone + 17L Right Zone)
Dimensions (L x W x H)	45.72 x 55.88 x 71.12 cm (18 x 22 x 28 inches)
Weight	22.68 kg (50 lbs)
Voltage	DC 12V/24V, AC 100-240V
Temperature Range	-20°C to 20°C (-4°F to 68°F)
Annual Energy Consumption	92 kWh/year
Defrost System	Manual
Installation Type	Freestanding
Compressor Warranty	5 Years

Warranty and Customer Support

Warranty Information

Your BODEGA refrigerator comes with a 2-year warranty on the unit and a 5-year warranty on the compressor. This warranty covers defects in materials and workmanship under normal use.

Customer Support

For any questions, technical assistance, or warranty claims, please do not hesitate to contact our dedicated support team. We aim to respond within 24 hours to provide you with a satisfactory experience.

Contact Method: Please contact us via Amazon's messaging system.

BODEGA TWW55
