1. Important Safety Information
Please read all instructions carefully before using the Midea Multi-Cooker. Failure to follow these safety guidelines may result in property damage or personal injury. Keep this manual for future reference.
- Always ensure the lid is properly closed and locked before operating under pressure.
- Do not fill the inner pot above the MAX fill line to prevent overflow and blockage of the steam release valve.
- Exercise extreme caution when releasing pressure. Keep hands and face clear of the steam release valve.
- Do not attempt to force open the lid while the cooker is pressurized.
- Regularly inspect the sealing ring and valves for any damage or debris.
- This appliance is equipped with multiple safety features, including overheat protection, automatic pressure release, and a lid-safety lock system.

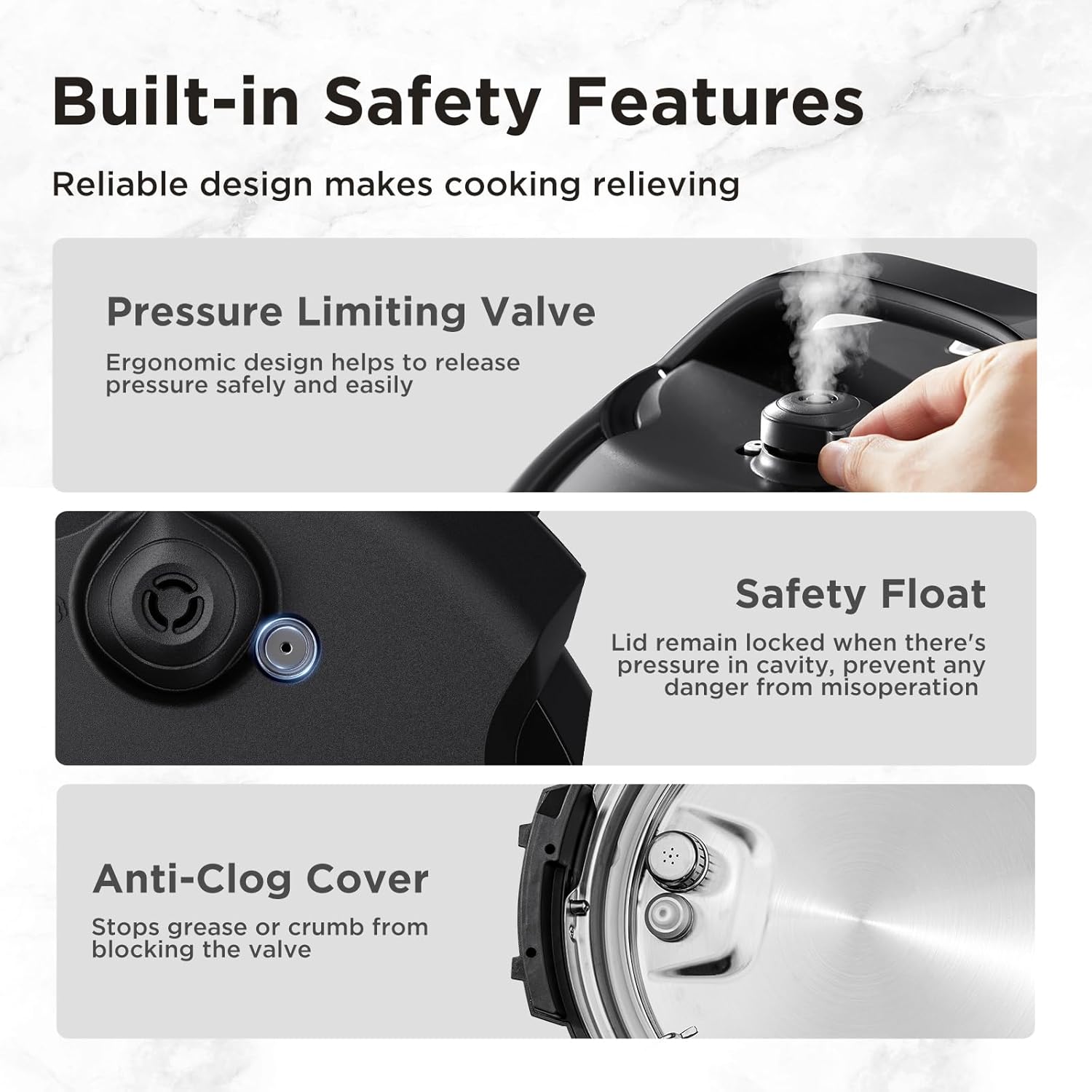

Image: Built-in Safety Features. This diagram highlights the pressure limiting valve, safety float, and anti-clog cover designed to ensure safe operation.
Image: Safety Steam Release. This image shows the remote button design for steam release and the soundproof cover, which helps minimize noise during operation.
2. Product Overview
The Midea 6L 9-in-1 Multi-Cooker is a versatile kitchen appliance designed to simplify your cooking process. It combines the functions of multiple devices into one compact unit.
Key Features:
- 9-in-1 Functionality: Operates as a pressure cooker, rice cooker, steamer, yogurt maker, slow cooker, sauté pan, Sous Vide, food warmer, and cake maker.
- 14 Programmable Presets: Offers dedicated settings for various dishes including meat, broth, beans, oatmeal, and more.
- Nourish Pro Program: Features a Smart Fresh Valve that automatically optimizes cooking pressure to enhance flavor and preserve nutrients.
- 6-Liter Capacity: Suitable for preparing meals for 4-6 people.
- 24-Hour Delay Timer: Allows for convenient meal preparation in advance.
- Durable Construction: Includes a food-grade stainless steel inner pot that is non-stick, robust, and dishwasher safe.
Image: Midea 6L 9-in-1 Multi-Cooker. This image displays the appliance's overall design and control panel.
Image: 9-in-1 Functions. This graphic visually represents the various cooking modes available with the multi-cooker.
Image: 6L Capacity. This image shows the multi-cooker's inner pot filled with food, illustrating its capacity for 4-6 servings.
3. Setup and First Use
Unpacking:
- Remove all packaging materials, stickers, and labels from the appliance.
- Ensure all accessories are present: Spoon, Ladle, Condensation Cup, Measuring Cup, Steam Rack, Power Cord.
Initial Cleaning:
- Wash the inner pot, lid, and sealing ring with warm, soapy water. Rinse thoroughly and dry.
- Wipe the exterior of the cooker base with a damp cloth. Do not immerse the base in water.
Assembly:
- Place the inner pot into the cooker base.
- Ensure the sealing ring is correctly seated inside the lid.
- Align the lid with the base, ensuring the lid alignment markers are matched, then rotate to lock.
- Connect the power cord to the cooker and then to a power outlet.
4. Operating Instructions
Control Panel Overview:
The intuitive control panel allows for easy selection of cooking functions and adjustments.
Image: Control Panel. This diagram labels the various buttons and the digital display for easy navigation.
Basic Operation:
- Add Ingredients: Place desired ingredients and liquid into the inner pot.
- Secure Lid: Close and lock the lid. Ensure the steam release valve is in the correct position for your chosen cooking method (e.g., Sealing for pressure cooking).
- Select Function: Press the desired preset button (e.g., RICE, BEAN, MEAT) or use the MENU button to cycle through options.
- Adjust Settings (Optional): Use the '+' and '-' buttons to adjust cooking time or pressure level if available for the selected program.
- Start Cooking: Press the START button. The cooker will begin preheating, then cook according to the selected program.
- Pressure Release: Once cooking is complete, allow for natural pressure release or use the quick release method by carefully moving the steam release valve to the Venting position.
Special Functions:
- Delay Timer: Press the DELAY button after selecting a cooking program to set a delayed start time (up to 24 hours).
- Nourish Pro Program: This program automatically adjusts pressure to optimize flavor and nutrient retention. Select the NOURISH PRO preset for this feature.
- Keep Warm: The cooker automatically switches to Keep Warm mode after most cooking programs are complete. Press the KEEP WARM button to activate or deactivate manually.
Image: Delay Timer Function. This image demonstrates the 24-hour delay timer, allowing users to schedule cooking for a later time.
Image: 14 Cooking Functions. This collage showcases the diverse range of meals that can be prepared with the multi-cooker's various presets.
5. Maintenance and Cleaning
Proper maintenance ensures the longevity and optimal performance of your Midea Multi-Cooker.
After Each Use:
- Always unplug the appliance and allow it to cool completely before cleaning.
- Inner Pot: The stainless steel inner pot is non-stick and dishwasher safe. For hand washing, use warm, soapy water and a non-abrasive sponge.
- Lid: The lid is detachable and dishwasher safe. Remove the sealing ring and wash separately.
- Sealing Ring: Wash the sealing ring with warm, soapy water. Ensure it is completely dry before reinserting. Replace if cracks or damage are observed.
- Condensation Cup: Empty and wash the condensation cup after each use.
- Exterior: Wipe the exterior of the cooker base with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
Image: Dishwasher-Safe Accessories. This image shows the inner pot and detachable lid being cleaned in a dishwasher.
Image: Food-Grade Stainless Steel Inner Pot. This image emphasizes the quality and ease of cleaning of the inner pot.
Image: Easy to Clean Sealing Ring. This image illustrates the simple process of removing the sealing ring for thorough cleaning.
6. Troubleshooting
If you encounter any issues with your Midea Multi-Cooker, please refer to the following common troubleshooting tips:
- Cooker not turning on: Ensure the power cord is securely plugged into both the appliance and a working electrical outlet.
- Pressure not building: Check that the lid is properly closed and locked, and the sealing ring is correctly installed. Ensure the steam release valve is in the 'Sealing' position.
- Food not cooking properly: Verify that the correct cooking program and time were selected. Ensure sufficient liquid was added for pressure cooking.
- Steam leaking from lid: Inspect the sealing ring for damage or proper placement. Clean any food debris from the lid and sealing ring.
For issues not covered here, or if problems persist, please contact Midea customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Midea |
| Model Number | MPC602SAMK |
| Capacity | 6 Litres |
| Colour | Matt Black |
| Material | Brushed Stainless Steel |
| Product Dimensions | 35.8 x 35.8 x 39.5 cm |
| Item Weight | 4.4 kg |
| Control Method | Touch |
| Operation Mode | Automatic |
| Dishwasher Safe Parts | Inner Pot, Detachable Lid, Accessories |
8. Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your product or visit the official Midea website. You can also contact Midea customer service directly for assistance with product operation, troubleshooting, or parts replacement.
Midea Official Website: www.midea.com
