1. Introduction
Thank you for choosing the Candy Smart CST 06LE/1-11 Top-Load Washing Machine. This appliance is designed to provide efficient and convenient laundry care with its advanced features, including NFC connectivity for smart control and optimized washing programs. Please read this manual carefully before using the appliance to ensure safe and proper operation, and keep it for future reference.
Figure 1.1: Overview of the Candy Smart CST 06LE/1-11 Top-Load Washing Machine. This image shows the compact, white top-load washing machine from an angled perspective, highlighting its sleek design and the top-mounted control panel.
2. Safety Instructions
For your safety and to ensure proper operation, please observe the following precautions:
- Ensure the appliance is properly grounded before use.
- Do not allow children to play with or operate the washing machine.
- Do not wash items that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.
- Always unplug the appliance from the power supply before cleaning or performing maintenance.
- Do not open the detergent dispenser or the drum door during a wash cycle, especially when the water level is high or the temperature is hot.
- Keep the area around the washing machine clear of flammable materials.
- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. It is crucial to remove the transit bolts located at the rear of the machine before operation. These bolts secure the drum during transport and must be removed to prevent damage to the appliance.
3.2 Positioning
Place the washing machine on a firm, level surface. Ensure there is adequate space around the appliance for ventilation and access. The dimensions of the unit are approximately 41 cm (width) x 60 cm (depth) x 86 cm (height). Use the adjustable feet to level the machine, preventing excessive vibration during operation.

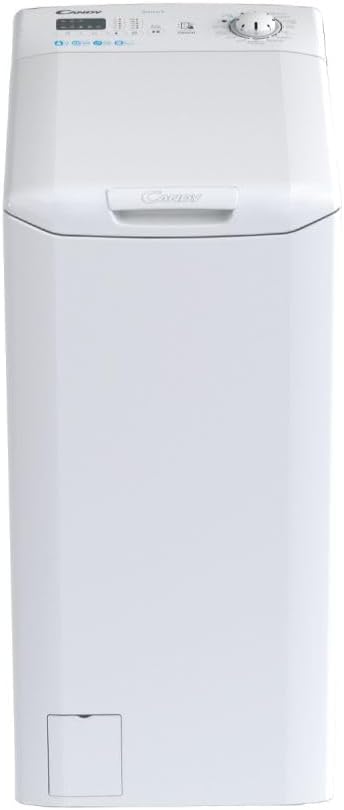

Figure 3.1: Front view of the washing machine, illustrating its compact design suitable for various spaces. This image shows the washing machine from a direct front perspective, emphasizing its narrow width and top-loading access.
3.3 Water Connection
Connect the water inlet hose to a cold water tap with a 3/4" thread. Ensure the connection is tight to prevent leaks. Position the drain hose into a suitable drain pipe or sink, ensuring it is securely fastened and not kinked.
3.4 Electrical Connection
Plug the power cord into a grounded electrical outlet. The appliance operates on 2.4E+2 Volts. Do not use extension cords or adapters.
4. Operating Instructions
4.1 Control Panel Overview

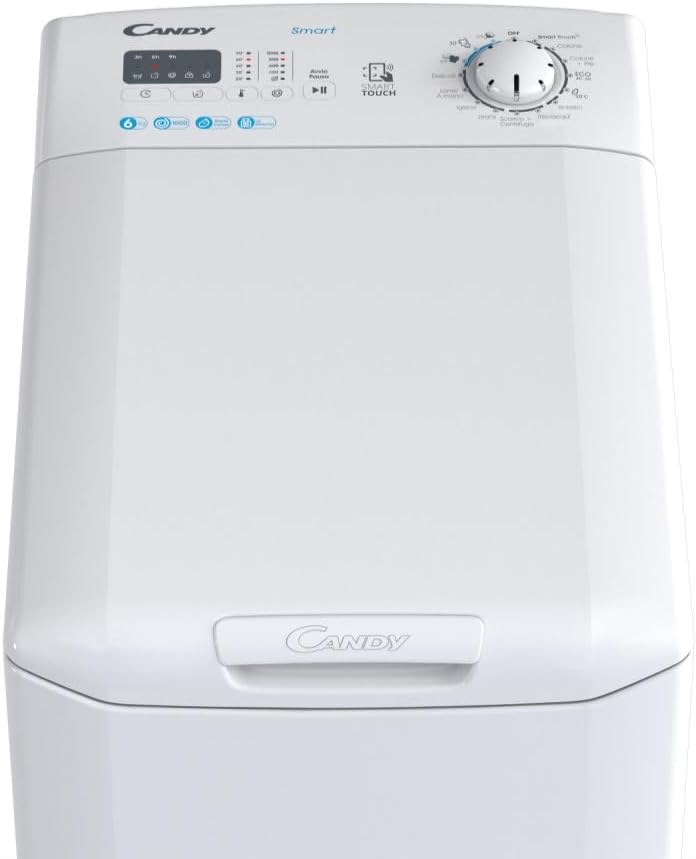

Figure 4.1: Close-up view of the control panel, showing the program selector dial, digital display, and touch buttons. This image provides a detailed look at the top surface of the washing machine, focusing on the user interface with its clear labels and intuitive layout.
The control panel features a program selector dial, a digital display, and various touch buttons for functions like temperature, spin speed, and special options.
4.2 Loading Laundry
Open the top lid and the drum door. Load laundry evenly into the drum, ensuring not to overload. The maximum capacity is 6 kg.
4.3 Adding Detergent
Add the appropriate amount of detergent and fabric softener to the designated compartments in the dispenser drawer.
4.4 Program Selection
Turn the program selector dial to choose the desired wash program. The machine offers 17 standard programs, including:
- Quick Programs: 14, 30, 44, and 59 minutes for lightly soiled items.
- Wool Program: Approved by Woolmark, ideal for delicate woolens (max 2 kg).
- Smart Cycles: Download additional programs via the Smart Touch app.
Adjust temperature and spin speed (up to 1000 rpm) using the corresponding buttons if needed.
4.5 Starting a Cycle
Press the Start/Pause button to begin the selected wash cycle.
4.6 Smart Touch NFC Connectivity
The Candy Smart CST 06LE/1-11 features NFC (Near Field Communication) technology, allowing you to connect your smartphone to the washing machine for enhanced functionality.
- Download the "Candy simply-Fi" app on your smartphone.
- Enable NFC on your smartphone.
- Select the "Smart Touch" option on the washing machine's control panel.
- Place your smartphone near the "Smart Touch" logo on the control panel to establish a connection.
- Through the app, you can download new wash cycles (Smart Cycles), receive usage tips, and perform diagnostics (Smart Check-up).
4.7 Delayed Start
Utilize the delayed start function to program the machine to begin a cycle at a later time, up to 24 hours. This allows you to take advantage of off-peak electricity rates or have laundry ready when you arrive home.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your washing machine.
5.1 Cleaning the Detergent Dispenser
Periodically remove and clean the detergent dispenser drawer to prevent residue buildup. Rinse it under running water and reinsert.
5.2 Cleaning the Filter
The filter, usually located at the bottom front of the machine, should be cleaned regularly to remove lint and small objects. Refer to the diagram in the full manual for exact location and procedure. Ensure the machine is unplugged and drain any residual water before opening the filter cover.
5.3 Cleaning the Drum
Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent or white vinegar) occasionally to clean the drum and remove any odors or detergent residues.
5.4 External Cleaning
Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
5.5 Smart Check-up
Use the Smart Check-up function via the Candy simply-Fi app to monitor the appliance's status and receive practical advice for self-troubleshooting, helping to prolong the life of your washing machine.
6. Troubleshooting
Before contacting customer service, please refer to the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord not plugged in; door not closed properly; program not selected. | Check power connection; ensure door is securely latched; select a program and press Start. |
| Water not draining | Drain hose kinked or blocked; filter clogged. | Check and straighten drain hose; clean the filter. |
| Excessive vibration | Transit bolts not removed; machine not level; uneven load. | Remove transit bolts; adjust leveling feet; redistribute laundry inside the drum. |
| Detergent residue in dispenser | Insufficient water pressure; dispenser clogged. | Check water supply; clean the detergent dispenser. |
For more detailed troubleshooting or issues not listed here, please consult the full user manual available on the manufacturer's website or use the Smart Check-up feature in the Candy simply-Fi app.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Candy |
| Model | CST 06LE/1-11 (Manufacturer Model: 31011137) |
| Type | Top-Load Washing Machine |
| Capacity | 6 Kilograms |
| Spin Speed | 1000 rpm (revolutions per minute) |
| Dimensions (L x W x H) | 41 x 60 x 86 cm |
| Weight | 57.5 Kilograms |
| Voltage | 2.4E+2 Volts |
| Number of Programs | 17 (standard) |
| Special Features | Smart Connectivity (NFC), Weight Detector, Quick Programs, Wool Program, Delayed Start |
| Color | White |
8. Warranty and Support
This product comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage details.
For technical support, spare parts, or service requests, please contact Candy customer service. Contact information can typically be found on the manufacturer's official website or in the documentation provided with your appliance. When contacting support, please have your model number (CST 06LE/1-11 or 31011137) and serial number ready.
