Vospeed SM1510X Stand Mixer Instruction Manual

1. Important Safety Instructions

Please read all instructions carefully before using the Vospeed SM1510X Stand Mixer. Keep this manual for future reference.

• Always ensure the mixer is unplugged from the power outlet before assembling, disassembling, or cleaning.
• Do not immerse the motor unit in water or any other liquid. Wipe clean with a damp cloth only.
• Keep hands, hair, clothing, as well as spatulas and other utensils away from moving beaters during operation to prevent injury and/or damage to the mixer.
• Supervise children closely when the appliance is in use. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Contact customer support for assistance.
• Use only attachments recommended or sold by the manufacturer.
• Do not use outdoors.
• Place the mixer on a stable, flat, dry surface. Ensure the anti-slip feet are securely gripping the countertop during operation.
• Never leave the mixer unattended while it is operating.

2. Product Overview and Components

Familiarize yourself with the parts of your Vospeed Stand Mixer before initial use.

Image 1: This image displays the main components of the Vospeed Stand Mixer, including the motor unit, 5QT stainless steel bowl, splash guard, whisk, beater, dough hook, output shaft, tilt lock, speed control, and anti-slip feet.

Components List:

• Motor Unit: The main body containing the motor and speed controls.
• 5QT Stainless Steel Bowl: Large capacity mixing bowl with double handles.
• Splash Guard: Prevents ingredients from splashing out during mixing.
• Dough Hook: For kneading heavy mixtures like bread and pizza dough.
• Beater: For medium-heavy mixtures such as cake batter, cookie dough, and mashed potatoes.
• Whisk: For light mixtures like cream, egg whites, and light batters.
• Output Shaft: Where attachments connect to the motor.
• Tilt Lock: Secures the tilt-head in place during operation.
• Speed Control: Dial to adjust mixing speed and activate pulse function.
• Anti-Slip Feet: Suction cups on the base to stabilize the mixer.

Image 2: This image illustrates the dimensions of the Vospeed Stand Mixer and its mixing bowl. The mixer measures approximately 355.7mm (length) x 187.8mm (width) x 279.2mm (height). The bowl measures approximately 222mm (diameter) x 165mm (height).

3. Assembly and Setup

Follow these steps to assemble your mixer before use.

1. Place the Mixer: Position the mixer on a clean, dry, and stable surface. Ensure the anti-slip feet are firmly attached to the countertop.
2. Lift the Head: Push the tilt lock lever (located on the side of the mixer) downwards and gently lift the motor head until it locks into the tilted position.


Image 3: This image shows the tilt-head mechanism of the mixer, allowing easy access to the bowl and attachments.

3. Attach the Bowl: Place the stainless steel mixing bowl onto the base, aligning the grooves on the bowl with the slots on the base. Turn the bowl clockwise until it locks securely into place.
4. Insert an Attachment: Choose the desired attachment (dough hook, beater, or whisk). Insert the attachment into the output shaft, pushing upwards and then rotating slightly until it clicks into place.
5. Lower the Head: Push the tilt lock lever downwards again and gently lower the motor head until it locks into the operating position. Ensure it is fully locked before proceeding.
6. Add Splash Guard: If desired, attach the splash guard by sliding it onto the motor head, ensuring it covers the bowl opening.

4. Operation

This section details how to use your Vospeed Stand Mixer for various mixing tasks.

Speed Control and Attachments:

The mixer features 8 adjustable speeds and a pulse function for precise control over your mixing.

Image 4: This image illustrates the 8-speed options and the pulse function, along with recommended uses for each attachment.

Image 5: A close-up of the speed control dial, showing settings from 0 to 8 and the 'P' for Pulse function.

• Dough Hook (Speeds 1-5): Ideal for heavy mixtures such as bread dough, pizza dough, and short pastry. Start at a low speed and gradually increase as the dough forms.
• Beater (Speeds 2-6): Suitable for medium-heavy mixtures like cake batter, cookie dough, fudge, and mashing potatoes.
• Whisk (Speeds 6-8): Best for light mixtures such as whipping cream, egg whites, and light batters. Use higher speeds for maximum aeration.
• Pulse Function (P): Provides a quick burst of power for short mixing tasks or quick incorporation of ingredients. Turn the dial to 'P' and release.

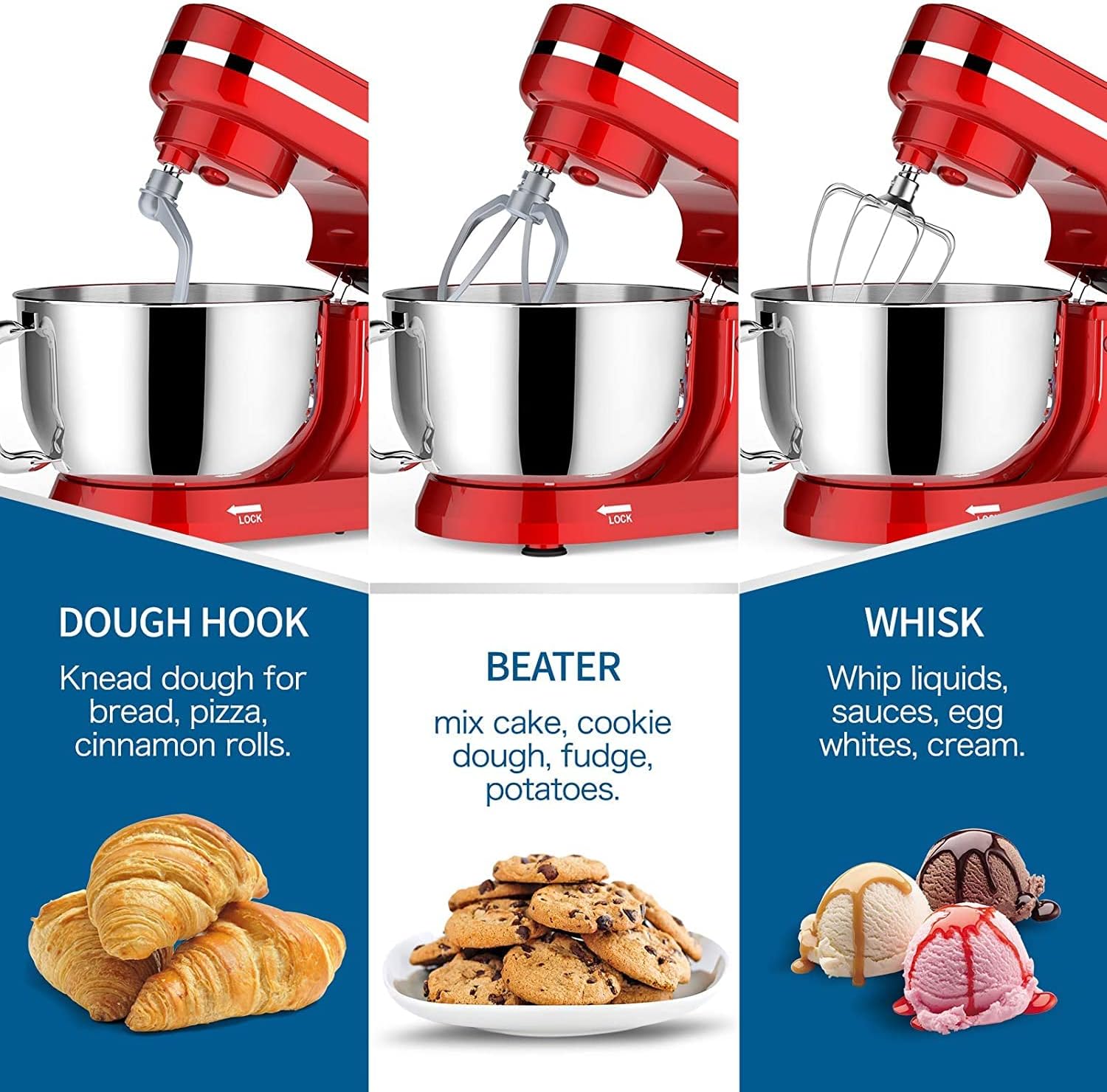

Image 6: This image demonstrates the specific uses for each attachment: the dough hook for kneading bread, pizza, and cinnamon rolls; the beater for mixing cake, cookie dough, fudge, and potatoes; and the whisk for whipping liquids, sauces, egg whites, and cream.

General Operation Steps:

1. Ensure the mixer is properly assembled and plugged into a suitable power outlet (220V).
2. Add your ingredients to the mixing bowl.
3. Select the appropriate attachment and speed setting for your recipe.
4. Turn the speed control dial to the desired speed.
5. Monitor the mixing process. Use the pulse function for short bursts if needed.
6. Once mixing is complete, turn the speed control dial to '0' and unplug the mixer.
7. Lift the motor head, remove the attachment, and then remove the mixing bowl.

5. Maintenance and Cleaning

Proper cleaning and maintenance will ensure the longevity and optimal performance of your mixer.

Cleaning the Motor Unit:

The main body of the mixer cannot be washed with water. To clean:

• Ensure the mixer is unplugged.
• Wipe the exterior of the motor unit with a soft, damp cloth.
• Do not use abrasive cleaners or scouring pads, as these can damage the surface.
• Dry thoroughly with a soft cloth.

Image 7: This image shows the proper method for cleaning the main body of the mixer: wiping it with a soft, damp cloth. It explicitly warns against washing the main body with water.

Cleaning the Bowl and Attachments:

The stainless steel mixing bowl, dough hook, beater, and whisk are dishwasher safe for easy cleaning.

• Remove the bowl and attachments from the mixer.
• Wash them in warm, soapy water or place them in the dishwasher.
• Rinse thoroughly and dry completely before storing.

Image 8: This image confirms that the mixer's accessories, including the whisk, beater, and dough hook, are safe for cleaning in a dishwasher.

6. Troubleshooting

If you encounter any issues with your Vospeed Stand Mixer, refer to the following common problems and solutions.

If the problem persists after trying these solutions, please contact customer support.

7. Specifications

Technical details for the Vospeed SM1510X Stand Mixer.

8. Warranty and Customer Support

Vospeed is committed to providing quality products and excellent customer service.

If you receive a defective product, or if you have any quality issues or questions during use, please do not hesitate to contact our customer service team. We aim to respond to all inquiries within 24 hours.

For support, please refer to the contact information provided with your purchase or visit the official Vospeed website.
