Homacer Soft Close Mechanism Hole-Free Version

Introduction

The Homacer Soft Close Mechanism is designed to enhance the functionality of your sliding barn door hardware by providing a gentle and quiet closing action. This hole-free version features a spring buffer damper, ensuring smooth operation and preventing abrupt impacts, thereby extending the lifespan of your door and hardware components.

This manual provides detailed instructions for the installation, operation, and maintenance of your Homacer Soft Close Mechanism. Please read it thoroughly before installation and use.

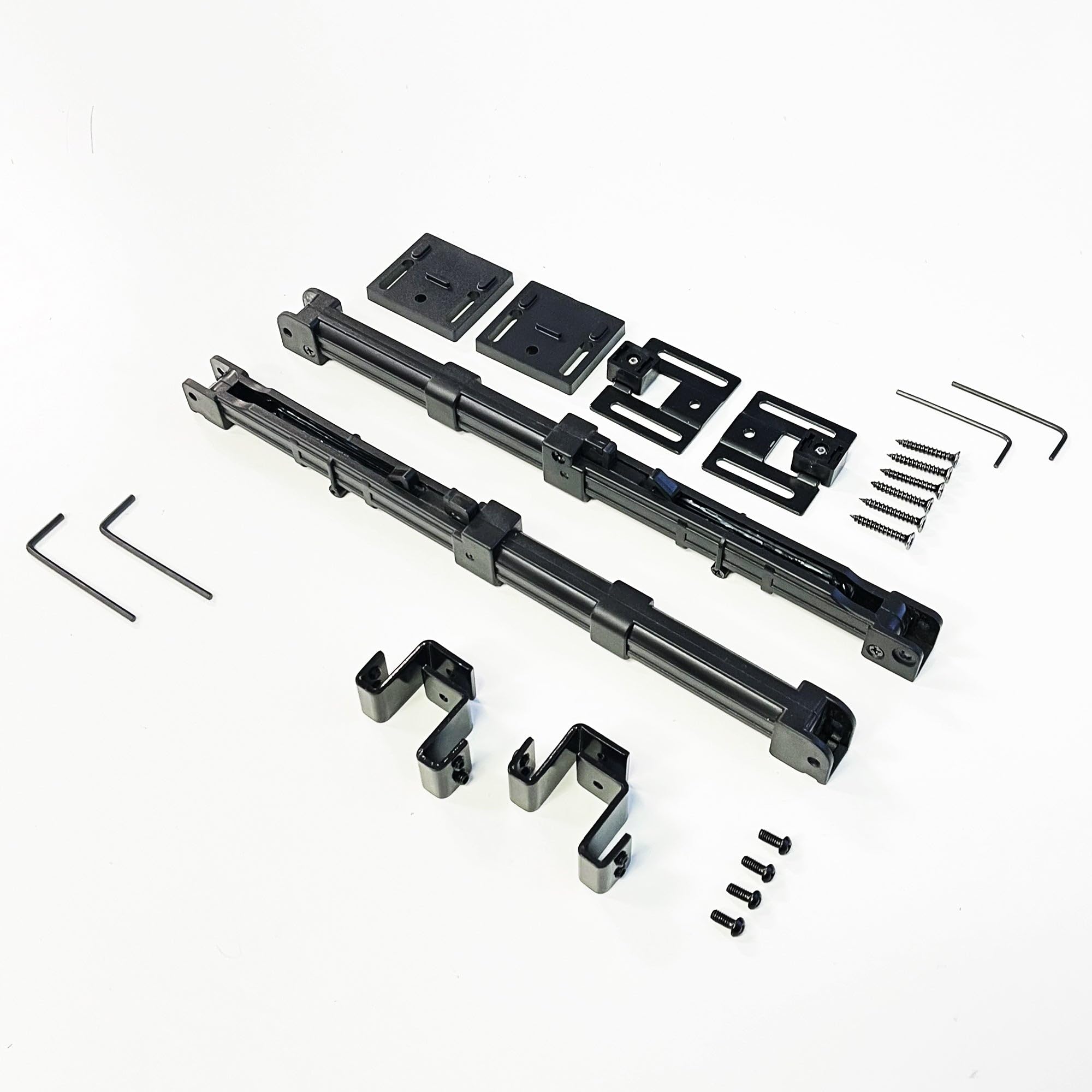

Image: Overview of the Homacer Soft Close Mechanism components, including the main damper unit and the adjustable trigger plate.

Setup and Installation

The Homacer Soft Close Mechanism is engineered for quick and easy installation without the need for drilling into your barn door track. Follow these steps for a secure setup:

1. Prepare the Track: Ensure your sliding barn door track is clean and free of obstructions. The soft close mechanism attaches to the back of the track.
2. Attach the Soft Close Unit: Position the soft close mechanism on the back of the barn door track. Utilize the integrated hook to secure it in place.
3. Fasten with Jackscrews: Once positioned, use the provided jackscrews to tighten and firmly secure the soft close unit to the track. Ensure it is held super tight and strong to prevent movement during operation.
4. Install the Adjustable Trigger Plate: Attach the metal trigger plate to the back of your barn door. This plate is designed to be adjustable, allowing you to precisely align it with the soft close mechanism's trigger for optimal engagement. Adjust its placement until it consistently activates the soft close function as the door approaches its closed position.

Image: A view of the Homacer Soft Close Mechanism showing the main unit and the separate adjustable trigger plate, ready for installation.

Important Considerations:

• This product includes only the soft close mechanism. Doors and main barn door hardware kits are sold separately.
• If your barn door hardware is installed on a concrete wall, ensure you have appropriate bolts for concrete, as the standard hardware package typically includes lag bolts for wooden walls or drywall.
• For doors with trim, it is recommended to install a header board of the same thickness as the trim before attaching the barn door hardware and soft close mechanism.

Operating Instructions

Once installed, the Homacer Soft Close Mechanism operates automatically to provide a smooth and quiet closing experience for your sliding barn door.

• Automatic Engagement: As your barn door slides towards its fully closed or open position, the adjustable metal trigger plate on the door will engage with the soft close mechanism.
• Gentle Stop: Upon engagement, the spring buffer damper within the mechanism will activate, gently decelerating the door's movement. This prevents the door from slamming into the stopper, eliminating noise and reducing wear and tear on the door and hardware.
• Quiet Operation: The mechanism ensures that the door comes to a complete stop quietly and without any bumps, protecting your door from potential damage caused by forceful closures.

Image: The Homacer Soft Close Mechanism shown from another angle, illustrating its compact design and how it integrates with the barn door track.

Maintenance

To ensure the longevity and optimal performance of your Homacer Soft Close Mechanism, periodic maintenance is recommended:

• Cleaning: Regularly wipe down the mechanism and the surrounding track area with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals that may damage the finish or internal components.
• Check Fasteners: Periodically inspect the jackscrews and the trigger plate attachment to ensure they remain tight and secure. Tighten any loose fasteners as needed.
• Lubrication: If you notice any stiffness or increased friction in the mechanism's movement over time, a small amount of silicone-based lubricant can be applied to the moving parts. Consult a professional if unsure about proper lubrication points.

Troubleshooting

If you encounter issues with your Homacer Soft Close Mechanism, refer to the following common problems and solutions:

• Problem: Door is not closing softly or mechanism is not engaging.
  Solution: Check the alignment of the adjustable metal trigger plate on the door. Ensure it is positioned correctly to make contact with the soft close mechanism's trigger. Verify that the soft close unit is securely fastened to the track and has not shifted. Inspect for any obstructions preventing the trigger from engaging.
• Problem: Mechanism is making unusual noise.
  Solution: Ensure all components are clean and free of debris. Check for any loose screws or parts that might be rattling. A small amount of appropriate lubricant might resolve minor squeaks.
• Problem: Door movement feels stiff after soft close engagement.
  Solution: Confirm that the soft close mechanism is installed correctly and not binding. Ensure the track is level and the door rollers are functioning smoothly.

Specifications

Customer Satisfaction and Returns

HOMACER is committed to your satisfaction. Our professional customer service team is available to assist with any questions or concerns regarding your product. If you are not completely satisfied with your order, you may return it for a refund. Please contact our customer service for return procedures.

Support

For further assistance, technical support, or to provide feedback, please contact our customer service team. You can also visit the official HOMACER store for more information and products:
