1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your MEDAS ML250 INOX Submersible Clean Water Pump. Please read these instructions carefully before use and retain them for future reference.
The MEDAS ML250 INOX is a 1/2 HP stainless steel submersible pump designed for transferring clean water from various sources such as ponds, pools, basements, and drains. It features a durable design and is suitable for continuous operation.
Image 1.1: Overview of the MEDAS ML250 INOX Submersible Clean Water Pump.
2. Safety Instructions
WARNING: Failure to follow these safety instructions may result in electric shock, fire, serious injury, or death.
- Always disconnect the pump from the power supply before handling, servicing, or performing any maintenance.
- Ensure the power supply voltage matches the pump's specifications (110 Volts).
- Do not operate the pump with a damaged power cord or plug. If damaged, contact qualified personnel for repair.
- Do not use the pump to transfer flammable or corrosive liquids. This pump is designed for clean water only.
- Keep children and unauthorized persons away from the operating area.
- Ensure the pump is fully submerged in water during operation to prevent overheating.
- Do not lift the pump by its power cord. Use the integrated handle.
- Wear appropriate personal protective equipment (PPE) such as gloves and eye protection when handling the pump.
- Avoid running the pump dry. Dry running can cause severe damage to the motor and seals.
- Ensure proper grounding to prevent electrical hazards.
3. Package Contents
The standard package for the MEDAS ML250 INOX Submersible Clean Water Pump typically includes:
- MEDAS ML250 INOX Submersible Clean Water Pump
- Hose adapter (G1 connector)
- User Manual (this document)
Note: Specific attachments or accessories may vary. Please check the product packaging for a complete list.
4. Specifications
Technical specifications for the MEDAS ML250 INOX pump:
| Specification | Value |
|---|---|
| Brand | MEDAS |
| Model Number | ML250 INOX |
| Material | Stainless Steel |
| Product Dimensions (L x W x H) | 6.5" x 6.5" x 10.6" |
| Item Weight | 8.6 Pounds |
| Power Source | Electric (110 Volts) |
| Voltage | 110 Volts |
| Horsepower | 0.50 HP |
| Maximum Lifting Height | 19.7 Feet |
| Flow Rate (Approximate) | 1700 GPH (Gallons Per Hour) |
| Low Suction Capability | Down to 0.1 inch (1mm) |
| Connector Size | G1 (Multi-size outlet for various hoses) |
Image 4.1: Key dimensions and features including the epoxy cable base and low suction design.
5. Setup and Installation
- Unpacking: Carefully remove the pump and all accessories from the packaging. Inspect for any damage.
- Hose Connection: Attach a suitable discharge hose to the pump's outlet. The pump features a multi-size outlet (G1 connector) to adapt to different hose sizes. Ensure a secure, leak-free connection.
- Placement: Place the pump in the area where water needs to be removed. Ensure the pump is stable and fully submerged in the water. The pump is designed for low suction, capable of removing water down to 0.1 inch (1mm).
- Power Connection: Connect the pump's power cord to a grounded 110-volt electrical outlet. Ensure the outlet is protected by a Ground Fault Circuit Interrupter (GFCI) for safety, especially in wet environments.
- Priming: Submersible pumps are generally self-priming when fully submerged. Ensure the pump is completely underwater before starting.
Image 5.1: Diagram illustrating the pump's flow-through design for efficient water transfer.
6. Operation
- Start-up: Once the pump is properly installed and submerged, plug it into the power outlet. The pump will begin operating.
- Monitoring: Observe the pump's operation. Ensure water is being discharged efficiently and there are no unusual noises or vibrations.
- Continuous Operation: The MEDAS ML250 INOX is designed for durable, non-stop running. However, continuous monitoring is recommended during extended use.
- Shut-down: To stop the pump, simply unplug it from the power outlet.
- Applications: This pump is suitable for various clean water transfer tasks, including emptying hot tubs, pools, fish tanks, and for garden watering or irrigation.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your pump.
- Cleaning: After each use, especially if pumping water with fine particles, rinse the pump thoroughly with clean water. The 0.1-inch filter is designed to handle small impurities like stone, rust, and algae.
- Inspection: Periodically inspect the power cord, plug, and pump housing for any signs of damage or wear. Check the inlet screen for blockages.
- Storage: When not in use for extended periods, clean the pump, disconnect it from power, and store it in a dry, frost-free location.
- Winterization: In freezing temperatures, ensure the pump is completely drained and stored indoors to prevent ice damage.
Image 7.1: The pump's 0.1 inch filter, designed to filter small particulate impurities.
8. Troubleshooting
Refer to the following table for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start. | No power, faulty outlet, damaged cord, motor seized. | Check power connection and GFCI. Inspect cord for damage. If motor is seized, contact support. |
| Pump runs but no water is discharged or flow is weak. | Pump not fully submerged, air in system, clogged inlet/outlet, hose kinked, discharge head too high. | Ensure pump is fully submerged. Check for air leaks in connections. Clear any blockages in the inlet or hose. Ensure hose is not kinked. Verify the lift height is within specifications (max 19.7 ft). |
| Pump stops unexpectedly. | Overheating (thermal overload), power interruption, debris blockage. | Unplug the pump and allow it to cool down. Check for and clear any debris around the inlet. Verify stable power supply. |
| Unusual noise or vibration. | Debris in impeller, pump not stable, dry running. | Disconnect power and inspect impeller for debris. Ensure pump is stable on a flat surface. Confirm pump is fully submerged. |
9. Warranty and Support
The MEDAS ML250 INOX Submersible Clean Water Pump comes with a one-year warranty from the date of purchase, covering manufacturing defects under normal use. This warranty ensures the product's quality and durability.
For warranty claims, technical support, or replacement parts, please contact MEDAS customer service through their official channels. Keep your purchase receipt as proof of purchase.
Note: Warranty terms may vary by region. Please refer to the warranty card included with your product or the official MEDAS website for detailed information.

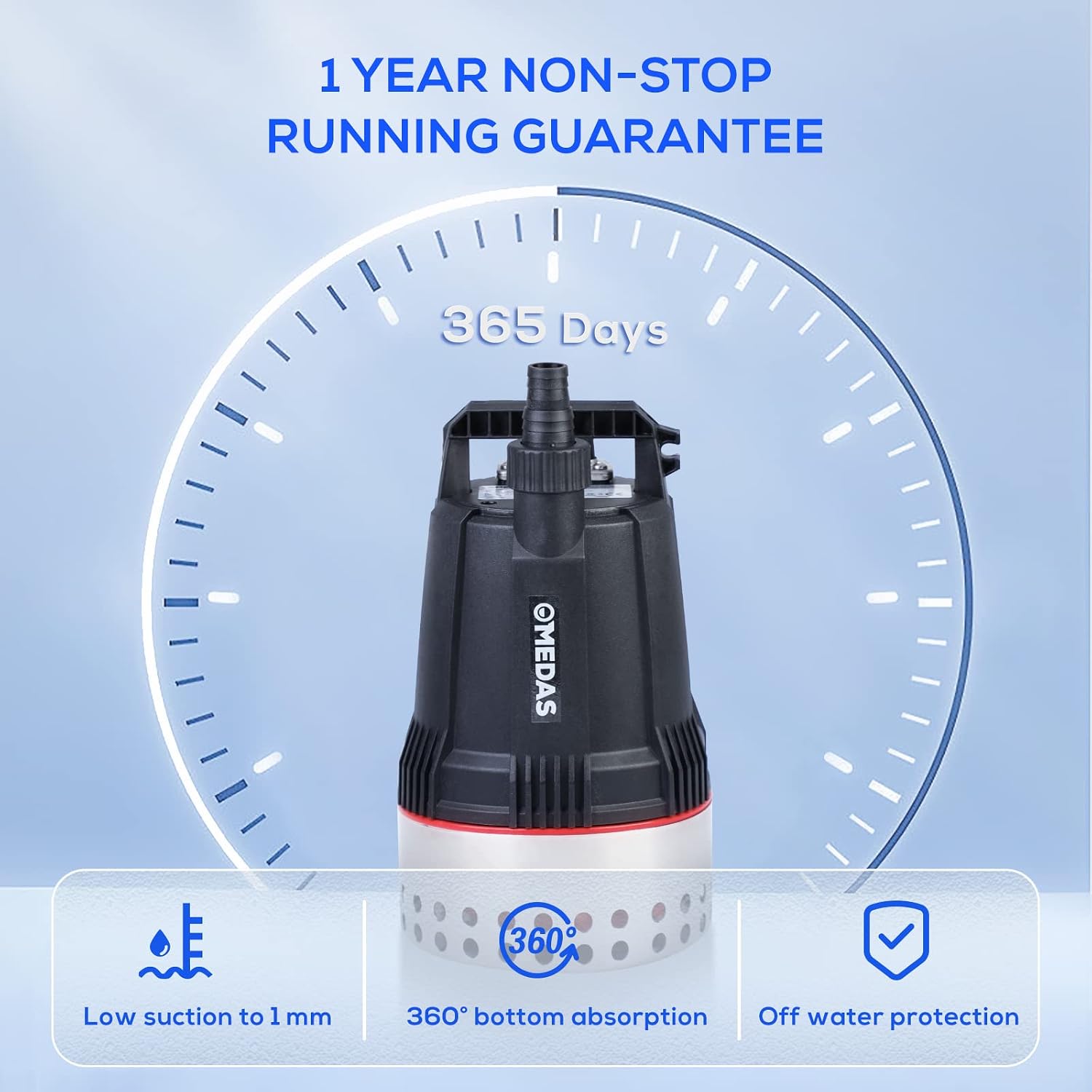

Image 9.1: The pump is designed for durability, backed by a 1-year non-stop running guarantee.
