Introduction
The PetSafe Staywell Original 2-Way Pet Door provides your pets with the freedom to enter and exit your home independently. This manual offers detailed instructions for installation, operation, and maintenance to ensure safe and effective use of your pet door.
Image: A cat using the PetSafe Staywell pet door, highlighting the convenience for pets.
Important Safety Information
- Always supervise your pet during initial use to ensure they learn to use the door safely.
- Regularly inspect the pet door for any damage or wear that could affect its function or your pet's safety.
- Keep the area around the pet door clear of obstructions.
- Ensure the closing panel is securely in place when you wish to restrict access.
Package Contents
Before beginning installation, please ensure all components are present:
- PetSafe Staywell Original 2-Way Pet Door Frame
- Flap Door
- Closing Panel
- Cutting Template
- Screws
- Tunnel Extension (included with Large size)
Image: Included components: pet door frame, screws, cutting template, and tunnel extension.
Choosing the Right Size
Selecting the correct size pet door is crucial for your pet's comfort and safety. This Large size door is suitable for pets up to 45 kg (100 lbs).
Measuring Your Pet
To determine if this door is appropriate for your pet, measure your pet's height and width:
- Shoulder Height (A): Measure from the top of your pet's shoulder to the bottom of their chest. The top of the pet door opening should be at least 1 inch higher than this measurement.
- Chest Width (B): Measure the widest part of your pet's chest. The pet door opening should be at least 1 inch wider than this measurement.
Image: Guide for measuring your pet to ensure proper door sizing.
Large Pet Door Dimensions
- Overall Frame Dimensions: Approximately 38.3 cm (15.1 inches) wide x 45.4 cm (17.9 inches) high.
- Flap Opening Dimensions: Approximately 28.9 cm (11.4 inches) wide x 32.5 cm (12.8 inches) high.
- Maximum Pet Weight: 45 kg (100 lbs).
Image: Detailed dimensions of the Large PetSafe Staywell door.
Installation
The PetSafe Staywell pet door can be installed in various door types, including wooden, metal, PVC/uPVC doors, and brick walls. Always ensure you have the correct tools and follow safety precautions.
Tools Required (Not Included)
- Pencil
- Drill with appropriate drill bits
- Jigsaw or suitable cutting tool for your door material
- Screwdriver
- Measuring tape
- Level
General Installation Steps
- Prepare the Door/Wall: Choose a suitable location on your door or wall, ensuring it is clear of electrical wires, plumbing, or structural elements. The bottom of the pet door opening should be at a comfortable height for your pet to step through.
- Apply Template: Tape the provided cutting template to your door or wall at the desired height. Use a pencil to trace the outline of the opening and the screw holes.
- Drill Pilot Holes: Drill pilot holes at the corners of the traced opening and for all screw locations.
- Cut Opening: Carefully cut out the opening using a jigsaw or appropriate cutting tool. For brick walls, specialized tools and techniques are required. Ensure the edges are smooth.
- Install Tunnel (if needed): If your door or wall is thicker than the pet door frame, use the included tunnel extension. Trim the tunnel to the correct depth if necessary.
- Mount Pet Door: Place the exterior frame of the pet door into the opening from one side. From the other side, align the interior frame and secure both halves together using the provided screws. Ensure the door is level and the flap swings freely.
- Seal (Optional): For improved weatherproofing, apply a silicone sealant around the exterior frame of the pet door.
Image: Installation of the pet door into a wooden door.
Operation
The PetSafe Staywell Original 2-Way Pet Door features a simple two-way locking mechanism and a closing panel for controlled access.
2-Way Locking System
The pet door allows your pet to enter and exit freely. There is no complex locking mechanism on the flap itself, providing unrestricted two-way movement.
Using the Closing Panel
For times when you need to restrict your pet's access, a rigid closing panel can be inserted from the inside of the house. This panel slides down into grooves on the interior frame, effectively blocking the opening.
- To Close: Slide the panel firmly down into the grooves until it is fully seated.
- To Open: Lift the panel upwards and remove it from the grooves. Store the panel in a safe place when not in use.

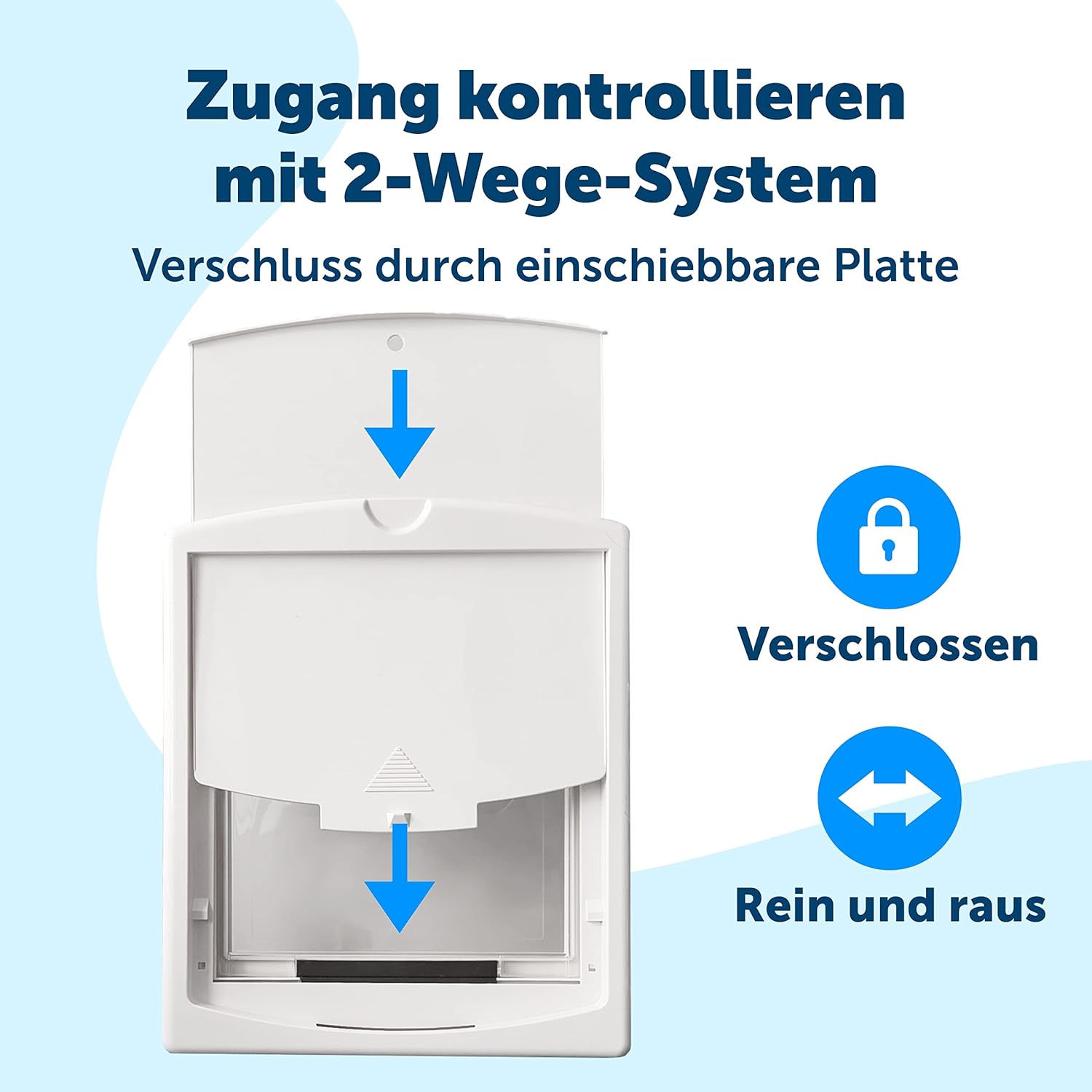

Image: The pet door with its closing panel, demonstrating how to control access.
Training Your Pet
Most pets can be trained to use the pet door with patience and positive reinforcement. Here are some tips:
- Initial Introduction: Hold the flap open and coax your pet through with treats or toys.
- Gradual Training: Once comfortable with the open flap, gently lower it so your pet learns to push it.
- Positive Reinforcement: Always reward your pet with praise and treats when they successfully use the door.
- Consistency: Repeat training sessions regularly until your pet is confident using the door on their own.
Image: A pet demonstrating the ease of use of the pet door.
Maintenance
Regular cleaning and inspection will prolong the life of your PetSafe Staywell pet door.
- Cleaning: Wipe the frame and flap with a damp cloth and mild soap. Avoid abrasive cleaners that could damage the plastic.
- Inspection: Periodically check the flap for cracks or tears, and ensure the screws are tight. Replace worn parts as needed.
- Clear Debris: Ensure the flap's hinges and the track for the closing panel are free of dirt, pet hair, or other debris.
Troubleshooting
If you encounter issues with your pet door, try these common solutions:
- Flap Not Swinging Freely: Check for obstructions around the flap or debris in the hinge area. Ensure the door frame is installed level and not warped.
- Drafts Around the Door: Verify that the door is properly sealed during installation. If drafts persist, consider adding weatherstripping around the frame.
- Closing Panel Sticks: Clean the grooves on the interior frame and the edges of the closing panel to remove any dirt or debris.
- Pet Hesitant to Use Door: Revisit the training steps. Use more enticing treats and ensure the flap is not too stiff for your pet to push.
Specifications
| Feature | Specification |
|---|---|
| Model Number | ZPA19-17084 |
| Size | Large |
| Color | White |
| Material | Plastic |
| Maximum Pet Weight | 45 kg (100 lbs) |
| Minimum Compatible Door/Wall Thickness | 1.85 Inches |
| Item Dimensions (LxWxH) | 1.85 x 2.44 x 19.37 inches |
| Item Weight | 1.61 Kilograms (3.55 Pounds) |
| GTIN/UPC | 729849170841 |
Warranty and Support
This PetSafe Staywell Original 2-Way Pet Door comes with a 3-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical assistance, or further product information, please contact PetSafe customer support. Keep your proof of purchase for warranty validation.
PetSafe Customer Support: Please refer to the contact information provided on the PetSafe website or product packaging for the most up-to-date support details.
