1. Introduction
Thank you for choosing the TECCPO TDHD01P 18V Cordless Impact Drill. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read these instructions carefully before use and keep them for future reference.
2. General Safety Instructions
Always follow basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury. Keep your work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Always wear appropriate personal protective equipment, including eye protection, hearing protection, and gloves. Keep children and bystanders away while operating a power tool.
3. Package Contents
Carefully unpack your TECCPO TDHD01P Cordless Impact Drill and check for any damage. Ensure all items listed below are present. If any parts are missing or damaged, please contact customer support.
- TECCPO TDHD01P 18V Cordless Impact Drill
- 2 x 2.0Ah Lithium-ion Batteries
- 4.0A Fast Charger
- Set of Drill Bits and Screwdriver Bits
- Bit Holder
- Flexible Shaft Driver
- Belt Clip
- Tool Bag
- User Manual
Image 3.1: TECCPO TDHD01P Cordless Impact Drill and all included accessories.
4. Product Overview
Familiarize yourself with the components of your drill before operation.
Image 4.1: Key components of the TECCPO TDHD01P drill. 1. Keyless Chuck (13mm), 2. Torque Adjustment Ring (21+3 settings), 3. Gear Selector (Two-speed), 4. Forward/Reverse Switch, 5. Continuous Speed Trigger, 6. Rubberized Grip.
Image 4.2: Ergonomic rubberized grip for comfortable handling.
5. Setup
5.1 Battery Charging and Installation
The drill is powered by 18V Lithium-ion batteries. Always ensure batteries are fully charged before use for optimal performance.
- Charging: Connect the 4.0A fast charger to a power outlet. Insert the battery into the charger. The charger will indicate the charging status. A full charge takes approximately 30 minutes. The charger features a battery status indicator.
- Installation: Align the battery with the base of the drill handle and slide it in until it clicks securely into place. To remove, press the release button on the battery and slide it out.
Image 5.1: Two 2.0Ah batteries and the 4.0A fast charger.
Image 5.2: The 4.0A fast charger with its battery indicator lights.
5.2 Installing and Removing Drill Bits/Accessories
The drill features a 13mm keyless metal chuck for quick and easy bit changes.
- To Install: Rotate the chuck counter-clockwise until the jaws are open wide enough to insert the bit. Insert the bit fully and then rotate the chuck clockwise to tighten it securely.
- To Remove: Rotate the chuck counter-clockwise to loosen the jaws and pull the bit out.
Image 5.3: The 13mm keyless metal chuck for easy bit changes.
6. Operating Instructions
6.1 Powering On/Off and Forward/Reverse
- Power On: Press the continuous speed trigger to start the drill. The speed is variable based on trigger pressure.
- Power Off: Release the trigger.
- Forward/Reverse: Use the forward/reverse switch located above the trigger to select the rotation direction. Push left for forward (drilling/screwing in) and right for reverse (screwing out). Center position locks the trigger for safety.
6.2 Speed Settings
The drill features a 2-speed gearbox for different applications.
- Low Speed (0-450 RPM): Select gear '1' for high torque applications like driving screws or drilling large holes in soft materials.
- High Speed (0-1700 RPM): Select gear '2' for fast drilling in wood or metal.

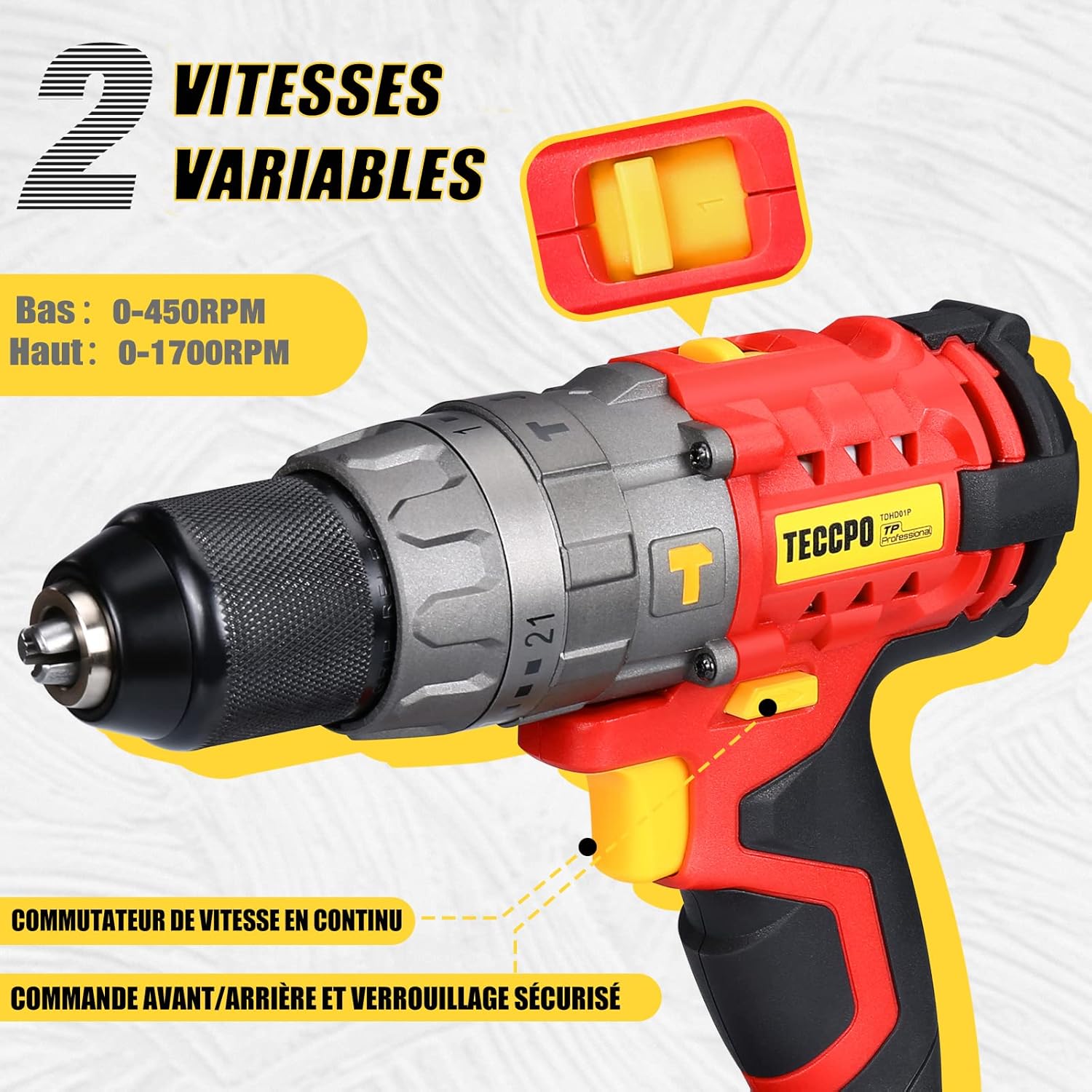

Image 6.1: The two-speed gearbox allows for low (0-450 RPM) and high (0-1700 RPM) speed settings.
6.3 Torque Settings
The torque adjustment ring allows you to select from 21+3 torque settings to prevent over-tightening screws or damaging materials.
- Rotate the torque adjustment ring to the desired setting. Lower numbers are for smaller screws or softer materials, higher numbers for larger screws or harder materials.
- The 'Drill' symbol (drill bit icon) is for drilling without torque clutch.
- The 'Hammer' symbol (hammer icon) is for impact drilling in masonry.
Image 6.2: The torque adjustment ring with 21+3 settings and mode selector.
Image 6.3: Detailed view of the 21+3 torque settings.
6.4 Operating Modes (Drill, Impact, Screw)
The TDHD01P offers three primary operating modes:
- Drilling Mode: For drilling holes in wood, metal, and plastics. Set the torque ring to the drill symbol.
- Impact Drilling Mode: For drilling in concrete and masonry. Set the torque ring to the hammer symbol.
- Screwing Mode: For driving and removing screws. Set the torque ring to a numerical setting (1-21) appropriate for the screw size and material.
Image 6.4: The drill can be used for concrete drilling (hammer mode), wood/metal drilling (drill mode), and screwing (screwdriver mode).
Image 6.5: Examples of the drill being used for different tasks.
6.5 Using the Flexible Shaft Driver
The included flexible shaft driver allows you to reach screws or drill in tight, awkward spaces.
- Insert the flexible shaft into the drill chuck as you would a regular drill bit.
- Attach the desired screwdriver bit or small drill bit to the end of the flexible shaft.
- Operate the drill at a low speed for better control when using the flexible shaft.
Image 6.6: The flexible shaft driver extends reach for tight spaces.
Image 6.7: The flexible shaft in action and the convenient belt clip.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your drill.
- Cleaning: After each use, wipe the tool with a clean, damp cloth. Do not use harsh chemicals or abrasive cleaners. Keep ventilation openings clear of dust and debris.
- Storage: Store the drill, batteries, and charger in a dry, cool place, away from direct sunlight and moisture. Use the provided tool bag for organized storage.
- Battery Care: Store batteries partially charged if not used for extended periods. Do not store fully discharged batteries.
- Chuck Maintenance: Periodically clean the chuck jaws to ensure smooth operation and secure bit gripping.
8. Troubleshooting
If you encounter issues with your drill, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Drill does not start | Battery not charged or improperly installed; Forward/Reverse switch in center (locked) position. | Charge battery and ensure it is securely installed; Move Forward/Reverse switch to forward or reverse position. |
| Loss of power during operation | Battery low; Overload. | Recharge battery; Reduce pressure or use a lower speed/higher torque setting. |
| Bit slips in chuck | Chuck not tightened sufficiently; Bit shank is dirty or damaged. | Retighten chuck firmly; Clean or replace bit. |
| Excessive vibration | Bent drill bit; Loose chuck. | Replace bent bit; Tighten chuck securely. |
9. Specifications
Detailed technical specifications for the TECCPO TDHD01P Cordless Impact Drill.
| Feature | Specification |
|---|---|
| Model Number | TDHD01P |
| Voltage | 18 Volts |
| Max Torque | 60 Newton-meters (Nm) |
| No-Load Speed (Gear 1) | 0-450 RPM |
| No-Load Speed (Gear 2) | 0-1700 RPM |
| Chuck Size | 13 mm Keyless Metal Chuck |
| Torque Settings | 21 + 3 (Drill, Impact, Screw) |
| Max Drilling Capacity (Wood) | 30 mm |
| Max Drilling Capacity (Metal) | 13 mm |
| Max Drilling Capacity (Concrete/Masonry) | 10 mm |
| Battery Type | Lithium-ion |
| Battery Capacity | 2 x 2.0 Ah (included) |
| Charger Type | 4.0A Fast Charger |
| Charging Time | Approx. 30 minutes (for 2.0Ah battery) |
| Product Dimensions (L x W x H) | 27 x 22 x 11 cm |
| Weight | 3.84 kg (with battery) |
10. Warranty and Support
TECCPO products are manufactured to high-quality standards. For warranty information, technical support, or spare parts, please refer to the warranty card included with your product or visit the official TECCPO website. Please have your model number (TDHD01P) and purchase date available when contacting support.
