Introduction
The Sona SFW 1527 Wall Fan is designed to provide efficient air circulation for your home or office. Featuring a durable 100% copper motor and a 16-inch ABS blade, this fan offers three speed settings and wide-angle oscillation for optimal comfort. Its wall-mounted design saves floor space and allows for flexible installation. This manual provides essential information for the safe installation, operation, and maintenance of your Sona SFW 1527 Wall Fan.

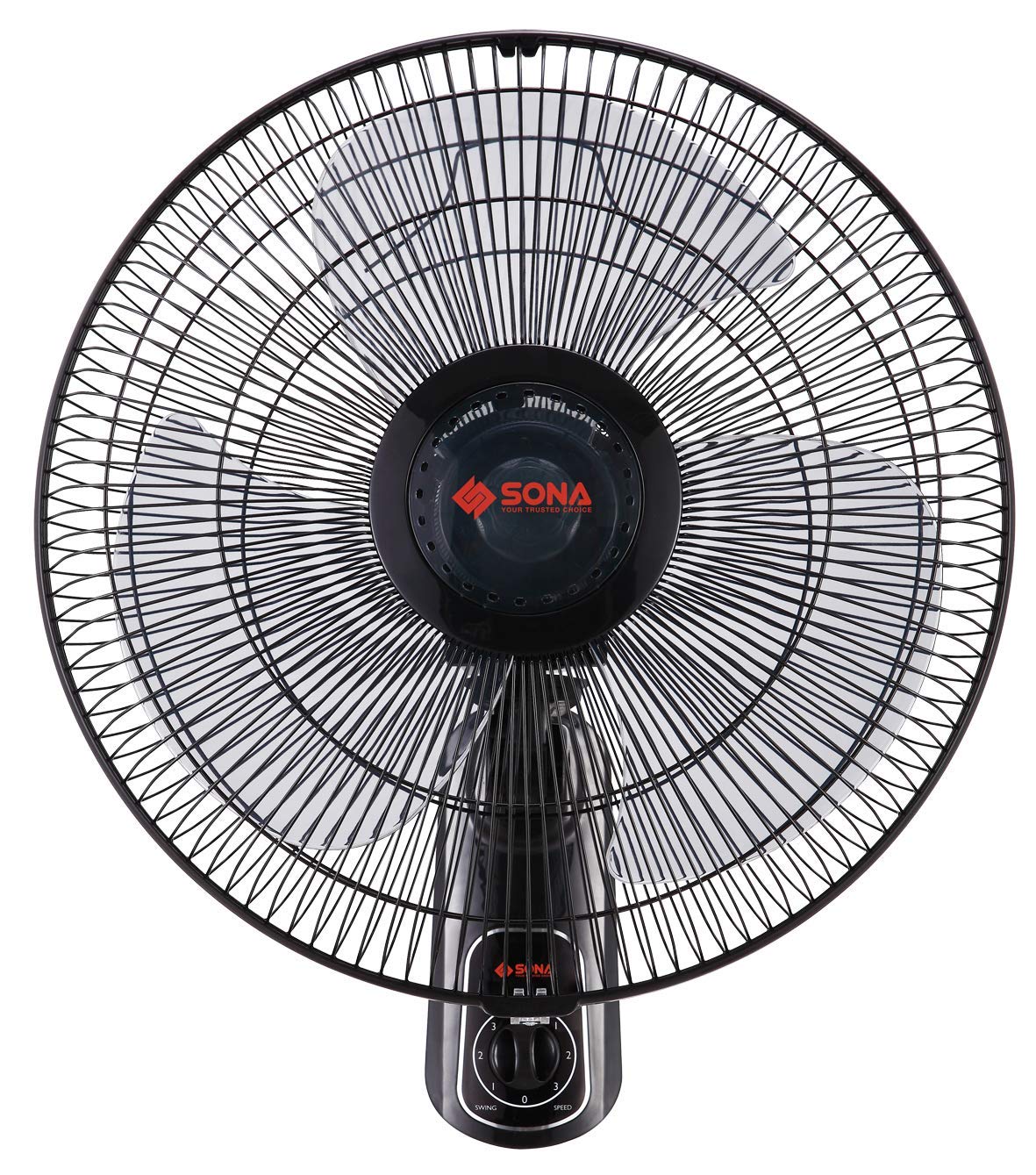

Image: Front view of the Sona SFW 1527 Wall Fan, showcasing its grille and overall design.
Important Safety Instructions
Read all instructions carefully before using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure the power supply voltage matches the rating label on the fan.
- Do not immerse the fan, plug, or cord in water or other liquids.
- Unplug the fan from the outlet when not in use, before cleaning, or before moving.
- Keep fingers, pencils, or any other objects out of the fan grille when it is operating.
- Do not operate any fan with a damaged cord or plug, or after the fan malfunctions or has been dropped or damaged in any manner.
- Do not use the fan near windows, as rain may create an electrical hazard.
- Ensure the fan is mounted securely to a wall according to the installation instructions.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Package Contents
Please check the package contents upon opening to ensure all items are present and undamaged.
- 1 x Sona SFW 1527 Wall Fan unit
- Mounting hardware (screws, wall plugs)
- Instruction Manual
Setup and Installation
The Sona SFW 1527 Wall Fan is designed for wall mounting. Proper installation is crucial for safety and optimal performance.
Choosing a Location:
- Select a sturdy wall surface capable of supporting the fan's weight.
- Ensure there is sufficient clearance around the fan for air circulation and oscillation.
- Avoid locations directly above heat sources or in areas with excessive moisture.
- Position the fan at a height where the airflow can be effectively distributed throughout the room.
Mounting Steps:
- Prepare the Wall: Using the fan's mounting bracket as a template, mark the positions for drilling holes on the wall. Ensure the marks are level.
- Drill Holes: Drill holes at the marked positions using an appropriate drill bit for your wall type. Insert wall plugs if necessary.
- Secure Mounting Bracket: Attach the mounting bracket to the wall using the provided screws. Ensure it is firmly secured.
- Mount the Fan: Carefully lift the fan unit and align its rear mounting slots with the bracket. Slide the fan onto the bracket until it locks securely into place.
- Connect Power: Plug the fan's power cord into a suitable electrical outlet. Ensure the cord is not pinched or obstructed.
Operating Instructions
The Sona SFW 1527 Wall Fan features pull chain controls for speed and oscillation.
Image: Bottom view of the Sona SFW 1527 Wall Fan, showing the control panel with pull chains for speed and swing functions.
Fan Speed Control:
- Locate the pull chain designated for speed control (often labeled 'SPEED' or indicated by speed numbers).
- Pull the chain once for Speed 1 (Low).
- Pull the chain a second time for Speed 2 (Medium).
- Pull the chain a third time for Speed 3 (High).
- Pull the chain a fourth time to turn the fan OFF.
Oscillation Control:
- Locate the pull chain designated for oscillation control (often labeled 'SWING').
- Pull the chain once to activate the oscillation function, allowing the fan head to move from side to side.
- Pull the chain again to stop the oscillation, fixing the fan head in a stationary position.
Maintenance
Regular cleaning and maintenance will ensure the longevity and efficient operation of your Sona SFW 1527 Wall Fan.
Cleaning the Fan:
- Disconnect Power: Always unplug the fan from the power outlet before cleaning.
- Clean Exterior: Use a soft, damp cloth to wipe down the exterior surfaces of the fan. Do not use abrasive cleaners or solvents.
- Clean Grille and Blades: The front grille can be removed for easier access to the blades. Carefully unclip or unscrew the grille. Use a soft cloth or a vacuum cleaner with a brush attachment to remove dust from the blades and inside the grille. Ensure all parts are dry before reassembling.
- Reassemble: Securely reattach the front grille.
Storage:
If storing the fan for an extended period, clean it thoroughly and store it in a dry, cool place, preferably in its original packaging.
Troubleshooting
If you encounter issues with your Sona SFW 1527 Wall Fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on. | No power supply. Power cord not fully plugged in. Fan switch is off. | Check if the power outlet is working. Ensure the power cord is securely plugged into the outlet. Pull the speed control chain to turn the fan on. |
| Fan does not oscillate. | Oscillation function is off. Obstruction in oscillation mechanism. | Pull the oscillation control chain to activate the function. Check for any obstructions around the fan head. |
| Fan makes unusual noise. | Loose parts. Dust accumulation on blades. Fan not securely mounted. | Unplug the fan and check for any loose components. Clean the fan blades and grille as per maintenance instructions. Ensure the fan is securely mounted to the wall bracket. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Sona |
| Model | SFW 1527 |
| Form Factor | Wall Mounted |
| Motor Type | 100% Copper Motor |
| Power Source | Corded Electric |
| Wattage | 55 Watt |
| Number of Speeds | 3 |
| Blade Material | ABS |
| Special Features | Oscillating, Auto Motor Protection |
| Controller Type | Pull Chain Control |
| Product Dimensions (D x W x H) | 5.5D x 19.3W x 23.2H centimetres |
| Colour | White |
| Included Components | 1 x Fan |
Warranty and Support
Sona provides a comprehensive warranty for your SFW 1527 Wall Fan.
- Motor Warranty: 5 Years
- Electrical Parts Warranty: 2 Years
For warranty claims, technical support, or service inquiries, please contact Sona customer service through their official website or the contact information provided with your purchase documentation. Please have your model number (SFW 1527) and proof of purchase ready when contacting support.
