Keenstone 4-Slice Toaster Model 1021406-CZ Instruction Manual

Important Safety Instructions

Before using your Keenstone 4-slice toaster, please read all instructions carefully and retain them for future reference. Always follow basic safety precautions to reduce the risk of fire, electric shock, and/or injury to persons.

• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or toaster in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Do not use appliance for other than intended use.
• Oversize foods, metal foil packages, or utensils must not be inserted in a toaster as they may involve a risk of fire or electric shock.
• A fire may occur if toasters are covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not attempt to dislodge food when toaster is plugged in.
• Do not operate unattended.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.

Product Overview

The Keenstone 4-slice toaster is designed for efficient and versatile toasting. It features independent controls for each pair of slots, extra-wide slots, and multiple functions including Bagel, Defrost, and Reheat.

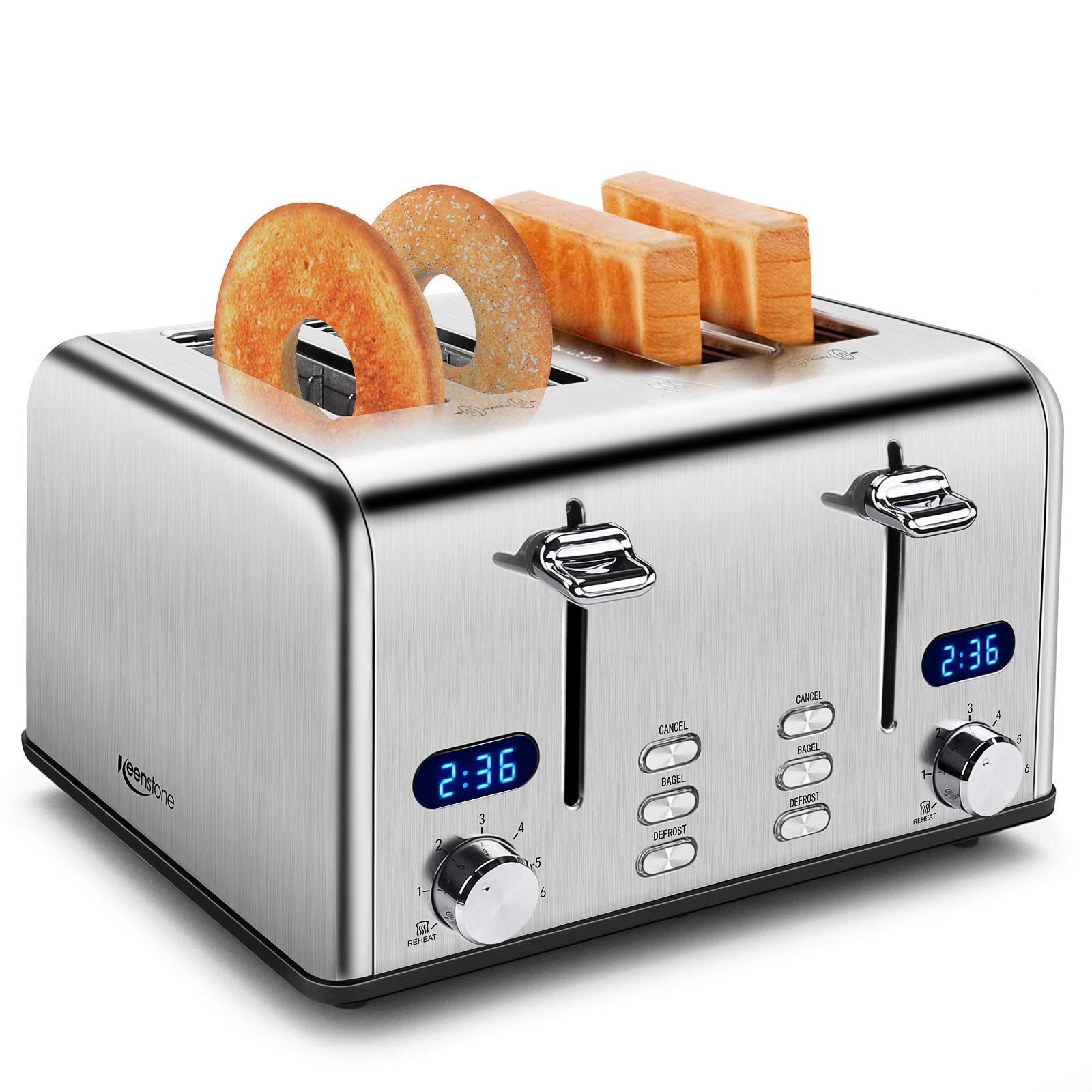

Image: Front view of the Keenstone 4-slice toaster, showcasing its design and capacity for different bread types.

Setup

1. Unpacking: Carefully remove the toaster and all packaging materials. Ensure all accessories are present and the toaster is free from damage.
2. Placement: Place the toaster on a stable, flat, heat-resistant surface, away from flammable materials such as curtains or walls. Ensure adequate ventilation around the appliance.
3. Initial Cleaning: Wipe the exterior of the toaster with a damp cloth. Do not use abrasive cleaners. Remove and clean the crumb trays (see Maintenance section).
4. First Use (Burn-off Cycle): Before first use, operate the toaster without bread on the highest setting (Level 6) for a few minutes. This will burn off any manufacturing residues and may produce a slight odor or smoke, which is normal. Ensure the area is well-ventilated.

Operating Instructions

The Keenstone 4-slice toaster features two independent control panels, allowing you to toast different items simultaneously or use only two slots at a time.

Controls and Functions

Image: Close-up of the toaster's control panel, showing the browning level dial (1-6), LED timer display, and function buttons (Cancel, Bagel, Defrost, Reheat).

• Browning Control Dial (Levels 1-6): Adjusts the toasting level from light (1) to dark (6).
• LED Timer Display: Shows the remaining toasting time.
• Cancel Button: Stops the toasting cycle immediately and ejects the toast.
• Bagel Button: Activates the bagel function, which toasts the cut side of the bagel while gently warming the other side.
• Defrost Button: Extends the toasting time to properly toast frozen bread.
• Reheat Button: Warms up previously toasted bread without further browning.
• Toasting Lever: Push down the lever to start the toasting cycle after selecting settings. The lever will only stay down if the toaster is plugged into a live outlet.

General Toasting Procedure

1. Plug the toaster into a standard electrical outlet.
2. Place up to two slices of bread, bagels, waffles, or English muffins into each set of slots. The 1.5-inch extra-wide slots accommodate various bread types.


Image: The toaster highlighting its 1.5-inch extra-wide slots, suitable for various bread products, along with product dimensions.

3. Select your desired browning level using the browning control dial (1-6).
4. If toasting frozen items, press the Defrost button. If toasting bagels, press the Bagel button. If reheating, press the Reheat button. The corresponding indicator light will illuminate.
5. Push the toasting lever down until it locks into place. The toasting cycle will begin, and the LED timer will display the remaining time.
6. Once the toasting cycle is complete, the toast will automatically pop up. If you wish to stop the cycle early, press the Cancel button.

Image: The toaster illustrating its four main functions: Cancel, Reheat, Defrost, and Bagel, with corresponding icons.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your toaster.

1. Always unplug the toaster from the power outlet and allow it to cool completely before cleaning.
2. Crumb Trays: The toaster is equipped with two removable crumb trays. Pull out the trays from the bottom rear of the toaster. Discard crumbs and wipe the trays clean with a damp cloth. Dry thoroughly before reinserting.


Image: Illustration of the two removable crumb trays being pulled out for cleaning, showing water rinsing one tray.

3. Exterior: Wipe the exterior surfaces with a soft, damp cloth. For stubborn stains, a mild non-abrasive cleaner can be used. Do not use metal scouring pads or abrasive cleaners, as they may scratch the stainless steel finish.
4. Interior: Never insert any objects into the toaster slots to clean. If food becomes lodged, unplug the toaster and carefully remove the item once the toaster is cool.
5. Do not immerse the toaster in water or any other liquid.

Troubleshooting

If you encounter issues with your toaster, refer to the following common problems and solutions:

Specifications

Warranty and Support

Information regarding product warranty and customer support was not available in the provided data. Please refer to the product packaging, the manufacturer's official website, or contact the retailer for details on warranty coverage and support options for your Keenstone 4-slice toaster.
