1. Introduction
Thank you for choosing the SOFTSEA Mid-Century Daybed with Trundle. This instruction manual provides essential information for the safe assembly, proper use, and maintenance of your new daybed. Please read this manual thoroughly before beginning assembly and retain it for future reference.
This daybed is designed to serve as both a comfortable seating area and an additional sleeping space, featuring a convenient pull-out trundle. It is constructed from durable wood materials to ensure stability and longevity.
Figure 1.1: Assembled SOFTSEA Mid-Century Daybed with Trundle.
Safety Information
- Always follow assembly instructions carefully.
- Ensure all hardware is securely tightened before use. Periodically check and re-tighten as necessary.
- Do not exceed the maximum weight capacity for the bed (275 lbs) and trundle (175 lbs).
- Keep small parts and packaging materials away from children during assembly.
- Use on a flat, level surface to prevent tipping.
2. Package Contents
Before assembly, verify that all components and hardware are present. Refer to the separate assembly document for a detailed list of parts and diagrams. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
Typical Components Include:
- Daybed Frame (Headboard, Footboard, Side Rails)
- Trundle Frame and Wheels
- Bed Slats for Main Bed and Trundle
- Hardware Pack (Screws, Bolts, Washers, Allen Wrench)
- Assembly Instructions Document
3. Setup and Assembly
Assembly of the SOFTSEA Mid-Century Daybed requires two adults. Please follow the step-by-step instructions provided in the separate assembly document included with your package. Ensure you have adequate space for assembly and that all tools are readily available.
Key Assembly Steps:
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Attach the side rails to the headboard and footboard using the provided hardware.
- Assemble the trundle frame and attach the wheels.
- Install the bed slats for both the main daybed and the trundle, ensuring they are evenly spaced and secured.
- Insert the assembled trundle unit under the main daybed frame.

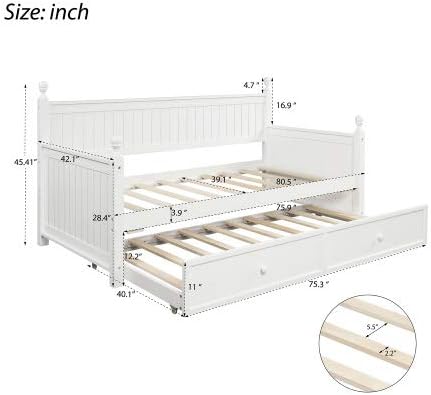

Figure 3.1: Product dimensions for assembly planning.
Figure 3.2: View of the daybed frame and slat support.
Figure 3.3: Detail of the wooden bed slats.
Figure 3.4: Trundle wheel detail for smooth operation.
4. Operating Instructions
Using the Daybed
The main daybed accommodates a standard twin-size mattress. It functions as a sofa during the day and a bed at night. No box spring is required as the bed features a slat support system.
Using the Trundle
The trundle unit is designed to slide smoothly from underneath the main daybed. To extend the trundle, gently pull the front panel outwards. To retract, push the trundle back into its position under the main bed. The trundle also accommodates a standard twin-size mattress.
Figure 4.1: Daybed with trundle extended for use.
Mattress Recommendations
- Main Bed: Recommended mattress thickness up to 8 inches.
- Trundle Bed: Recommended mattress thickness up to 6 inches to allow for proper storage.
5. Maintenance and Care
Cleaning Instructions
- For general cleaning, wipe the wood surfaces with a soft, damp cloth.
- Avoid using harsh chemicals, abrasive cleaners, or polishes that may damage the finish.
- For spills, blot immediately with a clean, dry cloth.
- Product care instructions specify "Dry Clean Only" for any fabric components, though this product is primarily wood. Apply this instruction to any bedding or mattress covers used.
General Maintenance
- Periodically check all bolts and screws to ensure they remain tight. Re-tighten as needed to maintain structural integrity.
- Inspect trundle wheels for smooth operation and clear any debris that may hinder movement.
6. Troubleshooting
This section addresses common issues you might encounter with your daybed.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels unstable or wobbly. | Loose hardware. Uneven floor surface. | Check and tighten all bolts and screws. Ensure the bed is on a level surface; use shims if necessary. |
| Trundle does not slide smoothly. | Debris in wheels or tracks. Wheels are not properly installed. | Clean wheels and tracks. Verify wheels are securely attached and facing the correct direction. |
| Squeaking noises. | Loose connections. Friction between wood parts. | Tighten all hardware. Apply a small amount of furniture wax or silicone spray to contact points between wood components if necessary. |
| Missing parts during assembly. | Packaging not fully checked. | Carefully re-check all packaging materials. If still missing, contact customer support with the part number from the assembly document. |
7. Specifications
Detailed specifications for the SOFTSEA Mid-Century Daybed with Trundle, Model 078.
| Feature | Detail |
|---|---|
| Model Number | 078 |
| Brand | SOFTSEA |
| Overall Dimensions (L x W x H) | 80.5" x 42.1" x 45.4" |
| Trundle Dimensions (L x W) | 75.3" x 40.1" |
| Material | Solid + Manufactured Wood (Pine) |
| Color | White |
| Bed Weight Capacity | 275 lbs |
| Trundle Weight Capacity | 175 lbs |
| Number of Bed Slats | 10 (for main bed) |
| Recommended Main Bed Mattress Thickness | 8 Inches |
| Recommended Trundle Mattress Thickness | 6 Inches |
| Assembly Required | Yes |
| Item Weight | 126 Pounds |
| UPC | 195358007075 |
8. Warranty and Support
Warranty Information
This SOFTSEA product is backed by a 1-year warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage resulting from improper assembly, misuse, accidents, or normal wear and tear.
Customer Support
For any questions regarding assembly, missing parts, or warranty claims, please refer to the contact information provided in your purchase documentation or on the SOFTSEA official website. Please have your model number (078) and proof of purchase ready when contacting support.
