Introduction
Thank you for purchasing the Crown 32-inch HD Ready Smart TV. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new television. Please read this manual thoroughly before using the product and retain it for future reference.
This television features HD Ready resolution, a 178-degree viewing angle, and an Android operating system for smart functionalities. It includes Dolby Audio for an enhanced sound experience.
Package Contents
Verify that all items listed below are included in your package:
- 1 LED TV Unit
- 1 Table Stand Pair
- 1 Remote Control
- 1 Warranty Card
- 1 User Manual (this document)
Setup Instructions
1. Unpacking and Placement
Carefully remove the TV from its packaging. Place the TV on a stable, flat surface or prepare for wall mounting. Ensure adequate ventilation around the TV.
2. Installing the Table Stand
- Place the TV face down on a soft, clean cloth to prevent screen damage.
- Align the table stand pair with the corresponding holes on the bottom of the TV.
- Secure the stands using the provided screws. Do not overtighten.
Note: If wall mounting, refer to the wall mount kit instructions. The TV supports VESA standard wall mounts.
3. Connecting Power
Plug the power cord into the TV's power input, then into a standard electrical outlet. Ensure the power outlet is easily accessible.
4. Connecting External Devices
The TV offers various connectivity options:
- HDMI Ports (x2): Connect set-top boxes, Blu-ray players, gaming consoles.
- USB Ports (x2): Connect USB drives for media playback, or other USB devices.
- VGA Port (x1): Connect a laptop or PC.
- Audio Input: For external audio sources.

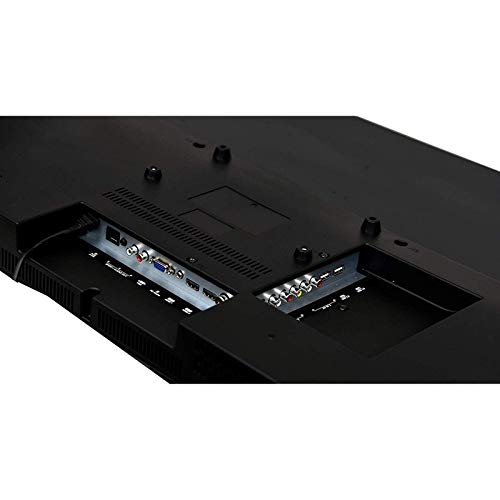

Image: Rear panel of the TV displaying HDMI, USB, and VGA ports for connecting external devices.
Operating Instructions
1. First Time Setup and Initial Power On
- Press the Power button on the remote control or on the TV.
- Follow the on-screen instructions to select your language, country, and connect to a Wi-Fi network.
- Complete the initial Android TV setup, including signing in with your Google account for full smart TV functionality.
Image: The TV displaying its smart interface with various application shortcuts.
2. Basic TV Functions
- Power On/Off: Use the power button on the remote or TV.
- Volume Control: Use the VOL +/- buttons on the remote.
- Channel Selection: Use the CH +/- buttons or number pad on the remote.
- Input Source: Press the Source or Input button on the remote to switch between HDMI, USB, VGA, and TV inputs.
- Menu Navigation: Use the arrow keys and OK button to navigate menus.
3. Smart TV Features (Android OS)
Your Crown Smart TV runs on the Android operating system, providing access to a wide range of applications and features:
- App Access: Navigate to the home screen to access pre-installed apps like YouTube, or download new apps from the Google Play Store.
- Internet Connectivity: Connect to your home Wi-Fi network for online streaming and browsing.
- Bluetooth: The TV supports Bluetooth technology for connecting compatible wireless devices.
Maintenance and Care
- Cleaning the Screen: Gently wipe the screen with a soft, lint-free cloth. For stubborn marks, slightly dampen the cloth with water or a specialized screen cleaner. Do not spray liquid directly onto the screen.
- Cleaning the Cabinet: Use a soft, dry cloth to wipe the TV cabinet. Avoid using abrasive cleaners or solvents.
- Ventilation: Ensure the ventilation openings on the TV are not blocked to prevent overheating.
- Power Cord: Regularly check the power cord for any damage. If damaged, contact customer support for replacement.
- Unplugging: Unplug the TV from the power outlet during lightning storms or when it will be unused for extended periods.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| No power | Power cord not connected; Power outlet not working | Ensure power cord is securely plugged in; Test the outlet with another device. |
| No picture, but sound is present | Incorrect input source selected; External device not connected properly | Press the Source button to select the correct input; Check HDMI/VGA cable connections. |
| No sound, but picture is present | Volume is muted or too low; Audio cables not connected; External audio system issue | Increase volume; Check if mute is active; Ensure audio cables are connected correctly; If using external audio, check its settings. |
| Remote control not working | Batteries are dead or incorrectly inserted; Obstruction between remote and TV | Replace batteries; Ensure correct polarity; Remove any obstructions; Point remote directly at the TV's IR sensor. |
| Smart TV apps not loading or slow | Poor Wi-Fi connection; App cache issues; Outdated software | Check Wi-Fi signal strength; Restart router; Clear app cache in TV settings; Check for system software updates. |
If the problem persists after trying these solutions, please contact Crown customer support.
Technical Specifications
| Brand | Crown (Generic) |
| Model Name | 24DJ |
| Model Number | Crown-SmartTv-32-inch |
| Screen Size | 32 Inches |
| Display Technology | LED |
| Resolution | HD Ready (1366 x 768 pixels) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178 Degrees |
| Operating System | Android |
| Audio Output | 150 Watts |
| Supported Audio Formats | MP3, WAV, MKA |
| Connectivity | 2 HDMI, 2 USB, 1 VGA |
| Bluetooth Support | Yes |
| Product Dimensions (LxWxH) | 7 x 55.5 x 33 Centimeters |
| Item Weight | 4 kg |
| Mounting Type | Wall Mount, Table Stand |
| Special Features | Flat Panel, Dolby Audio, 178-degree viewing angle, dot noise reduction, A+ grade panel, reduced motion blur, enhanced skin tone, real colors, moisture resistant and dust resistant. |
Warranty and Support
Your Crown 32-inch HD Ready Smart TV comes with a 1-year warranty from the date of purchase. Please refer to the included Warranty Card for detailed terms and conditions.
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Crown customer support. Keep your purchase receipt and warranty card handy when contacting support.
Contact information for support is typically found on the warranty card or the manufacturer's official website.
