PowerPac Electric Oven PPT60 User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation of your PowerPac Electric Oven, Model PPT60. Please read this manual thoroughly before first use and retain it for future reference. This 60-liter electric oven is designed for cooking, grilling, toasting, and baking, featuring a convection function and adjustable temperature control.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before using the oven.
2. Do not touch hot surfaces. Always use oven mitts or gloves when handling hot materials.
3. To protect against electrical shock, do not immerse the cord, plug, or any part of the oven in water or other liquids.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause hazards or injury.
8. Do not use outdoors.
9. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to 'OFF', then remove the plug from the wall outlet.
13. Do not use the appliance for other than intended use.
14. Oversized foods or metal utensils must not be inserted into the oven as they may create a fire or risk of electric shock.
15. A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
16. Do not place any materials other than manufacturer-recommended accessories in the oven.
17. Do not place any of the following materials in the oven: paper, cardboard, plastic, or similar items.
18. Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
19. Always wear protective, insulated oven gloves when inserting or removing items from the hot oven.

3. Product Components and Features

Familiarize yourself with the various parts of your PowerPac Electric Oven PPT60.

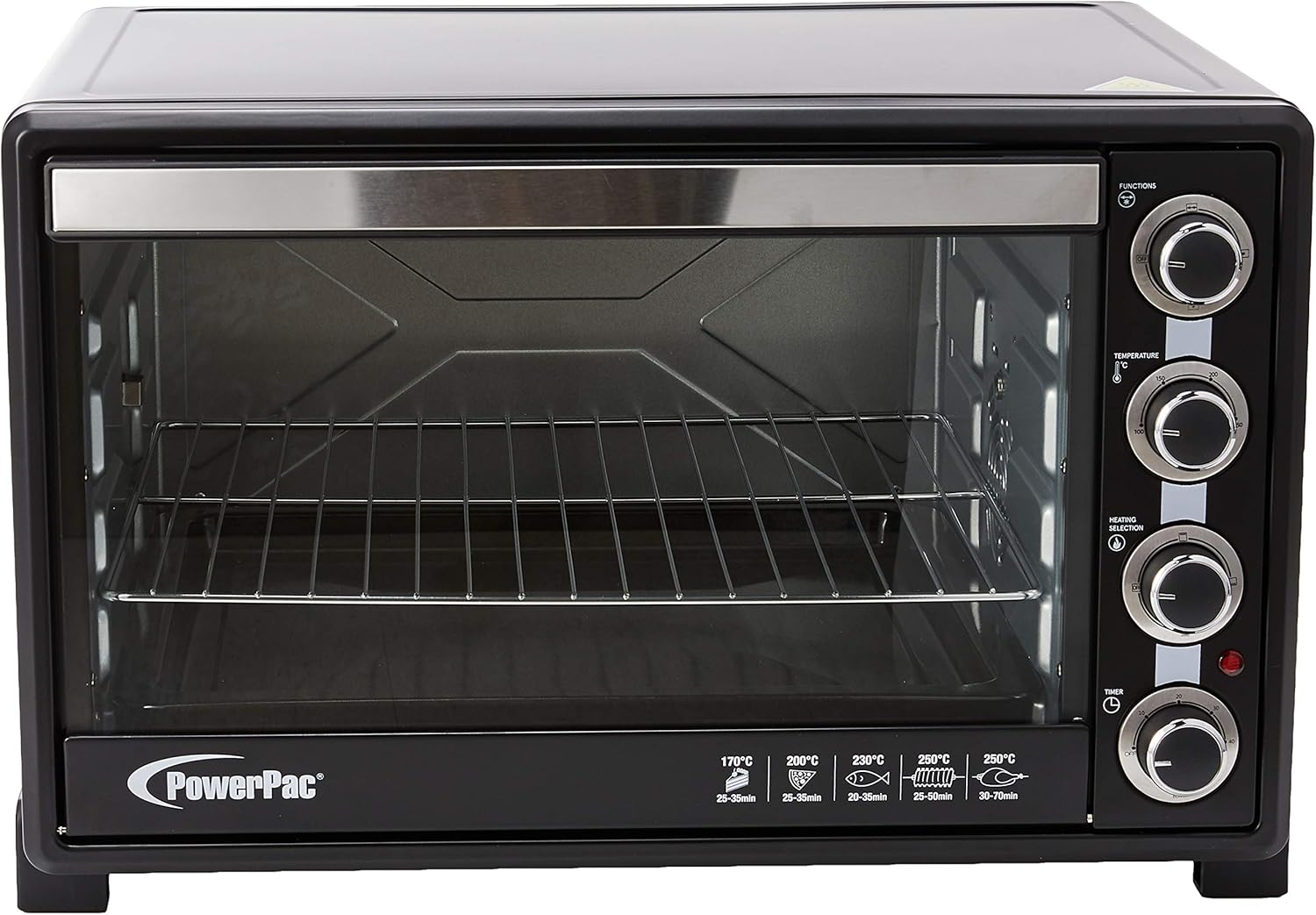

Figure 1: Front View of the PowerPac Electric Oven PPT60. This image displays the overall design of the oven, including the tempered glass door, control panel on the right, and the PowerPac logo at the bottom left.

Figure 2: Angled Front View of the PowerPac Electric Oven PPT60. This perspective highlights the side ventilation and the sleek black finish of the oven, providing a better view of its depth.

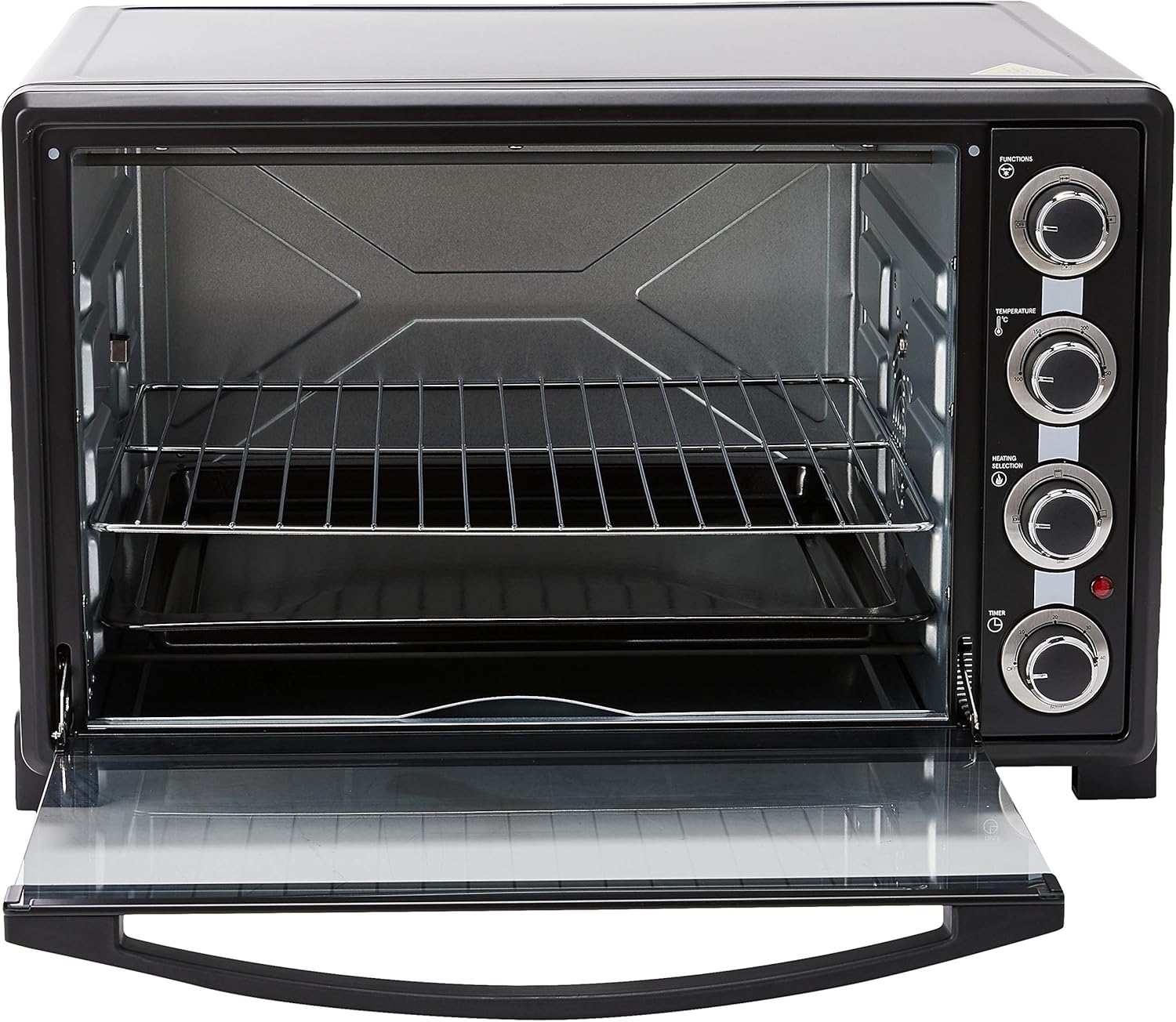

Figure 3: Oven Interior with Door Open. This image shows the spacious interior of the 60L oven, including the removable grill rack and the internal light for monitoring cooking progress.

Figure 4: Control Panel. A detailed view of the four control knobs: Functions, Temperature, Heating Selection, and Timer. The power indicator light is also visible.

Figure 5: Included Accessories. This image displays the rotisserie fork, rotisserie handle, and a grill rack, which are provided with the oven for versatile cooking options.

Figure 6: Rear View. The back of the oven showing the power cord and ventilation openings.

Key Features:

• 4-in-1 Functionality: Cook, grill, toast, and bake.
• Convection Function: Integrated turbo fan for even heat distribution.
• Rotisserie: Includes a rotisserie fork for grilling.
• Adjustable Temperature: From 100°C to 250°C.
• 60-Minute Timer: With an audible bell.
• Internal Light: For monitoring cooking status.
• Removable Crumb Tray: For easy cleaning.
• Durable Construction: Stainless steel heating elements and tempered glass door.

4. Setup and First Use

Unpacking:

1. Carefully remove the oven and all accessories from the packaging.
2. Remove any packing materials, stickers, or protective films from the oven and accessories.
3. Inspect the oven for any damage. Do not operate if damaged.

Placement:

• Place the oven on a stable, flat, heat-resistant surface.
• Ensure adequate ventilation around the oven. Maintain a minimum clearance of 10 cm (4 inches) on all sides and above the oven to allow for proper airflow.
• Do not place the oven near flammable materials such as curtains, walls, or paper.
• Ensure the power cord is not obstructed or touching hot surfaces.

Initial Cleaning:

• Before first use, wipe the interior and exterior of the oven with a damp cloth.
• Wash all accessories (baking tray, grill racks, rotisserie fork, etc.) in warm, soapy water, rinse thoroughly, and dry completely.

First Use (Burn-Off):

It is recommended to run the oven empty for approximately 15 minutes before cooking food for the first time. This helps to burn off any manufacturing residues and odors.

1. Ensure the oven is empty and well-ventilated.
2. Plug the oven into a suitable electrical outlet.
3. Set the Temperature knob to 250°C.
4. Set the Heating Selection knob to both top and bottom heating elements.
5. Set the Timer knob to 15 minutes.
6. A slight odor or smoke may be present during this initial operation; this is normal. Ensure the area is well-ventilated.
7. Once the timer rings, turn all knobs to the 'OFF' position and allow the oven to cool completely.

5. Operating Instructions

The PowerPac Electric Oven PPT60 features four control knobs for precise cooking.

Control Panel Overview:

• Functions Knob (Top): Selects special functions like convection or rotisserie.
• Temperature Knob (Second from Top): Adjusts cooking temperature from 100°C to 250°C.
• Heating Selection Knob (Third from Top): Selects heating elements (top, bottom, or both).
• Timer Knob (Bottom): Sets cooking time up to 60 minutes.

General Cooking Steps:

1. Place food on the appropriate rack or tray inside the oven.
2. Close the oven door securely.
3. Turn the Temperature knob to the desired cooking temperature.
4. Turn the Heating Selection knob to select the desired heating elements (e.g., top, bottom, or both).
5. If using convection, turn the Functions knob to the convection setting. If using rotisserie, ensure the rotisserie fork is properly installed and turn the Functions knob to the rotisserie setting.
6. Turn the Timer knob to the desired cooking time. The power indicator light will illuminate, indicating the oven is operating.
7. When the set time elapses, the timer will ring, and the oven will automatically turn off.
8. Carefully remove cooked food using oven mitts.

Specific Functions:

• Baking: Typically uses both top and bottom heating elements. Set temperature and time according to recipe.
• Grilling/Broiling: Uses the top heating element. Place food on the upper rack. Monitor closely to prevent burning.
• Toasting: Uses top heating element. Place items on the grill rack.
• Convection (Turbo Fan): Activates the internal fan for faster and more even cooking. Use the Functions knob to select.
• Rotisserie: For roasting whole chickens or other meats. Secure the food onto the rotisserie fork, insert into the oven, and select the rotisserie function on the Functions knob.

6. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your oven.

Before Cleaning:

• Always unplug the oven from the power outlet.
• Allow the oven to cool down completely before cleaning any part.

Exterior Cleaning:

• Wipe the exterior surfaces with a soft, damp cloth and mild detergent.
• Do not use abrasive cleaners or scouring pads, as they may scratch the surface.
• Ensure no water enters the control panel or electrical components.

Interior Cleaning:

• Remove the grill racks, baking tray, and crumb tray. Wash them in warm, soapy water.
• For stubborn stains, soak accessories before washing.
• Wipe the interior walls with a damp cloth and mild detergent. For baked-on food, a non-abrasive oven cleaner designed for conventional ovens may be used, following the product instructions carefully.
• Ensure all detergent residue is wiped away with a clean, damp cloth.
• The removable crumb tray should be cleaned regularly to prevent grease buildup and potential fire hazards.

Storage:

When not in use, store the oven in a clean, dry place. Ensure it is unplugged and cooled before storage.

7. Troubleshooting

If you encounter issues with your oven, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact PowerPac customer support.

8. Product Specifications

9. Warranty and Customer Support

Your PowerPac Electric Oven PPT60 comes with a 2-year warranty, covering manufacturing defects under normal household use. Please retain your proof of purchase for warranty claims.

For technical assistance, service, or warranty inquiries, please contact PowerPac customer support through their official channels. Refer to the product packaging or the PowerPac website for the most current contact information.

PowerPac Customer Service:
Please visit the official PowerPac website or refer to your purchase documentation for contact details.
