1. Important Safety Information
Please read and understand all instructions before installing or operating this product. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Electrical Safety: Installation should be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure power is disconnected at the circuit breaker before installation or maintenance.
- Grounding: This fixture must be properly grounded to prevent electric shock.
- Mounting: Securely mount the fixture to a stable surface capable of supporting its weight. Do not install on unstable or vibrating surfaces.
- Operating Temperature: Ensure the operating environment is within the specified temperature range for the product.
- Waterproof Rating: This product is IP65 waterproof, suitable for outdoor use in various weather conditions. However, avoid submerging the fixture in water.
2. Product Overview
The ledmo 240W LED Flood Light is a high-output commercial-grade lighting fixture designed for large outdoor areas. It features a built-in dusk-to-dawn photocell for automatic operation and a durable aluminum housing for longevity.
Key Features:
- High Output: Delivers 36,000 lumens for bright, daylight-quality illumination (5000K).
- Durable Construction: Full die-cast aluminum housing ensures excellent heat dissipation and IP65 waterproof rating for outdoor resilience.
- Automatic Operation: Integrated dusk-to-dawn photocell sensor automatically turns the light on at dusk and off at dawn.
- Energy Efficient: Designed to save up to 80% on energy costs compared to traditional lighting.
- Adjustable Mounting: Features a 270° adjustable yoke mount for precise light aiming.
Figure 2.1: The ledmo 240W LED Flood Light with its adjustable mounting bracket.
3. What's in the Box
- 1 x ledmo 240W LED Flood Light (Lamp Body)
Figure 3.1: The ledmo LED Flood Light as packaged in its box, showing the main lamp body.
4. Specifications
| Feature | Specification |
|---|---|
| Brand | ledmo |
| Model Number | 203 (EZ203) |
| Wattage | 240 Watts |
| Brightness | 36000 Lumens |
| Light Color | 5000K Daylight White |
| Voltage | 110 Volts |
| Material | Aluminum, Plastic |
| Water Resistance Level | IP65 Waterproof |
| Control Method | Photocell or Push Button |
| Item Dimensions (L x W x H) | 15.7" x 12.5" x 1.9" |
| Item Weight | 11.16 Pounds |
| Mounting Type | Wall Mount & Pole Mount |
| Certifications | UL Listed |
Figure 4.1: The flood light shown with its technical specification sheet.
5. Setup and Installation
The ledmo 240W LED Flood Light is designed for simple hardwiring installation. It is recommended that installation be performed by a qualified electrician to ensure safety and compliance with electrical codes.
Installation Steps:
- Preparation: Ensure the power supply is turned off at the circuit breaker before beginning installation. Gather necessary tools (e.g., drill, screwdriver, wire strippers).
- Mounting: Use the adjustable yoke mount to fix the lamp firmly and reliably on the desired surface (wall or pole). The bracket allows for 270° adjustment to aim the light precisely.
- Wiring: Connect the fixture's wires to your power supply. The black wire is live, the white wire is neutral, and the green wire is ground. Ensure all connections are secure and insulated.
- Secure Connections: After wiring, ensure all covers and connections are properly sealed to maintain the IP65 waterproof rating.
- Power On: Restore power at the circuit breaker. The built-in photocell will activate the light automatically when it detects low ambient light.

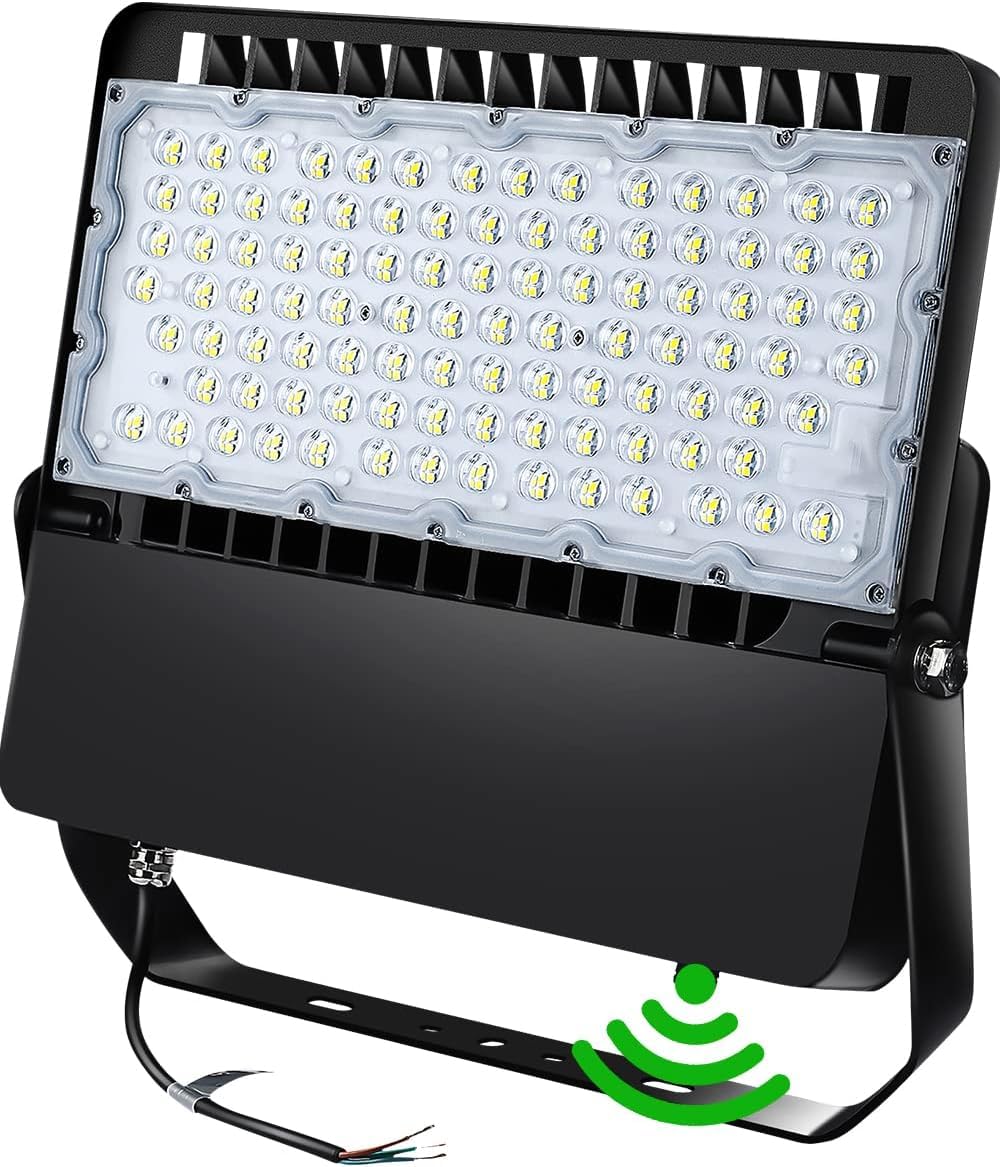

Figure 5.1: The flood light showing its wiring for hardwired installation.
Figure 5.2: Recommended installation heights and corresponding illumination areas.
6. Operating Instructions
The ledmo 240W LED Flood Light is equipped with a dusk-to-dawn photocell sensor, allowing for automatic operation without manual intervention.
Photocell Operation:
- Once properly installed and powered, the light will automatically turn on when the ambient light level drops below a certain threshold (dusk).
- The light will remain on throughout the night.
- At dawn, when sufficient ambient light is detected, the light will automatically turn off.
- Ensure the photocell sensor is not obstructed by objects or debris, as this may interfere with its proper function.
Figure 6.1: Visual representation of the flood light's automatic dusk-to-dawn functionality.
Video 6.1: Demonstration of the ledmo stadium sports lighting in action, showcasing its brightness and coverage.
Video 6.2: A video highlighting the super bright illumination provided by the ledmo stadium light.
7. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your ledmo LED Flood Light.
- Cleaning: Periodically clean the lens and housing with a soft, damp cloth to remove dirt, dust, and debris. Do not use abrasive cleaners or solvents.
- Inspection: Regularly inspect the fixture for any signs of damage, loose connections, or wear. Ensure the mounting bracket is secure.
- Photocell: Keep the photocell sensor clean and free from obstructions to ensure proper automatic operation.
Figure 7.1: The heat sink design on the back of the flood light, crucial for maintaining LED lifespan.
8. Troubleshooting
If you encounter issues with your ledmo LED Flood Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply; Faulty wiring; Photocell obstructed or faulty. | Check circuit breaker and power connections. Verify wiring. Ensure photocell is clear and functioning. |
| Light stays on during the day. | Photocell obstructed or faulty; Light sensor receiving insufficient light. | Clear any obstructions from the photocell. Relocate the fixture if it's in a shaded area during the day. |
| Light flickers or dims. | Unstable power supply; Loose wiring connection; Overheating. | Check power supply stability. Tighten all wiring connections. Ensure proper ventilation around the fixture. |
| Reduced brightness. | Dirty lens; Aging LEDs. | Clean the lens surface. If LEDs are aging, replacement may be necessary (contact support). |
If the problem persists after attempting these solutions, please contact ledmo customer support for further assistance.
9. Warranty and Support
The ledmo 240W LED Flood Light comes with a 5-year manufacturer warranty. This warranty covers defects in materials and workmanship under normal use and service.
For warranty claims, technical support, or any inquiries regarding your product, please contact ledmo customer service through the official ledmo store on Amazon or their designated support channels.
Keep your purchase receipt as proof of purchase for warranty validation.
Figure 9.1: ledmo offers comprehensive customer support and quality assurance.
