Introduction
This user manual provides essential information for the safe and efficient operation of your Galanz GLB57MS2B15 172 Cans Built-in Beverage Refrigerator. Please read this manual thoroughly before installation, operation, or maintenance to ensure proper use and to prevent potential hazards. Keep this manual for future reference.
Figure 1: Front view of the Galanz GLB57MS2B15 Beverage Refrigerator, showcasing its stainless steel finish and glass door filled with various beverages.
Product Features
- 172 Cans Storage Capacity: Designed to hold up to 172 standard-sized soda or beer cans, or several bottles of wine, making it ideal for home, office, or bar use.
- Digital Temperature Control: Features a smart and sensitive digital control panel allowing precise temperature adjustments from 37°F to 61°F.
- Sliding Wire Shelves: Equipped with 3 removable chrome shelves that slide out for easy access and allow for flexible space adjustment to accommodate different bottle sizes.
- LED Interior Lighting: White LED interior lighting provides clear visibility of contents without generating excess heat.
- See-Through Double Glass Doors: Enhances insulation and allows for easy viewing of contents.
- Reversible Door: The door can be reversed to open from either the left or right, offering flexibility in placement.
- Aluminum Grip Handle: Provides a sturdy and comfortable grip for opening and closing the door.
- Compressor Type Cooling System: Ensures efficient and consistent cooling performance.
- 2 Leveling Front Legs: Adjustable legs to ensure stable and level placement on any surface.
Figure 2: Illustration of the sliding wire shelves, demonstrating their functionality and the capacity to store numerous cans.
Figure 3: Detailed view highlighting the LED interior lighting, adjustable leveling front legs, and the reversible door mechanism.
What's in the Box
Upon unpacking, please ensure all items listed below are present and in good condition:
- 1 x Galanz GLB57MS2B15 Beverage Refrigerator
- 3 x Removable Wire Shelves
- 1 x Power Cord
- 1 x User’s Manual (this document)
- 1 x Warranty Card
Setup and Installation
1. Placement
This beverage refrigerator is designed for built-in installation under counters or as a freestanding unit. Ensure adequate ventilation space around the unit, especially at the rear and sides, to allow for proper heat dissipation. Avoid placing the unit in direct sunlight or near heat sources.
Figure 4: Example of the beverage refrigerator integrated into a kitchen counter setup.
2. Leveling
Use the two leveling front legs to ensure the refrigerator is perfectly level. This is crucial for optimal performance and to prevent vibrations and noise. Adjust by turning the legs clockwise or counter-clockwise until the unit is stable.
3. Door Reversal (Optional)
The door is reversible. If you wish to change the door swing direction, refer to the detailed instructions in the comprehensive User Manual PDF linked in the "Warranty & Support" section.
4. Initial Cleaning and Power Connection
Before first use, clean the interior and exterior of the refrigerator with a soft cloth and mild detergent. Allow the unit to air dry completely. Plug the power cord into a dedicated 120V/60Hz grounded electrical outlet. Allow the refrigerator to stand upright for at least 2-4 hours before plugging it in to allow refrigerants to settle.
Operating Instructions
1. Temperature Control
The digital control panel is located inside the unit at the top. Use the temperature control buttons to set your desired temperature between 37°F and 61°F. The display will show the current internal temperature. You can switch between Fahrenheit (°F) and Celsius (°C) using the dedicated selector button.

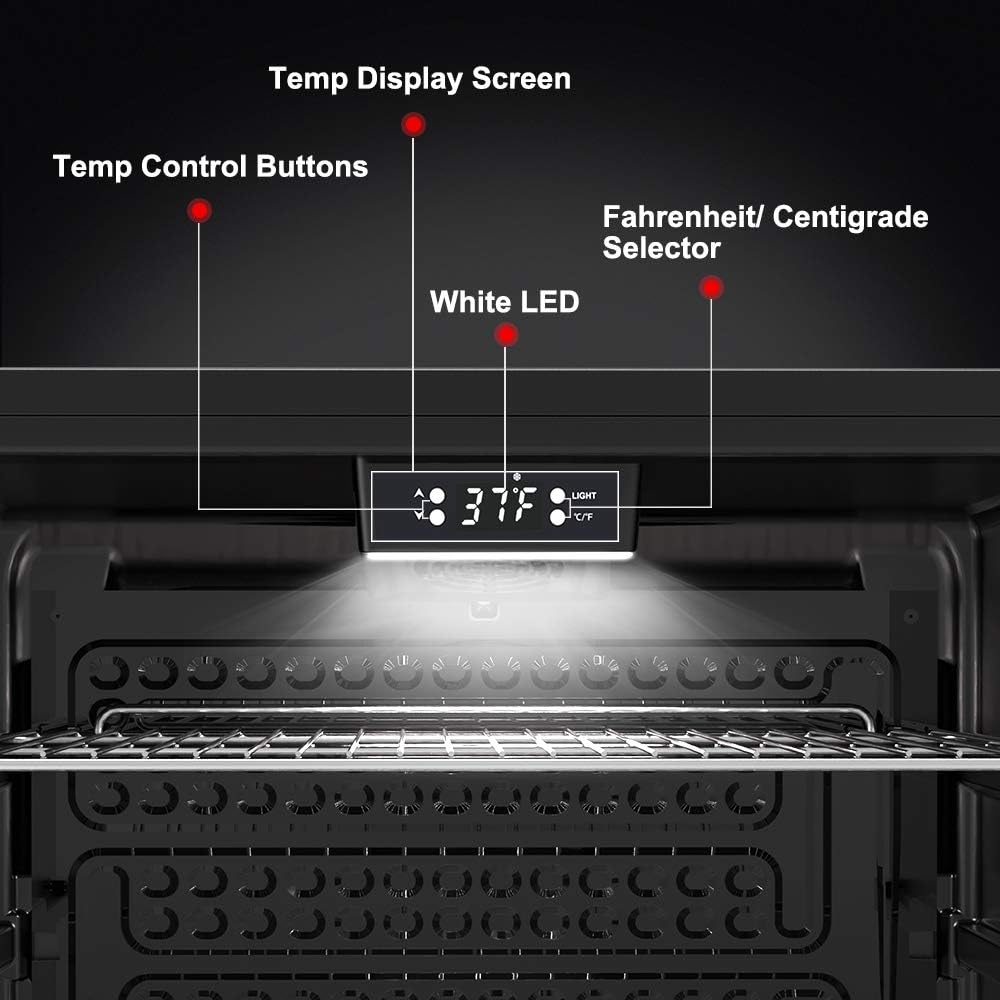

Figure 5: View of the digital temperature display, control buttons, and Fahrenheit/Celsius selector.
2. Interior Lighting
The white LED interior light can be turned on or off via a button on the control panel. This feature allows for better visibility of your beverages.
3. Arranging Beverages
Utilize the sliding wire shelves to organize your beverages. For larger bottles, shelves can be removed to create more vertical space. Ensure bottles and cans do not obstruct the internal fan or touch the back wall for optimal cooling.
Maintenance
1. Cleaning the Interior
Unplug the unit before cleaning. Wash the interior surfaces and removable shelves with a solution of mild detergent and warm water. Rinse thoroughly and dry with a soft cloth. Do not use abrasive cleaners or solvents.
2. Cleaning the Exterior
Clean the exterior with a soft cloth dampened with mild detergent. For stainless steel surfaces, use a stainless steel cleaner and polish in the direction of the grain. Regularly clean the condenser coils at the back of the unit to maintain efficiency.
3. Defrosting
This unit features a frost-free defrost system, minimizing the need for manual defrosting. However, if excessive frost builds up, unplug the unit and allow the frost to melt naturally. Do not use sharp objects to remove frost.
Troubleshooting
If you experience issues with your beverage refrigerator, consult the table below for common problems and their solutions. For more detailed troubleshooting or persistent issues, refer to the full User Manual PDF.
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | Not plugged in; circuit breaker tripped; temperature set too high. | Ensure plug is secure; reset circuit breaker; lower temperature setting. |
| Temperature is not cold enough. | Door opened too frequently; warm items added; poor ventilation; door gasket not sealing. | Minimize door openings; allow warm items to cool before placing inside; ensure proper clearance; check and clean door gasket. |
| Excessive noise. | Unit not level; loose parts; normal compressor operation. | Adjust leveling legs; check for loose components; some noise is normal during operation. |
| Moisture buildup inside. | High humidity; door not closed properly; door gasket damaged. | Ensure door is fully closed; check and clean door gasket; consider a dehumidifier in high humidity environments. |
Specifications
Figure 6: Key dimensions of the Galanz GLB57MS2B15 Beverage Refrigerator.
| Specification | Value |
|---|---|
| Brand | Galanz |
| Model Number | GLB57MS2B15 |
| Capacity | 5.7 Cubic Feet (172 Cans) |
| Dimensions (W x D x H) | 23.43 x 24.88 x 34.37 inches |
| Item Weight | 81.4 pounds |
| Voltage | 120 Volts / 60Hz |
| Annual Energy Consumption | 330 Kilowatt Hours Per Year |
| Installation Type | Built-In |
| Interior Temperature Range | 37°F - 61°F |
| Defrost System | Frost Free |
| Door Material Type | Glass / SPCC Steel |
| Shelf Type | Wire |
| Certification | CSA & DOE |
Warranty & Support
Your Galanz GLB57MS2B15 Beverage Refrigerator comes with a manufacturer's warranty. Please refer to the included Warranty Card for specific terms and conditions. For any technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Galanz customer support.
For a comprehensive guide and detailed instructions, please download the official User Manual PDF:
