1. Introduction
Thank you for choosing the GLOBO 15830-4H Pendant Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
The GLOBO 15830-4H is a stylish pendant light featuring a matte black metal frame and four smoked glass shades. It is designed for indoor use and requires four E27 bulbs (not included) with a maximum wattage of 25W each.
2. Safety Instructions
WARNING: Electrical installation should only be performed by a qualified electrician in accordance with all local and national electrical codes.
- Always disconnect the main power supply before installation, maintenance, or bulb replacement to prevent electric shock.
- Ensure the voltage rating of the fixture matches your power supply.
- Do not exceed the maximum wattage of 25W per bulb.
- This fixture is designed for indoor use only. Do not expose to moisture or extreme temperatures.
- Handle glass components with care to avoid breakage.
- Keep packaging materials out of reach of children.
3. Package Contents
Please check that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact your retailer.
- 1 x GLOBO 15830-4H Pendant Light Fixture (Matte Black Metal Frame with Smoked Glass Shades)
- Mounting Hardware (screws, wall plugs, ceiling bracket)
- Instruction Manual
Note: Four E27 light bulbs are NOT included and must be purchased separately.
4. Setup and Installation
Professional installation by a qualified electrician is highly recommended.
- Prepare for Installation: Turn off the main power supply at the circuit breaker before starting any electrical work. Ensure the power is off by testing the circuit.
- Unpack the Fixture: Carefully remove all components from the packaging. Inspect for any damage.
- Mount the Ceiling Bracket: Position the ceiling bracket (part of the mounting hardware) at the desired location on the ceiling. Mark the drilling points. Drill holes and insert appropriate wall plugs (if necessary). Secure the ceiling bracket firmly to the ceiling using the provided screws.
- Electrical Connections: Connect the electrical wires from the ceiling to the fixture's wires. Ensure correct polarity:
- Live (L) wire to Live (L) terminal.
- Neutral (N) wire to Neutral (N) terminal.
- Ground (Earth) wire to Ground (Earth) terminal.
- Attach the Fixture: Carefully lift the pendant light fixture and attach it to the ceiling bracket, securing it with the provided screws or fasteners. Ensure the fixture is stable and flush against the ceiling.
- Install Light Bulbs: Gently screw four E27 bulbs (max 25W each) into the lamp holders. Do not overtighten.
- Restore Power: Once installation is complete and all connections are secure, restore power at the circuit breaker.

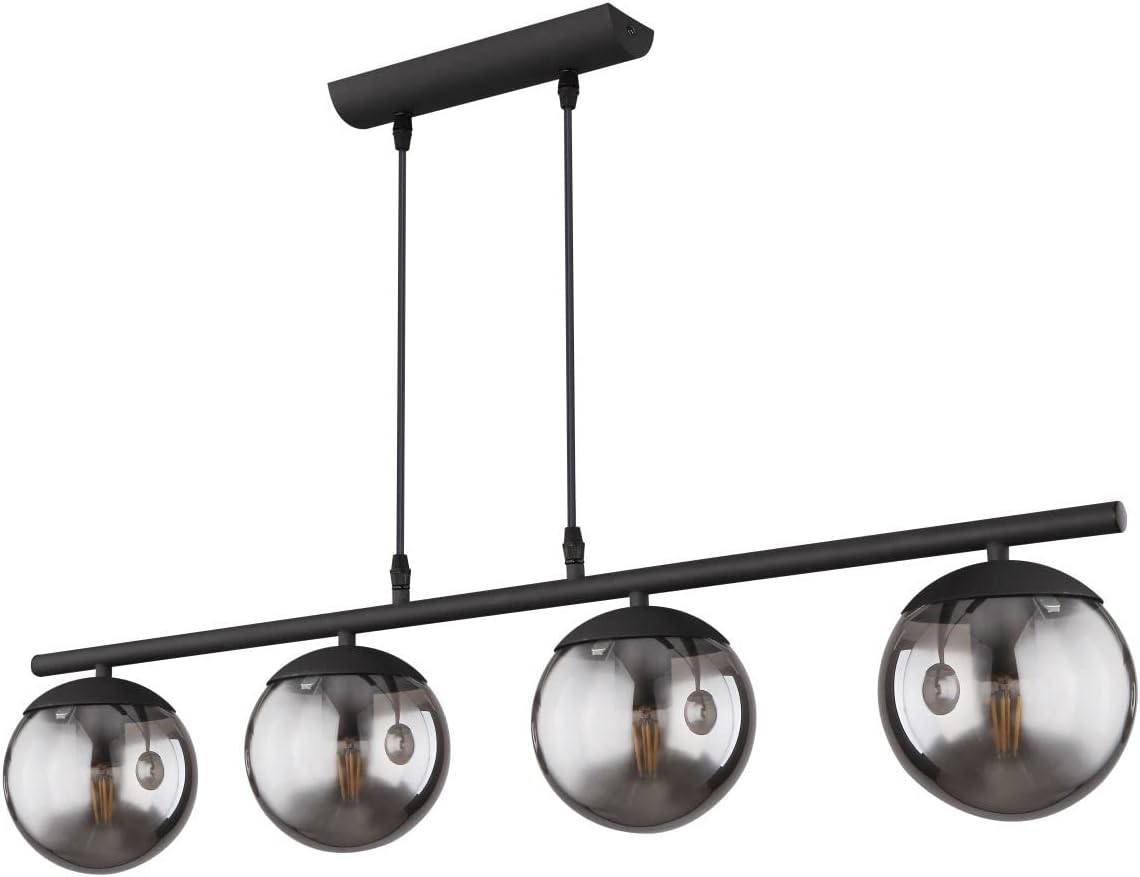

Figure 1: Full view of the GLOBO 15830-4H Pendant Light. This image shows the overall design of the fixture, including the matte black metal bar, suspension cables, and four smoked glass shades.
Figure 2: Close-up view of two smoked glass shades with E27 bulbs installed. This image highlights the detail of the glass and the bulb socket area, relevant for bulb installation.
5. Operating Instructions
The GLOBO 15830-4H Pendant Light is operated via a standard wall switch connected to its electrical circuit. Simply toggle the wall switch to turn the light fixture on or off.
6. Maintenance
- Cleaning: To clean the fixture, ensure the power is off. Use a soft, dry, lint-free cloth to wipe the metal and glass surfaces. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
- Bulb Replacement: Always disconnect power before replacing bulbs. Allow bulbs to cool completely before handling. Replace with E27 bulbs, ensuring they do not exceed 25W.
- Inspection: Periodically inspect the fixture for any signs of wear, loose connections, or damage. If any issues are found, disconnect power and consult a qualified electrician.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply Faulty bulb Loose wiring connection | Check circuit breaker and wall switch Replace bulb Consult a qualified electrician to check wiring |
| Light flickers | Loose bulb Incompatible dimmer switch Loose wiring connection | Tighten bulb Ensure dimmer switch is compatible with LED/incandescent bulbs (if applicable) Consult a qualified electrician to check wiring |
| Fixture is hot to touch | Bulb wattage too high | Ensure bulbs do not exceed 25W each |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | GLOBO |
| Model Number | 15830-4H |
| Product Dimensions (L x W x H) | 90 x 15 x 120 cm (35.4 x 5.9 x 47.2 inches) |
| Item Weight | 1.88 Kilograms (4.14 lbs) |
| Color | Matte Black |
| Material | Metal, Glass |
| Shade Material | Smoked Glass |
| Number of Light Sources | 4 |
| Socket Type | E27 |
| Maximum Wattage per Bulb | 25 Watts |
| Power Source | AC |
| Installation Type | Ceiling Mount (Pendant) |
| Energy Label | A++ |
| Batteries Required/Included | No |
9. Warranty and Support
This GLOBO product is covered by the manufacturer's standard warranty. Please refer to the warranty card included with your purchase or contact your retailer for specific warranty terms and conditions.
For technical support, replacement parts, or any inquiries regarding your GLOBO 15830-4H Pendant Light, please contact your point of purchase or visit the official GLOBO Lighting website for customer service information.
