Flash Furniture Mobile 47.5" Half Circle Wave Collaborative Activity Table Instruction Manual

1. Product Overview

This manual provides instructions for the assembly, operation, and maintenance of your Flash Furniture Mobile 47.5" Half Circle Wave Collaborative Activity Table. This table is designed for educational and collaborative settings, featuring a half-circle wave shape that allows for flexible arrangements and group activities. Its mobile design and adjustable height offer versatility for various users and environments.

• Collaborative Design: The half-circle wave shape facilitates group interaction and can be combined with other tables for larger configurations.
• Durable Construction: Features a scratch, stain, and warp-resistant thermal fused laminate top with a protective black edge band.
• Adjustable Height: Legs adjust in 1-inch increments to accommodate different user heights.
• Mobility: Equipped with locking casters for easy movement and secure positioning.

2. Safety Information

Please read and understand all safety warnings before assembly and use. Failure to follow these instructions may result in injury or product damage.

• Ensure all components are securely fastened before use.
• Do not exceed the maximum weight recommendation of 400 pounds.
• Always engage the locking casters when the table is in a stationary position to prevent unintended movement.
• Keep hands and fingers clear of moving parts, especially during height adjustment.
• Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

3. Package Contents

Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer support.

• Half Circle Wave Tabletop (1)
• Adjustable Legs (4)
• Locking Casters (4)
• Assembly Hardware (screws, washers, etc.)

4. Assembly Instructions

Assembly is required for this product. It is recommended to have two people for easier and safer assembly.

1. Prepare the Tabletop: Carefully unpackage the tabletop. The reversible top has two different finishes; select your desired finish for the top surface. Place the tabletop upside down on a soft, clean surface to prevent scratches.
2. Attach Leg Brackets: Locate the pre-drilled holes on the underside of the tabletop. Align the leg attachment brackets with these holes. Secure each bracket using the provided screws and a screwdriver. Ensure all screws are tightened firmly.
3. Install Legs: Insert the upper part of each adjustable leg into the attached leg brackets. Ensure they are seated correctly.
4. Attach Casters: Insert a locking caster into the bottom of each leg. Push firmly until the caster stem is fully engaged.
5. Adjust Height (Initial): Before flipping the table, you may pre-adjust the leg height. Press the pin on the lower chrome leg section and slide it to the desired height. Ensure the pin locks into one of the 1-inch increment holes. Repeat for all four legs to ensure even height.
6. Final Placement: With assistance, carefully flip the table upright. Engage the locking mechanism on all casters to secure the table in place.

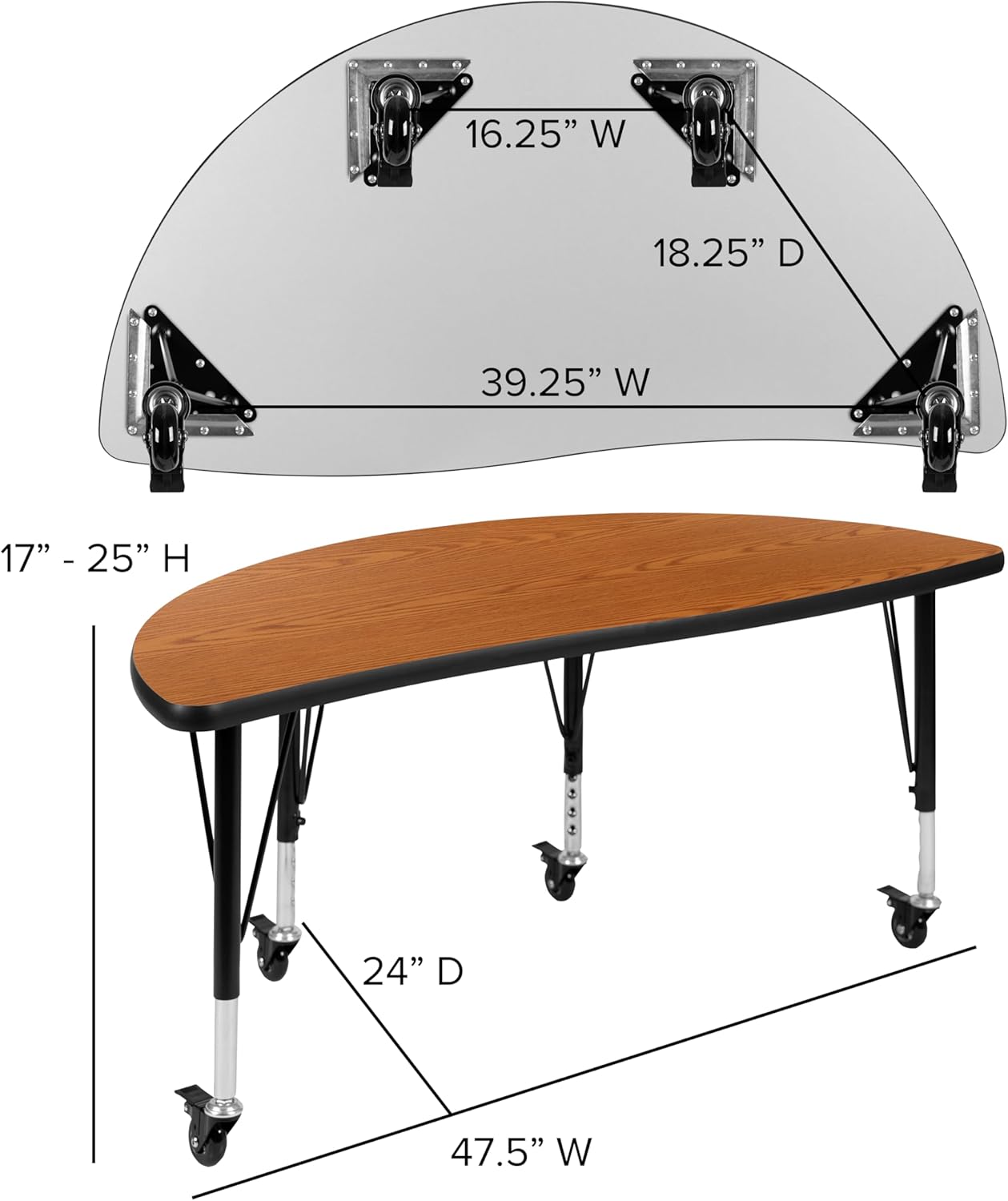

Figure 4.1: Table dimensions and underside view for leg attachment.

Figure 4.2: Underside of the table with leg mounting points.

Figure 4.3: Detail of the adjustable leg mechanism.

Figure 4.4: Detail of a locking caster.

5. Operating Instructions

This section details how to use the features of your activity table.

5.1 Adjusting Table Height

The table legs can be adjusted from 17 inches to 25 inches in 1-inch increments.

1. Ensure the table is empty and stable.
2. Locate the adjustment pin on the lower chrome section of each leg.
3. Press the pin inward to disengage it from the height adjustment hole.
4. Slide the lower leg section up or down to the desired height.
5. Release the pin, ensuring it fully engages into one of the adjustment holes.
6. Repeat for all four legs, ensuring they are set to the same height for stability.

5.2 Moving and Securing the Table

The table is equipped with locking casters for mobility.

• To Move: Disengage the locking mechanism on all casters by flipping the lever upwards. Carefully push the table to its new location.
• To Secure: Once the table is in the desired position, engage the locking mechanism on all casters by pressing the lever downwards. This will prevent the table from rolling.

5.3 Collaborative Use

The half-circle wave design is ideal for collaborative activities.

• The table can accommodate up to 5 children.
• Multiple half-circle wave tables can be nested together to form larger work surfaces or combined with other shapes for flexible classroom layouts.

6. Maintenance

Proper care will extend the life and appearance of your activity table.

• Cleaning: Wipe the table surface with a dry cloth. For more thorough cleaning, use a damp cloth with a mild detergent, then dry thoroughly. Avoid abrasive cleaners or harsh chemicals.
• Inspection: Periodically check all screws and fasteners to ensure they remain tight. Retighten as necessary.
• Casters: Keep casters free of debris to ensure smooth movement.

7. Troubleshooting

If you encounter issues with your activity table, refer to the following common solutions.

• Table is unstable/wobbly: Ensure all legs are adjusted to the same height and that the adjustment pins are fully engaged. Check that all leg attachment screws are tight.
• Casters not rolling smoothly: Check for debris (hair, lint, etc.) caught in the caster wheels and remove it. Ensure the caster lock is disengaged.
• Difficulty adjusting leg height: Ensure the adjustment pin is fully depressed. If the pin is stuck, gently wiggle the leg while pressing the pin.

8. Specifications

9. Warranty Information

This Flash Furniture product is covered by a 3-year limited manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. For specific terms and conditions, please refer to the warranty documentation included with your purchase or contact Flash Furniture customer support.

10. Customer Support

For assistance with assembly, missing parts, or any other inquiries regarding your Flash Furniture Mobile Activity Table, please contact our customer support team.

• Online Support: Visit the official Flash Furniture website for FAQs and support resources.
• Contact Information: Refer to your product packaging or the Flash Furniture website for current contact details (phone, email).
