TECCPO 3.0 Cu.Ft. 2-Door Mini Fridge with Freezer TAMF34 User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your TECCPO 3.0 Cu.Ft. 2-Door Mini Fridge with Freezer, Model TAMF34. Please read these instructions thoroughly before use and retain them for future reference.

2. Safety Information

Important Safety Instructions:

• Ensure the appliance is properly grounded.
• Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• This appliance is intended for household use only.
• Unplug the appliance before cleaning or performing maintenance.
• Keep children away from the appliance during operation and maintenance.

3. Package Contents

Verify that all items are present upon unpacking:

• 1 × TECCPO Compact Refrigerator TAMF34
• 1 × User Manual
• 1 × Crisper Drawer
• 2 × Removable Glass Shelf
• 1 × Ice Scraper
• 1 × Egg Tray

4. Product Overview

The TECCPO TAMF34 is a compact 3.0 Cu.Ft. mini fridge with a separate freezer compartment, designed for efficient and quiet operation.

4.1 Key Features

• Large Capacity & 2-Door Design: Offers 3.0 cu.ft. total capacity (0.98 cu.ft. freezer, 2.02 cu.ft. fridge) with separate doors for organized storage.
• Whisper-Quiet Operation: Operates at a low noise level of 37dB, suitable for quiet environments like bedrooms or study rooms.
• 7-Setting Adjustable Temperature: The refrigerator temperature can be adjusted from 23°F to 50°F, providing flexibility and energy efficiency.
• Energy Star Certified: Designed for low energy consumption, using approximately 0.73 kWh of electricity per day.
• Humanized Functions: Includes an LED fridge light, interchangeable reversible door hinge, height-adjustable front leg, and removable crisper drawer and glass shelves for easy cleaning.

4.2 Dimensions and Components

Figure 1: Product dimensions (17.83" W x 20.47" L x 33.5" H).

Figure 2: Key components including light-degree freezing storage, 7 temperature settings, reversible door, LED light, adjustable leveling legs, and removable door seal.

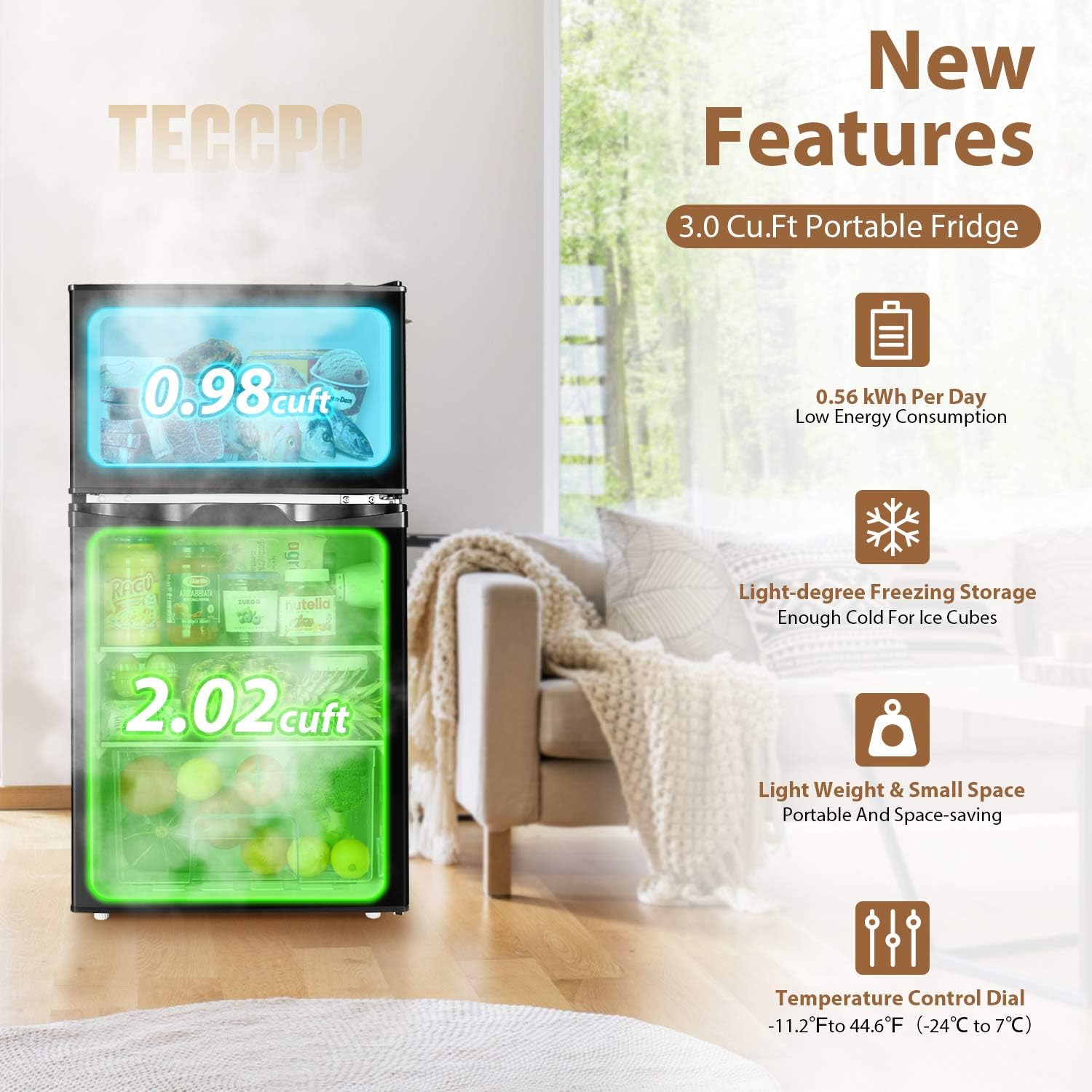

Figure 3: Internal capacity breakdown (0.98 cu.ft. freezer, 2.02 cu.ft. fridge) and low energy consumption.

5. Setup

5.1 Placement

• Place the refrigerator on a flat, stable surface away from direct sunlight or heat sources.
• Ensure adequate ventilation around the appliance. Maintain a minimum clearance of 4 inches (10 cm) from walls and other objects.
• Allow the refrigerator to stand upright for at least 2-4 hours before plugging it in to allow refrigerants to settle.

5.2 Reversible Door Installation

The refrigerator doors are designed to be reversible, allowing them to open from either the left or right side to suit your space requirements. All necessary hardware for reversing the door hinges is included. Refer to the detailed instructions in the included user manual for the step-by-step process.

5.3 Leveling the Appliance

The front leg of the refrigerator is height-adjustable. Use the adjustable leveling leg to ensure the appliance is stable and level on uneven surfaces. This helps in proper door sealing and efficient operation.

6. Operating Instructions

6.1 Temperature Control

The refrigerator features a 7-setting adjustable thermostat control. Turn the dial inside the refrigerator compartment to select your desired temperature setting. Setting 1 is the warmest, and Setting 7 is the coldest. Adjust the setting based on the amount of food stored and ambient room temperature to maintain optimal freshness.

Figure 4: Illustrates the 7 temperature settings for various food types.

6.2 Internal Lighting

An LED light is integrated into the refrigerator compartment to illuminate the interior, making it easier to locate items, especially in low-light conditions.

7. Maintenance

7.1 Cleaning

• Always unplug the refrigerator before cleaning.
• Clean the interior and exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners or solvents.
• The glass shelves and crisper drawer are removable for easier cleaning.
• Ensure the door seal is clean and free of debris to maintain proper sealing.

7.2 Defrosting

This refrigerator features a manual defrost system. When frost accumulates to a thickness of about 0.2 inches (5 mm) in the freezer compartment, it is recommended to defrost the unit. To defrost:

1. Unplug the appliance.
2. Remove all food items from both compartments.
3. Place towels or a shallow pan at the bottom of the freezer to collect melting ice.
4. Allow the frost to melt naturally. Do not use sharp objects to remove ice.
5. Once defrosted, clean and dry the interior thoroughly before plugging the appliance back in and returning food.

8. Troubleshooting

9. Specifications

Figure 5: Energy Star label indicating energy efficiency.

Figure 6: Detailed Energy Guide for the TECCPO Mini Fridge TAMF34.

10. Warranty and Support

TECCPO offers a 2-YEAR QUALITY PROMISE for its products, ensuring a worry-free purchase. For any product-related inquiries, technical assistance, or warranty claims, please contact TECCPO customer support through the official website or the contact information provided with your purchase documentation.

Online Support: Visit the TECCPO Store on Amazon for additional product information and support resources.
