Product Overview
This KITCHENARM Non-Stick Bread Pan with Kneading Paddle is a custom-made replacement part designed specifically for KITCHENARM 2LB Vertical Bread Makers, models KA8520 and KA8510. It features a durable Teflon-coated non-stick interior for easy bread release and cleaning. The pan is constructed from aluminum and includes a compatible kneading paddle.
Image: The KITCHENARM non-stick bread pan and its accompanying kneading paddle, ready for installation.
Compatibility Information
This bread pan is custom-designed for specific bread machine models. Please review the compatibility details carefully before purchase to ensure proper fit and function.
Specifically Compatible Models:
- KITCHENARM 2LB Vertical Bread Maker KA8520
- KITCHENARM 2LB Vertical Bread Maker KA8510
- Certain other 2LB vertical bread machines, including:
- Cuisinart CBK-110 (Note: Not CBK-100 or CBK-200)
- AmazonBasics 2LB Vertical Bread Maker
- SKG 2LB Vertical Bread Maker
- EliteGourmet 2LB Vertical Bread Maker
- Nerretva 2LB Vertical Bread Maker
Known Incompatible Models:
- Breadman bread machines
- Hamilton Beach bread machines
- Cuisinart CBK-200
- Cuisinart CBK-100
- Other models not explicitly listed as compatible.
Important: Do not purchase this pan for "try-and-error" purposes. Verify your bread machine's model and pan dimensions against the specifications provided.
Image: The KITCHENARM bread pan displayed alongside the KITCHENARM KA8520 and KA8510 bread machines, illustrating its intended compatibility.
Product Features and Dimensions
The KITCHENARM bread pan is designed for optimal performance and durability. It is made from aluminum with a food-grade non-stick Teflon coating, ensuring it is PFOA and BPA free.
Bread Pan Dimensions:
- Shape: Square
- Crosscut Dimensions: 5.6 inches x 5.6 inches (14.2 cm x 14.2 cm)
- Height: 6.5 inches (16.5 cm) tall
- Base Height: 1 inch (2.5 cm)
- Base Diameter: 2.4 inches (6.2 cm)
Image: Detailed diagram showing the external dimensions of the KITCHENARM bread pan, including height, width, and base measurements.
Internal Structure:
The interior of the pan features a central shaft for the kneading paddle and three rivet heads on the base, ensuring proper alignment and secure fit within the bread machine.

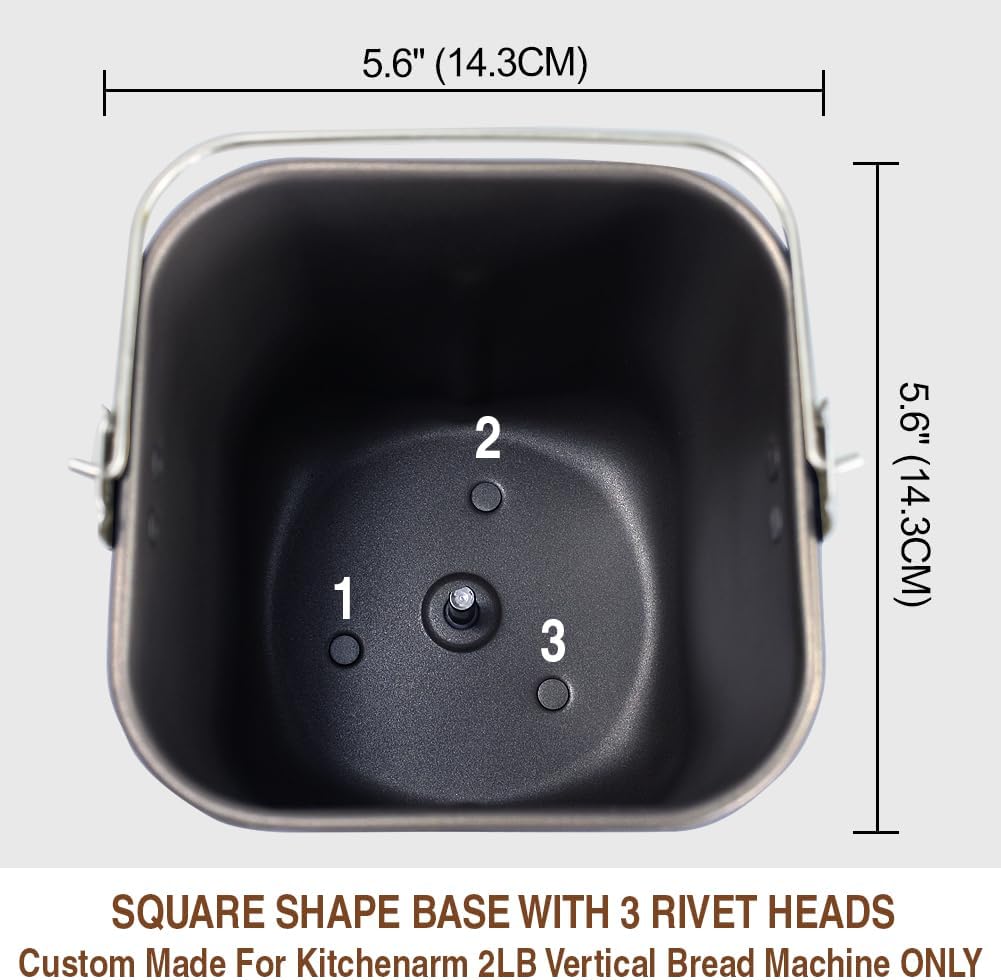

Image: Top-down view of the bread pan's interior, highlighting the central kneading shaft and the three rivet heads on the base.
Base Structure:
The outside base of the pan is equipped with four bulge locks. These locks are crucial for securing the pan firmly within the bread machine, preventing wobbling during operation.

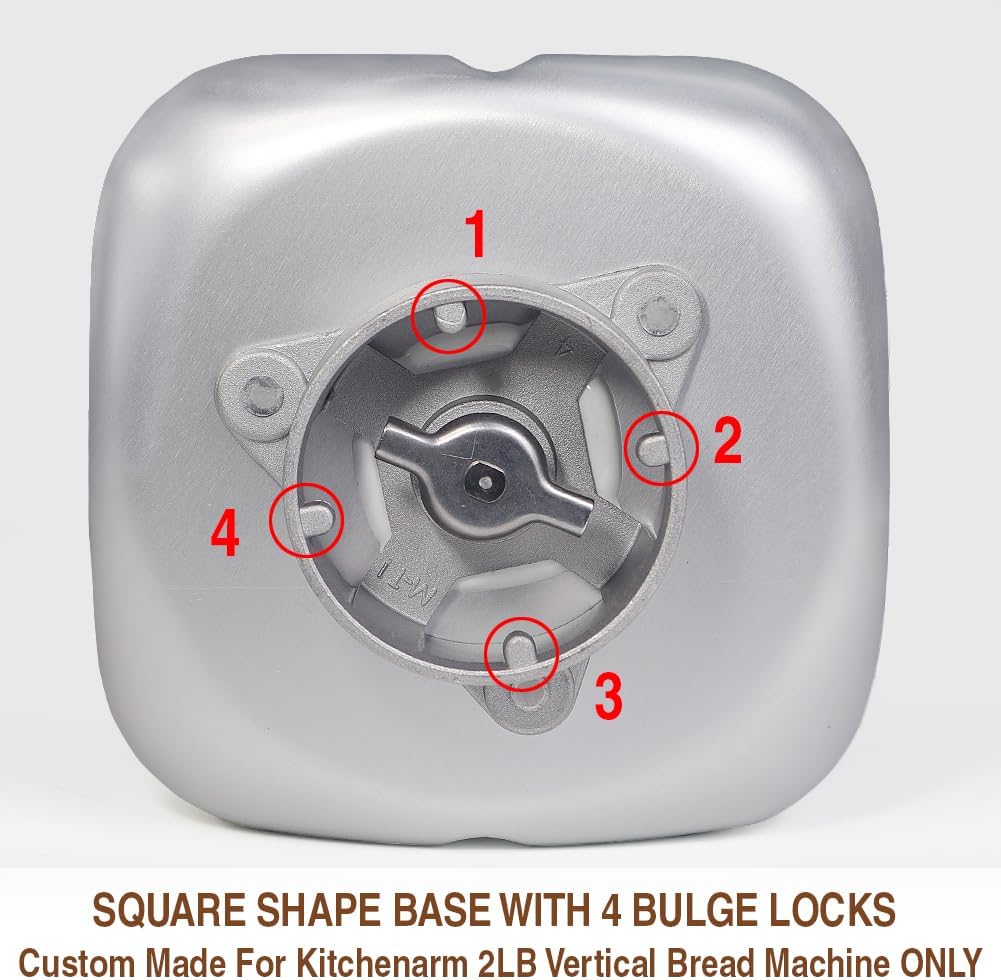

Image: Underside view of the bread pan, clearly showing the four bulge locks on the outer base that engage with the bread machine's mechanism.
Kneading Paddle Dimensions:
- Length: 68 mm (2.7 inches)
- Width: 38 mm (1.5 inches)
- Height: 37 mm (1.46 inches)
- Shaft Height: 23 mm (0.9 inches)
- Shaft Diameter: 16 mm (0.6 inches)
Image: Diagram illustrating the precise measurements of the KITCHENARM kneading paddle, including its overall length, width, height, and shaft dimensions.
Installation
Follow these steps to properly install the bread pan and kneading paddle into your compatible bread machine:
- Preparation: Ensure your bread machine is unplugged from the power outlet and has cooled down completely.
- Attach Kneading Paddle: Insert the kneading paddle onto the drive shaft located at the bottom center of the bread pan. Ensure it is seated firmly.
- Insert Bread Pan: Carefully lower the bread pan into the bread machine's cavity. Align the four bulge locks on the pan's base with the corresponding slots in the bread machine.
- Secure Pan: Once aligned, gently push down and twist the bread pan clockwise until it locks securely into place. The pan should feel stable and not wobble.
Refer to your bread machine's original instruction manual for specific details on pan insertion if needed.
Usage
Once installed, the KITCHENARM Non-Stick Bread Pan functions identically to your original bread pan. Follow the recipes and instructions provided with your bread machine for baking various types of bread. The non-stick coating is designed to facilitate easy removal of baked bread.
Maintenance and Care
Cleaning:
- Hand Wash Only: To preserve the non-stick coating, always hand wash the bread pan and kneading paddle with warm, soapy water and a soft sponge or cloth.
- Avoid Abrasives: Do not use abrasive cleaners, scouring pads, or metal utensils, as these can damage the non-stick surface.
- Drying: Thoroughly dry all parts before storing to prevent water spots or corrosion.
- Dishwasher Safe: This bread pan is NOT dishwasher safe. Dishwasher detergents and high temperatures can degrade the non-stick coating and pan material over time.
Storage:
Store the bread pan and kneading paddle in a clean, dry place when not in use. Avoid stacking heavy objects inside the pan that could scratch the non-stick surface.
Troubleshooting
| Issue | Possible Cause / Solution |
|---|---|
| Bread pan does not fit or wobbles in the bread machine. |
|
| Non-stick coating is peeling or damaged. |
|
| Kneading paddle does not turn or is stuck. |
|
Specifications
| Feature | Detail |
|---|---|
| Model Number | 85A01 |
| Brand | KITCHENARM |
| Material | Aluminum with Food Grade Nonstick Teflon Coating |
| Coating Features | PFOA and BPA Free |
| Color | Black Nonstick Teflon Coating Inside - Silver Outside |
| Shape | Square |
| Product Dimensions (L x W x H) | 5.6" x 5.6" x 6.5" (14.2 cm x 14.2 cm x 16.5 cm) |
| Capacity | 2 Liters (for 2LB bread machines) |
| Included Components | 1 Non-Stick Bread Pan, 1 Kneading Paddle |
| Product Care Instructions | Hand Wash Only |
| Dishwasher Safe | No |
| Oven Safe | Yes (within typical bread machine operating temperatures) |
Warranty and Support
If your existing bread machine is a KITCHENARM model, you may be eligible for a replacement bread pan through KITCHENARM's product warranty service. In such cases, purchasing this replacement pan may not be necessary.
For warranty claims, product support, or any questions regarding compatibility, please contact KITCHENARM customer service directly. Refer to your original KITCHENARM bread machine manual or the KITCHENARM official website for contact details.
