AOFAR Dive Compass AF-Q60 User Manual

1. Introduction

The AOFAR AF-Q60 dive wrist compass is engineered for professional diving applications. Its design minimizes common errors associated with traditional compasses, providing reliable directional guidance. Featuring a fluorescent dial and a side reading window, this compass ensures optimal data acquisition for divers in various underwater conditions. Its robust wristband style construction guarantees durability and ease of use for a wide range of users.

2. Product Overview

The AOFAR AF-Q60 is a compact and durable wrist-mounted compass designed for underwater navigation. Key features include:

• Waterproof Design: Engineered for reliable performance in aquatic environments.
• Fluorescent Dial: Enhances visibility in low-light conditions underwater.
• Side Reading Window: Allows for easy and accurate readings from various angles.
• Wrist Strap Type: Securely attaches to the wrist for hands-free operation.
• Compact and Durable: Built to withstand the rigors of diving and outdoor activities.

Figure 1: AOFAR AF-Q60 Dive Compass with wrist strap.

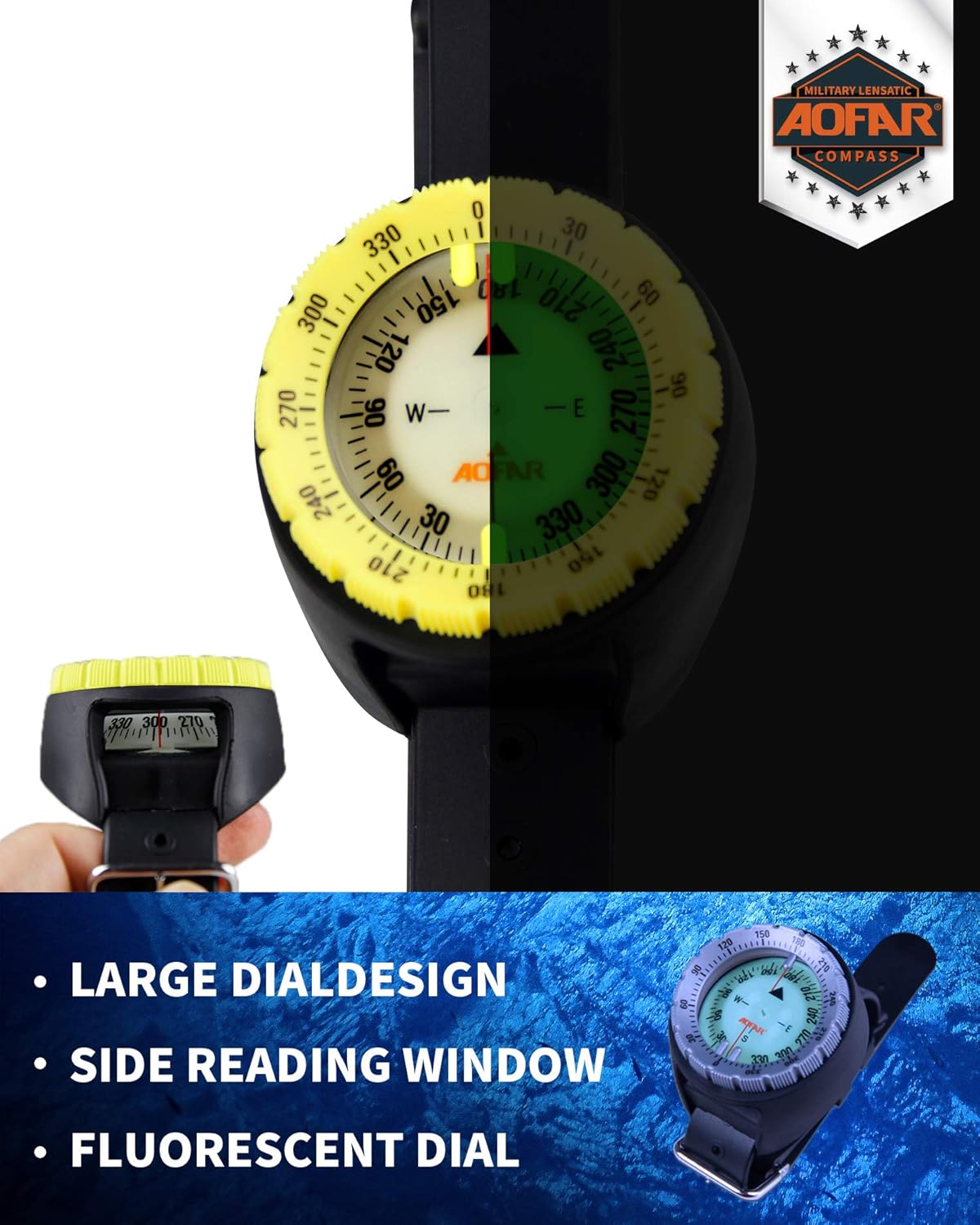

Figure 2: Features of the AOFAR AF-Q60, including the large dial, side reading window, and fluorescent properties.

3. Setup

1. Unpacking: Carefully remove the compass from its packaging. Inspect for any visible damage.
2. Wrist Attachment: Securely fasten the compass to your wrist using the adjustable strap. Ensure it is snug but comfortable, allowing for free movement and easy viewing of the dial.
3. Initial Check: Before diving, hold the compass level and observe the needle. It should freely rotate and settle quickly to indicate magnetic North.

4. Operating Instructions

For accurate navigation, proper operation of the dive compass is essential:

1. Hold Level: Always hold the compass as level as possible. Tilting the compass excessively can cause the needle to stick or provide inaccurate readings.
2. Reading the Dial: The main dial provides a 360-degree scale. The red end of the needle typically points to magnetic North.
3. Using the Side Reading Window: For precise bearing acquisition, align your body or direction of travel with the compass and read the bearing through the side window. This allows for a more direct line of sight.
4. Underwater Visibility: The fluorescent dial is designed to glow in low-light conditions, aiding visibility during night dives or in murky waters. Allow the compass to be exposed to light before diving for optimal luminescence.
5. Avoiding Magnetic Interference: Keep the compass away from strong magnetic fields, such as those produced by dive computers, metal objects, or other electronic devices, as these can affect accuracy.

5. Maintenance

Proper care will extend the life and accuracy of your AOFAR AF-Q60 Dive Compass:

• Rinse After Use: After each dive, thoroughly rinse the compass with fresh water to remove salt, sand, and other debris.
• Dry Thoroughly: Allow the compass to air dry completely in a shaded area before storage. Avoid direct sunlight.
• Storage: Store the compass in a cool, dry place, away from direct sunlight and strong magnetic fields.
• Inspection: Periodically inspect the wrist strap for signs of wear or damage. Replace if necessary.
• Avoid Harsh Chemicals: Do not use solvents, detergents, or abrasive cleaners, as these can damage the compass materials or dial.

6. Troubleshooting

If you encounter issues with your AOFAR AF-Q60 Dive Compass, consider the following:

• Inaccurate or Sticking Needle:
  • Ensure the compass is held perfectly level. Excessive tilt can prevent the needle from rotating freely.
  • Check for nearby magnetic interference from other equipment (e.g., dive lights, cameras, metal buckles). Move away from such sources.
  • Verify that the compass is not physically obstructed or damaged.
• Poor Dial Visibility:
  • The fluorescent dial requires exposure to light to charge its luminescence. Ensure it has been exposed to sufficient ambient light before use in dark conditions.
  • Clean the compass face if it is obscured by dirt or smudges.

If problems persist, contact AOFAR customer support for further assistance.

7. Specifications

8. Warranty and Support

AOFAR products are manufactured to high-quality standards. For information regarding warranty coverage, product support, or to report any issues, please refer to the official AOFAR website or contact their customer service department directly. Please retain your proof of purchase for warranty claims.
