Introduction
Welcome to the instruction manual for your Cornat Fuerte Single-Lever Kitchen Faucet, Model FUE53. This high-quality, chrome-plated brass faucet is designed for high-pressure water systems and offers exceptional functionality and durability for your kitchen. Please read these instructions carefully before installation and use to ensure proper operation and longevity of your product.
Setup and Installation
The Cornat Fuerte faucet is designed for easy, tool-free installation on your kitchen sink. It is suitable for connection to an instantaneous water heater or central hot water supply.
Installation Steps:
- Ensure the water supply is turned off at the main valve.
- Position the faucet on the sink's mounting hole.
- Secure the faucet from underneath the sink using the provided mounting accessories and rod fixation system. Tighten firmly by hand.
- Connect the 500mm flexible connection hoses to the hot and cold water supply lines. Ensure all connections are tight to prevent leaks.
- Slowly turn on the main water supply and check for any leaks.
- Before first use, allow water to run for a few minutes to flush out any debris.
Operating Instructions
The single-lever design allows for precise control of water temperature and flow.
Water Flow and Temperature Control:
- Move the lever handle to the left for hot water and to the right for cold water.
- Lift the lever handle to increase water flow and push it down to decrease or stop the flow.
Flexible Spout and Swivel Function:
The high spring-mounted spout offers maximum flexibility and a 360-degree swivel function, making it easy to fill large pots and providing ample space for washing. The integrated holder allows for convenient and practical locking of the pull-out spray.
Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Cornat Fuerte faucet.
Cleaning the Faucet:
- Clean the chrome surface regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome fixtures. Avoid harsh chemicals or abrasive sponges, as these can damage the finish.
- Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
Aerator Maintenance:

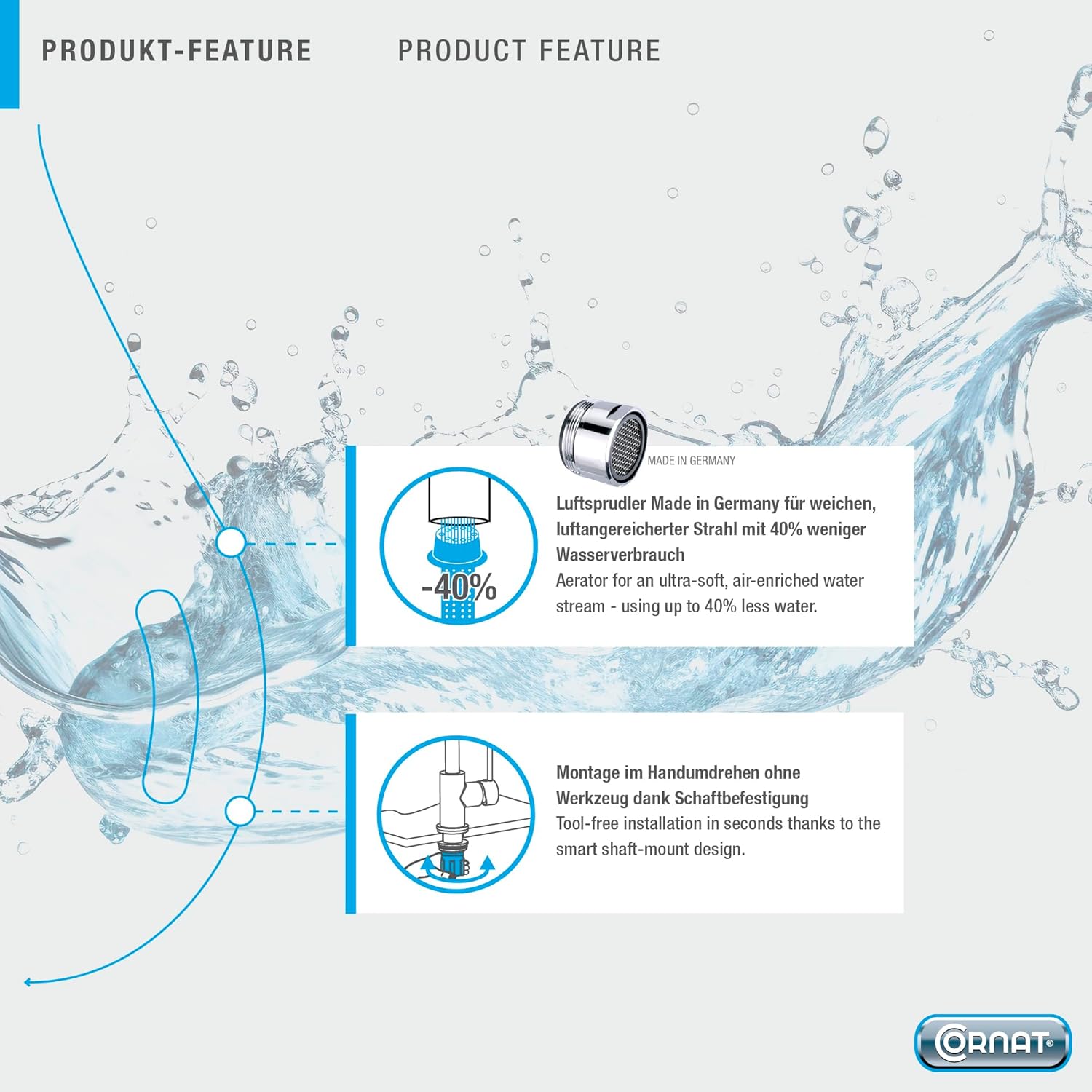

The faucet is equipped with a quiet M24 x 1 aerator for a soft, water-saving jet. If water flow decreases or becomes uneven, the aerator may be clogged.
- Unscrew the aerator from the spout.
- Rinse it under running water to remove any debris or mineral deposits.
- For stubborn deposits, soak the aerator in a vinegar solution for a few hours, then scrub with a small brush.
- Reattach the aerator securely.
Cartridge Replacement:
The faucet features an easily replaceable cartridge with low-wear ceramic washers. If you experience persistent drips or difficulty controlling water temperature/flow, the cartridge may need replacement. Contact a qualified plumber or the manufacturer for assistance.
Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Water Leakage from Connections | Loose connections or damaged seals. | Ensure all connection hoses are securely tightened. Check the seals and O-rings for damage and replace if necessary. Ensure proper installation of the rod fixation system. |
| Reduced Water Flow or Uneven Spray | Clogged aerator or mineral buildup. | Clean the aerator as described in the Maintenance section. If the issue persists, check the water supply lines for blockages. |
| Difficulty Adjusting Temperature or Persistent Drips | Worn or faulty ceramic cartridge. | The ceramic cartridge may need to be replaced. This is a task best performed by a qualified professional. |
Specifications
- Model: FUE53
- Brand: Cornat
- Application: Cold and hot water supply
- Connection Type: High pressure (pressure resistant)
- Mounting Type: Deck mounted, 1-hole installation
- Material: Brass body, Ceramic cartridge
- Finish: Chrome
- Total Height: 533 mm
- Total Depth: 282 mm
- Spout Height: 164 mm
- Spout Reach: 227 mm
- Connection Hose Length: 500 mm
- Special Features: 360° swivel spout, Flexible spring spout, Water-saving aerator (M24 x 1), Tool-free installation
- Weight: 2.48 kg
- Dimensions (L x W x H): 56 x 30 x 7 cm (packaging/product dimensions)
Warranty and Support
For warranty information, please refer to the terms and conditions provided at the point of purchase or contact your retailer. For technical support or spare parts, please contact Cornat customer service or your authorized dealer.
