Kozyard Alexander 12' x 12' Hardtop Gazebo Instruction Manual

1. Safety Information

Please read and understand all safety warnings and instructions before assembly and use of the Kozyard Alexander Hardtop Gazebo. Failure to follow these instructions may result in injury or damage to the product.

• Always secure the gazebo to a stable foundation to prevent it from tipping over in high winds.
• Do not assemble or disassemble the gazebo in windy or wet conditions.
• Keep children and pets away from the gazebo during assembly, disassembly, and in high winds.
• Be cautious of sharp edges on the metal frame during installation and use.
• Ensure all bolts and fasteners are tightened securely before use and checked periodically.

2. Product Overview

The Kozyard Alexander 12' x 12' Hardtop Gazebo is designed to provide a durable and comfortable outdoor living space. It features a robust aluminum frame, a galvanized steel double roof, and includes curtains and netting for enhanced privacy and protection.

Image: The Kozyard Alexander 12'x12' Hardtop Gazebo, showcasing its design and functionality in an outdoor setting.

Key Features:

• Strong Structure: Features 4.7" x 4.7" triangular poles and 5" x 4" beams for stability and longevity.
• Galvanized Steel Double Roof: Provides superior weather resistance, capable of withstanding snow loads up to 2500 lbs and wind speeds up to 40 MPH. The 29-gauge sheet metal roof is thicker than many alternatives.
• Curtains and Netting: Fully enclosed, dual-track system with double-layer sidewalls (gray polyester curtains and mesh) for ventilation, privacy, and protection from UV rays and insects.
• Water Gutter System: Efficiently directs rainwater away from the frame and poles.
• Integrated Hook: A central hook is provided for hanging fans or lights.

3. Components List

Before beginning assembly, verify that all parts are present and undamaged. Refer to the detailed parts list in your packaging for specific component identification. Key components include:

• Aluminum Frame Components (Poles, Beams, Connectors)
• Galvanized Steel Roof Panels
• Upper Roof Structure
• Polyester Curtains (Gray)
• Mesh Netting
• Hardware Kit (Bolts, Screws, Washers, Anchors)
• Tools (Hex wrench, etc.)

Image: Illustration of the gazebo's robust all-metal frame, highlighting the triangular support and reinforced base for stability.

4. Setup Instructions

Assembly of the Kozyard Alexander Gazebo requires careful attention to detail and may require two or more people. It is recommended to set aside sufficient time for assembly.

General Assembly Steps:

1. Site Preparation: Choose a level and stable location for your gazebo. Ensure adequate clearance around the structure.
2. Unpack and Identify Parts: Carefully unpack all boxes and lay out components. Compare with the parts list provided in your packaging.
3. Assemble the Base Frame: Connect the main support poles and beams according to the instruction manual. Do not fully tighten all fasteners until the frame is squared.
4. Install Roof Structure: Attach the roof support beams and the upper roof frame.
5. Attach Roof Panels: Install the galvanized steel roof panels. Ensure proper alignment for effective water drainage. Some panels may require temporary securing with tape before final fastening.
6. Install Curtains and Netting: Slide the curtains and netting onto the double tracks.
7. Secure to Foundation: Use the provided anchoring hardware to firmly secure the gazebo to your chosen foundation (e.g., concrete slab, wooden deck).
8. Final Tightening: Once the entire structure is assembled and squared, fully tighten all bolts and fasteners.

Image: Dimensional diagram of the 12'x12' Kozyard Alexander Gazebo, providing key measurements for planning and installation.

5. Operating Instructions

The Kozyard Alexander Gazebo is designed for ease of use and enjoyment.

Curtains and Netting:

• The gazebo features a dual-track system allowing independent operation of the privacy curtains and mosquito netting.
• Use the zippers to fully enclose the gazebo for privacy or protection from insects.
• When not in use, the curtains and netting can be tied back to the gazebo posts using the integrated straps.

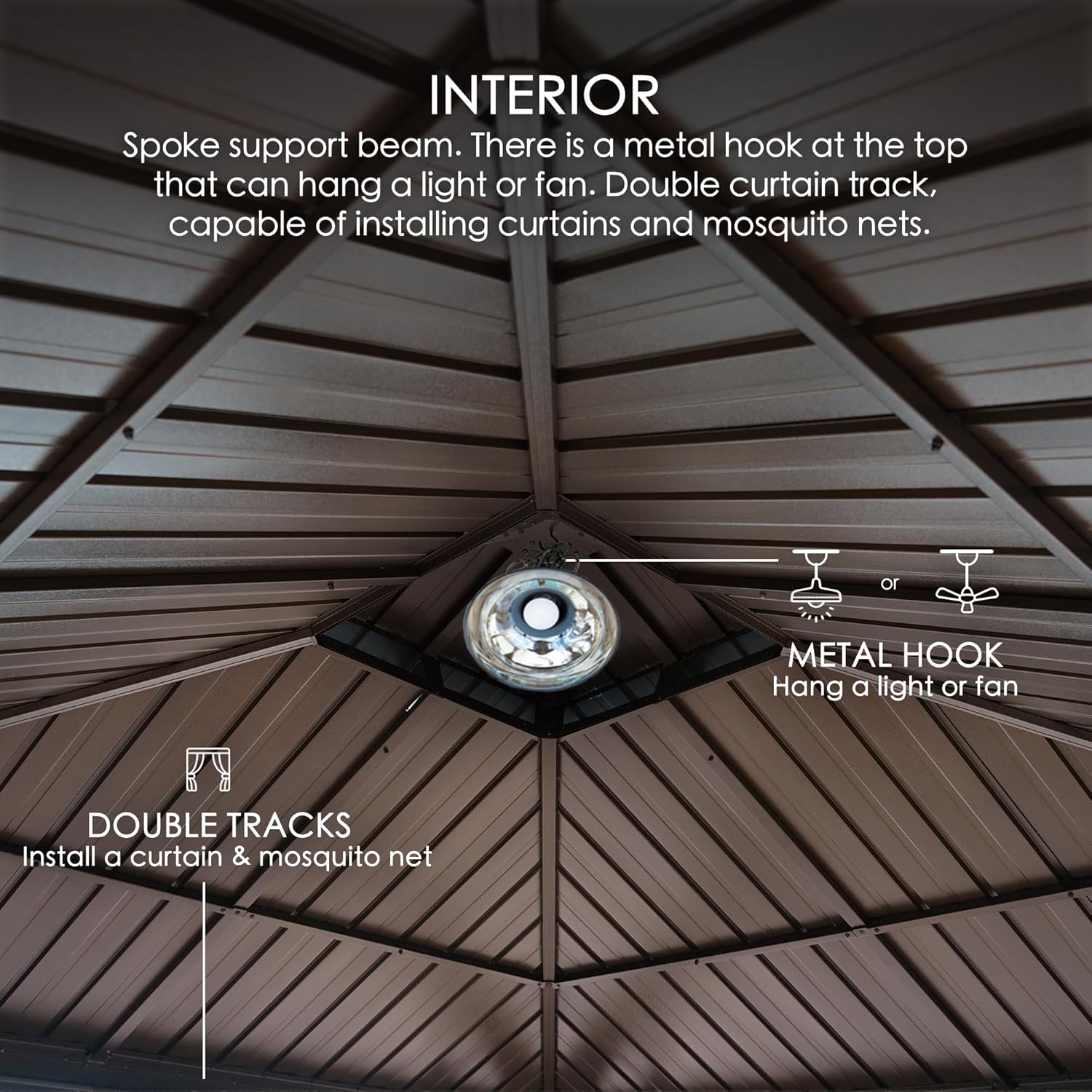

Image: The interior roof structure, illustrating the central hook for accessories and the double tracks for curtains and mosquito nets.

Accessory Hook:

• A hook is located at the center of the interior roof for hanging lightweight accessories such as outdoor lights or small fans.
• Ensure any hung items do not exceed the weight limit specified in the full product manual (refer to your packaged manual for details).

6. Maintenance

Regular maintenance will extend the life and appearance of your gazebo.

• Cleaning: Clean the frame and roof panels with mild soap and water. Rinse thoroughly and dry. Avoid abrasive cleaners or harsh chemicals.
• Fabric Care: Curtains and netting can be spot cleaned with mild soap and water. For deeper cleaning, follow care instructions on the fabric tags. Ensure fabrics are completely dry before storing or retracting for extended periods to prevent mildew.
• Fastener Checks: Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten as necessary.
• Snow Removal: While the roof is designed for snow load, heavy accumulation should be cleared to prevent excessive stress on the structure.
• Winter Storage (Optional): In areas with extreme winter conditions, consider disassembling and storing the fabric components indoors to prolong their lifespan.

Image: The gazebo enduring snow, illustrating its robust metal hardtop designed for various weather conditions.

7. Troubleshooting

This section addresses common issues you might encounter.

• Issue: Gazebo feels unstable.
  Solution: Ensure all frame bolts are fully tightened. Verify the gazebo is properly anchored to a solid foundation. Check that the ground beneath the gazebo is level.
• Issue: Roof panels do not align during assembly.
  Solution: Loosen adjacent fasteners to allow for minor adjustments. Ensure the main frame is square before attempting to fit roof panels. Refer to the assembly manual for specific panel installation tips.
• Issue: Water pooling on the roof or leaking.
  Solution: Check that roof panels are correctly overlapped and all fasteners are tight. Ensure the water gutter system is clear of debris. Verify the gazebo is level to allow for proper drainage.
• Issue: Curtains/Netting snagging.
  Solution: Inspect the tracks for any obstructions or damage. Ensure the fabric is properly aligned within the tracks.

For issues not covered here, please contact customer support.

8. Specifications

9. Warranty and Support

The Kozyard Alexander Hardtop Gazebo comes with a 1-year limited warranty. Kozyard guarantees parts availability for the product.

Customer Support:

For any questions, assistance, or warranty claims, please contact Kozyard customer support. Dedicated support teams are available in New Jersey and California to assist you, even after your warranty expires.

Please refer to the contact information provided in your product packaging or visit the official Kozyard website for the most current support details.

Seller: Kozyard LLC
