1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of the DAHUA Imou IPC-F52MIP 5MP Wi-Fi IP Surveillance Camera. Please read this manual thoroughly before using the product and retain it for future reference.
2. Safety Information
To ensure safe and proper operation, please observe the following safety precautions:
- Use only the power adapter supplied with the camera.
- Do not expose the camera to water or moisture.
- Avoid placing the camera near heat sources or in direct sunlight.
- Ensure the camera is mounted securely to prevent accidental falls.
- Do not attempt to disassemble or modify the camera.
3. Package Contents
Verify that all items are present in your package:
- DAHUA Imou IPC-F52MIP Camera
- Power Adapter
- Mounting Template
- Screw Package
- Quick Start Guide
4. Product Overview
Familiarize yourself with the camera's components:

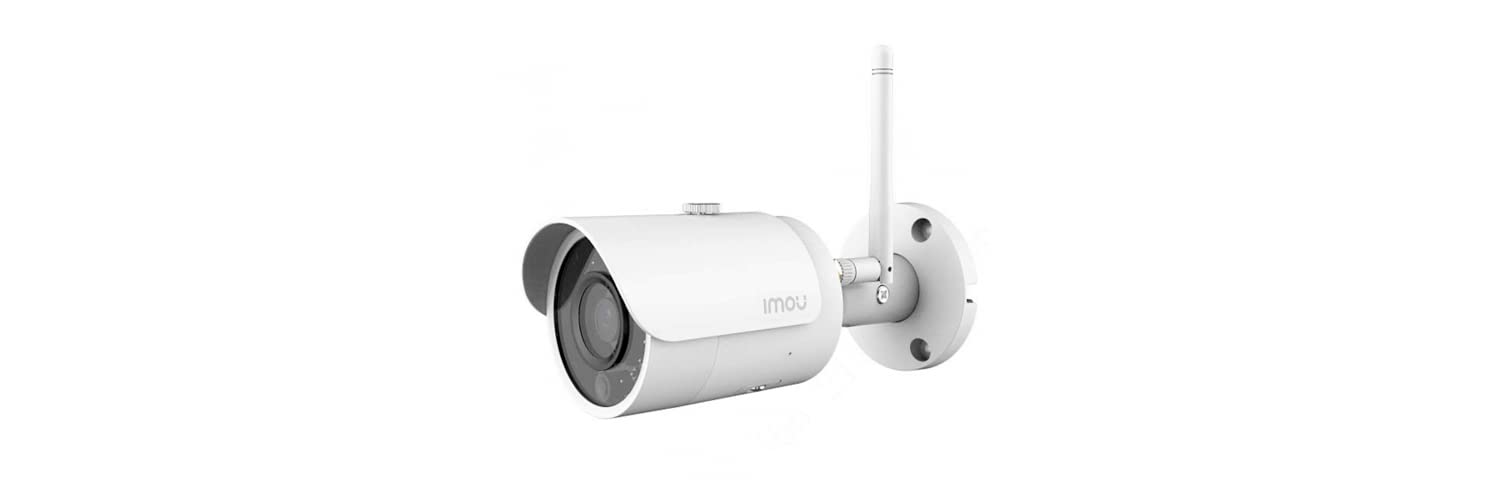

Image 1: Front view of the DAHUA Imou IPC-F52MIP camera, showing the lens, microphone, and status LED.
- Lens: Captures video footage.
- Microphone: Records audio.
- Status LED: Indicates camera status (e.g., solid green for connected, flashing red for network error).
- Reset Button: Press and hold for 10 seconds to restore factory settings.
- Power Port: Connects to the power adapter.
5. Setup
5.1. Step 1: Powering On
Connect the power adapter to the camera's power port and plug it into a wall outlet. The status LED will illuminate.
5.2. Step 2: App Installation
Download and install the Imou Life app from your smartphone's app store (available on iOS and Android).
5.3. Step 3: Device Pairing
- Open the Imou Life app and create an account or log in.
- Tap the "+" icon in the top right corner to add a new device.
- Scan the QR code located on the camera or its packaging.
- Follow the on-screen prompts to connect the camera to your Wi-Fi network. Ensure your Wi-Fi network is 2.4 GHz.
5.4. Step 4: Mounting the Camera
Use the provided mounting template and screws to securely install the camera in your desired location. Ensure the camera has a clear field of view and is within Wi-Fi range.
6. Operating the Camera
6.1. Live View
From the Imou Life app, select your camera to view the live video feed. You can pan, tilt, and zoom (if supported by the model) directly from this screen.
6.2. Recording and Playback
The camera supports continuous recording or event-triggered recording to a local SD card (not included) or cloud storage (subscription may be required). Access recorded footage through the playback feature in the app.
6.3. Motion Detection
Configure motion detection settings in the app to receive alerts when movement is detected. Adjust sensitivity and detection zones to minimize false alarms.
6.4. Two-Way Audio
Utilize the built-in microphone and speaker for two-way communication. Tap the microphone icon in the live view to speak through the camera.
7. Maintenance
- Cleaning: Gently wipe the camera lens with a soft, dry cloth to remove dust or smudges. Do not use harsh chemicals.
- Firmware Updates: Regularly check for and install firmware updates through the Imou Life app to ensure optimal performance and security.
- Network Stability: Ensure your Wi-Fi network is stable and strong for uninterrupted camera operation.
8. Troubleshooting
Refer to the table below for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Camera offline | No power, Wi-Fi disconnected, poor signal | Check power connection, restart router, move camera closer to router. |
| Cannot connect to Wi-Fi | Incorrect Wi-Fi password, 5GHz network, camera too far | Verify password, ensure 2.4GHz network, reduce distance to router. |
| No motion detection alerts | Detection disabled, sensitivity too low, schedule conflict | Enable detection in app, increase sensitivity, check alert schedule. |
| Poor video quality | Dirty lens, low bandwidth, poor lighting | Clean lens, check internet speed, ensure adequate lighting. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | DAHUA |
| Manufacturer | IMOU |
| Model Number | IPC-F52MIP |
| Resolution | 5 Megapixels |
| Lens | 3.6 mm |
| Connectivity | Wi-Fi (2.4 GHz) |
| Audio | Built-in Microphone |
| Product Dimensions | 50 x 50 x 28 cm |
| Product Weight | 5.66 kg |
| ASIN | B08BY1FVX4 |
| First Available Date | 27 June 2020 |
| Manufacturer Part Number | IN-ACT-CIPDAUKAM0736 |
10. Warranty Information
This DAHUA Imou IPC-F52MIP camera comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official Imou website for detailed warranty terms and conditions. Keep your proof of purchase for warranty claims.
11. Support
For technical assistance, product inquiries, or further support, please visit the official Imou support website or contact their customer service. You can usually find contact information on the Imou website or in the Imou Life app.
