DELTACO EV-5100
DELTACO EV Charging Cable Storage Bag User Manual
Model: EV-5100
1. Introduction
This user manual provides essential information for the proper use, care, and maintenance of your DELTACO EV Charging Cable Storage Bag. Designed for convenience and protection, this bag ensures your EV charging cable is stored securely and transported easily. Please read this manual thoroughly before using the product.
2. Product Overview
The DELTACO EV Charging Cable Storage Bag is a durable and practical solution for organizing your electric vehicle charging cable. It features a robust nylon construction and a secure zipper closure.
2.1 Components
- Main Storage Compartment: Circular design to accommodate coiled EV charging cables.
- Zipper Closure: Full-length zipper for easy access and secure storage.
- Carrying Handles: Two sturdy nylon handles for convenient transport.
- Durable Nylon Material: Provides protection against dust, dirt, and minor impacts.
Figure 2.1: Front view of the DELTACO EV Charging Cable Storage Bag, showing the circular shape and carrying handles.
Figure 2.2: Top-down view of the DELTACO EV Charging Cable Storage Bag, highlighting the handle placement.

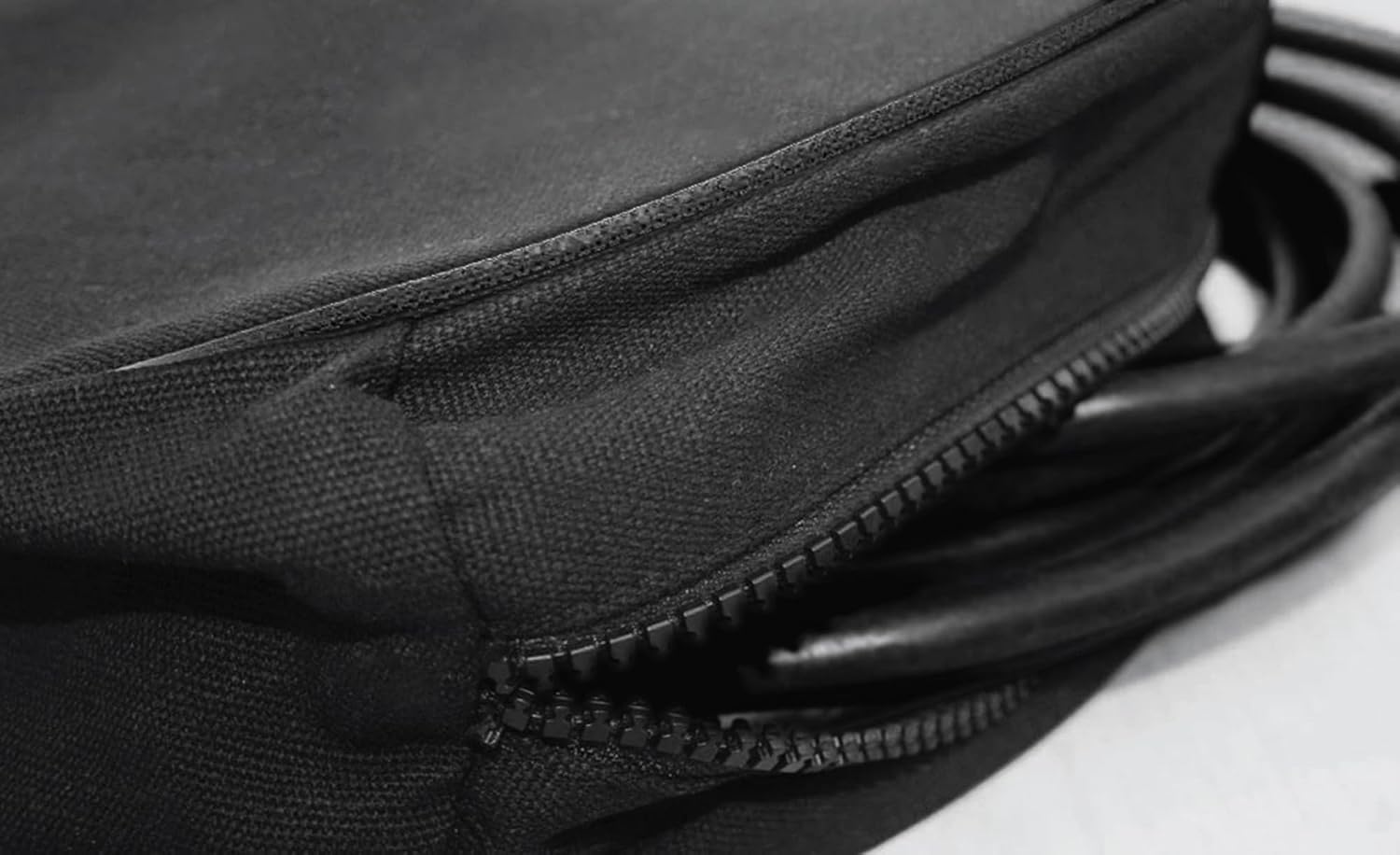

Figure 2.3: Close-up view of the zipper on the DELTACO EV Charging Cable Storage Bag, showing its robust construction.
3. Setup
The DELTACO EV Charging Cable Storage Bag requires no assembly. It is ready for use directly out of the packaging.
3.1 Preparing Your Cable for Storage
- Ensure your EV charging cable is clean and dry before storage.
- Carefully coil the cable into a neat circle. Avoid sharp bends or kinks that could damage the cable over time.
- Ensure the cable connectors are free from debris.
4. Operating Instructions
4.1 Storing the Cable
- Unzip the storage bag completely.
- Place the neatly coiled EV charging cable inside the bag. Ensure it fits snugly without forcing.
- Close the zipper securely.
4.2 Transporting the Bag
Use the integrated carrying handles to transport the bag. The compact design allows for easy storage in a vehicle's trunk or garage.
5. Maintenance
Regular maintenance will extend the life of your storage bag.
5.1 Cleaning
- Wipe the exterior of the bag with a damp cloth and mild soap if necessary.
- Do not use harsh chemicals or abrasive cleaners, as these may damage the nylon material.
- Allow the bag to air dry completely before storing your cable or putting it away.
5.2 Storage
Store the bag in a cool, dry place away from direct sunlight when not in use.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Zipper is stiff or difficult to close. | Dirt or debris in the zipper teeth; zipper alignment issue. | Clean the zipper teeth with a small brush. Apply a small amount of zipper lubricant or wax. Ensure the cable is coiled correctly and not obstructing the zipper path. |
| Cable does not fit inside the bag. | Cable is not coiled tightly enough; cable is too large for the bag. | Re-coil the cable more tightly. Verify the cable dimensions against the bag's specifications (Diameter 420 mm, Depth 120 mm). |
| Bag appears wet or damp after cleaning. | Insufficient drying time. | Allow the bag to air dry completely in a well-ventilated area before use or storage. Do not use heat to dry. |
7. Specifications
| Feature | Detail |
|---|---|
| Model | EV-5100 |
| Material | Nylon |
| Color | Black |
| Diameter | 420 mm |
| Depth | 120 mm |
| Weight | 300 g |
| Closure Type | Zipper |
8. Warranty and Support
8.1 Warranty Information
The DELTACO EV Charging Cable Storage Bag comes with a 3-year manufacturer's warranty. This warranty covers defects in materials and workmanship from the date of purchase. It does not cover damage caused by improper use, force majeure, improper handling, or mechanical damage.
For warranty claims, please contact your retailer where the product was purchased. You may be required to provide proof of purchase and a detailed description of the issue.
8.2 Customer Support
For further assistance or inquiries, please visit the official DELTACO website or contact their customer support. Refer to the product packaging or the DELTACO website for the most current contact information.
Your statutory warranty rights are not limited by this manufacturer's warranty.
