1. Introduction
This manual provides essential information for the safe and efficient operation of your Hisense HW-K45E 4.5kg washing machine. Please read it thoroughly before using the appliance and retain it for future reference.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. Ensure the appliance is properly grounded. Do not allow children to operate or play with the washing machine. Disconnect power before cleaning or maintenance.
3. Product Overview
The Hisense HW-K45E is a 4.5kg top-loading washing machine designed for compact spaces and efficient washing. It features a slim body, multiple wash programs, and a wind dry function.

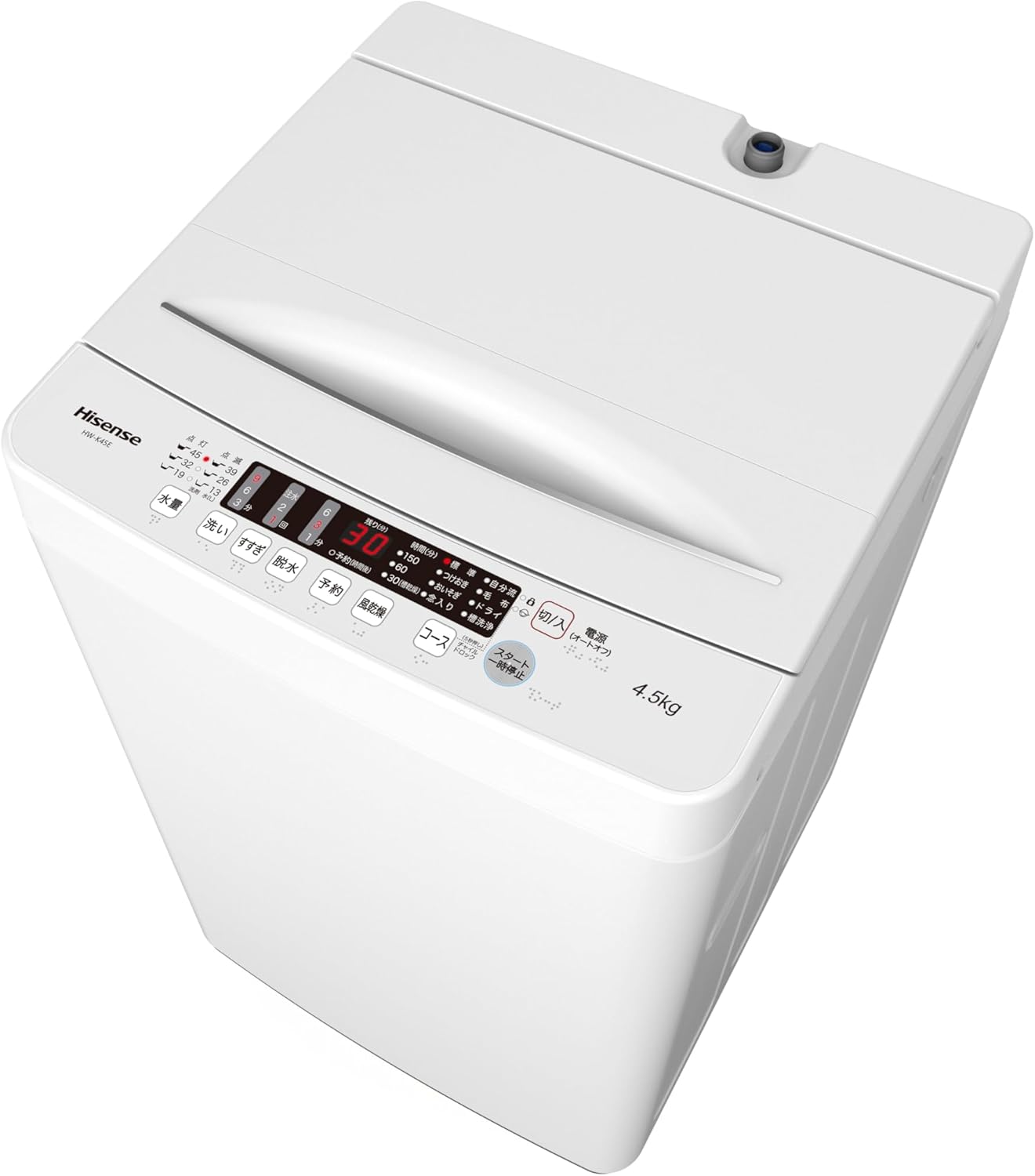

Figure 3.1: Top-down view of the Hisense HW-K45E 4.5kg washing machine, highlighting its compact design and control panel.
3.1 Key Components
- Control Panel: Located at the top front, with buttons for power, program selection, and settings.
- Stainless Steel Tub: Features an uneven design for enhanced washing performance and durability.
- Pulsator: Unique design to prevent tangling and effectively remove dirt.
- Lint Filter: Collects lint and debris during the wash cycle.
- Foldable Lid: Designed for convenience in small spaces, allowing easy access even with items placed above.
Figure 3.2: Internal view showing the unique pulsator, stainless steel tub with uneven design, and the lint filter for effective cleaning.
Figure 3.3: Close-up of the large capacity lint filter, designed for easy removal and cleaning.
4. Setup
4.1 Placement
Place the washing machine on a firm, level surface. Due to its slim body (approximately 50cm width), it is suitable for various installation locations. Ensure there is adequate space around the unit for ventilation and operation.
4.2 Installation Requirements
- Space: Allow at least 1cm clearance from the left/right walls and 1cm from the rear wall. For top-opening, ensure 10-15cm clearance above the machine when the lid is fully open.
- Water Supply: Connect the provided water supply hose to a cold water tap.
- Drainage: Ensure the drain hose is properly installed for bottom drainage.
- Power: Connect to a 100V power outlet.
Figure 4.1: Diagram illustrating the necessary clearances for installation, including space around the unit and for opening the lid.
Figure 4.2: Detailed technical drawing showing the dimensions of the washing machine (Width 500mm, Depth 540mm, Height 880mm).
5. Operating Instructions
5.1 Basic Operation
- Load laundry into the tub.
- Add detergent to the detergent pocket.
- Close the lid.
- Press the Power button.
- Select your desired wash course.
- Press the Start/Pause button to begin.
5.2 Wash Courses
The HW-K45E offers a variety of courses to suit different laundry needs:
- Standard: For daily laundry.
- Quick (10 minutes): For lightly soiled items or when time is limited.
- Soak: For heavily soiled items requiring pre-soaking.
- Delicate: For fragile garments.
- Blanket (3.0kg): For washing blankets and large items.
- Dry: For dry-clean only marked clothes.
- Tub Clean: For cleaning the washing machine tub.
- Rinse 1 Time: An additional rinse cycle.
- Wind Dry: Uses air circulation to reduce drying time, especially useful for indoor drying.
Figure 5.1: Overview of the control panel, illustrating the selection options for different wash courses and functions like Wind Dry and Reservation.
5.3 Special Features
- Reservation Function: Set the washing machine to start at a later time, from 1 to 24 hours in advance.
- Wind Dry Function: Utilizes air to remove moisture from clothes, shortening drying time.
- 3D Shower Flow: Vertical and horizontal water flows combine for powerful cleaning, effectively lifting and removing dirt.
Figure 5.2: The Wind Dry function helps to reduce moisture in clothes, making them dry faster, especially useful for indoor drying.
6. Maintenance
6.1 Cleaning the Lint Filter
Regularly clean the lint filter to maintain washing performance. Remove the filter, clear any accumulated lint, and rinse it under running water before reinserting.
6.2 Cleaning the Tub
Use the 'Tub Clean' course periodically to prevent mold and detergent residue buildup in the stainless steel tub.
6.3 Exterior Cleaning
Wipe the exterior of the machine with a soft, damp cloth. Avoid abrasive cleaners or solvents.
7. Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged, lid not closed, water supply off. | Check power connection, ensure lid is securely closed, check water supply. |
| Excessive vibration/noise | Uneven load, machine not level, shipping bolts not removed. | Redistribute laundry, adjust leveling feet, ensure all shipping bolts are removed. |
| Water leakage | Hoses loose, drain hose blocked. | Check hose connections, clear any blockages in the drain hose. |
| Clothes not clean | Too much laundry, insufficient detergent, incorrect program. | Reduce load size, use appropriate amount of detergent, select suitable wash course. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand Name | Hisense |
| Model Number | HW-K45E |
| Capacity | 4.5 Kilograms |
| Product Dimensions (D x W x H) | 54 x 50 x 88 cm |
| Item Weight | 28.5 Kilograms |
| Annual Energy Consumption | 83037 Watts |
| Maximum Spin Speed | 750 RPM |
| Operating Noise Level | 47 dB |
| Voltage | 100 Volts |
| Material | Stainless Steel |
| Included Accessories | Water supply hose |
| Special Features | Start reservation timer, Wind Dry |
9. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Hisense customer service directly. Contact details can typically be found on the official Hisense website or in your purchase documentation.
