Introduction
This manual provides essential information for the safe and effective use of your SKINACT Marco Electric Medical Spa Treatment Table. Please read these instructions thoroughly before assembly, operation, or maintenance to ensure proper function and longevity of the product.

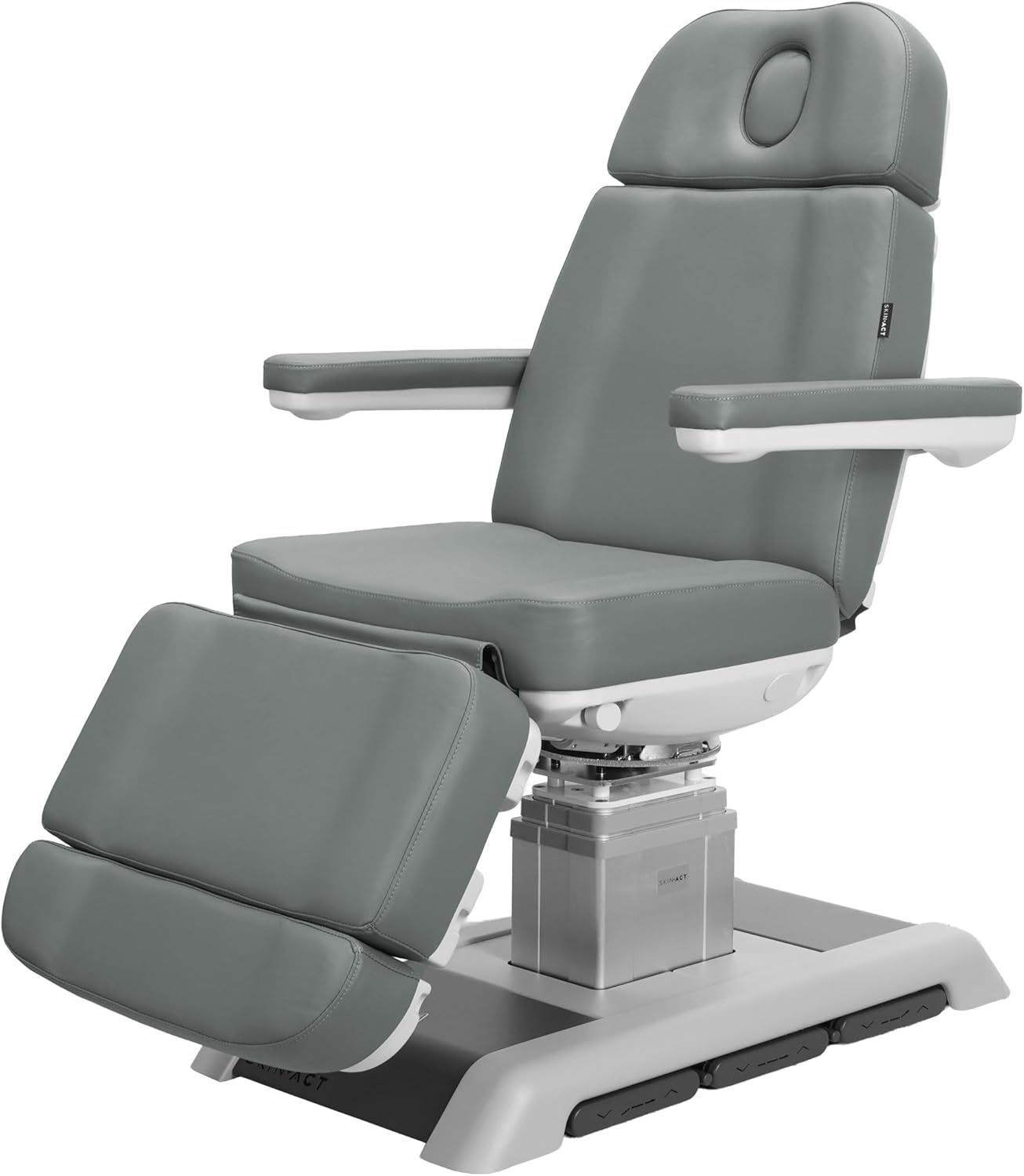

Front view of the SKINACT Marco Electric Medical Spa Treatment Table in Grey.
Safety Information
CAUTION: This product has sharp edges. Keep away from children. Do not exceed the weight capacity of 450 lbs. This product requires assembly. Follow the instructions carefully to avoid injury. This product is not heat-resistant. Keep away from heat sources.
Always ensure the table is placed on a stable, level surface before use. Disconnect power before cleaning or performing any maintenance. Do not attempt to modify the product in any way.
Setup and Assembly
The SKINACT Marco Electric Medical Spa Treatment Table requires assembly. Detailed assembly instructions are included with your product packaging. Please refer to those instructions for step-by-step guidance.
Upon assembly, ensure all components are securely fastened. Verify the table is stable and level using the adjustable leveling feet located on the base. Connect the power cord to a suitable electrical outlet.
Image illustrating the heavy-duty construction of the table's base, highlighting stability.
Operating Instructions
The Marco Electric Medical Spa Treatment Table features multiple electric adjustments for optimal client comfort and practitioner convenience. All electric adjustments are controlled via the included handheld remote.
Handheld Remote Control
The handheld remote allows for precise control over the table's movements. Familiarize yourself with the buttons before operating.
The handheld remote control for adjusting the table's positions.
Adjusting Table Positions
- Height Adjustment: Use the designated buttons on the remote to raise or lower the table height from 25.5 inches to 35 inches.
- Backrest Angle: Adjust the backrest angle from 0° to 80° using the remote control. The head cushion is tilt adjustable and removable, and includes a breather hole.
- Seat Tilt Function: The seat can be tilted from 0° to 20° for various treatment positions.
- Footrest Angle: Adjust the footrest angle from 0° to 85°. The leg cushion is adjustable and removable.
- Armrests: The armrests are removable for client access or specific procedures.
- Seat Rotation: The seat can rotate 45° to each side, providing a total of 90° rotation.
Visual guide for electric height adjustment.
Visual guide for electric backrest adjustment.
Visual guide for electric seat tilt adjustment.
Visual guide for electric leg rest adjustment.
Detail of the removable armrests.
Visual guide for seat rotation.
Operational Videos
Official product video demonstrating the features and operation of the Marco Electric Medical Spa Treatment Table.
Another official product video showcasing the Marco Electric Medical Spa Treatment Table by SkinAct.
Maintenance
To maintain the cleanliness and appearance of your treatment table, wipe surfaces with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the super-fiber PU upholstery. Regularly inspect all moving parts and electrical connections for any signs of wear or damage.
Troubleshooting
If the table does not respond to the remote control, first check that the power cord is securely plugged into both the table and the electrical outlet. Ensure the 'Lock' button on the remote is not engaged. If issues persist, try pressing the 'Reset' button on the remote. For persistent problems, contact customer support.
Location of the Reset and Lock buttons on the table.
Specifications
| Feature | Detail |
|---|---|
| Model Number | SKU23159 |
| Overall Dimensions (L x W x H) | 73 inches x 33 inches x 25.5-35 inches |
| Height Adjustment Range | 25.5 - 35 inches |
| Backrest Angle | 0° to 80° |
| Seat Angle | 0° to 20° |
| Footrest Angle | 0° to 85° |
| Headrest Extension | +/- 3 inches |
| Footrest Extension | +/- 5.5 inches |
| Width (without armrest) | 25 inches |
| Width (with armrest) | 33 inches |
| Metal Base Dimensions (L x W x H) | 40 inches x 21.5 inches x 5 inches |
| Product Weight | 240 lbs |
| Weight Capacity | 450 lbs |
| Material | Super-fiber PU upholstery |
| Included Components | Armrests, Hand remote |
Detailed measurements and dimensions of the treatment table.
Warranty and Support
This SKINACT Marco Electric Medical Spa Treatment Table comes with a 1-year manufacturer warranty. For warranty claims, technical support, or any inquiries regarding your product, please contact SKINACT customer service directly. Refer to your purchase documentation for specific contact details.
