VINGLI Leaf Canister (Model VINGLI 1088) Instruction Manual
Brand: VINGLI
Introduction
This manual provides instructions for the proper setup, operation, and maintenance of your VINGLI Leaf Canister, Model VINGLI 1088. This device is designed to capture leaves, twigs, and other large debris before they reach your pool's filtration system, protecting your pump and improving cleaning efficiency.
Product Components
The VINGLI Leaf Canister consists of several key components:
- Clear Canister Body: Allows visual inspection of collected debris.
- Removable Mesh Basket: Collects leaves and debris.
- Lid with Handle: Secures the basket and provides a connection point for the pool hose.
- Hose Connectors: For attaching to your pool vacuum hose.
Image: Exploded view showing the lid, clear canister body, and mesh basket.
Setup Instructions
Follow these steps to properly set up your VINGLI Leaf Canister:
- Connect to Pool Vacuum Hose: Attach one end of your pool vacuum hose to the inlet of the leaf canister. Ensure a secure and snug fit to prevent air leaks.
- Connect to Pool Cleaner: Attach the other end of the leaf canister to your automatic pool cleaner or sweeper.
- Submerge and Prime: Submerge the entire assembly in the pool water to remove any trapped air. This ensures proper suction.
- Start Pool Vacuum: Once submerged and primed, activate your pool vacuum cleaner. The canister should now begin collecting debris.

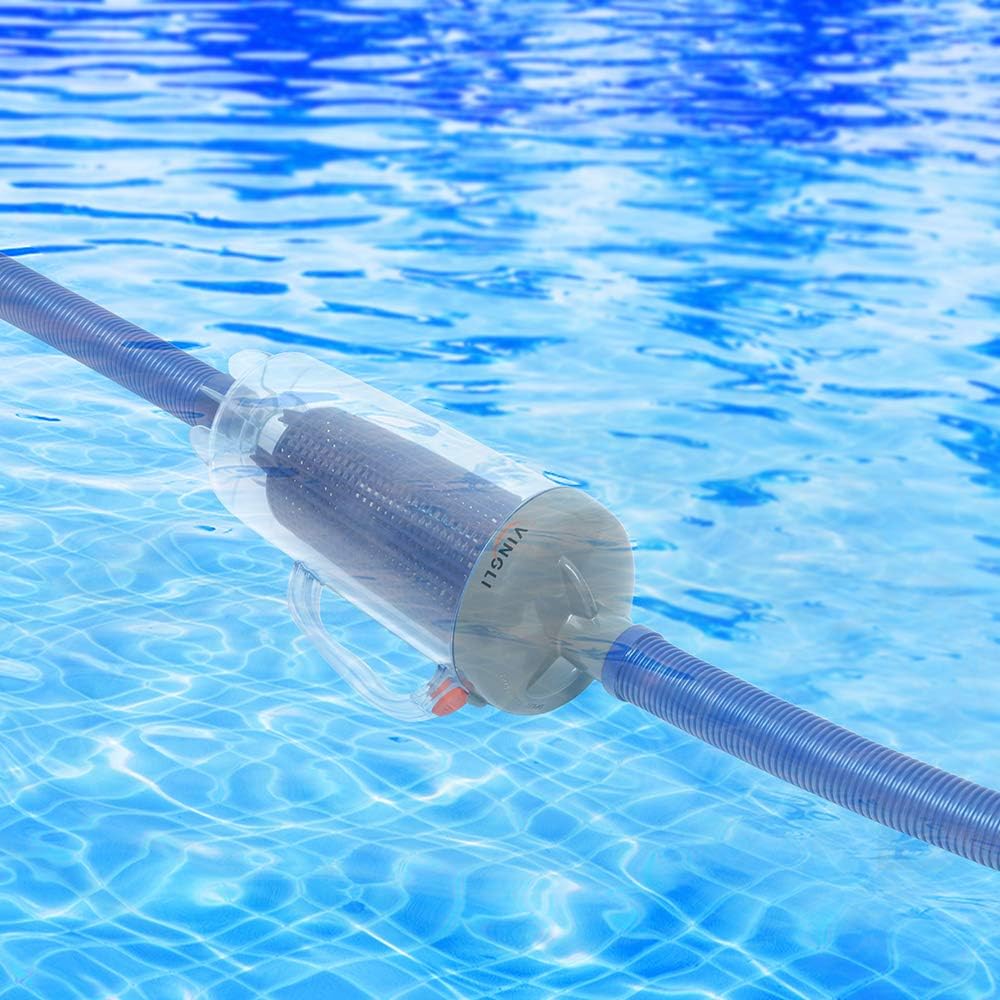

Image: The VINGLI Leaf Canister connected in-line with a pool vacuum hose, submerged in a swimming pool.
Image: The VINGLI Leaf Canister connected to an automatic pool cleaner, operating in a swimming pool.
Operating Instructions
The VINGLI Leaf Canister operates in conjunction with your automatic pool cleaner. Its clear body allows for easy visual monitoring of the debris level.
Emptying the Debris Basket:
When the clear canister body indicates that the mesh basket is full, it needs to be emptied to maintain optimal performance.
- Turn Off Pool Pump: Before handling the canister, ensure your pool pump is turned off to stop water flow and suction.
- Remove Canister from Water: Carefully lift the canister out of the pool.
- Open the Lid: To open the lid, hold down the orange release button located on the handle and simultaneously turn the lid counterclockwise.
- Remove and Empty Basket: Lift out the mesh basket and discard the collected debris.
- Clean Basket: Rinse the mesh basket thoroughly with a garden hose to remove any remaining small particles.
- Reinsert Basket: Place the clean mesh basket back into the clear canister body, ensuring it is seated correctly.
- Close the Lid: Align the lid with the canister body, press down, and turn it clockwise until it clicks securely into place. Ensure the lid is tightly sealed to prevent air leaks.
- Resume Operation: Re-submerge the canister and restart your pool pump.
Image: A three-panel image illustrating the process of opening the canister: pressing the button, twisting the lid counterclockwise, and removing the lid to access the basket.
Maintenance
Regular maintenance ensures the longevity and efficient operation of your VINGLI Leaf Canister.
- Basket Cleaning: Always rinse the mesh basket after emptying to prevent debris buildup and maintain optimal water flow.
- Lid Seal Lubrication: Periodically apply a silicone-based lubricant to the O-ring seal on the lid. This helps maintain a tight seal and makes opening and closing the lid easier.
- Hose Connection Check: Regularly inspect the hose connections for any signs of wear, cracks, or loose fittings that could lead to air leaks.
- General Cleaning: Clean the clear canister body with mild soap and water as needed to maintain visibility. Avoid abrasive cleaners.
Troubleshooting
If you encounter issues with your VINGLI Leaf Canister, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty Opening the Lid | Lid is overtightened, O-ring is dry, or debris is lodged in the seal. | Ensure you are holding down the orange release button while turning the lid counterclockwise. Apply silicone lubricant to the O-ring. Clean any debris from the lid and canister threads. |
| Reduced Suction or Air Leaks | Lid not sealed properly, loose hose connections, or damaged O-ring. | Ensure the lid is securely closed and clicked into place. Check all hose connections for tightness. Inspect the O-ring for cracks or damage and replace if necessary. |
| Canister Not Collecting Debris Effectively | Mesh basket is full, or there is a loss of suction. | Empty and clean the mesh basket. Refer to "Reduced Suction or Air Leaks" troubleshooting steps. |
Specifications
| Feature | Detail |
|---|---|
| Brand | VINGLI |
| Model Name | VINGLI 1088 |
| Material | Plastic |
| Color | Blue & Grey |
| Item Weight | 1.34 Kilograms |
| Capacity (Length) | 17.71 Inches |
| Installation Type | Manual |
| UPC | 810158422148 |
Image: A diagram illustrating the key dimensions of the VINGLI Leaf Canister, including length and diameter.
Warranty Information
The VINGLI Leaf Canister (Model VINGLI 1088) comes with a Lifetime Warranty. This warranty covers manufacturing defects and ensures the product's quality under normal use. Please retain your proof of purchase for warranty claims.
Customer Support
For any questions, concerns, or assistance with your VINGLI Leaf Canister, please contact VINGLI customer service. Refer to the product packaging or the VINGLI official website for current contact information.
