1. Overview
The T-Fal Access Steam Minute Travel handheld steamer (Model DT7050) is designed for quick and efficient garment care, ideal for both home use and travel. This compact device offers dual voltage compatibility (120V/240V), making it suitable for international use. It provides continuous steam to relax creases, refresh fabrics, and sanitize clothes by killing up to 99.9% of known bacteria.

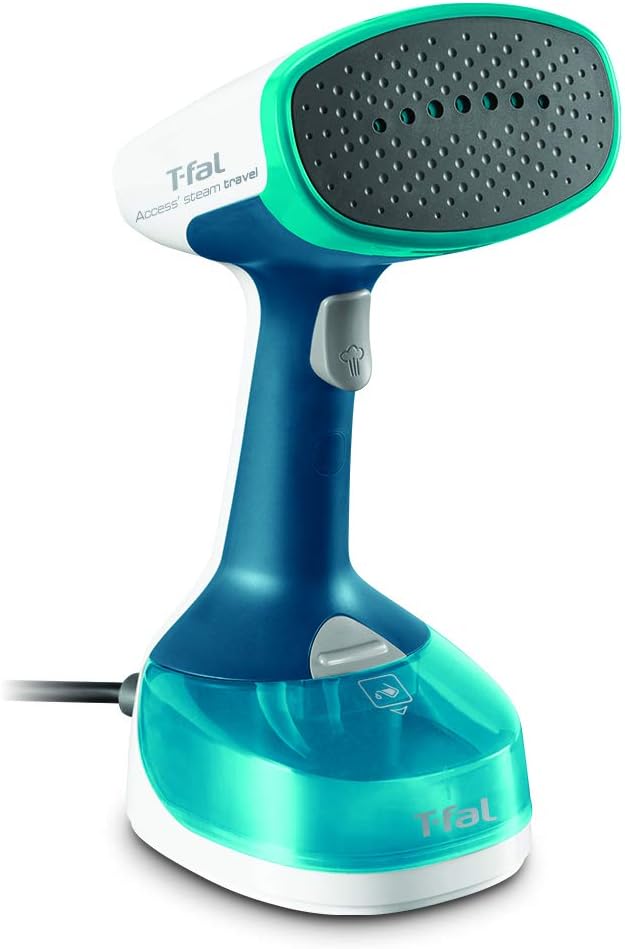

Figure 1: T-Fal Access Steam Minute Travel Handheld Steamer.
2. Key Features
- Compact Dual Voltage Design: Supports 120V and 240V, making it suitable for international travel. Its small size (24.5cm tall) allows for easy packing.
- Rapid Heat-Up: Ready to use in approximately 45 seconds.
- Continuous Steam Output: Delivers 17g/min of continuous steam for effective crease removal and sanitization.
- Fabric Versatility: Features a single steam setting that is safe for use on all fabric types, including delicates, with no risk of burning.
- Removable Water Tank: A 0.15L capacity water tank is easily removable for convenient refilling, providing up to 8 minutes of continuous steaming.
- Extended Reach: Equipped with a 2-meter power cord for flexible movement during use.
- Self-Standing Base: Designed with a stable base for safe placement and storage.
- Included Accessories: Comes with a door hook, fabric brush, steam bonnet, and a travel bag for enhanced usability and portability.
3. Setup
- Unpack the Steamer: Carefully remove the steamer and all accessories from the packaging. Ensure all components listed in the manual are present.
- Fill the Water Tank: Remove the 0.15L water tank from the base of the steamer. Fill it with tap water up to the maximum fill line. Reinsert the water tank securely into the steamer.
- Select Voltage (for international travel): If traveling internationally, ensure the dual voltage switch (if present and accessible) is set to the correct voltage for your region (120V or 240V). The steamer is designed to automatically adapt to the voltage.
- Attach Accessories (Optional): Depending on your steaming needs, attach the desired accessory:
- Fabric Brush: For better steam penetration and a smoother finish on thicker fabrics like coats or upholstery.
- Steam Bonnet: To help prevent water drips and protect delicate fabrics from direct contact with the steam plate.
- Door Hook: Use the included door hook to hang garments for convenient steaming anywhere.
- Position the Steamer: Place the steamer on a stable, flat surface using its self-standing base, or hold it upright.
- Connect to Power: Plug the 2-meter power cord into a suitable electrical outlet.
4. Operating Instructions
- Power On: Once plugged in, the steamer will begin to heat up. The indicator light will show when it is heating.
- Wait for Heat-Up: Allow approximately 45 seconds for the steamer to reach its operating temperature. The indicator light will change or turn off when ready.
- Begin Steaming: Hold the steamer upright, ensuring the steam plate is facing the fabric. Press and hold the steam trigger to release continuous steam.
- Steam Garments: Move the steamer slowly over the fabric, from top to bottom, allowing the steam to penetrate and relax the fibers. For stubborn creases, pass over the area multiple times.
- Using Accessories:
- When using the fabric brush, gently press it against the fabric while steaming.
- The steam bonnet should be placed over the steam plate to protect delicate materials.
- Hang garments on the door hook for easy vertical steaming.
- Refilling Water: If the water tank runs empty during use, the steam output will stop. Unplug the steamer, remove the water tank, refill it, and reinsert it before plugging the steamer back in to resume operation.
- Power Off: When finished steaming, release the steam trigger and unplug the steamer from the electrical outlet.
- Cool Down: Allow the steamer to cool down completely on its self-standing base before storing.
5. Maintenance and Care
Regular maintenance ensures optimal performance and extends the lifespan of your T-Fal Access Steam Minute Travel steamer.
- Empty Water Tank: After each use, always empty any remaining water from the tank to prevent mineral buildup and odors.
- Clean Exterior: Wipe the exterior of the steamer with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Clean Steam Plate: If mineral residue builds up on the steam plate, gently wipe it with a damp cloth. For stubborn deposits, a solution of equal parts water and white vinegar can be used on a cloth, then wipe clean with plain water. Ensure the steamer is unplugged and cool before cleaning.
- Accessory Care: The fabric brush and steam bonnet can be hand washed with mild soap and water, then air-dried completely before reattaching or storing.
- Storage: Store the steamer in a dry place, preferably in its travel bag, once it has completely cooled down and is empty of water.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No steam or weak steam output. | Water tank is empty or low. Steamer not heated sufficiently. Mineral buildup. | Refill water tank. Allow 45 seconds for heat-up. Clean steam plate and internal components if necessary (refer to maintenance). |
| Water spitting from steam plate. | Steamer not fully heated. Overfilled water tank. Mineral buildup. | Allow steamer to fully heat up before use. Do not overfill the water tank. Perform descaling if mineral buildup is suspected. |
| Steamer not turning on. | Not plugged in correctly. Power outlet issue. | Ensure the power cord is securely plugged into a working electrical outlet. Try a different outlet. |
| Steamer gets very hot above the handle. | Normal operation for some units, but excessive heat may indicate an issue. | Ensure proper ventilation around the unit. If heat is excessive or causes discomfort, discontinue use and contact customer support. |
7. Specifications
- Model: DT7050
- Brand: Tefal
- Type: Handheld Garment Steamer
- Voltage: Dual Voltage (120V/240V)
- Heat-up Time: Approximately 45 seconds
- Continuous Steam Output: 17 g/min
- Water Tank Capacity: 0.15 Liters
- Continuous Steaming Time: Up to 8 minutes
- Power Cord Length: 2 meters
- Color: Blue/White
- Material: Iron (referring to the steam plate material)
- Included Components: Steamer unit, Fabric Brush, Steam Bonnet, Door Hook, Travel Bag
- Care Instructions: Hand Wash (for accessories/general cleaning)
- Manufacturer: Groupe SEB
- ASIN: B089FR9NXC
- UPC: 023108703703
8. Warranty and Support
The T-Fal Access Steam Minute Travel handheld steamer comes with a manufacturer's warranty.
- Warranty Period: 1 year manufacturer's warranty.
- Warranty Coverage: This warranty typically covers defects in materials and workmanship under normal use. Please refer to the specific warranty documentation included with your product for full terms and conditions.
- Claiming Warranty: In case of a defect or malfunction within the warranty period, retain your proof of purchase.
- Customer Support: For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Tefal customer service. Contact information can typically be found on the Tefal official website or in the product packaging.
