Walker Edison Industrial Wood Computer Desk with 4-Shelf and Power Outlet, 60 Inch, Dark Walnut

1. Product Overview

This manual provides instructions for the assembly, operation, and maintenance of your Walker Edison Industrial Wood Computer Desk. This desk is designed to enhance your home office or gaming setup with its urban industrial style. It features a built-in USB port and AC plug-in for convenient power access, open side shelving, and a pull-out drawer for storage. The desk is constructed from warp-resistant MDF and powder-coated metal legs, ensuring durability and stability.

Image 1.1: The Walker Edison Industrial Wood Computer Desk, showcasing its design and functionality in a typical home office environment.

2. Safety Information

Please read and understand all safety information before assembling or using this product. Failure to follow these instructions may result in injury or damage to the product.

• Weight Capacity: Do not exceed the maximum weight capacity for the desktop (100 lbs), shelves (50 lbs each), or drawer (20 lbs). Overloading can cause structural failure.
• Assembly: Assemble the desk on a soft, clean surface to prevent scratches. Ensure all hardware is securely tightened before use. Periodically check and retighten hardware as needed.
• Stability: Place the desk on a level surface. Do not stand or sit on the desk.
• Electrical Safety: The integrated power supply unit contains electrical components. Do not expose it to liquids. Ensure the power cord is not pinched or damaged. Only plug into a properly grounded outlet.
• Children: Keep small parts and packaging materials away from children during assembly.

3. Setup and Assembly

Assembly of this desk requires careful attention to detail. It is recommended to have two people for assembly. Please review all steps and parts before beginning.

3.1. Required Tools (Not Included)

• Phillips Head Screwdriver
• Hammer (optional, for dowels)

3.2. Unpacking and Part Identification

Carefully unpack all components and hardware. Compare them against the parts list provided in your packaging to ensure all items are present and undamaged. If any parts are missing or damaged, contact customer support before proceeding.

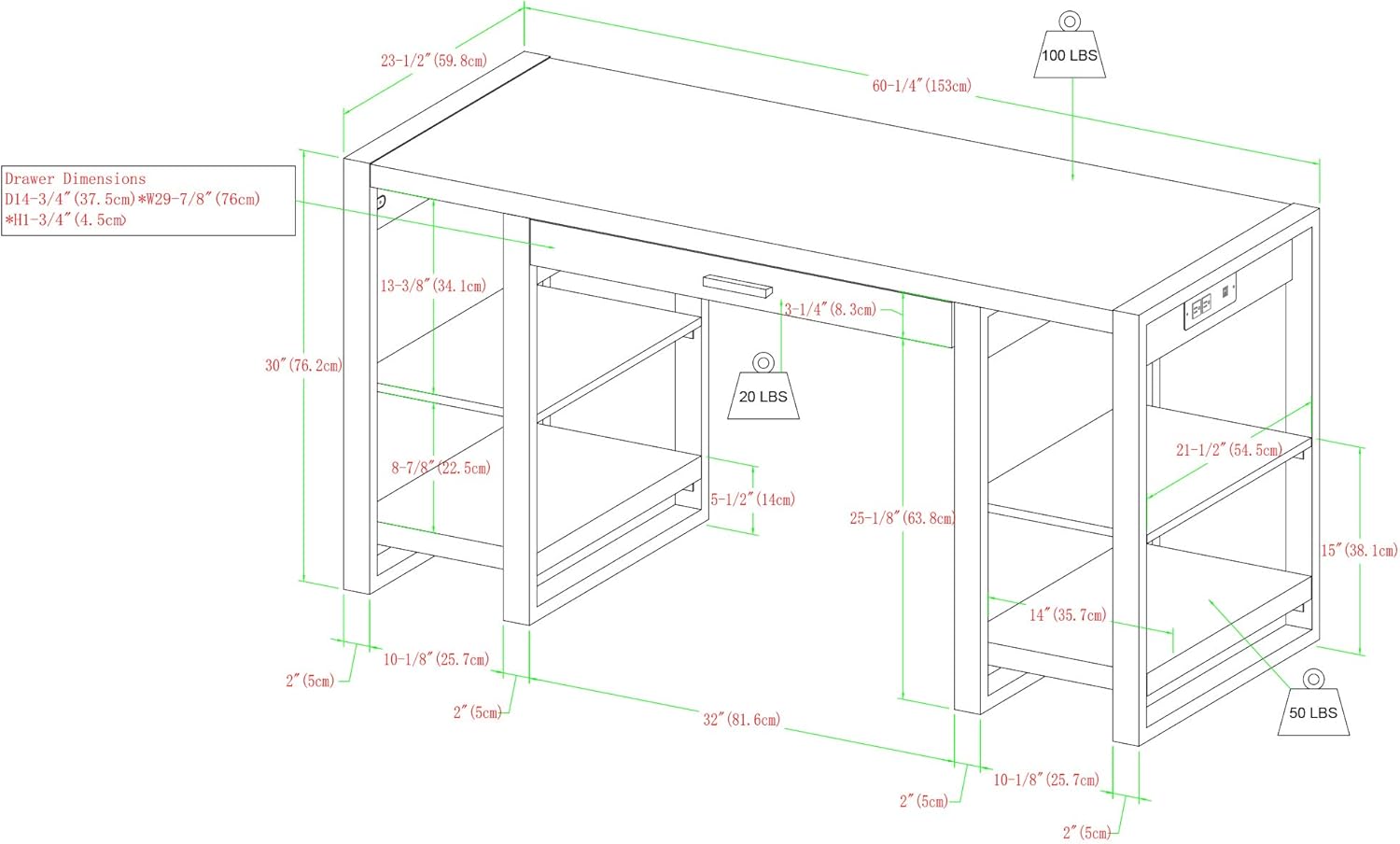

Image 3.1: Dimensional diagram of the desk, illustrating overall measurements and individual component sizes, along with recommended weight limits for the desktop, shelves, and drawer.

3.3. Assembly Steps (General Guidelines)

1. Frame Assembly: Begin by assembling the metal frame components. Ensure that the side plates and metal legs are oriented correctly as per the detailed instructions in your product packaging. Incorrect orientation in early steps can make later corrections difficult due to the desk's weight.
2. Attach Shelves: Secure the wooden shelves to the metal frame using the provided hardware. Ensure they are level and firmly attached.
3. Install Drawer Slides: Attach the drawer slides to the desk frame and the drawer box. Pay close attention to alignment. If the drawer does not fit correctly or slides smoothly, check for any misaligned welds or consider using small spacers (e.g., washers) behind the rail where screws attach to adjust the fit.
4. Assemble Drawer: Construct the pull-out drawer according to the instructions. Insert the drawer into the installed slides.
5. Attach Desktop: Carefully place the desktop onto the assembled frame and secure it with the designated hardware.
6. Install Power Unit: Integrate the USB port and AC plug-in unit into the designated slot on the desktop. Ensure all connections are secure.
7. Final Check: Verify that all screws, cam locks, and fasteners are tightened. Gently test the stability of the desk before placing items on it.

4. Operating Instructions

The Walker Edison Industrial Wood Computer Desk features an integrated power supply for convenient charging and power access.

4.1. Using the Integrated Power Outlet

1. Connect to Power: Plug the desk's main power cord into a standard, grounded wall outlet.
2. AC Outlets: Use the standard AC outlets to power devices such as monitors, lamps, or other electronics.
3. USB Ports: Use the USB ports to charge smartphones, tablets, or other USB-powered devices.

Image 4.1: A detailed view of the desk's built-in power supply, featuring two standard AC outlets and two USB charging ports for convenient device connectivity.

Important: Do not overload the power strip. Refer to the power unit's specifications for maximum wattage. Disconnect the desk from the power source when not in use or during cleaning.

5. Maintenance

Regular maintenance will help preserve the appearance and functionality of your desk.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Spills: Clean up spills immediately to prevent staining or damage to the wood finish.
• Hardware Check: Periodically inspect all screws and fasteners to ensure they remain tight. Retighten as necessary to maintain stability.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading or discoloration of the wood finish.

6. Troubleshooting

This section addresses common issues that may arise during assembly or use.

• Issue: Drawer does not slide smoothly or falls out.
  Solution: This can occur if the metal drawer slides are not perfectly aligned or if the mounting points are slightly off. Carefully inspect the welding of the metal frame where the slides attach. If there's a slight angle, try placing one or two small washers (spacers) behind the rail on the side where the screw attaches to adjust the alignment. Ensure all screws securing the slides are fully tightened.
• Issue: Cam locks break during assembly or do not secure parts.
  Solution: Ensure that the locking screws are fully inserted into the corresponding holes but not overtightened, which can prevent cam locks from catching. If holes are slightly misaligned, gently back out the screws a small amount to allow the cam lock to engage properly. If a cam lock breaks, replacement parts may be available from the manufacturer or a local hardware store.
• Issue: Desk feels wobbly after assembly.
  Solution: Double-check all fasteners, including screws and cam locks, to ensure they are fully tightened. Ensure the desk is placed on a level surface. If the floor is uneven, use furniture glides or shims to stabilize the desk.

7. Specifications

8. Warranty and Support

For warranty information or customer support, please refer to the documentation included with your product or visit the official Walker Edison website. If you have questions regarding assembly, missing parts, or product functionality, please contact Walker Edison customer service directly.
