1. Important Safeguards
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, burns, or injury to persons.
- Read all instructions before using the appliance.
- Ensure the voltage in your home corresponds to the voltage stated on the appliance's rating label.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Do not allow the cord to hang over the edge of a table or counter, or touch hot surfaces.
- To protect against electric shock, do not immerse the cord, plugs, or the appliance itself in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Do not use the appliance for other than intended household use.
- Do not heat liquids or other foods in sealed containers as they are liable to explode.
- Only use utensils that are suitable for use in microwave ovens.
- Do not operate the microwave oven when empty.
- Regularly clean the oven and remove any food deposits.
2. Product Overview
The EuropAce EMW 3201T is a 20-liter retro microwave oven designed for convenient cooking and reheating. It features a manual knob control for power and time settings, a 245mm diameter turntable, and multiple power levels.
Figure 2.1: Front view of the EuropAce EMW 3201T Retro Microwave Oven, highlighting its design and key features such as cooking capacity, power levels, turntable diameter, defrost setting, easy operation by dial control, and up to 30 minutes timer.
Components:
- Oven Cavity: The interior space where food is placed.
- Turntable: A rotating glass tray that ensures even cooking.
- Turntable Support: Holds the turntable in place and allows it to rotate.
- Door Assembly: Includes the door handle and safety interlock system.
- Control Panel: Features manual knobs for setting cooking time and power level.
- Oven Lamp: Illuminates the oven interior during operation.
3. Setup and Installation
3.1 Unpacking
Carefully remove the microwave oven and all packing materials from the carton. Check the oven for any damage, such as dents or a misaligned door. Do not operate the oven if it is damaged. Contact your retailer for assistance.
3.2 Turntable Installation
- Place the turntable support ring in the center of the oven cavity floor.
- Place the glass turntable plate on top of the support ring, ensuring it sits securely in the center hub.
- Ensure the turntable rotates freely before use.
3.3 Placement
- Place the oven on a flat, stable surface that can support its weight and the heaviest food item likely to be cooked in it.
- Allow at least 10 cm (4 inches) of space on the top, back, and sides for proper ventilation. Do not block any ventilation openings.
- Keep the oven away from heat sources and strong magnetic fields.
- Do not place the oven in a cabinet unless specifically designed for built-in installation. This model is designed for freestanding use.

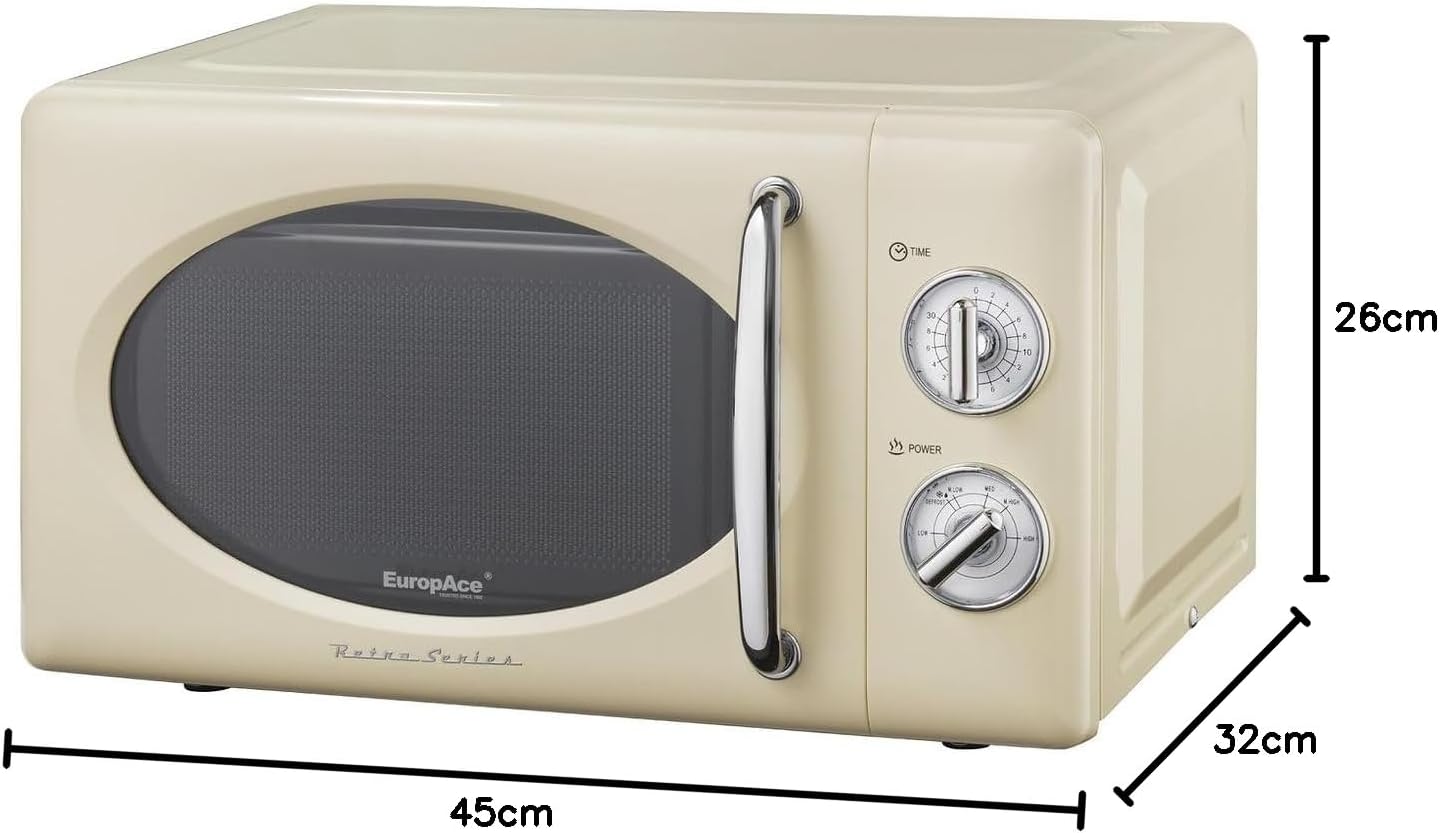

Figure 3.1: Dimensions of the EuropAce EMW 3201T Microwave Oven, showing a width of 45 cm, height of 26 cm, and depth of 32 cm. These measurements are crucial for proper placement and ventilation.
3.4 Power Connection
Plug the power cord into a properly grounded electrical outlet. Ensure the outlet is easily accessible.
4. Operating Instructions
The EMW 3201T microwave oven features simple manual knob controls for setting cooking time and power levels.
4.1 Setting Cooking Power Level
The microwave has 6 heating power levels. Rotate the lower knob (labeled "POWER") to select the desired power level:
- Low: For softening ice cream, melting butter.
- Medium-Low (Defrost): For defrosting foods.
- Medium: For simmering, slow cooking.
- Medium-High: For reheating, general cooking.
- High: For fast cooking, boiling liquids.
4.2 Setting Cooking Time
Rotate the upper knob (labeled "TIME") clockwise to set the desired cooking time, up to a maximum of 30 minutes. The oven will start cooking automatically once the timer is set.
- To stop cooking before the timer runs out, simply turn the TIME knob back to the "OFF" position.
- The oven light will illuminate and the turntable will rotate during cooking.
- A bell will sound when the set cooking time has elapsed.
4.3 Defrost Function
To defrost food, select the "Defrost" power level using the POWER knob. Then, set the desired defrosting time using the TIME knob. Refer to food packaging for recommended defrosting times.
4.4 General Cooking Tips
- Always use microwave-safe cookware.
- Cover food to retain moisture and prevent splattering.
- Stir or turn food halfway through cooking for even heating.
- Allow standing time after cooking for heat to distribute evenly.
5. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and efficient operation of your microwave oven.
5.1 Cleaning the Oven Interior
- After each use, wipe the interior with a damp cloth to remove any food splatters.
- For stubborn stains, place a bowl of water with lemon juice inside and heat for 2-3 minutes on high power. The steam will loosen the stains, making them easier to wipe away.
- Do not use abrasive cleaners or harsh chemicals, as they can damage the oven's interior finish.
5.2 Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. Avoid getting water into the ventilation openings.
5.3 Cleaning the Turntable and Support
The glass turntable and turntable support can be removed and washed in warm, soapy water or in a dishwasher. Ensure they are completely dry before placing them back in the oven.
6. Troubleshooting
If you encounter problems with your microwave oven, refer to the following table for common issues and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven will not start. | Power cord not plugged in. Door not closed properly. Fuse blown or circuit breaker tripped. | Plug into outlet. Close door securely. Replace fuse or reset circuit breaker. |
| Food not heating. | Power level set too low. Cooking time set too short. | Increase power level. Increase cooking time. |
| Turntable not rotating. | Turntable not properly seated. Debris under turntable. | Ensure turntable is correctly positioned on its support. Clean the area under the turntable. |
| Sparking in oven. | Metal or foil in oven. Damaged oven interior. | Remove any metal objects. Contact service if interior is damaged. |
If the problem persists after trying these solutions, please contact customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | EMW 3201T |
| Capacity | 20 Liters |
| Wattage | 700 watts (Microwave Output) |
| Power Input | 1150W |
| Number of Power Levels | 6 |
| Turntable Diameter | 245 mm |
| Product Dimensions (D x W x H) | 45D x 26W x 32H cm |
| Material | Stainless Steel (Inner Material) |
| Controller Type | Manual Knob |
| Special Features | Defrost, Turntable |
8. Warranty and Support
8.1 Warranty Information
This EuropAce EMW 3201T microwave oven comes with a Limited Warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration of coverage. Keep your purchase receipt as proof of purchase for warranty claims.
8.2 Customer Support
For technical assistance, service, or to inquire about replacement parts, please contact EuropAce customer support. Contact details can typically be found on the manufacturer's official website or in the warranty documentation provided with your appliance.
