Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your EuropAce EFZ 3081T Upright Freezer. Please read these instructions carefully before using the appliance and retain them for future reference.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This appliance is intended for household use only.
- Ensure the power supply matches the voltage specified on the rating label.
- Do not operate the freezer with a damaged power cord or plug.
- Keep ventilation openings clear of obstruction.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Unplug the appliance before cleaning or performing maintenance.
Setup and Installation
Unpacking
Carefully remove all packaging materials. Inspect the freezer for any damage. Report any damage to your retailer immediately. Keep packaging materials out of reach of children.
Location
Place the freezer on a firm, level surface away from direct sunlight and heat sources (e.g., stoves, heaters). Ensure adequate air circulation around the appliance. Maintain a minimum clearance of 10 cm (4 inches) from the back and sides for proper ventilation.
Leveling
The freezer is equipped with adjustable feet. Use a spirit level to ensure the appliance is perfectly level. Adjust the feet by turning them clockwise or counter-clockwise until the freezer is stable and level.

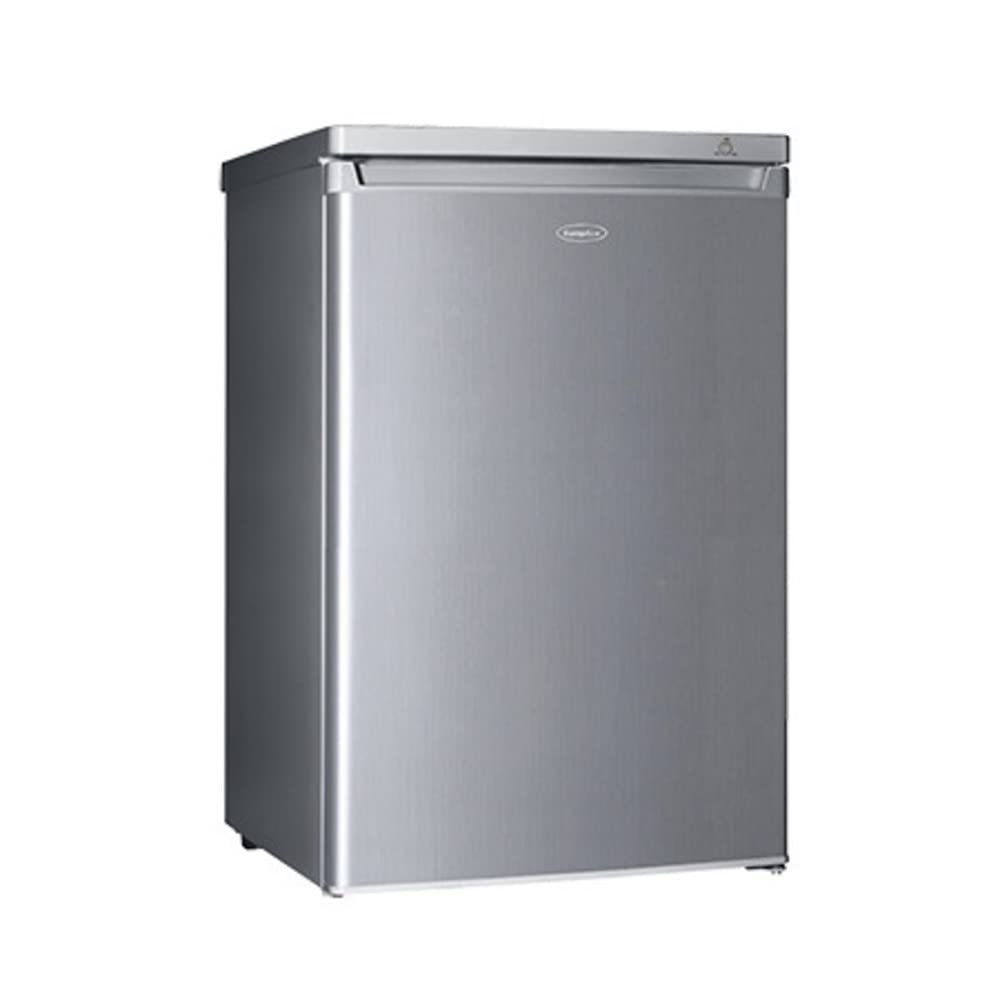

Image: Front view of the EuropAce EFZ 3081T Upright Freezer, showing its compact design and adjustable feet at the base. The freezer features a silver finish and a recessed handle.
Door Reversal
The door of the EFZ 3081T is reversible, allowing it to open from either the left or right side to suit your kitchen layout. Refer to the detailed diagram in the separate installation guide for step-by-step instructions on how to reverse the door. This process typically involves removing hinges and reattaching them on the opposite side.
Note: Door reversal should ideally be performed by a qualified technician or two people due to the weight of the door.
Initial Power-Up
After positioning and leveling, wait at least 2-4 hours before plugging the freezer into a power outlet. This allows the refrigerant to settle. Once plugged in, set the temperature control to the desired setting. Allow the freezer to operate for several hours empty before loading with food.
Operating Instructions
Temperature Control
The freezer features an adjustable thermostat. Turn the dial to select the desired temperature. A higher number typically indicates a colder setting. For optimal food preservation, a temperature of -18°C (0°F) or colder is recommended.
Loading the Freezer
The EFZ 3081T comes with 4 crystal drawers for organized storage. Distribute food evenly to allow for proper air circulation. Avoid overloading drawers, as this can impede freezing performance.
Image: The interior of the EuropAce EFZ 3081T Upright Freezer, displaying four transparent crystal drawers designed for efficient organization of frozen goods.
Magnetic Door Seal
The reversible door is equipped with a magnetic seal to ensure a tight closure, preventing cold air from escaping and maintaining energy efficiency. Ensure the door is fully closed after each use.
Power Failure Storage
In the event of a power failure, the freezer can maintain food temperature for up to 16 hours, provided the door remains closed. Minimize opening the door during power outages to preserve the internal temperature.
Maintenance and Cleaning
Defrosting
This freezer is a manual defrost model. Frost buildup on the interior walls is normal and should be removed periodically to maintain efficiency. To defrost:
- Unplug the freezer from the power outlet.
- Remove all food items and store them in another freezer or cooler.
- Leave the freezer door open to allow frost to melt naturally. Place towels at the bottom to absorb water.
- Once defrosted, clean the interior and dry thoroughly before plugging it back in and reloading food.
Cleaning the Interior
Clean the interior regularly with a solution of mild detergent and warm water. Avoid abrasive cleaners or sharp objects that could damage the surfaces. The crystal drawers are removable for easy cleaning.
Cleaning the Exterior
Wipe the exterior surfaces with a soft cloth dampened with water and a mild detergent. For the removable plastic top, it can be cleaned separately. Ensure the back condenser coils are free of dust and debris for efficient operation.
Troubleshooting
Before contacting service, check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer does not operate | No power; plug loose; circuit breaker tripped. | Check power supply; ensure plug is secure; reset circuit breaker. |
| Freezer not cold enough | Temperature setting too warm; door opened frequently; excessive frost buildup; poor ventilation. | Adjust thermostat to colder setting; minimize door openings; defrost the freezer; ensure adequate clearance around the unit. |
| Excessive noise | Freezer not level; objects vibrating against the unit. | Level the freezer using adjustable feet; ensure nothing is touching the back or sides. |
| Door does not close properly | Door seal dirty or damaged; freezer not level; food obstructing closure. | Clean or replace door seal; level the freezer; rearrange food items. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | EFZ 3081T |
| Brand | EuropAce |
| Capacity | 85 Liters |
| Door Orientation | Reversible |
| Number of Drawers | 4 (Crystal Drawers) |
| Installation Type | Freestanding |
| Door Material Type | Metal |
| Handle Type | Recessed |
| Special Features | Adjustable feet, Magnetic door seal, Removable plastic top |
| Power Failure Storage | Up to 16 hours |
Warranty and Support
Warranty Information
The EuropAce EFZ 3081T Upright Freezer comes with a 5-year warranty. This warranty covers manufacturing defects and faulty workmanship under normal household use. Please retain your proof of purchase for warranty claims.
For full terms and conditions of the warranty, please refer to the warranty card included with your product or visit the official EuropAce website.
Customer Support
If you encounter any issues not covered in the troubleshooting section or require technical assistance, please contact EuropAce customer support:
- Website: www.europace.com.sg
- Service Hotline: Refer to your warranty card or the EuropAce website for local contact numbers.
- When contacting support, please have your model number (EFZ 3081T) and purchase date ready.
